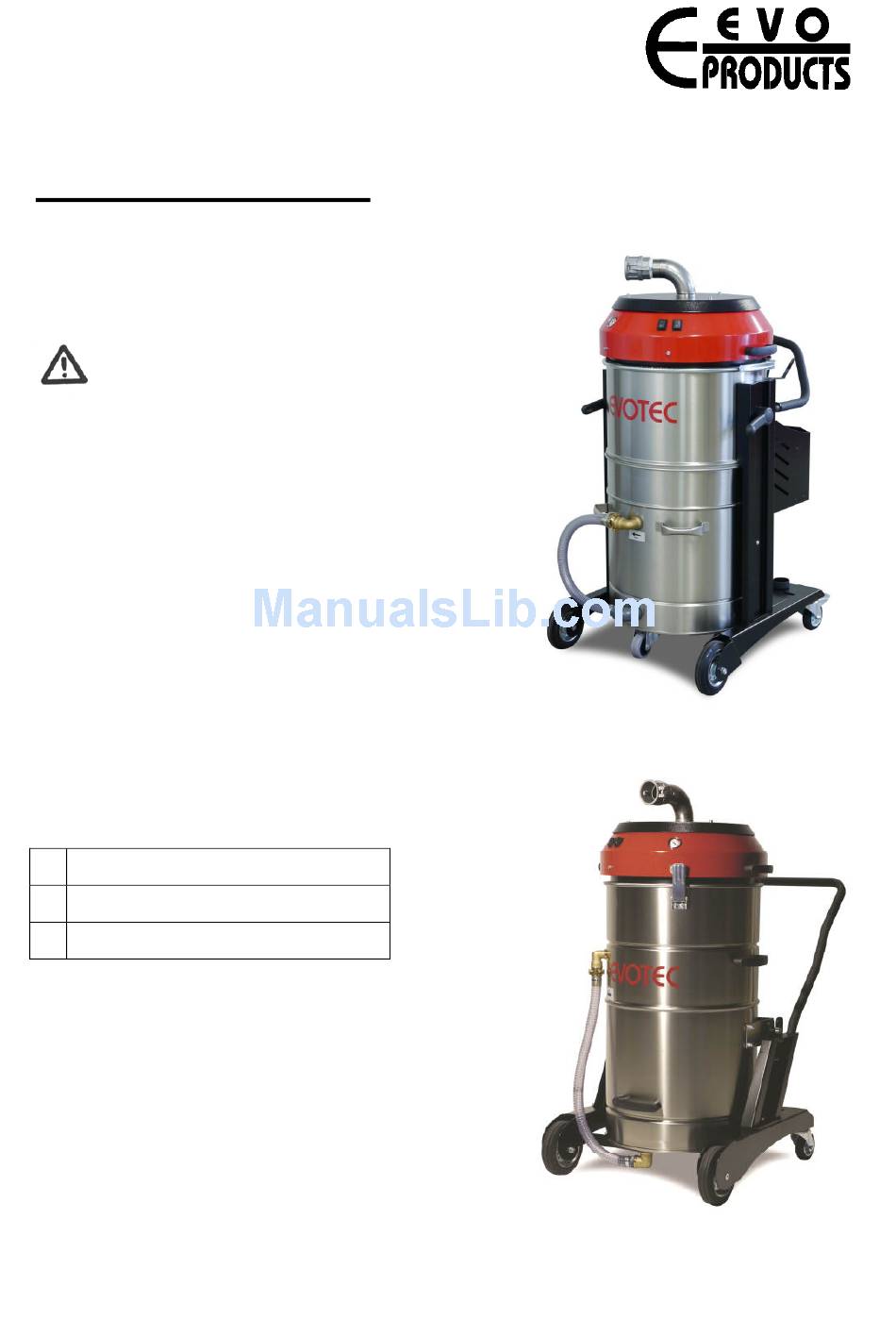

Instruction Manual
Read the instruction manual
carefully before using the
equipment for the first time
and before carrying out any
maintenance work.
For the following models:

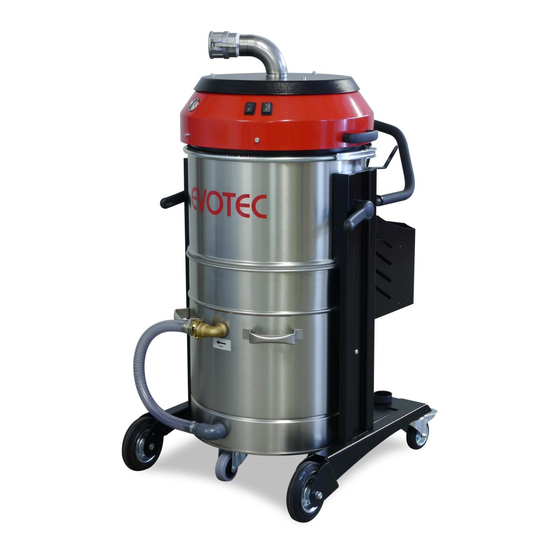

EP 1236-100
EP 1236-100 Sensor
EP 1236-140
Serial number:
__________________________________________
(status: August 2011)
Page 1
Advertisement
Table of Contents
Summary of Contents for EVO Products EP 1236-100
-
Page 1: Instruction Manual
Instruction Manual Read the instruction manual carefully before using the equipment for the first time and before carrying out any maintenance work. For the following models: EP 1236-100 EP 1236-100 Sensor EP 1236-140 Serial number: __________________________________________ (status: August 2011) Page 1... -
Page 2: Table Of Contents
Page 2 Table of contents: 1. Introduction 2. General information/Identifying data Description of the nameplate 3. General safety precautions 4. Important technical information 5. Delivery Unloading, unpacking Installing the vacuum cleaner Connecting to the power supply 6. Switching on and off Duty time 7. -
Page 3: Introduction
Page 3 1. Introduction The person using this equipment is responsible for its operational safety. Read the instruction manual carefully before using the equipment for the first time and before carrying out any maintenance work. Operators must be aware of potential accident risks and have received instruction in respect of appropriate safety precautions. - Page 4 Page 4 • Prior to installation, first use, maintenance or use of the vacuum cleaner, you must first familiarise yourself thoroughly with the content of this instruction manual. • Only authorised persons may use the equipment. • Do not wear open or loose clothing which may get caught in the vacuum cleaner. •...
-
Page 5: Important Technical Information
Page 5 4. Important technical information Caution! The equipment must be earthed. The equipment is fitted with a cable which features an earth conductor and an earth connector. The connector must be plugged into an appropriate earthed power socket which has been installed in compliance with local standards and regulations. -
Page 6: Delivery
Page 6 5. Delivery Unloading and unpacking The equipment is supplied packed on a pallet. On receipt, please check the equipment for visible or concealed damage. If you discover evidence of damage, report this immediately to the carrier, ensuring that the relevant details are confirmed and recorded. Caution! Only a forklift truck with sufficient carrying capacity should be used to lift the equipment. -
Page 7: Switching On And Off
Page 7 The cable may only be replaced with one of the type H07 RN-F 3G 1,5 mm² with a fuse of 16 Ampere. 6. Switching on and off Caution! Only authorised persons may operate this industrial vacuum cleaner. The user must check compliance with all protective measures and safety precautions. -
Page 8: Appropriate Use
• Switch off the machine by actuating the ON/OFF switch. • The liquid can be drained through the draining hose. • EP 1236-100: Lower the dirt container through the levers on both sides EP 1236-140: Loosen tension clamps and take down the motor head •... - Page 9 Page 9 9. Cleaning or changing of the cartridge filter The cartridge filter is installed under the lid of the dirt container (suction lid). This cartridge filter prevents the intrusion of dirt into the motor. If the cleaner operates with diminished capacity, the cartridge filter has to be cleaned. If the cartridge filter itself is damaged, it must be replaced by a cartridge filter of the same construction and same characteristics.
-
Page 10: Checks And Inspections
Page 10 Checks and inspections Prior to every shift Check that: • All seals are tight. • All safety devices are fully operational. • The dirt box is empty. • The filter is in good working order (see pressure gauge). If the pointer is in the red zone, clean the filter or check the tubes/hoses. - Page 11 Page 11 Motor not running Switch, supply cable, connector or fuses are faulty. • Solution: Have the faulty component checked by a qualified electrician and replaced if necessary. If indicator light is on: Dirt box is full. • Solution: Empty the dirt box. If indicator light is on: Probe used for checking the liquid level is heavily •...
- Page 12 EVO-PRODUCTS Blankenburg GmbH, Dieselstraße 3, D – 53424 Remagen Erklärt hiermit dass die folgenden Modelle: hereby declares that the following models: EP 1236-100, EP 1236-100 Sensor, EP 1236-140 Folgenden Normen und Vorschriften entsprechen: meet the requirements of the following standards and regulations:...
- Page 13 EVOTEC Accessories for wet- and swarf-vacuum cleaner Swarf basket 60 litres Bottom height adjustable from 190 to 375 mm Instead of separating plate optional 053-3090 To buy for replacement as a spare part 054-30075 Cartridge filter for swarf and emulsion vacuum cleaner EP 1236, to buy for replacement 1,0 m², dia.
- Page 14 EVOTEC EVOTEC – Accessory sets Machine cleaning set optimised for cleaning production machines. Consisting of bulk suction nozzle, beveled tube rubber nozzle, pointed rubber nozzle and round brush nozzle dia. 40 mm = 052-1080 dia. 50 mm = 052-1070 Industrial floor cleaning set for cleaning all floors.
- Page 15 EVOTEC PUR hose and - components Metal hose and - components Hosematerial of polyuhrethane (PUR), enhanced with integrated spiral made of steel with convenient couplers. Oil-resistant, very solid and suitable for abrasive dusts. Hosematerial of metal, enhanced with metalbands and tightthreat. Axiale flexibility, Heat-proof up to 125°C (257°F).
- Page 16 EVOTEC Accessories Accessories Floor nozzle with carpet strip Chrome-plated curved tube and lateral rollers dia. 36 mm = 052-0014 dia. 40 x 400 mm = 052-0118 dia. 40 mm = 052-0111 dia. 50 mm = 052-0209 Replacement carpet strip = 052-0030 Aluminium floor nozzle with rollers and Chrome-plated hand tube Brush strip...
