Summary of Contents for YunCore XD9500S
-
Page 1: User Manual

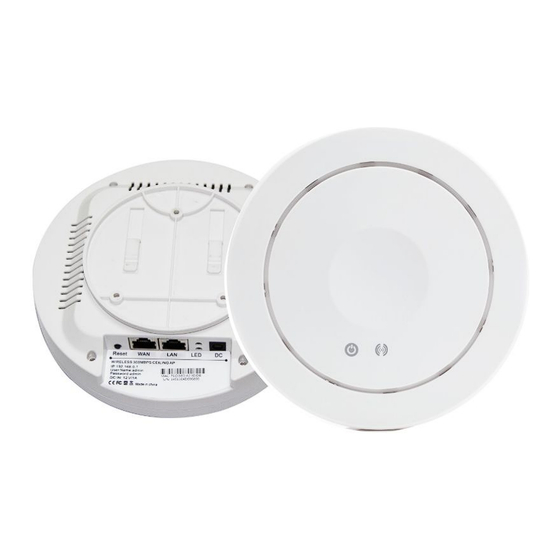

Ceiling Wireless Access Point User Manual XD9500S / XD9508S / XD9600S / XD9610S Version V1.0... -
Page 2: Packing Detail
LAN: Flashing mean LAN Port working WAN: Flashing mean WAN Port working 1. For XD9500S and XD9600S, comply with Passive PoE, then the WAN/LAN Ports are PoE ports. 2. For XD9508S and XD9610S, comply with 802.3af PoE, WAN Port is the PoE Port. - Page 3 User Manual of Ceiling AP B. Powered by PoE Adapter, The connection diagram showed as P1, internet cable connect to PoE adapter’s LAN Port, Ceiling AP’s WAN port connect to PoE adapter’s PoE Port, then PC will access into ceiling AP through cable or wireless C.
- Page 4 User Manual of Ceiling AP Gateway Wi-Fi Repeater: The ceiling AP can extend the existing wifi range if it signal is weak. The connection shows as follows: Ceiling AP can search the existing wifi signal then connect it wirelessly, then PC or end user can access into ceiling AP wireless/wired.
- Page 5 User Manual of Ceiling AP P 6 Check Local Area Connection P7 Assign IP address for PC 3）Wireless Connection between ceiling AP and PC Assign an IP address for PC’s wireless LAN card as 192.168.188.X(X can be selected from 2-254) , then view available wireless networking, then refresh network list, choose SSID: XD9610S, input the password: 66666666, then connect.
- Page 6 User Manual of Ceiling AP Wireless Network List 4) Click Internet Explorer and input 192.168.188.253 on the address bar, then press Enter, a login page will pop up, input admin/admin in user name/password, then press Enter. P 10 Login Operation Mode How to set ceiling AP through Quick Guide: after Log in and enter into the WEB interface page, you can find some basic information of this wireless AP, such as SSID, Channel, Operation Mode, Software Version, Hardware Version, System Tools...The default operation mode is Wireless AP.
- Page 7 User Manual of Ceiling AP P 11 Qu i c k Se t u p Gateway：Pls click “Internet Settings” on P11, then will pop up a window showed as P12, then choose PPPOE or Dynamic IP, then can modify the SSID, Channel, Password. If choose Dynamic IP in WAN Setting, then input the right info, then click apply and sure to finish.
- Page 8 User Manual of Ceiling AP P13 Change Operation Mode WiFi Repeater： Click wifi repeater in quick setup, following page will be showed, click scan AP, choose the right SSID(take ZMK for example), then input password of ZMK if have, then apply. Then waiting seconds for AP’s restarting.
- Page 9 User Manual of Ceiling AP P15 Select AP AP Operation Mode: Click Wireless Coverage, then operation mode is wireless access point, plug and play, it will pop up the following window. In this page, user can change AP’s SSID, password, channel...then Apply to finish.
- Page 10 User Manual of Ceiling AP : IP Settings and Status Checking IP Settings: the wireless AP will restart after configure the settings, set PC’s IP address as obtain an IP address automatically, PC and other equipment can access into top router or switch, then access into internet successful.
-
Page 11: Troubleshooting
User Manual of Ceiling AP User: set the admin and password for ceiling AP Log: Log Enable or disable, or view the system log from here Firmware upgrade: Upgrade new firmware improve systems’s performance and stability. System Time: set Wireless AP’s system time, or optimize system time’s intervals.
