Exhibio M-500 Setup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
®
F
t
s
G
irst
ime
etup
uide
www.exhibio.com
1.877.EXHIBIO (394.4246)

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Exhibio M-500

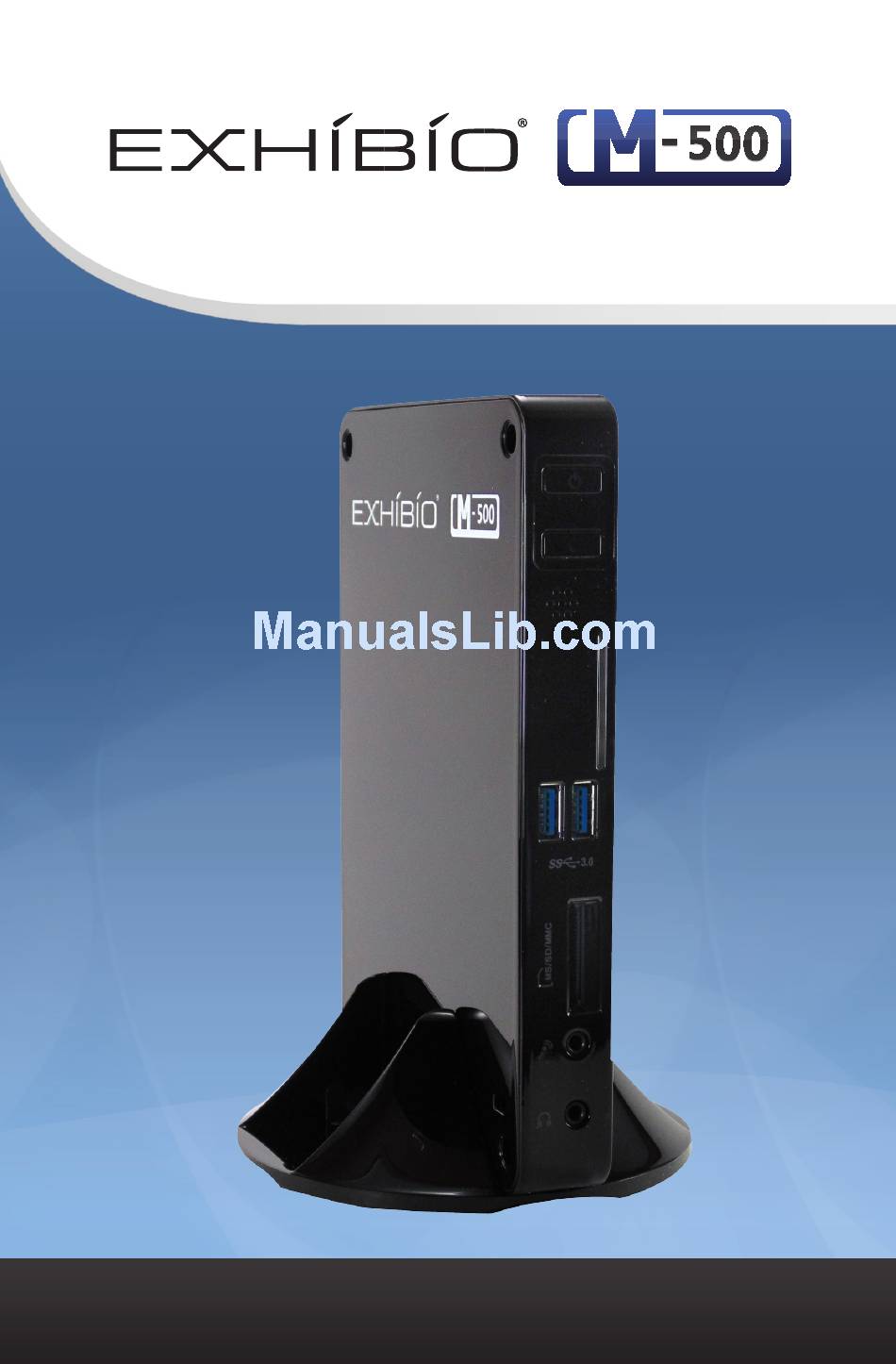

  • Page 1 ® irst etup uide www.exhibio.com 1.877.EXHIBIO (394.4246)
  • Page 2 Exhibio M-500 Components & Accessories Power Adapter Standing Mount DVI to VGA Adapter VESA Mount USB Flash Drive...
  • Page 3 Power On/Off Standby USB 3.0 Memory Card Reader Microphone In Headphone In USB 2.0 USB 2.0 HDMI Ethernet Audio Out Power Adapter In...

  • Page 4: Start Here

    Note: You may use the optional DVI to VGA adapter if required. Connect to your broadband connection Connect using either your network cable or your wireless connection. power button Power on the Exhibio unit Plug in the power to the back of the system.
  • Page 5 Initializing Enter the Administrator password and click ‘Login’. The factory-set default password is exhibio. Then Agree to the End User License Agreement that appears. Display Resolution Select the appropriate resolution for your display, and then click ‘Next’.
  • Page 6 Users and Passwords Change the Administrator and Exhibio user passwords. Please write down the username and password for both the administrator and Exhibio User accounts. System Information Write down the network IP address of your unit. This is the address you will input into your web...

  • Page 7: System Settings

    Preferences You may check ‘Enable Automatic Logon’ which will automatically login to the correct Exhibio User upon restarting. Also, you may check ‘Enable Detailed Error Messages’. If you are finished and wish to not setup Live Video or Digital/Analog TV, click ‘Finished’...

  • Page 8: Other Instructions

    ‘OK’. You may now remove the keyboard and mouse that you previously attached to the unit. You will only need to use the Setup Utility occasionally from now on. All day-to-day content management tasks are handled by the Exhibio Manager web application. ther nstructiOns Setting up Portrait Mode 1.

  • Page 9: System Recovery

    To restore your system to its initial factory state perform the following steps. 1. Either hit <F11> at the bootup or click the ‘Factory Restore’ icon on the ‘system Settings’ tab of the Exhibio Setup Utility. 2. Click the ‘Restore System to Initial State’ button. 3. Click ‘OK’.
  • Page 10 drive will be deleted upon restoration. Do you want to continue?’. 5. The ‘System Restoration’ dialog will appear showing the progress of the restore operation. 6. Click ‘OK’ on the ‘Completed Restoration. System is going to be restarted’ dialog.
