Summary of Contents for WynMax WMBX-3011-2701 series

  • Page 1 WMBX-3011-2701 series User Manual Rev.01 Jun. 2011...

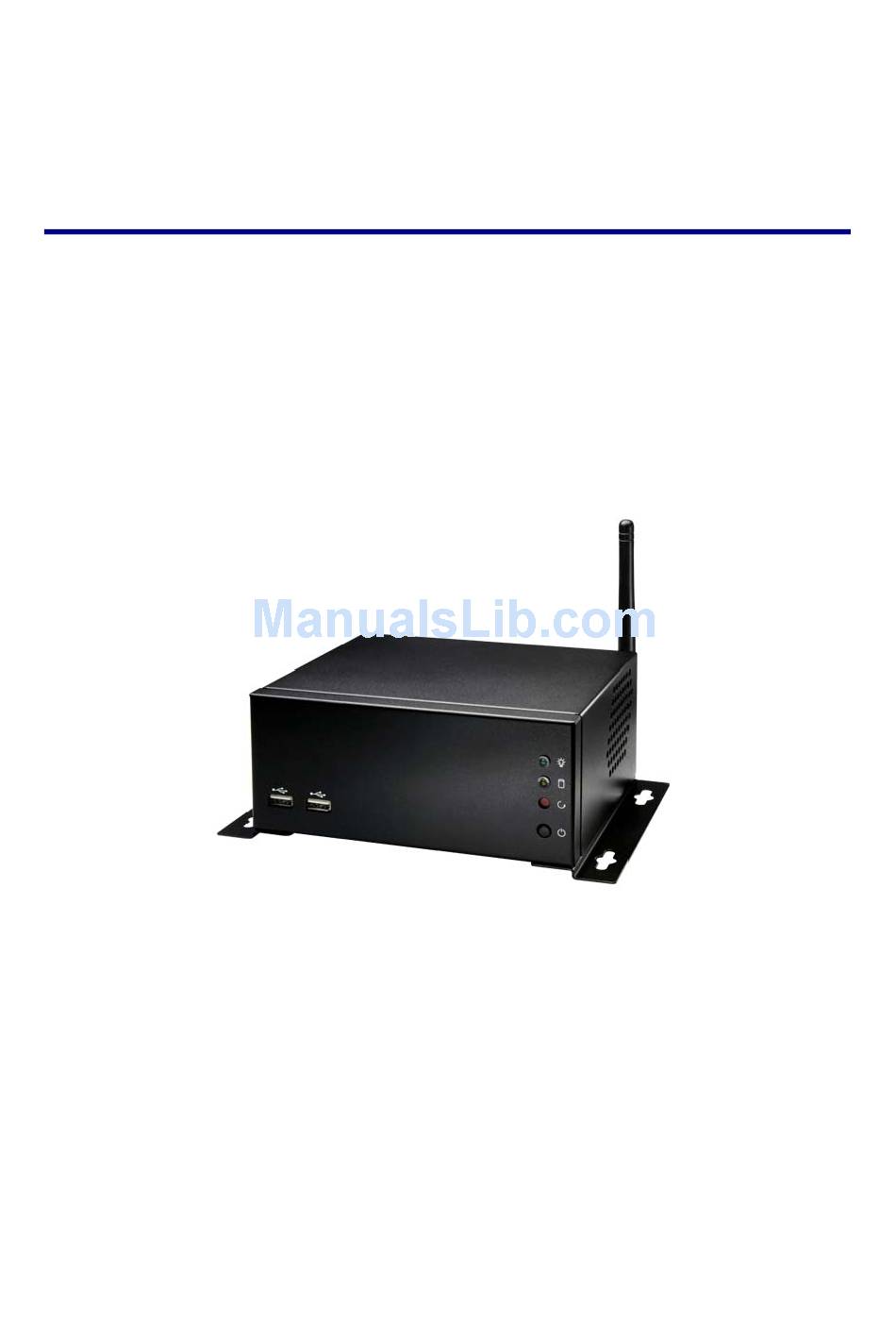

  • Page 2 Mini-BOX with Atom N270 CPU with 1xVGA, 5xCOM, 2xLAN, 4xUSB, DDR2 SODIMM max up to 2GB, CF and 2.5" HDD support, mini-PICe for WLAN expansion(option), wall mount kit, 60W DC12V Adapter, smart fan design. OPTION: □ VESA mount kit for WMBX-3011 series WMBX-3011-2701 series User Manual...

  • Page 3: Table Of Contents

    3.15 Exit Without Saving ....................44  Chapter 4 Drivers Installation ..................45  4.1 Intel Chipset Device Software ...................45  4.2 Intel Graphic Media Accelerator Driver ..............48  4.3 LAN Driver ........................51  4.4 Audio Driver ........................53  Appendix-A Watchdog .......................54  Appendix-B GPIO ........................56  WMBX-3011-2701 series User Manual...

  • Page 4: Chapter 1 Product Information

    This chapter introduces product features, jumper and connector information. 1.1 General Description The WMBX-3011-2701 series is a Mini BOX PC system that can support Atom N270 processors. WMBX-3011-2701 series support Windows® 2000, Windows® XP, Windows® XP embedded, and Windows® 7, which is suitable for the most endurable operation.

  • Page 5: Features

    AC 60W adapter, Input: AC 100~240V~2A 50-60Hz, Power Supply Output: DC12V@5A Operating Temperature 0°C~45°C (32°F~140°F) Storage temperature -20°C~80°C (-68°F~176°F) Relative Humidity 0%~90% (non-condensing) 160mm(W) x 140mm(D) x 70mm(H) Dimensions 6.3"(W) x 5.5"(D) x 2.75"(H) Gross: 2.6Kg/5.72Lb Weight Net: 2.0Kg/4.4Lb Standard Color Black WMBX-3011-2701 series User Manual...

  • Page 6: Dimensions

    1.3 Dimensions The following diagrams show dimensions and outlines of the WMBX-3011-2701 series. WMBX-3011-2701 series User Manual...

  • Page 7: I/O Outlets

    1.4 I/O Outlets FRONT 1. USB 2. USB 3. Power on button 4. Power status LED 5. HDD status LED 6. Reset button WMBX-3011-2701 series User Manual...
  • Page 8 12. VGA Port 13. COM Port (COM2) 14. COM Port (COM1) 15. Antenna hole 16. Audio (Line in) 17. Audio (Mic in) 18. Audio (Line out) 19. COM Port (COM5) 20. COM Port (COM4) 21. DC12V input WMBX-3011-2701 series User Manual...

  • Page 9: M/B Pcb Layout

    1.5 M/B PCB Layout USB3 USB2 KB/MS JIDE_SEL JCF_SEL JCMOS AUDIO (Bottom Side) DC12V_IN1 COM5 CPUFAN COM4 COM3 Mini PCI-E SATA_PWR1 LVDS18 JCOM_SEL INV18 COM2 JCOM1 COM1 SATA1 SATA2 LAN2 LAN1 USB1 DIMM JLVDS_VDD18 USB0 (Bottom Side) WMBX-3011-2701 series User Manual...

  • Page 10: Jumper Setting

    1 2 3 1 2 3 1 2 3 JCF_SEL：Compact Flash ( Master / Slave ) Select Pin No. Function Master Mode Slave Mode (Default) Jumper Setting JCOM1：COM1 (5V/12V/RI) Select Pin No. Function Modem Ring In +12V (Default) WMBX-3011-2701 series User Manual...
  • Page 11 5-6, 11-13, 12-14, 19-21, 20-22 Function RS-232 (Default) Jumper Setting JCOM_SEL：COM2 Select (2/5) Pin No. 3-4, 9-11, 10-12, 17-19, 18-20 Function RS-422 Jumper Setting JCOM_SEL：COM2 Select (3/5) Pin No. 1-2, 9-11, 10-12, 23-24 Function RS-485 Jumper Setting WMBX-3011-2701 series User Manual...
  • Page 12 Pin No. 15-16 Function RS-422 RX 100Ω Termination Jumper Setting JCOM_SEL：COM2 Select (5/5) Pin No. Function RS-422 TX 100Ω / RS-485 Termination Jumper Setting JLVDS_VDD18: Pin No. Function LCD Power 5V LCD Power 3.3V (Default) Jumper Setting WMBX-3011-2701 series User Manual...

  • Page 13: Connector Function List

    INV_18 18bit LCD Inverter connector KB/MS KB/MS PS2 Connector LAN1-2 RJ-45 Connector LVDS_18 18bit LCD Connector Mini PCI-E Mini PCIE Connector SATA1-2 SATA Connector SATA_PWR1 SATA Power USB1 USBx2 Stack Connector USB2-3 USBx2 Connector VGA Connector WMBX-3011-2701 series User Manual...

  • Page 14: Internal Connector Pin Define

    COM2: RS 422 Serial Port with Box-header (2.0 mm) Pin No. Signal Pin No. Signal DCD TX- RXD TX+ TXD RX+ DTR RX- COM2: RS 485 Serial Port with Box-header (2.0 mm) Pin No. Signal Pin No. Signal DCD DATA- RXD DATA+ WMBX-3011-2701 series User Manual...
  • Page 15 FP: Front Panel Connector with Pin Header (2.54 mm) Pin No. Signal Pin No. Signal Power LED+ HDD LED+ HDD LED- Power LED- (GND) Suspend LED+ RESET+ Suspend LED- RESET-(GND) Speaker- Power Button+ Power Button-(GND) Speaker +(+5V) WMBX-3011-2701 series User Manual...
  • Page 16 Keyboard Clock LVDS_18: 18 bit LCD Connector with Box-header(1.0mm) Pin No. Signal Pin No. Signal A_CLK+ A_CLK- A_DATA2+ A_DATA2- A_DATA1+ A_DATA1- A_DATA0+ A_DATA0- B_CLK+ B_CLK- B_DATA2+ B_DATA2- B_DATA1+ B_DATA1- B_DATA0+ B_DATA0- DDC_CLK DDC_DATA +3.3V +3.3V +3.3V +3.3V WMBX-3011-2701 series User Manual...
  • Page 17 SATA_PWR1: SATA Power Connector with Box-header (2.0 mm) Pin No. Signal +12V +12V USB2-3：USB Connector with Pin Header (2.0 mm) Pin No. Signal Pin No. Signal USB DATA- USB DATA+ USB DATA+ USB DATA- WMBX-3011-2701 series User Manual...

  • Page 18: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation WMBX-3011-2701 series are convenient for various hardware configurations, such as Memory Module, HDD, Compact Flash. The chapter 2 will show you how to install the hardware. The information is shown as bellow: 2.1 Install memory module Step 1: Remove the cover screws at the bottom (2pcs).

  • Page 19: Installing The Memory Module

    2.2 Install Compact Flash Card Insert Compact Flash Card. 2.3 Install memory module Insert memory module. 2.4 Install mini-PCIe expansion module Insert mini-PCIe module (full size only). WMBX-3011-2701 series User Manual...
  • Page 20 Connect foot pad screws (4pcs). Note: Wall mount kit and foot pad only can select one 2.7 Install the VESA mount kit Connect VESA mount kit screws (4pcs). Connector Wall mount kit screws on VESA mount kit (4pcs). WMBX-3011-2701 series User Manual...

  • Page 21: Chapter 3 Bios Setup

    Power Management Setup Set User Password PnP/PCI Configurations Save & Exit Setup PC Health Status Exit Without Saving Esc : Quit ↑↓ ← → : Select Item F10 : Save & Exit Setup Time, Date, Hard Disk Type… WMBX-3011-2701 series User Manual...

  • Page 22: Standard Cmos Features

    Set system date. □ Time Set system time. □ IDE Channel 0 Master/Slave Press <Enter> for IDE device automatic detection. □ IDE Channel 1 Master/Slave Press <Enter> for IDE device automatic detection. □ Video Select Video device type. WMBX-3011-2701 series User Manual...

  • Page 23: Advanced Bios Features

    Press <Enter> to select CPU parameter. □ Hard Disk Boot Priority Press <Enter> to select Hard Disk boot device priority. □ Virus Warning Select “Virus Warning” Enabled/Disabled. □ CPU L1 & L2 Cache Select “CPU L1 & L2 Cache” Enabled/Disabled. WMBX-3011-2701 series User Manual...
  • Page 24 PCI bus configurations and improve future expandability. It is also required for a secondary PCI bus to work without the need for a bridge. Select Version 1.1 for older Operation Systems. WMBX-3011-2701 series User Manual...
  • Page 25 Win95/98. □ Full Screen Logo Show Select the full screen logo appears during the system boot-up process. □ Small Logo (EPA) Show Select EPA (Environmental Protection Agency) Energy Star logo appears during the system boot-up process. WMBX-3011-2701 series User Manual...

  • Page 26: Advanced Chipset Features

    □ Video BIOS Cacheable Select “Enabled” to caching of video BIOS at C0000h-F7FFFh, resulting in better video performance. However, if any programs are written in this memory area, the system error may be resulted. WMBX-3011-2701 series User Manual...
  • Page 27 □ DVMT/Fixed Memory Size Select DVMT/Fixed Memory Size 64MB/128MB/224MB. □ Boot Display Select boot display device type. □ LVDS Panel Setting Select LCD panel type. □ LVDS-18 Panel Type Select LCD 18 bit resolution. WMBX-3011-2701 series User Manual...

  • Page 28: Integrated Peripherals

    Menu Level Second IO Device [ Press Enter ] USB Device Setting [ Press Enter ] ↑ ↓ ← → :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults WMBX-3011-2701 series User Manual...

  • Page 29: Onchip Ide Device

    [ Auto ] SATA PORT Speed Settings Disabled PATA IDE Mode Secondary SATA Port P0,P2 is Primary ↑ ↓ ← → :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults WMBX-3011-2701 series User Manual...
  • Page 30 F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults □ Azalia/AC97 Audio Select Select Azalia/AC97 Auto/All Disabled. □ Onboard Lan Boot ROM Decide whether to invoke the boot ROM of onboard LAN chip. WMBX-3011-2701 series User Manual...
  • Page 31 Select UART mode: IrDA (Infrared) / ASKIR (Amplitude Shift Keyed Infrared) / Normal (RS232C). □ PWRON After PWR-Fail Select Power ON after Off/On. □ Watch Dog Timer Select Select Watch dog Disabled or set timer value. WMBX-3011-2701 series User Manual...
  • Page 32 :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults □ Onboard Serial Port 3/4/5 Select serial port address. □ Serial Port 3/4/5 Use IRQ Select serial port IRQ. WMBX-3011-2701 series User Manual...

  • Page 33: Usb Device Setting

    USB Storage Function for Universal Serial Bus. *** USB Mass Storage Device Boot Setting *** ↑ ↓ ← → :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults WMBX-3011-2701 series User Manual...

  • Page 34: Power Management Setup

    Resume by Alarm [ Disabled ] Date(of Month) Alarm Time(hh:mm:ss) Alarm 0 : 0 : 0 ↑ ↓ ← → :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults WMBX-3011-2701 series User Manual...
  • Page 35 Select power button function, Instant-off: Press power button will turn off instantly. Delay 4 Sec: Press power button 4 seconds to turn off. □ Power On by Ring Select Power on by Ring Indicator signal from Modem. WMBX-3011-2701 series User Manual...

  • Page 36: Pnp/Pci Configurations

    BIOS can automatically configure all boots, Plugs and Play compatible devices. If you choose Auto, you cannot select IRQ DMA and memory base address fields, since BIOS automatically has assigned them. □ PCI/VGA Palette Snoop Select PCI/VGA Palette Snoop Enabled/Disabled. WMBX-3011-2701 series User Manual...

  • Page 37: Pc Health Status

    If CPU temperature reaches the setting value will automatic shutdown system. □ CPU Warning Temperature If CPU temperature reaches the setting value will beep in DOS mode. □ CPU Smart Fan Temperature Setup CPU Smart FAN temperature. WMBX-3011-2701 series User Manual...

  • Page 38: Frequency/Voltage Control

    → :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults □ Auto Detect PCI Clk Select “Auto Detect PCI Clk” Enabled/Disabled □ Spread Spectrum Select “Spread Spectrum” Enabled/Disabled. WMBX-3011-2701 series User Manual...

  • Page 39: Load Fail-Safe Defaults

    Load Fail-Safe Defaults (Y/N)? N PC Health Status Exit Without Saving Esc : Quit ↑↓ ← → : Select Item F10 : Save & Exit Setup Load Fail-Safe Defaults This item will set configuration for non-optimized system operation. WMBX-3011-2701 series User Manual...

  • Page 40: Load Optimized Defaults

    Load Optimized Defaults (Y/N)? N PC Health Status Exit Without Saving Esc : Quit ↑↓ ← → : Select Item F10 : Save & Exit Setup Load Optimized Defaults This item will restore factory default setting for optimized system operation. WMBX-3011-2701 series User Manual...

  • Page 41: Set Supervisor Password

    PC Health Status Exit Without Saving Esc : Quit ↑↓ ← → : Select Item F10 : Save & Exit Setup Change/Set/Disabled Password If set supervisor password, it will request typing password to enter BIOS setup utility. WMBX-3011-2701 series User Manual...

  • Page 42: Set User Password

    Esc : Quit ↑↓ ← → : Select Item F10 : Save & Exit Setup Change/Set/Disabled Password If set user password will request typing password to enter BIOS setup utility, it does not allow modifying configuration. WMBX-3011-2701 series User Manual...

  • Page 43: Save & Exit Setup

    Save Data to CMOS This item confirms save configuration or not before exiting BIOS setup utility. Press <Y> and <Enter> to save configuration, then reboot system. Press <N> and <Enter> will back to BIOS setup utility. WMBX-3011-2701 series User Manual...

  • Page 44: Exit Without Saving

    Abandon all Data This item confirm save configuration or not before quit BIOS setup utility. Press <Y> and <Enter> will not save configuration, then reboot system. Press <N> and <Enter> will back to BIOS setup utility. WMBX-3011-2701 series User Manual...

  • Page 45: Chapter 4 Drivers Installation

    Operate System or appear automatically, please select corresponding driver of utility CD to install. Windows XP driver installation steps are as below. 4.1 Intel Chipset Device Software Step 1. Click “Next” to continue WMBX-3011-2701 series User Manual...
  • Page 46 Step 2. Read License Agreement and click “Yes” to continue. Step 3. Click “Next” to continue. WMBX-3011-2701 series User Manual...
  • Page 47 Step 4. Click “Next” to continue. Step 5. Click “Finish” to complete setup. WMBX-3011-2701 series User Manual...

  • Page 48: Intel Graphic Media Accelerator Driver

    4.2 Intel Graphic Media Accelerator Driver Step 1. Click “Next” to continue. Step 2. Read License Agreement and click “Yes” to continue. WMBX-3011-2701 series User Manual...
  • Page 49 Step 3. Click “Next” to continue. Step 4. Click “Next” to continue. WMBX-3011-2701 series User Manual...
  • Page 50 Step 5. Click “Finish” to complete setup. WMBX-3011-2701 series User Manual...

  • Page 51: Lan Driver

    4.3 LAN Driver Step 1. Click “Next” to continue. Step 2. Click “Install” to continue. WMBX-3011-2701 series User Manual...
  • Page 52 Step 3. Click “Finish” to complete setup. WMBX-3011-2701 series User Manual...

  • Page 53: Audio Driver

    4.4 Audio Driver Step 1. Click “Next” to continue. Step 2. Click “Finish” to complete setup. WMBX-3011-2701 series User Manual...

  • Page 54: Appendix-A Watchdog

    There are two PnP I/O port addresses that can be used to configure WDT. 1) 0x2E:EFIR (Extended Function Index Register, for identifying CR index number) 2) 0x2F:EFDR (Extended Function Data Register, for accessing desired CR) Belows are some example codes, which demonstrate the use of WDT. WMBX-3011-2701 series User Manual...
  • Page 55 Value of Count-mode Register : 1) 0x00 -- Count down in seconds (Bit3=0) 2) 0x08 -- Count down in minutes (Bit3=1) Value of Time-out Value Register : 1) 0x00 -- Time-out Disable 2) 0x01~0xFF -- Value for counting down WMBX-3011-2701 series User Manual...

  • Page 56: Appendix-B Gpio

    2) 0x2F - EFDR (Extended Function Data Register, for accessing desired CR) Belows are some example codes, which demonstrate the use of GPIOs. // Enter Extended Function Mode outp(0x002E, 0x87); outp(0x002E, 0x87); // Assign Pin121-128 to be GPIO port outp(0x002E, 0x29); outp(0x002F, inp(0x002F) | 0x01); WMBX-3011-2701 series User Manual...
  • Page 57 Each bit in the lower nibble of each Register represents the setting of a GPIO port. Super IO Pin GPIO DIO GPIO DIO-Out0 GPIO DIO-Out1 GPIO DIO-In0 GPIO DIO-In1 GPIO DIO-In2 GPIO DIO-In3 GPIO DIO-Out2 GPIO DIO-Out3 WMBX-3011-2701 series User Manual...
  • Page 58 (NOT amplified signals). Parameter Conditions VoutH 3.3V thru 10k VoutL 0V thru 1k DIO_OUT0/DIO_OUT1/DIO_OUT2/DIO_OUT3 is fixed as by BIOS. Outputs Parameter Conditions Open-drain buffer Power-on default = Open Driving Capacity max 100mA continue WMBX-3011-2701 series User Manual...
