Avery Berkel Monarch 9906 Operating Instructions

O P E R A T I N G I N S T R U C T I O N S
These instructions are for the Monarch® 9906 printer using the internal liner take-up option.
I n t e r n a l L i n e r T a k e - U p
Internal liner take-up must be used with peel mode. This feature collects the liner on a take-up
reel located inside the printer's cover. Refer to the Operator's Handbook for additional
information.
Follow the steps for loading supplies for peel mode from the Operator's Handbook and then
follow these steps.
1. Press down on the exit cover tabs to open the exit cover on the front of the printer.
Remove the labels from the first 18 inches of the liner.
2.
Position the liner take-up reel so the open notch is facing up.
3.
Position the liner take-up core so the open slot is facing up. Line up the slot in the core
4.
with the notch in the reel. Slide the empty liner take-up core on the liner take-up reel.
Feed the liner over the peel bar, under the peel roller, under the liner take-up core and
5.
around in a counter-clockwise direction.
6. Place the end of the liner in the take-up core's opening.
Note: Fold the edge of the liner to easily insert it in the core's open slot.
Supply
Liner
Monarch is a trademark of Avery Dennison Retail Information Services LLC.
Avery Dennison is a trademark of Avery Dennison Corp.
TC9906LTOI Rev. AA 8/10

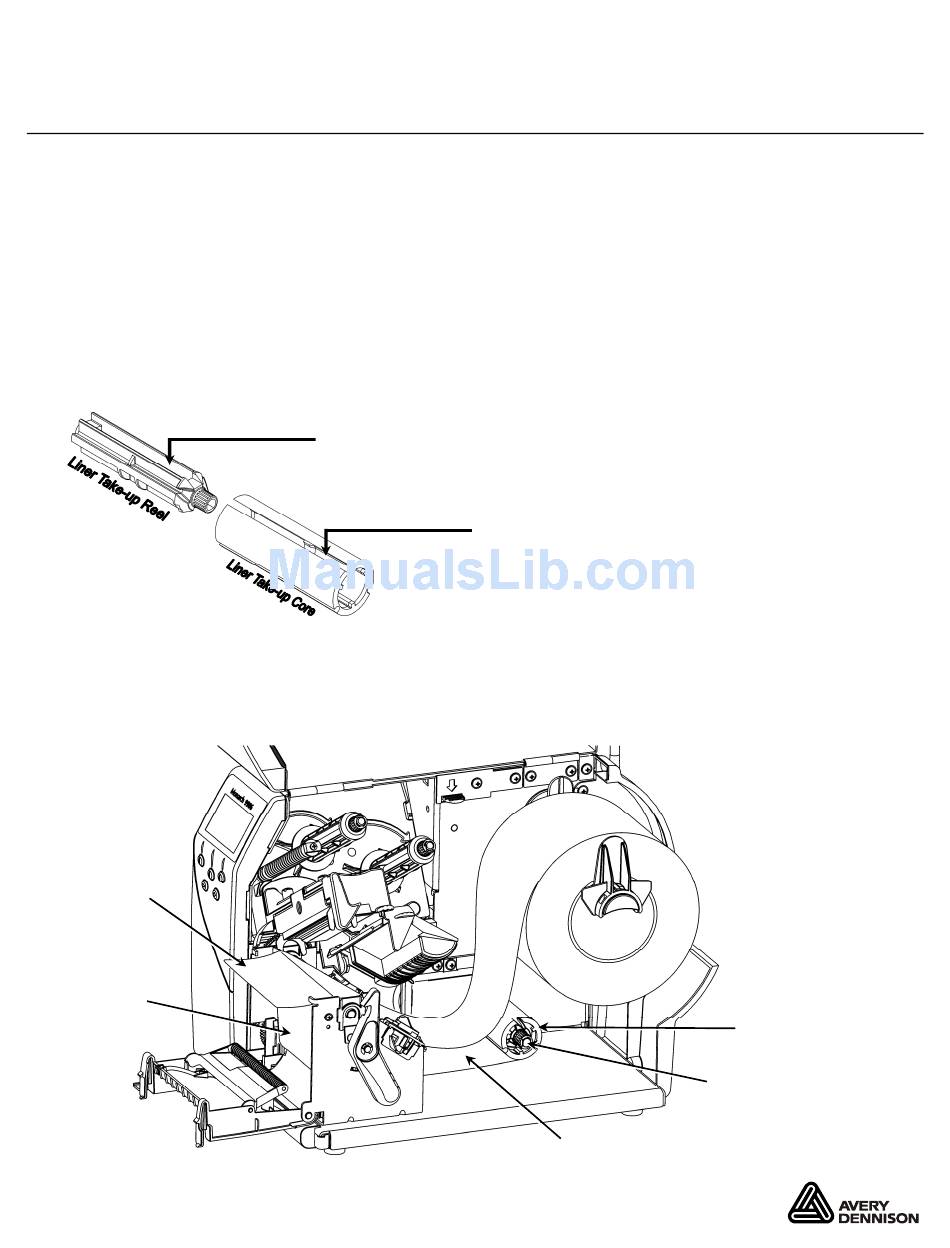

Open Notch
