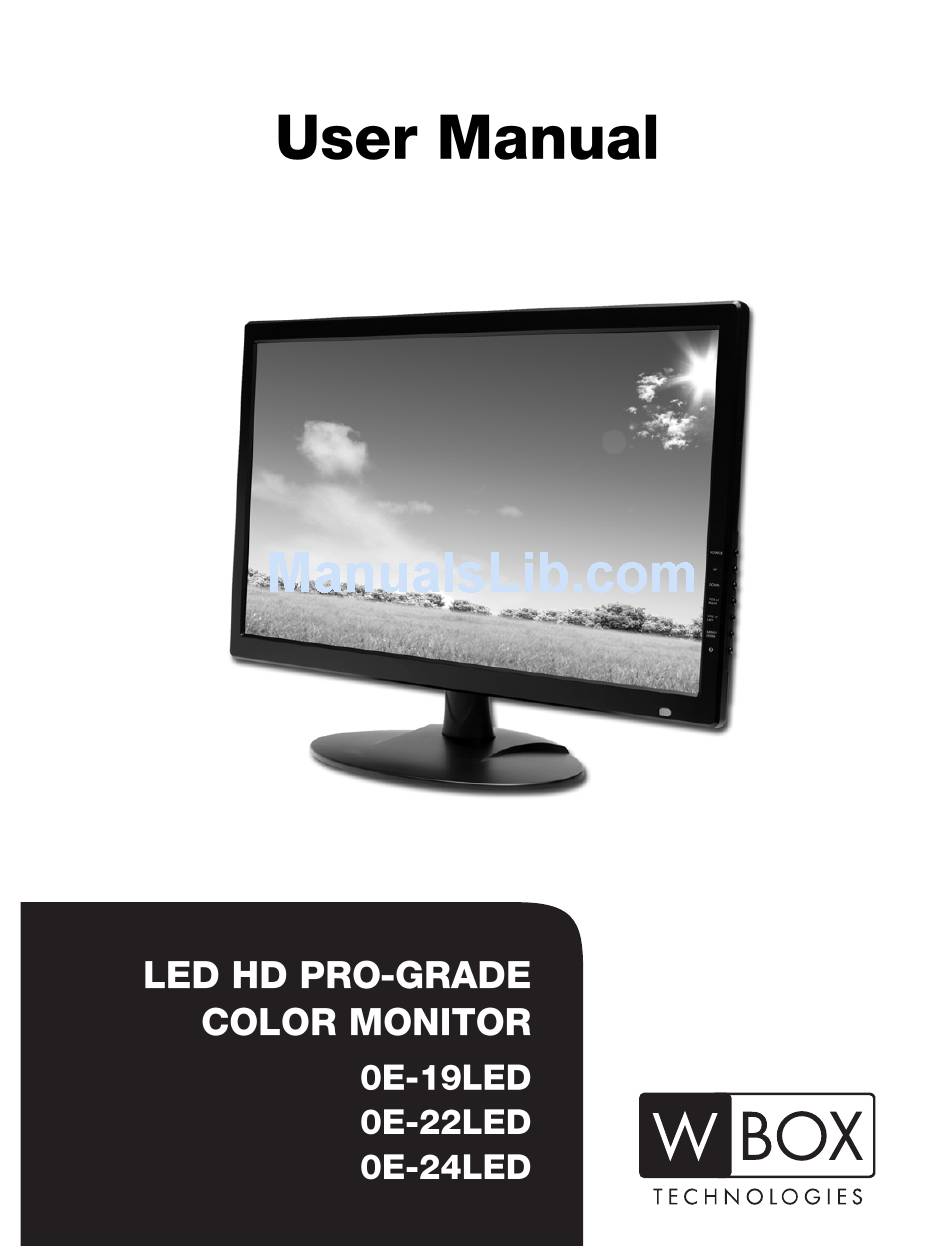

Summary of Contents for wbox OE-19LED
-
Page 2: Table Of Contents
Contents SAFETY ……………………………………………………………….………………………………….………………..…….2 CAUTIONS…………………………………………………………………………………………...…….…………………….3 FCC RF INTERFERENCE STATEMENT …………………………………….………….………………...………………...3 CONNECTING WITH EXTERNAL EQUIPMENT……………………………..…………..……………….……………….. 4 CONTROLS AND FUNCTIONS……………………………………………..………..………………………..….……..5-7 MOUNTING GUIDE ……………………………………………………………..……….……………...……….……..……..8 ACCESSORIES …………………………………………………………………………………………..…………………….8 POWER INDICATOR……………………………………………………………………………………….…………………..9 DIMENSIONS …………………………………………………………………………………………….……………………..9 SPECIFICATIONS…………………………………………………………………….……………...…………………..……10 Safety 1. Read these instructions completely and comply with all requirements. 2. Retain these instructions for reference. 3. -
Page 3: Cautions
14. If any of the following occur, disconnect the power to the monitor and refer servicing to qualified service personnel: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the monitor. C. -
Page 4: Fcc Rf Interference Statement
FCC RF Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursu- ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Controls And Functions
Controls & Menu Operation CONTROL KEYS/BUTTONS Buttons are located on the right side of the Bezel on 19~24” models. To change the input selection, press SOURCE to display the pop-up menu, use up/down to high- light the desired source, then press ENTER to complete the selection. -
Page 6: Audio Menu
cropping (Off). Note: HDMI recognizes two types of signals: „Video‟ and ‟PC‟; for PC type signals Overscan is disabled. Picture Mode: Choose for User/Vivid/Soft/Standard for most pleasing image based on ambient light. B. Picture Menu for VGA Adjustments Contrast: Adjusts the contrast between light and dark areas of the picture. - Page 7 Language: Choose OSD display language from English/Chinese/German/French/Spanish/Italian H-Position: OSD horizontal position on the screen V-Position: OSD vertical position on screen Duration: OSD Menu timeout Halftone: OSD Menu background opacity (allows viewing of the video behind the OSD menu). Reset Defaults: Restore monitor to factory default settings Version: Displays firmware version number (not adjustable).
-
Page 8: Mounting Guide
Mounting Guide Wall or Other Mounting with VESA Standard CAUTION : The wall mount must bear a minimum of five times the monitor‟s net weight. To mount your MONITOR to the wall or another surface, you need to purchase a VESA wall mount. Use four M4 x 8mm screws (the base attachment screws removed in step 1 below are M4 x 8mm) to attach the mount. -
Page 9: Power Indicator
Power Indicator/Modes of Operation LED INDICATOR LED is off when power is off; LED glows green when power is on. The power management feature of the monitor is designed for security surveillance applications. When there is no video, the monitor remains ON to be instantly ready to display video when the source is changed or if a PC changes state from sleep/standby to active mode. -
Page 10: Specifications
Specifications Model 0E-19LED 0E-22LED 0E-24LED Screen diagonal dimension 18.5 21.5 (inches) Viewable area W x H (inches) 16.63 x 9.57 18.81 x 10.60 20.92 x 11.77 Led Type 0.28 0.248 0.277 Pixel Pitch (mm) 1360x768 1920x1080 Screen Maximum Resolution 720x400; 640x480; Supported Panel 720x400;... - Page 11 LED HD PRO-GRADE COLOR MONITOR 18.5” Diagonal Viewing Size; BNC, VGA, HDMI Inputs; Includes Audio, VGA, and HDMI Cable CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY, SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
