ASSEMBLY

>>
UNFOLD THE TIKE TECH STROLLER FRAME.
Simply push open the stroller frame by gently
pushing apart the stroller.
(see diagram)
>>
ATTACH THE CANOPY TO THE STROLLER FRAME
Take the base of the canopy (left & right side) and slide the male base (left
& right side) of the canopy into the female base ( left & right side)
attached on the stroller frame.
(See diagram)
Then take the back of the canopy & fold over the handle area Cross-bar.
Secure together via the Velcro style strips.
To attach the Sun visor simply zip it on & off with care.
>>
ATTACH FRONT WHEEL
Take the front tire with the finger nut and clamp/cam through it and attach to
the front fork (see diagram). Tighten clamp by holding one side and turning
the other (clamp and finger nut), then push the clamp towards the tire to
tighten. After the front wheel has been assembled, in a gentle manner pull the
wheel from frame to ensure it is securely fastened. If the wheel moves, loosen
clamps and tighten again using the clamp and finger nut. When complete
spin the tire to ensure it rotates properly & that it is aligned straight before
using. Failure to align the front tire properly could lead to the stroller
veering/pulling to one side. To correct simply loosen realign & tighten. Spin the
tire to ensure it rotates properly.
>>
BACK WHEEL ASSEMBLY
Unlock or lift-up the back brake. Place the back wheel/hub on the rear axle by
simply pushing in the wheel while pushing in the push button
just push the wheel in all the way so that the wheel cannot be pushed further
both wheels are assembled/attached pull on the
(see attached diagram). After
wheels to ensure they can not be removed. To remove the wheels,
simply push on the push buttons located on the rear axle and remove the
wheel ).
(see diagram
(Check tire side- wall for proper tire inflation & check tires regularly)
>>
FRONT BRAKE ADJUSTMENT
After you have completed the above, check to make sure your front brake is
working properly. It may need some fine-tuning. You can loosen and tighten
the cable to suit your desired need by adjusting the nut.

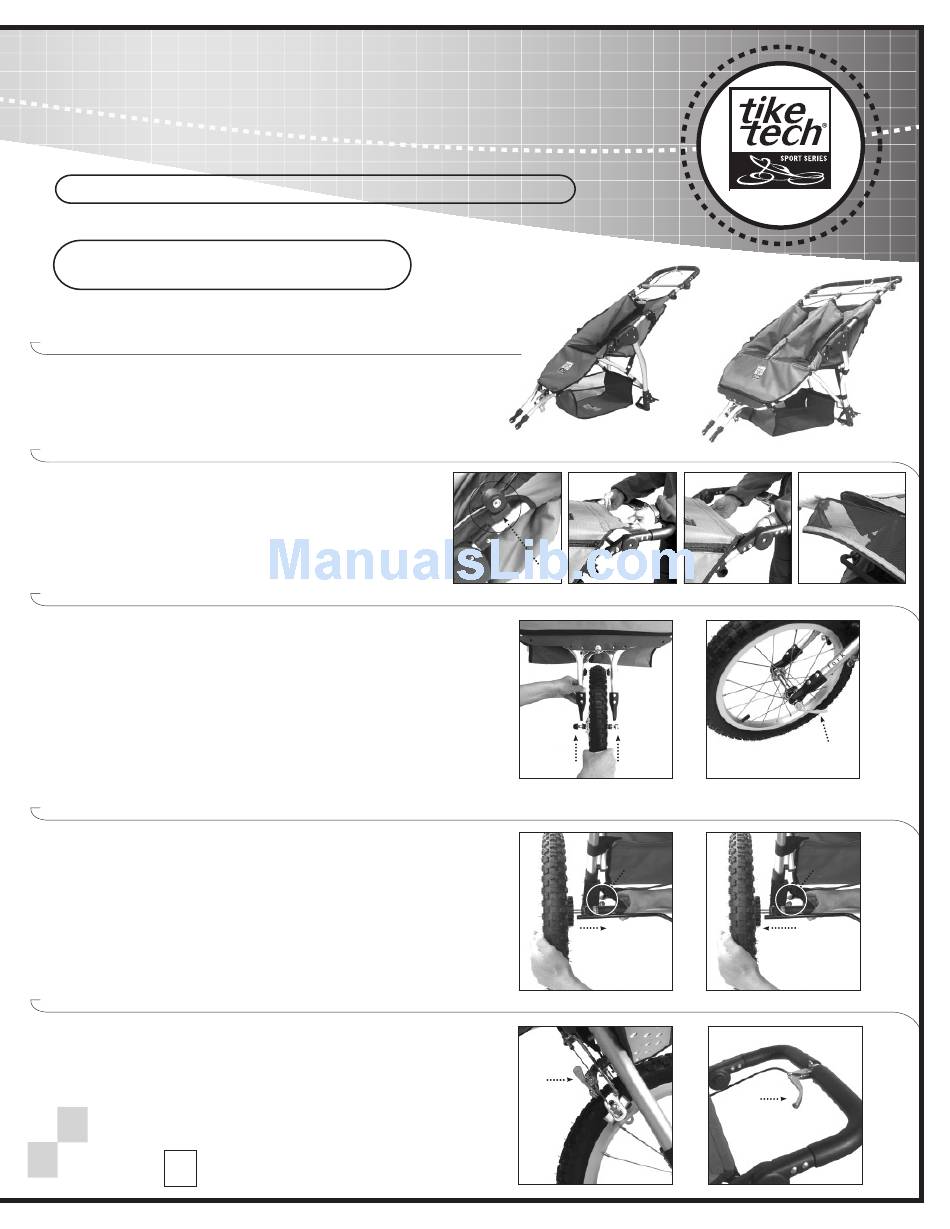

JOGGER/STROLLER ASSEMBLY
(see diagram)
(See attached diagram)
(see diagram)
Note: after installing the front
wheel push the lock lever down.
When removing the front wheel
single
slide in
or
push in
push down
push the lever up.
