Aurora Multimedia ASP-88 User Manual

8x8 hdmi 1.3c matrix
Hide thumbs Also See for ASP-88:
Table of Contents

Advertisement

Quick Links

Download this manual





8x8 HDMI 1.3c Matrix













ASP-88
User Manual
™
Manual Number: 091215



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP-88 and is the answer not in the manual?

Questions and answers

Related Manuals for Aurora Multimedia ASP-88

Summary of Contents for Aurora Multimedia ASP-88

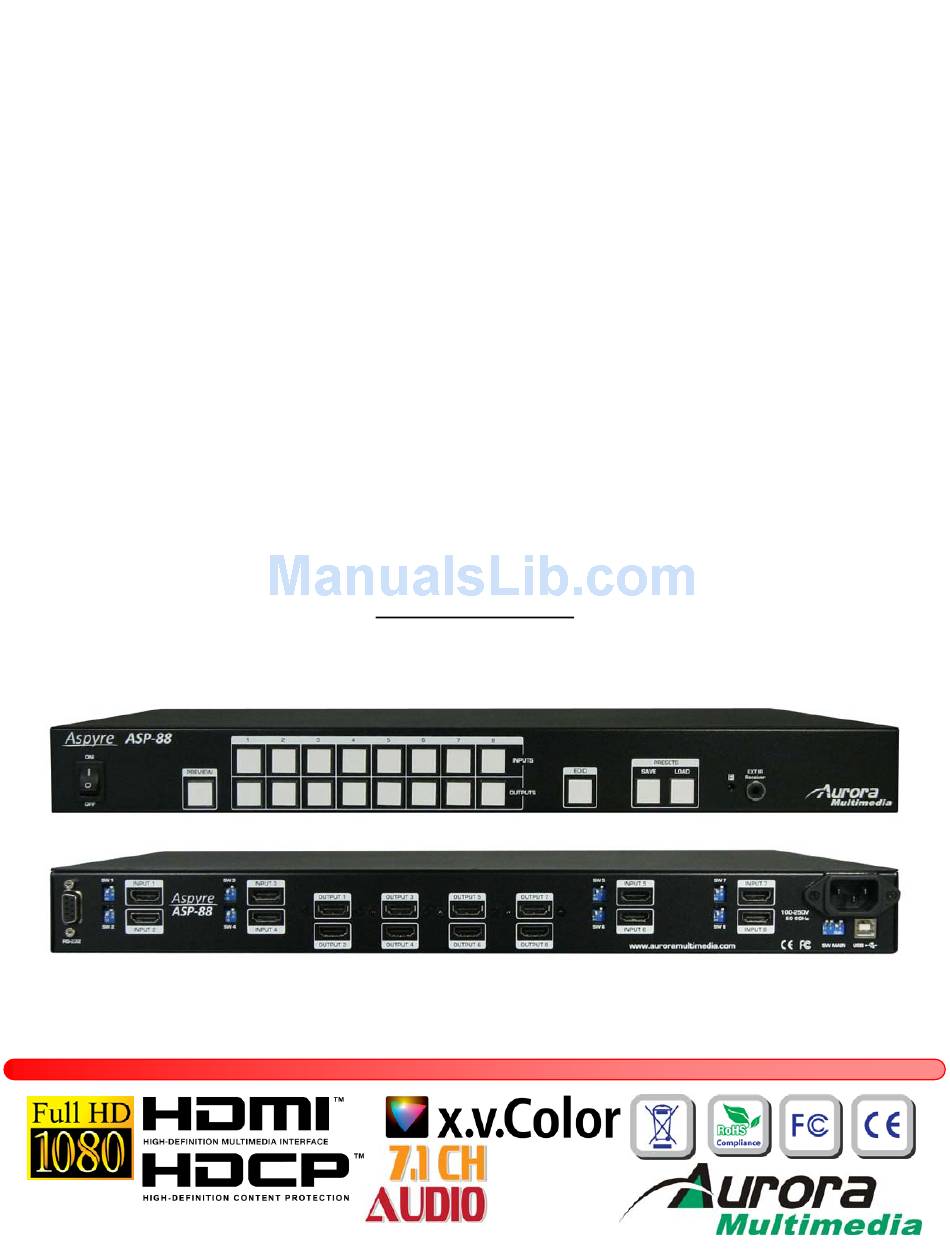

  • Page 1   ™ ASP-88         8x8 HDMI 1.3c Matrix             User Manual         Manual Number: 091215          ...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the ASP-88 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Introduction The ASP-88 8x8 HDMI 1.3c Matrix provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1 channel) digital audio from any of the eight HDMI sources to the any eight displays at the same time. This solution is well suited for use in home theater, conference room presentation systems, or other similar setting or application.
  • Page 4 Features State-of-the-art Silicon Image (Founder of HDMI) chipset embedded for upmost compatibility and reliability HDMI 1.3c compliant HDCP compliant Allows any source to be displayed on multiple displays at the same time Allows any HDMI display to view any HDMI source at any time Supports 7.1 channel digital audio Supports default HDMI EDID and learns the EDID of displays if necessary The matrix master can switch every output channels to any HDMI inputs by push button, IR...

  • Page 5: Specifications & Package Contents

    60 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x ASP-88 1x Installation CD Package 2x 1RU rack-mount ear 1x UL AC C13 power cord Contents 1x IR remote control 1x User Manual  ...

  • Page 6: Panel Descriptions

    Panel Descriptions ASP-88 Front Panel 1. Power: power on/off switch 2. PREVIEW Button: press PREVIEW to watch input/output mapping. This function is active when the button is bright 3. INPUT Buttons: press respective button to select input port 1 to 8 4.

  • Page 7: Rear Panel

    Rear Panel 1. RS-232: for channel control via RS-232 serial control port 2. SW1 – SW8: two-pin DIP switch for manual EDID and audio/video settings (for more detail please see DIP Switch section in page 7) 3. INPUT 1 – INPUT 8: eight HDMI input ports that connect to HDMI source devices 4.

  • Page 8: Dip Switch

    DIP Switch SW1-SW8 for EDID & audio/video settings DIP Switch Position Video Audio Description Pin 1 Pin 2 Default Mode – Up to 1080p & stereo audio output OFF [ ] OFF [ ] Up to 1080p Stereo for most HDTV Safe Mode –...
  • Page 9 [Firmware update only can be done via RS-232 port and connection to PC set at COM1) 1. Power off the ASP-88. Execute the firmware update program on your PC via COM1 port connection to the RS-232 port of the ASP-88 using a straight through (pin-pin) cable.
  • Page 10 IR Sockets EXT IR Receiver: plug in the IR receiver to the IR socket on the front panel of the ASP-88 to receive all IR command signals from the IR remote control You can buy any IR receiving cable in the open market that is compatible to the definition of the IR sockets for the matrix if necessary for replacement use.

  • Page 11: Hardware Installation

    Hardware Installation 1. Connect all sources to HDMI Inputs on the ASP-88 via HDMI cables or extenders 2. Connect all outputs to HDMI displays via HDMI cables or extenders 3. Connect the AC power cord to the ASP-88 4. Power on the ASP-88, all HDMI source devices, and all HDMI displays.

  • Page 12: Channel Control

    Channel Control Source Side Method A: Push input/output buttons 1. Press the INPUT button on the front panel to select input source port, which will be bright once selected. 2. Press the OUTPUT buttons on the front panel to select output display ports, which will be bright once selected, to display HDMI signal from selected input port.
  • Page 13 Method C: Software control through RS-232 or USB port HDMI input HDMI output source selection port selection mapping area mapping area Software Control Menu Status Indicator 1. Scan button Serial Port Scan Press Scan button, the machine will scan the all com port and show them.
  • Page 14 4. Open/Close button Press this button to close or open COM port. 5. Mapping button Select All Output Select “set all output, ” then select the source on main menu. You can quickly set all output to the same source. Unselect All Output Release output selection.
  • Page 15 The linking line will change to yellow. Group setting First select output ports one by one. Then select the input source. The selected output ports change the setting at the same time. By using Terminal Baud rate: 9600 Data length: 8bit Parity check: No Stop bit: 1 RS-232 DB9 Pin Definition...
  • Page 16 Method 4: Preset mappings a. Load one of the presets Step 2 Step 1 & 3 1. Press the LOAD button in the PRESETS menu on the front panel and the LED will turn on. 2. Select the preset profile number to load the corresponding mapping. 3.
  • Page 17 c. PREVIEW presets Step 3 Step 2 & 4 Step 1 & 4 1. Press the PREVIEW button on the front panel. 2. Press the LOAD button. 3. Select the preset profile number to load the corresponding mapping and press the respective button.

  • Page 18: Edid Learning

    EDID Learning The EDID learning function is only necessary whenever you encounter any display connected to the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.
  • Page 19 Method 2: Manually connect HDMI displays to HDMI input ports 1. Power up the matrix. Connect the HDMI display that its EDID needs to be learned to any of the HDMI INPUT1-INPUT8 port where your source device has trouble to show the picture normally.
  • Page 20 IR Discrete Code Default Custom Code — IR2 Code: 00 FF — Function POWER 0x17 0x02 0x0A 0x0C SOURCE SEL. 1 SOURCE SEL. 2 SOURCE SEL 3 SOURCE SEL. 4 0x54 0x55 0x56 0x01 SOURCE SEL. 5 SOURCE SEL. 6 SOURCE SEL.
  • Page 21 Custom Code — IR4 Code: 0x13 0x31 Custom Code: 0x13 0x31 Output Output Output Output Output Output 6 Output 7 Output 8 Source 1 0xAE 0xBE 0xCE 0xDE 0xEE 0xFE 0x1E 0x2E Source 2 0xAD 0xBD 0xCD 0xDD 0xED 0xFD 0x1D 0x2D Source 3...

  • Page 22: Limited Lifetime Warranty

    Limited Lifetime Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
