- Page 1 Instruction Manual PMR-WP1U Radio with Earphone and Microphone Only Radio Emerg ON-OFF PMR-WP1U 1 of 14...
- Page 2 TTI Tech Co., Ltd. 5F, Daedok Bldg., 321-2, Yangjae-dong, Seocho-ku, Seoul, Korea, 137-130 http://www.ttikorea.co.kr PMR-WP1U 2 of 14...

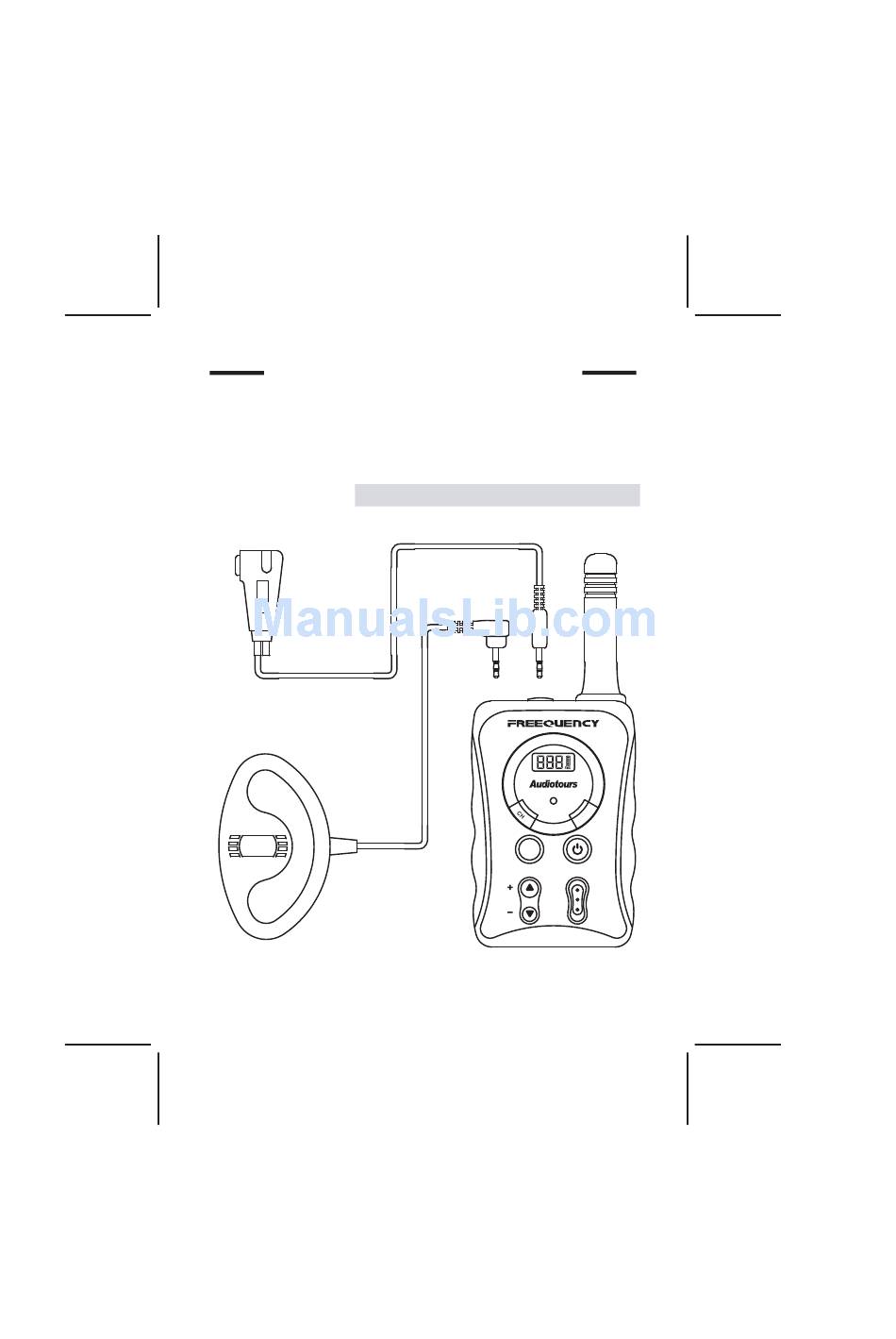

- Page 3 FEATURES Your PMR-WP1U Radio is a portable, easy to use transmitte and receiver that you can carry almost anywhere. It is skillfully constructed to give you reliable communications. It is intended for use with the supplied earphone or microphone. When used in this manner, the PMR-WP1U is ideal for hands-free use for outdoor activities.
-
Page 4: Function And Location Of The Controls
FUNCTION AND LOCATION OF THE CONTROLS Only Radio Emerg ON-OFF PMR-WP1U 4 of 14... - Page 5 (99) or return to the home channel. 17. Channel (CH) Button : Press this button to access the channel change mode. And use up ( ) / down ( ) button to change the radio channel number. PMR-WP1U 5 of 14...
-
Page 6: Powering The Transceiver
Batteries There are two methods of powering the PMR-WP1U : 1. Alkaline Batteries. WARNING : Do not attempt to recharge Alkaline batteries. 2. Rechargeable Ni-MH Batteries. -
Page 7: Battery Installation And Charging
3. Insert four “AA” batteries. Position batteries according to polarity markings. Reverse the procedure outlined in steps 1 and 2 to reassemble. NOTE : Make sure the battery + and – terminals are aligned as shown. PMR-WP1U 7 of 14... - Page 8 Old or leaking batteries can cause damage to the unit and will void the warranty. SPK/MIC(CHG) JACK RED CHARGE Only Radio Emerg ON-OFF AC WALL CHARGING ADAPTOR INPUT : 230 VAC OUTPUT : 6 VDC PMR-WP1U 8 of 14...
-
Page 9: Using Your Radio
Channel Selection Momentarily press the CH button so the two-digit channel display flashes. Press the VOL Up ( ) or Down ( ) button to select the desired channel (001-200). PMR-WP1U 9 of 14... - Page 10 * Turn your transceiver off on-board aircraft when requested to do so. * Do not place your transceiver in front of a vehicle’s air-bag. If the air bag deploys, it could propel the transceiver like a projectile. PMR-WP1U 10 of 14...
-
Page 11: Specifications
-120dBm Min. Adjacent Channel Selectivity 50dB Min. Transmitter Max. Effective Radiated Power 10mW Audio Distortion Hum and Noise 35db Min * These specifications are subject to change without notice. They represent typical values, individual units may vary. PMR-WP1U 11 of 14... -
Page 12: Channel Frequency Table
402.2125 402.5250 402.8375 403.1500 402.2250 402.5375 402.8500 403.1625 402.2375 402.5500 402.8625 403.1750 402.2500 402.5625 402.8750 403.1875 402.2625 402.5750 402.8875 403.2000 402.2750 402.5875 402.9000 403.2125 402.2875 402.6000 402.9125 403.2250 402.3000 402.6125 402.9250 403.2375 402.3125 402.6250 402.9375 403.2500 PMR-WP1U 12 of 14... - Page 13 403.4625 403.7750 404.0875 404.4000 403.4750 403.7875 404.1000 404.4125 403.4875 403.8000 404.1125 404.4250 403.5000 403.8125 404.1250 404.4375 403.5125 403.8250 404.1375 404.4500 403.5250 403.8375 404.1500 404.4625 403.5375 403.8500 404.1625 404.4750 403.5500 403.8625 404.1750 404.4875 403.5625 403.8750 404.1875 404.5000 PMR-WP1U 13 of 14...
-
Page 14: Safety Requirement
CE DECLARATION CE version of the PMR-WP1U which displays the "CE" symbol on the product label, complies with the essential requirements of the European Radio and Telecommunication Terminal Directive 1999/5/CE. This warning symbol indicates that this equipment operates in non-harmonised...
