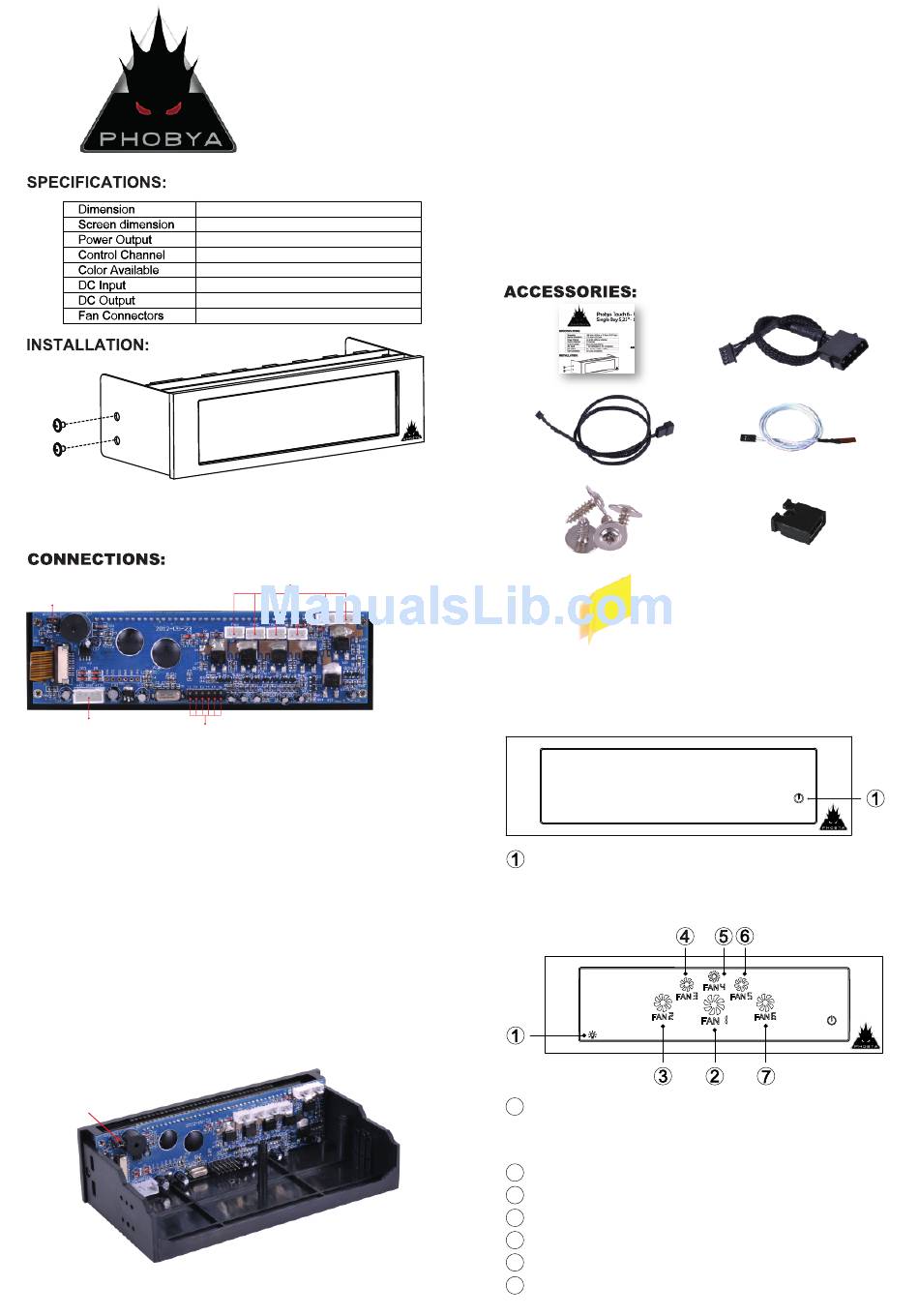

Phobya Touch 6 Installating And Operation Manual

148.5mm x 42mm x 79.9mm (5.25" Bay)
112.5mm x 22.2mm
Up to 30 watts per channel
6 Channels
Black Anodized/Silver
+ 12V (Standard 4- Pin Connector)
5V- 12V DC / (40% - 100%)
Six 4 pin connectors
Tools required:
Phillips head screwdriver
Mount the product into a 5.25 inch drive bay of your computer
chassis using the screws in the accessory bag.
Use the mini jumper to
activate the alarm function
Connect the
Connect the temperature sensors
power supply
1. Connect the fans
Fan1: Connect the first channel fan
Fan2: Connect the second channel fan
Fan3: Connect the third channel fan
Fan4: Connect the fourth channel fan
Fan5: Connect the fifth channel fan
Fan6: Connect the sixth channel fan
P: Connect the power supply
2. Connect the temperature sensors
T1: Connect the first channel temperature sensor
T2: Connect the second channel temperature sensor
T3: Connect the third channel temperature sensor
T4: Connect the fourth channel temperature sensor
T5: Connect the fifth channel temperature sensor
T6: Connect the sixth channel temperature sensor
ALARM:
Use the mini jumper to activate the alarm function
the mini jumper
NOTE:
In order to protect your computer the device has the alarm function.
If the temperature exceeds 70 degrees Celsius, the unit will be
Phobya Touch 6 - Fan Controller -
Single Bay 5,25" - black
Connect the fans
emitting noise. If the fans are not operating when the
voltage is over 6.5v, the unit will be emitting noise. Insert
the mini jumper to enable alarm function or remove it to
disable the alarm function
1 X Installation Guide
6 X Fan Cable
4 X Screws
6x Sticker for temperature
sensors
OPERATION:
Power button: The power button could turn or shut the back
light of the device
THE MAIN INTERFACE
1 The light bulb button: The light bulb button adjust the brightness
of the screen. There are three settings for the brightness. (If the
light bulb button is not being used, it will disappear in 6 seconds)
2
The fan 1 button: Touch it to enter the fan 1 branch interface
3
The fan 2 button: Touch it to enter the fan 2 branch interface
4
The fan 3 button: Touch it to enter the fan 3 branch interface
5
The fan 4 button: Touch it to enter the fan 4 branch interface
6
The fan 5 button: Touch it to enter the fan 5 branch interface
7
The fan 6 button: Touch it to enter the fan 6 branch interface
1 X Power Cable
6 X Sensors Cable
1 X Jumper
