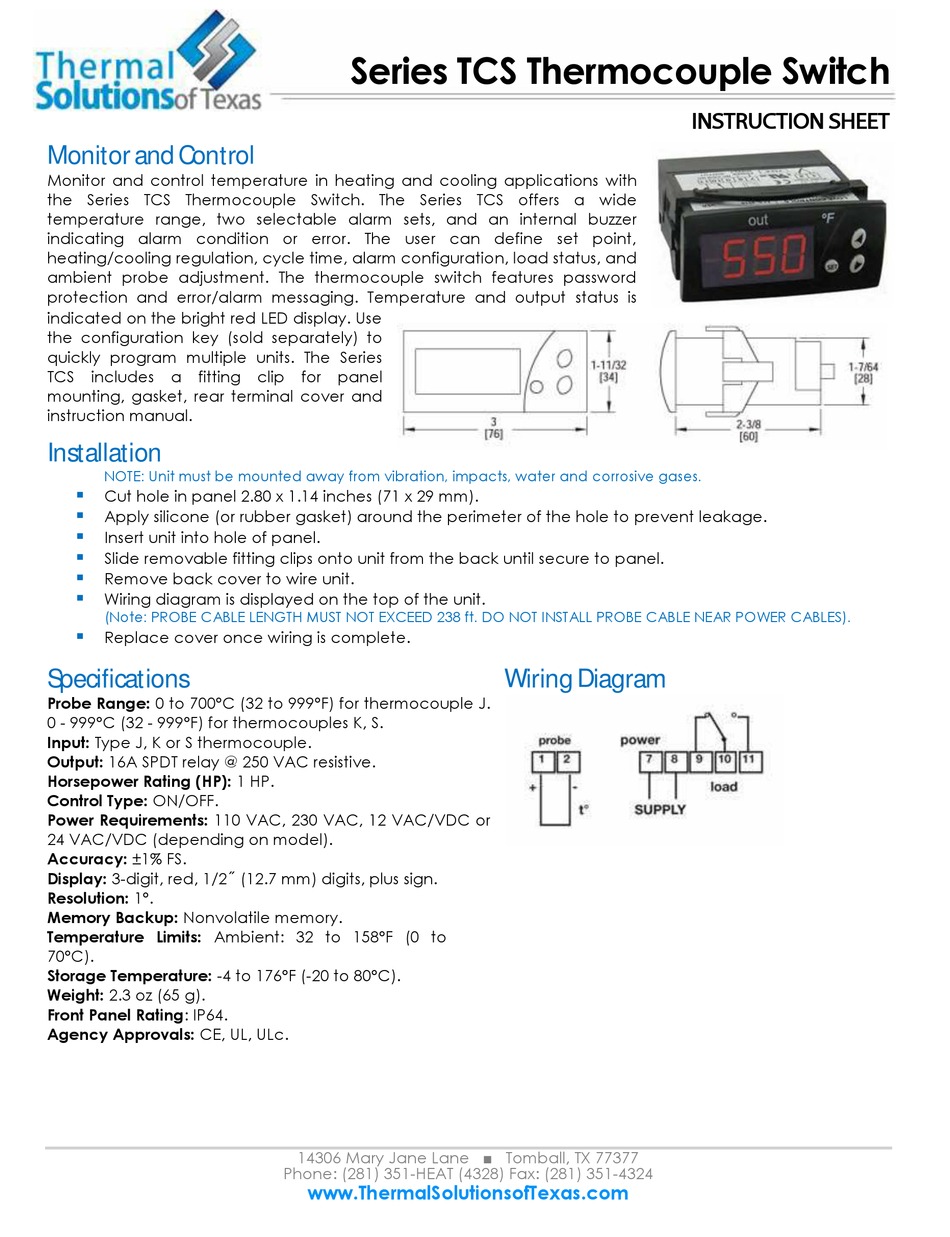

Termal TCS Series Instruction Sheet

Thermocouple switch

Advertisement

Quick Links

Monitor and Control

Monitor and control temperature in heating and cooling applications with
the Series TCS Thermocouple Switch. The Series TCS offers a wide
temperature range, two selectable alarm sets, and an internal buzzer
indicating alarm condition or error. The user can define set point,
heating/cooling regulation, cycle time, alarm configuration, load status, and
ambient probe adjustment. The thermocouple switch features password
protection and error/alarm messaging. Temperature and output status is
indicated on the bright red LED display. Use
the configuration key (sold separately) to
quickly program multiple units. The Series
TCS includes a
fitting clip
mounting, gasket, rear terminal cover and
instruction manual.
Installation
NOTE: Unit must be mounted away from vibration, impacts, water and corrosive gases.
Cut hole in panel 2.80 x 1.14 inches (71 x 29 mm).
Apply silicone (or rubber gasket) around the perimeter of the hole to prevent leakage.
Insert unit into hole of panel.
Slide removable fitting clips onto unit from the back until secure to panel.
Remove back cover to wire unit.
Wiring diagram is displayed on the top of the unit.
(Note: PROBE CABLE LENGTH MUST NOT EXCEED 238 ft. DO NOT INSTALL PROBE CABLE NEAR POWER CABLES).
Replace cover once wiring is complete.
Specifications
Probe Range: 0 to 700°C (32 to 999°F) for thermocouple J.
0 - 999°C (32 - 999°F) for thermocouples K, S.
Input: Type J, K or S thermocouple.
Output: 16A SPDT relay @ 250 VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF.
Power Requirements: 110 VAC, 230 VAC, 12 VAC/VDC or
24 VAC/VDC (depending on model).
Accuracy: ±1% FS.
Display: 3-digit, red, 1/2˝ (12.7 mm) digits, plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: Ambient: 32 to 158°F (0 to
70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE, UL, ULc.
Series TCS Thermocouple Switch
for panel
14306 Mary Jane Lane ■ Tomball, TX 77377
Phone: (281) 351-HEAT (4328) Fax: (281) 351-4324
www.ThermalSolutionsofTexas.com
Wiring Diagram
INSTRUCTION SHEET
