Tobii Dynavox I-Series+
User's Manual
I–12+
I–15+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dynavox I-12+ and is the answer not in the manual?

Questions and answers

Related Manuals for Tobii Dynavox I-12+

Summary of Contents for Tobii Dynavox I-12+

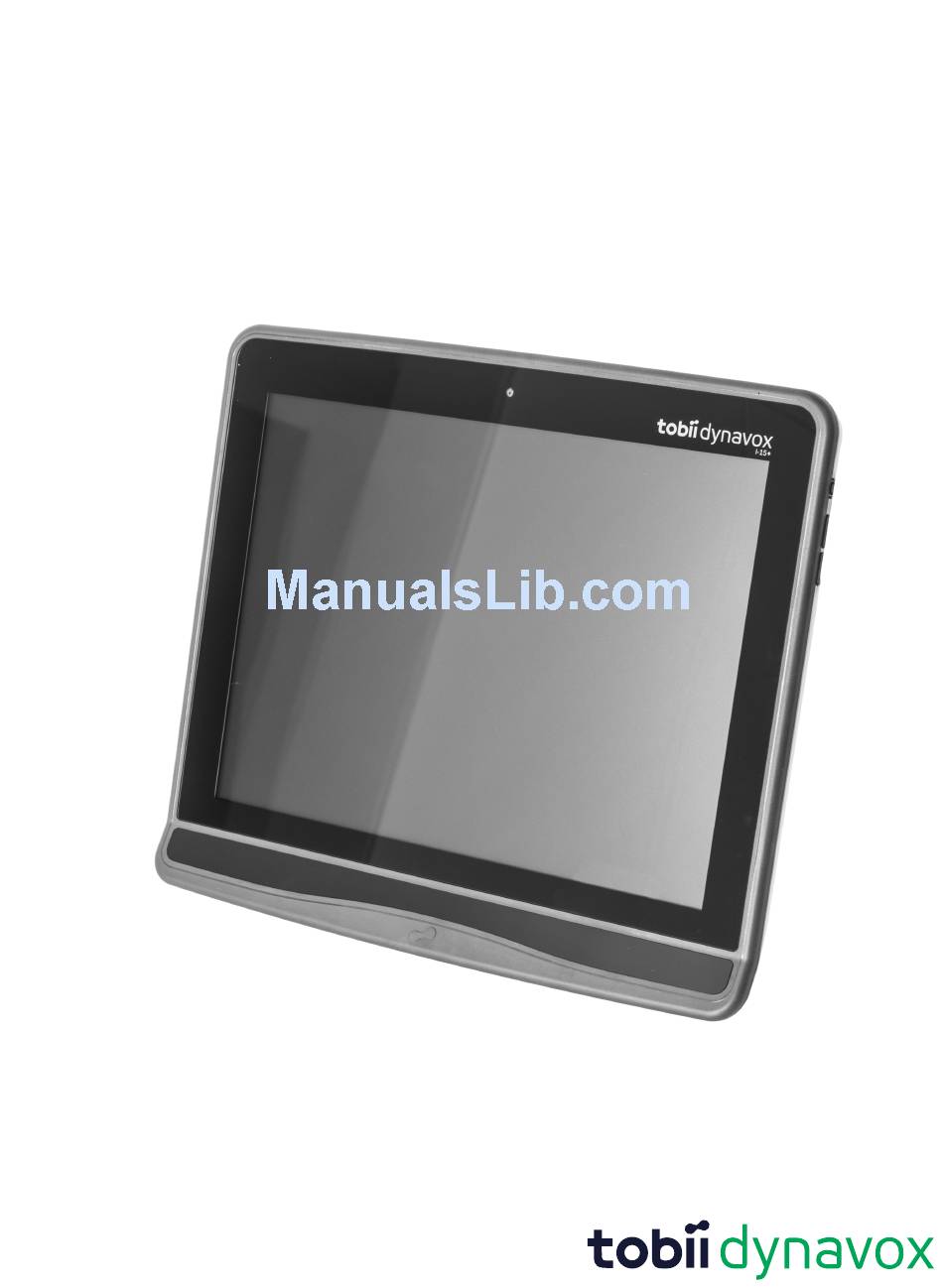

  • Page 1 Tobii Dynavox I-Series+ User’s Manual I–12+ I–15+...
  • Page 2 Please check Tobii Dynavox web site www.TobiiDynavox. for updated versions of this document. The following products are protected by U.S. Patent 7,572,008: • I–12+ ETR • I–15+ ETR You can locate the Type of Tobii Dynavox I-Series+ device on the label on the back side.

  • Page 3: Table Of Contents

    Electricity ..........................14 Child Safety.........................14 2.10 Environmental Control......................14 2.11 Gaze Interaction........................14 Overview of the Tobii Dynavox I–12+ and I–15+ ................. 15 Key Features........................15 Product Layout........................15 3.2.1 The Tobii Dynavox I–12+ and Tobii Dynavox I–15+ ...........15 3.2.2 Ports, Sensors and Device Buttons .................16 Preinstalled Software ......................18...
  • Page 4 5.4.4.6 Scrolling with Windows Control in Mouse Emulation Mode....42 Wake the Tobii Dynavox I-Series+ from Sleep with Gaze Interaction...........43 Pause/Resume Gaze Interaction and Put the Tobii Dynavox I-Series+ to Sleep with Gaze Interaction........................44 Using the Cameras .......................44 Using the GEWA Programmable IR Remote Control..............45 5.8.1...
  • Page 5 6.3.3 Configuring a Switch to Power Off ................52 Wake-on-Gaze® .........................52 Wireless ..........................53 6.5.1 WLAN .........................53 6.5.1.1 Handling Tobii Dynavox Product Key...........53 6.5.1.2 Enabling and Disabling the WLAN Communication.......54 6.5.1.3 Connecting to a WLAN..............54 6.5.2 Bluetooth® for Mobile Phone Communication ............54 6.5.2.1...
  • Page 6 9.2.1 Cleaning of the Speakers ..................79 Placement ...........................79 Transporting the Tobii Dynavox I-Series+ Device..............79 Disposing of the Batteries .....................80 Disposing of the Tobii Dynavox I-Series+ Device..............80 Appendix A Support, Warranty, Training Resources ................. 81 Appendix B Compliance Information....................82 B1.1 For P15B Equipment .....................82...

  • Page 7: Introduction

    To ensure the optimal performance of this product, please take the time to read this manual carefully. The Tobii Dynavox I-Series+ device is available in two different sizes: the Tobii Dynavox I–12+ with a 12.1" screen and the Tobii Dynavox I–15+ with a 15.0" screen. The Tobii Dynavox I-Series+ is a Gaze Interaction device but can be ordered without the Gaze Interaction function.
  • Page 8 Li-Ion rechargeable battery. Must be recycled or disposed properly Recyclable material Type L and Type R Listing Marks for Canada and the United States Conforms to relevant Australian EMC requirements Japanese certification for electrical/electronic appliances and components 1 Introduction Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 9: Intended Use

    The Tobii Dynavox I-Series+ is a Gaze Interaction device with a built-in Tobii Eye Tracker (optional) and a capacitive touch screen for touch access. The device is intended to be used in two orientations: one, upright and mounted (or standing upright, vertically, on an appropriate surface) for Gaze Interaction use, and two, lying flat (resting in a horizontal orientation) for touch ac- cess optimization.

  • Page 10: Portable Use

    Keep the original packaging materials for the Tobii Dynavox I-Series+. In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the original packaging (or equal equivalent) is used for shipping.

  • Page 11: Tobii Dynavox I-Series+ With Dynavox Compass

    1 Power Supply • 1 Windows 8.1 Home Premium license • 1 Tobii Dynavox Compass (pre-installed) • 1 Tobii Dynavox I-Series+ User’s Manual (on the device as a PDF document) • 1 Quick Start Manual (printed) • Safety and Compliance documents •...

  • Page 12: Safety

    No modification of this equipment is allowed The Tobii Dynavox I-Series+ is not to be used as a life supporting Device, and it shall not be relied on in case of loss of function due to power loss or other causes.

  • Page 13: Power Supply And Batteries

    For safe operation of the Tobii Dynavox I-Series+ device, use only charger, batteries and accessories approved by Tobii Technology. Do not open, or modify, the metal casing of the Tobii Dynavox I-Series+ device or of the power supply, since you may be exposed to potentially hazardous electrical voltage. The device contains no serviceable parts. If the Tobii Dynavox I-Series+ device or it’s accessories are mechanically damaged, do not to use them.

  • Page 14: Emergency

    Control Unit. Other devices controlled by IR or susceptible to disturbance by IR light might be affected by the IR light emitted from the Tobii Dynavox I-Series+. Do not use the Tobii Dynavox I-Series+ in the vicinity of such devices if their functionality is of critical importance.

  • Page 15: Overview Of The Tobii Dynavox I-12+ And I-15

    A Tobii Dynavox I-Series+ device has a color Capacitive touch, LED Backlight screen. The Tobii Dynavox I–12+ has a 12.1″ screen with a 1024 × 768 pixel resolution. The Tobii Dynavox I–15+ has a 15.0″ screen with a 1024 × 768 pixel resolution.

  • Page 16: Ports, Sensors And Device Buttons

    Figure 3.2 Bottom, Left and Right Side, page 17 Light sensor Camera 5 MP Auto Focus (AF) Microphone Mounting Eye Tracker Speakers Label Carrying grip 3 Overview of the Tobii Dynavox I–12+ and I–15+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 17 Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Be extra careful with the USB connectors. 3 Overview of the Tobii Dynavox I–12+ and I–15+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 18: Preinstalled Software

    Preinstalled Software The Tobii Dynavox I-Series+ device is delivered with all preordered and required software installed and ready to use. Should a reinstallation become necessary at any stage perform a Factory Recovery. For more information, see 5.11 Performing a Factory Recovery, page 45.

  • Page 19: Accessing The Microsd-Card

    , an information box is displayed when you briefly rest the mouse pointer on the icon or by touching the icon on the screen. Accessing the microSD-Card The microSD-Card (position 28 in Figure 3.2 Bottom, Left and Right Side, page 17) is installed in the Tobii Dynavox I-Series+ device by default. 3.5.1...

  • Page 20: Inserting The Microsd-Card

    Tobii Dynavox QR adapter plate has two sides: Daessy REHAdapt Make sure the required side of the Tobii Dynavox QR adapter plate is face away from the Tobii Dynavox I-Series+ for the mount- ing system to use. 3 Overview of the Tobii Dynavox I–12+ and I–15+...

  • Page 21: Mounting The Tobii Dynavox Qr Adapter Plate

    Mounting the Tobii Dynavox QR Adapter Plate To mount the Tobii Dynavox QR adapter plate: Place the Tobii Dynavox I-Series+ device face down on a flat surface. Select the required side of the plate, see 1.3.2 Mounted Use, page 10.

  • Page 22: Batteries In The Tobii Dynavox I-Series

    Batteries in the Tobii Dynavox I-Series+ Batteries The Tobii Dynavox I-Series+ device has two battery compartments. The batteries are of the same size and capacity for both the Tobii Dynavox I–12+ and I–15+, see Appendix E Technical Specifications, page 92.

  • Page 23: Checking Charge Level

    For safety reasons, the Tobii Dynavox I-Series+ device is delivered without the batteries inserted. The batteries are delivered only partially charged. The Tobii Dynavox I-Series+ device can be used right away. It is nevertheless recommended that the bat- teries are charged for at least two hours before using the device.
  • Page 24 Pull the battery out of the battery compartment.. If the Tobii Dynavox I-Series+ is in Resting orientation: Place the Tobii Dynavox I-Series+ device face down on a flat surface. Press the battery slide lock to the side. Pull the battery out of the battery compartment.

  • Page 25: Using The Tobii Dynavox I-Series

    Tobii Dynavox I-Series+ Welcome Guide When you start your Tobii Dynavox I-Series+ Device for the first time you will be greeted by the Tobii Dynavox I-Series+ Wel- come Guide. The guide is a setup wizard that will walk you through some steps that will help you make the most of your device.

  • Page 26: Using Gaze Interaction

    Positioning Figure 5.1 Positioning The Tobii Dynavox I-Series+ is designed to work optimally when it is parallel to the user’s eyes at a distance of about 60 cm (23.5 inches), see Figure 5.1 Positioning, page 26. Figure 5.2 Positioning when Users Leaning Sideways or Those Lying Down This means that for those users leaning sideways or those lying down the Tobii Dynavox I-Series+ also needs to be tilted in or- der to keep the users eyes parallel to the screen and at the optimal distance, see Figure 5.2 Positioning when Users Leaning...

  • Page 27: Track Status Viewer

    At 70 cm (27.5 in) the Tobii Dynavox I-Series+ allows for lateral Freedom of Head Movement in an area of about 50 × 36 cm (20 × 14 in). In order to function properly for Gaze Interaction the user needs at least one eye in the track box at all times.

  • Page 28: Using Windows Control

    Windows software without the need for fast decisions and movements. It can be controlled using either Gaze (dwell) or switch activation method for even more control and speed. • Mouse Emulation 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 29: Starting And Disabling Windows Control

    , in the Notification area and select Disable Windows Control. You can also start Windows Control from Tobii Dynavox Communicator /Tobii DynaVox Compass or alternative communication software, which has implemented the functions provided by the Tobii Dynavox Eye Control SDK 2 Auto start •...
  • Page 30 The Functions Overlay will not perform any zoom, some other tasks won't either in some situations (scroll, settings, keyboard). Figure 5.3 The Modes for the Gaze Selection Taskbar 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 31: Task Buttons

    Windows 8 Gaze Selection is a revolutionary new method of Gaze Interaction. It is expressly created for the modern and intui- tive touch enabled environment of tablets, as well for maximizing and enhancing the complete Gaze Interaction experience of ul- trabooks, laptops, and desktop PCs. 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 32 App and therefore will consist of differ- ent actions for each App. Charms Menu Function that opens the Charms Menu. Move Taskbar Function that moves the Taskbar from right/left. 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 33: Snap Window/Close App

    This will look different depending on how many Apps are Snapped at the same time. To Snap the Apps: Select the (Functions Overlay) Task from the Taskbar. Select one of the following actions: 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 34 Figure 5.4 Overview To Move and Close the Apps: For example: If an App is Snapped in the middle, Select: 1. The function 2. Select the middle area. 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 35: To Snap More Apps

    Table 5.1 Number of Apps on Screen Windows 8.1, page 33 for more information about how many Apps can be visible at the same time on the screen. With the (Drag & Drop) it is possible to customize the width of each Snap area also. 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 36 (Drag 6 Drop) Task from the Taskbar. Drop it to the left side of the screen to place it in the left-hand target, see Figure 5.7 Snap Left, page 37 Figure 5.6 Snap Right 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 37: Selection Methods - Gaze And Switch

    This allows for excellent use cases such as quick/continual surfing of the internet by activating the Switch and thus the Left Click / Tap Task once and then repeatedly selecting anything desired, without having to choose the Left Click /Tap Task again multiple times. 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 38: Activating A Task With A Keyboard Button Instead Of A Switch

    The key on the keyboard where the user is gazing will be indicated by a light frame around the character/function on the key. The four keyboard pages are: Figure 5.8 Default Startup Page Figure 5.9 First Page to the Right 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 39: Keyboard Taskbar

    Activate this mode by resting your gaze on the Task Button until the color changes according to the image below. Only available for the Left Click function 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 40: Task Buttons For Keyboard Taskbar

    If you can’t find the word you are looking for, just keep on typing and hopefully the word you are looking for will appear after the next character. 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 41: Using Mouse Emulation

    The Mouse Emulation mode makes it possible for the user to emulate and control a standard PC mouse pointer on the screen. To configure the Mouse Emulation, go to Tobii Dynavox Gaze Interaction Settings. For more information, see 7.5.2.2 Mouse Em- ulation, page 71 5.4.4.1...

  • Page 42: Magnifying With Windows Control In Mouse Emulation Mode

    To pause Windows Control select the Pause icon in the Windows Control Menu. Pause Pausing Gaze Interaction can also be accomplished by looking at (about) the Tobii logo at the bottom of the Tobii Dynavox I-Series+, then selecting, using Gaze Interaction, the pause icon that pops up.

  • Page 43: Wake The Tobii Dynavox I-Series+ From Sleep With Gaze Interaction

    Wake the Tobii Dynavox I-Series+ from Sleep with Gaze Interaction It is possible to wake the Tobii Dynavox I-Series+ from sleep with Gaze Interaction. This makes it possible for the user to be more independent and secure while alone or without a caregiver; during the night for example. If the user wants attention from the caregiver when the user wakes at night, the user could wake the Tobii Dynavox I-Series+ with Gaze Interaction and use the Tobii Dynavox I-Series+ to communicate quickly to alert the caregiver.

  • Page 44: Pause/Resume Gaze Interaction And Put The Tobii Dynavox I-Series+ To Sleep With Gaze Interaction

    Select Yes for Sleep or No for Cancel Using the Cameras The two built-in cameras allows you to take snapshots of items in front of the Tobii Dynavox I-Series+ device and also from the display side. 5 Using the Tobii Dynavox I-Series+...

  • Page 45: Using The Gewa Programmable Ir Remote Control

    5.11 Performing a Factory Recovery Every Tobii Dynavox I-Series+ device has a factory image stored on the disk. If you need to restore the device back to its original state, this can be done by using our OEM Factory Recovery Application.

  • Page 46: 5.12 Calibrating The Touch Screen

    The Factory Recovery process will now start. This will take about 40 minutes. After the restore process is finished, the device will be reset to its original image as it was when you first received it from Tobii Dynavox. If you have installed any additional Soft- ware or Tobii Dynavox Product Keys after you ordered the device, these will have to be manually installed again 5.12 Calibrating the Touch Screen...
  • Page 47 To calibrate the Touch screen from Classic View with small/Large icons in Windows Control Panel, follow this procedure: Select Start > Control Panel Select Tablet PC Settings Select the Calibrate... button under Display options Follow the on-screen instructions 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 48: Configuring The Tobii Dynavox I-Series+ With The I-Series Control Center

    I-Series Control Center The I-Series Control Center is the program on your Tobii Dynavox I-Series+ Device where you can access and change the set- tings that you have chosen during your first setup with the I-Series Welcome Guide. You can also run the Welcome Guide again at any time of your choosing.

  • Page 49: Buttons

    You can create shortcuts to tasks, called actions, by programming the Quick Access buttons. The Quick Access buttons are lo- cated on the left side of the Tobii Dynavox I-Series+ device, named 1, 2 and Menu. For more information about how to program an action for a button, see 6.10 Creating Shortcuts to Actions, page 60 6.1.1...

  • Page 50: Display

    To enable Automatic rotation according to device position: Open the I-Series Control Center > Display. Select the Automatic rotation according to device orientation radio button. 6 Configuring the Tobii Dynavox I-Series+ with the I-Series Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US Control Center...

  • Page 51: Switches

    The external display will rotate when the Tobii Dynavox I-Series+ is rotated if the Tobii Dynavox I-Series+ is set up like this: • External display connected via HDMI • The Tobii Dynavox I-Series+ is set to Automatic rotation in I-Series Control Center •...

  • Page 52: Configuring A Switch To Power On

    Select to clear the Enable switch “1 or 2” to act as Power Off Button check box. Wake-on-Gaze® The Tobii Dynavox I-Series+ device can be set to wake automatically from Sleep mode when your eyes are registered as looking at the display.

  • Page 53: Wireless

    For information about how to use Wake-on-Gaze®, see 5.5 Wake the Tobii Dynavox I-Series+ from Sleep with Gaze Interaction, page 43. The Tobii Dynavox I-Series+ device can also be set to go to sleep using your gaze (to reduce battery consumption, or in situa- tions where the device is not needed).

  • Page 54: Enabling And Disabling The Wlan Communication

    Only for use with Tobii Dynavox Communicator for mobile phone communication. For more information about how to use and program an Mobile phone to work with Bluetooth® on the Tobii Dynavox I-Series+ device, see Tobii Dynavox Getting Started Communicator 5.

  • Page 55: Connecting To A Bluetooth® Device

    Select the I have read and understand the safety details and I want to enable the temperature control func- tionality check box to confirm that you have read and understood the safety text. 6 Configuring the Tobii Dynavox I-Series+ with the I-Series Control Center...

  • Page 56: Device Usage

    If the device is still too hot, the power button will flash purple for a couple of sec- onds when trying to restart the Tobii Dynavox I-Series+ device. For more information, see Appendix C Computer De- vice States of Operation, page 89 and Table D.1 Maximum Allowed Temperature, page 91.

  • Page 57: Setup & Updates

    I-Series Update Notifier The I-Series Update Notifier is a program that notifies you when the latest software updates for your Tobii Dynavox Software are available (either automatically, on a regular basis, or manually, at a time of your choosing) and assists you in installing the updates.
  • Page 58 Step Three informs you that your system has been updated, select the Done button to close the I-Series Update Notifier. If you choose not to "Enable automatic updates" you can still check for updates for your Tobii Dynavox software and update them manually using the I-Series Update Notifier.

  • Page 59: System

    If your Tobii Dynavox I-Series+ device is not up and running at this time the backup will be performed at next start up. The process backs up files for all users. If the backup drive does not have enough space some files will not be backed up.

  • Page 60: User Profile Card

    The Tobii Dynavox I-Series+ device comes with a 32 GB microSD-card installed. The purpose of this card is to backup person- al settings and data. In the case of fatal damage to the Tobii Dynavox I-Series+ device. The microSD-card can be removed and inserted into a new device for quick and easy retrieval and restoration of personal data and settings.

  • Page 61: Available Actions

    Wireless – Allows the user to either set all radio connections on or off, or a specific wireless connection. • Tobii Dynavox Communicator /Tobii DynaVox Compass — Actions are set and customized in Tobii Dynavox Communicator /Tobii DynaVox Compass. The available actions are the same for the Quick Access buttons and Switches.
  • Page 62 Gaze Interaction – choose to toggle track status window, calibrate Gaze Interaction, Pause the Gaze Interaction or toggle Windows Control ON/OFF. To enable this option the Tobii Dynavox I-Series+ device must have an Eye Tracker and the Tobii Dynavox Gaze Interaction Software installed.

  • Page 63: Gaze Interaction Settings

    Click Apply to save changes. Gaze Interaction Settings will remain open. Anywhere you see this icon, , there is an information box with additional information for the feature. 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 64: Calibration

    Calibration This section will describe how to calibrate an individual, enabling optimal Gaze Interaction with the Tobii Dynavox I-Series+ device. 7.2.1 Starting Calibration The calibration can be started in one of the following ways: • Open Gaze Interaction Settings > Gaze Interaction and then select the Start Calibration... button.

  • Page 65: Improving Calibration Point(S)

    Open Gaze Interaction Settings > Calibration. Select the point(s) you want to improve under Calibration Result. Select the Improve Point(s) button and a calibration for the selected point(s) will start. 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 66: Removing Calibration Point(S)

    Select size of the dot by selecting from the Stimulus size drop down list. – Select speed of the dot by selecting from the Stimulus speed drop down list. • Image: 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 67: Customizing The Calibration Area

    Gaze Interaction. By sizing the calibration area to exclude the areas that the user cannot access it can improve the overall calibration. To customize the calibration area, follow these steps: Open Tobii Dynavox Gaze Interaction Settings > Calibration. Select the Settings… button. Select the Calibration area: Change... button.

  • Page 68: Interaction

    Select Application specific settings of the currently selected user profile if you want to apply the new set- tings to a specific application of a user profile. Then select the available application in the Application drop down list. 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 69: User Profile

    Note that if no profiles have been created previously, the only one to select is the default profile. Click Create to save the new profile. The new profile is saved directly upon selecting Create. 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 70: Selecting Current User Profile

    Using Gaze Selection, page 29 • Mouse Emulation — Select the Mouse Emulation radio button. For more information about using Mouse Emulation, see 5.4.4 Using Mouse Emulation, page 41 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 71: Gaze Selection

    Customize the mouse control speed by moving the Mouse control speed slider. Move the slider to the right to increase the speed and to the left to decrease it. 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 72: Magnifier Size And Zoom

    On and Off (hide/show) the Mouse Emulation Menu instantly during use. System Settings 7.6.1 System Off-Screen Menu Select the Position Drop down menu to make changes to where the System Off-Screen menu appear on the screen. 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 73: Positioning Guide

    Resume Gaze Interaction. For information about how to use Pause/Resume, see 5.6 Pause/Resume Gaze Interaction and Put the Tobii Dynavox I-Series+ to Sleep with Gaze Interaction, page 44. Select the Available menu buttons: > Sleep-on-Gaze check box to active the possibility to put the device to sleep with Gaze Interaction.

  • Page 74: System Information

    If there is a new Firmware for the Eye Tracker module, the Upgrade button will be selectable. Select the Upgrade button to start upgrading the Firmware for the Eye Tracker. A Pop up notification will be shown when starting the Tobii Dynavox Gaze Interaction Settings if there is a Upgrade for the Eye Tracker Firmware.

  • Page 75: Gaze Selection Settings

    The zoom speed can be set to 8 different levels, just look at the desired position to change the setting. Changing the Speed will affect how fast the zoom is before the execution of the Task. The further to the right on the scale the faster the zoom. 8 Gaze Selection Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 76: The Keyboard Settings Tab

    Large - Choose Large to use a larger sized Gaze keyboard, will cover half of the screen, see Figure 8.2 Large Keyboard Layout, page 77. Figure 8.1 Small Keyboard Layout (default) 8 Gaze Selection Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 77: The Taskbar Settings Tab

    Activating Maximize Left Click/Tap can greatly expand the active region of the Left Click/Tap Task within the Taskbar, making it much easier to select the Left Click/Tap task. 8 Gaze Selection Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 78 Off, all selected Tasks will be spaced evenly along the Taskbar. If it is toggled to On, all Tasks other than Left Click/Tap will re- tain their original/smaller sizes and the Left Click/Tap Task will fill the remaining space on the Taskbar. 8 Gaze Selection Settings Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 79: Product Care

    Keep the original packaging materials for the Tobii Dynavox I-Series+. In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the original packaging (or equal equivalent) is used for shipping.

  • Page 80: Disposing Of The Batteries

    Do not dispose of the batteries in general household or office waste. Follow your local regulations for the disposal of batteries. Disposing of the Tobii Dynavox I-Series+ Device Do not dispose of the Tobii Dynavox I-Series+ Device in general household or office waste. Follow your local regulations for the disposal of electrical and electronic equipment.

  • Page 81: Appendix A Support, Warranty, Training Resources

    Keep the original packaging materials for the Tobii Dynavox I-Series+. In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the original packaging (or equal equivalent) is used for shipping.

  • Page 82: Appendix B Compliance Information

    Radio Wave Exposure and Specific Absorption Rate (SAR) Information The Tobii Dynavox I-Series+ device has been tested as a Class 1 Medical Device. Medical electrical equipment such as this requires special caution regarding Electro-magnetic Compatibility (EMC) and thus needs to be installed and placed into service according to the information provided in this manual.
  • Page 83 Guidance and manufacturer’s declaration – electromagnetic immunity The Tobii Dynavox I-Series+ device is intended for use in the electromagnetic environment specified below. The customer or the user of the Tobii Dynavox I-Series+ device should assure that it is used in such an environment.
  • Page 84 Guidance and manufacturer’s declaration – electromagnetic immunity The Tobii Dynavox I-Series+ device is intended for use in the electromagnetic environment specified below. The customer or the user of the Tobii Dynavox I-Series+ device should assure that it is used in such an environment.
  • Page 85 If the measured field strength in the location in which the Tobii Dynavox I-Series+ device is used exceeds the applicable RF compliance level above, the Tobii Dynavox I-Series+ device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Tobii Dynavox I-Series+ device.
  • Page 86 With regard to the test specifications specified in 6.2.1.10 EN 60 601-1-2 (2007) the cessation or interruption of any intended operation, even if accompanied by an alarm, is allowed in the Tobii Dynavox I-Series+ device due to it not performing any safety critical operations.
  • Page 87 Standards We, Tobii AB, hereby declare that the Tobii Dynavox I-Series+ products listed in this manual complies with the following directives: • 93/42/EEC (MDD) - Medical Device Directive, as amended by 2007/47/EC • 2011/65/EU (RoHS 2) - Restriction of Hazardous Substances Directive •...
  • Page 88 VCCI (Japan) – only for I-15+ • CAN/CSA-CE/IEC CISPR 11-04 (R2013) • CISPR 16-1-4:2010 • ANSI C63.4:2009 • ANSI C63.10:2009 • EN 62479:2010 • ICES-001: issue 4 • IEC 62133:2002 Appendix B Compliance Information Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 89: Appendix C Computer Device States Of Operation

    White Illumination Green Light Blue Light S0 (Working) Green Blinking Light Blue Blinking Light S3 (Sleep) Blue Light S4 (Hibernate) Blue Light S5 (Soft off) Appendix C Computer Device States of Operation Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 90 No DC plug inserted, Battery level is at or below the critical level Or a switch port configured to have power button functionality. Appendix C Computer Device States of Operation Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 91: Appendix D Maximum Allowed Temperature

    Appendix D Maximum Allowed Temperature Table D.1 Maximum Allowed Temperature Maximum Temperature ℃/℉ Allowable maximum temperature for the Tobii Dynavox I-Series+ metal external surfaces which are likely to be touched Portable Mounted Mode Mode Mounted Mode temperature threshold: 55/131 External surfaces temperature allowed...

  • Page 92: Appendix E Technical Specifications

    Resting Orientation: 1 × IR filter window with 1 × IR Receive Sensor, 3 × IR Transmit Diodes and 1 × Red Status LED Upright Orientation: 1 × IR filter window with 4 × IR Transmit Diodes Appendix E Technical Specifications Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 93 Maximum 6 months @ charge ≥ 40% Deskstand Integrated Mounting Systems Supported Tobii Dynavox QR adapter plate for Daessy and REHAdapt Power Supply Adapter Technology Co. Ltd, ATM065-A240 Input: Universal 100 ~ 240 VAC / 50 ~ 60 Hz Output: +24VDC / 0~2.71A...
  • Page 94 Precision across head box is measured with users after calibration systematically positioned at varying positions ranging from center of the head box up to +/- 15 cm horizontal, +/- 10 cm vertical and +/- 10 cm distance. Appendix E Technical Specifications Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...

  • Page 95: Appendix F Approved Accessories

    AdapterTech ATM065–A240 (Power Supply) 12004072 Battery pack TISB1 For information about the latest approved Tobii Dynavox Accessories, please visit the www.tobiidynavox.com website or contact your local Tobii Dynavox reseller. Appendix F Approved Accessories Tobii Dynavox I-Series+ User’s manual v.1.4 - en-US...
  • Page 96 Copyright ©Tobii AB (publ). Illustrations and specifications do not necessarily apply to products and services offered in each local market. Technical specifications are subject to change without prior notice. All other trademarks are the property of their respective owners. Support for Your Tobii Dynavox Device Get Help Online See the product-specific Support page for your Tobii Dynavox device.
