GM220 User Manual
Chapter 1: Hardware Connection............................................................................................................2
Chapter 2: Software Installation..............................................................................................................6
Chapter 3: How to use TiVme?.............................................................................................................. 11
3.1 Activating TiVme ....................................................................................................................... 11
Chapter 4: TiVme function Overview ....................................................................................................15
4.1 Instruction the main icon of the control panel........................................................................15
4.2 Normal Mode .............................................................................................................................16
4.3 Control Buttons on the Window...............................................................................................16
4.12 The Tool Menu .........................................................................................................................32
Chapter 5: Appendix ..............................................................................................................................34
.........................................................................................................................16
............................................................................................................................17
...................................................................................................................20
...................................................................................................................20
..................................................................................................................................21
.............................................................................................................21
........................................................................................................................24
..............................................................................................................................27
Catalog
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM220 and is the answer not in the manual?

Questions and answers

Summary of Contents for KWorld GM220

  • Page 1: Table Of Contents

    GM220 User Manual Catalog Chapter 1: Hardware Connection......................2 Chapter 2: Software Installation......................6 Chapter 3: How to use TiVme?......................11 3.1 Activating TiVme ........................11 Chapter 4: TiVme function Overview ....................15 4.1 Instruction the main icon of the control panel................15 4.2 Normal Mode ..........................16 4.3 Control Buttons on the Window....................16...

  • Page 2: Chapter 1: Hardware Connection

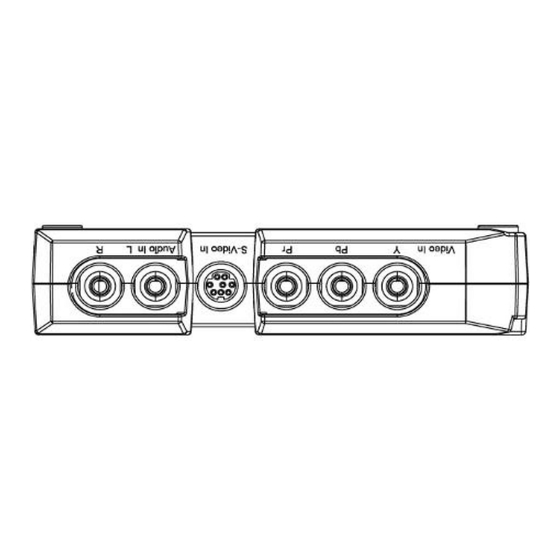

    Video Input: Connect your Video Source machine and GM220 by the YPbPr/S-Video/Composite Cable. b. Video Output: Connect your TV monitor and GM220 by the YPbPr/S-Video/Composite Cable if you want to show the video on the TV monitor and desktop/laptop in the same time.
  • Page 3 Composite Connection:...
  • Page 4 S-Video Connection:...
  • Page 5 YPbPr Connection:...

  • Page 6: Chapter 2: Software Installation

    (1) First, please check GM220 whether has been connected in USB port of esktop/laptop and detected in the『Device Manager』list before the start of software installation. (Figure1) (2) You can close the dialog window first (Figure2) while the system detects GM220 at the lower right corner. (Figure1) (Figure 2) Step2.
  • Page 7 Attention: Advanced users who wish to install the software and program must install “Microsoft.Net Framework 3.0” or above first in order to install the TiVme. (3) You will see the list of installation options at the left side of window which recommend to click the “Quick Installation”.
  • Page 8 (4) Please read the “End User License Agreement” and click “Agree”. (5) You can choose “Typical Installation” or “Custom Installation”. “Typical Installation” will install all the required Driver、TiVme and 3 party software (PowerDirector/PowerProducer). You can also choose the “Custom Installation” to install the program or software individually. Click “Next” when you make your selection.
  • Page 9 Attention: In “Custom Installation”, please check if the “TiVme Installation” and “Driver Installation” have been installed /selected already before clicking the “Install”. (6) The installation will take a period of time. Please wait. (7) When the installation is completed, the system will ask whether you would like to restart your computer. Please click “Yes, I want to restart my computer now”...
  • Page 10 (8) After finishing the installation and restarting the system ,you can double-check the GM220 Driver whether it has been installed already and showed up below two icons in the『Device Manager』.

  • Page 11: Chapter 3: How To Use Tivme

    When you activate TiVme for the first time, the system will guide you through the necessary steps of Video setting. The “TV Connected” dialog widow will appear when you activate TiVme. If GM220 has been connected TV monitor, please select「Yes」;if not, please select「NO」.
  • Page 12 Select the source input type (GM220: Capture Device) and click”Next” Please select the correct Video System (PAL/NTSC) by your actual video source, and click” Exit”.
  • Page 13 (If the Video input source is the YPbPr, please select the correct option according to different resolution) For example, the resolution of your video source is the 480P/576P/720P/1080i, please select the “GM220-YPbPr (HD)”; the others lower resolution, please select the “GM220-YPbPr” The Videos/Games will be showed on the window after selecting the source input...

  • Page 15: Chapter 4: Tivme Function Overview

    Chapter 4: TiVme function Overview 4.1 Instruction the main icon of the control panel Source Input Snapshot Capture Schedule Record Playback Video Setting Display Ratio Setup...

  • Page 16: Normal Mode

    4.2 Normal Mode When you finish the initial setup and select the correct video source, you can use the panel icon for watching/recording. 4.3 Control Buttons on the Window Always on top Minimize Maximize Exit/Close Capture Snapshot Display Ratio Volume Down Volume Up Audio Mute...

  • Page 17: Capture

    , you can configure the setting for When you click on the arrow beside the Snapshot icon “Snapshot”  Snapshot Format: You can capture your favorite scenes of the shows and save in BMP、JPG、 PNG、TIFF formats.  Snapshot Count and Snapshot Interval: Snapshot Count indicates the number of snapshot pictures and snapshot Interval (unit: ms) means the time interval between snapshots.
  • Page 18 Another way to resume to normal mode is to right click on the screen and then enable “Stop Capture”. When you click on the scroll-arrow beside the Capture icon, you can configure the settings for “Capture”:  Video Path: allows you to change your storage path. ...

  • Page 20: Video Setting

    Brightness/Contrast/Hue/Saturation/ Sharpness in user mode. The video setting you configure can be applied to all channels/ Video Source (GM220) or you may return to default value. VMR Type: You can switch the different Video Mixed Render by your operation system and Graphic card support.

  • Page 21: Osd

    4.8 OSD The OSD function enables you to adjust the font color, font size and displaying location for the on-screen displayed texts in the window. To do so, just click on the arrow beside it .For example, when you change the font color, the text appears on the screen turn to the color you adjusted (please refer to the picture below, the one at the right).
  • Page 22 If you click “Add”, you can create a new recording schedule like the picture as below. Capture Setting ․Select a Capture Device: select the device you are using ․Capture Source Type: select the source type you want to record ․Channel Name: choose the channel name from the list (Only for TV card/USB Stick products) ․Capture Format: choose your recording format ․Capture Size: choose the recording size you want ․Audio Option: configure your audio setting...
  • Page 23 ․BitRate (Kbps): choose the BitRate of recording video you want Time Option Setting ․Start Time: set the starting time for the recording ․End Time: set the ending time for the recording ․Record Rule: define record rule. The default is Only Once ․Record in Silent Mode: enable/disable silent recording S.R.P.O: schedule record in power-off.

  • Page 24: Playback

    Log: the log shows the information your scheduled recording if you have set any recording schedule. 4.10 Playback When you click on the arrow beside the Playback icon , you can choose a recorded file for playback or a file from folders in your PC. (Note: continuous file playback is available)
  • Page 25 ․Add: add a selected file to the playlist at the bottom half of the window ․Add All: add all the files to the playlist ․Delete: delete a file from the playlist ․Delete All: delete all the files on the playlist ․Play: play the selected file that is in the playlist at the bottom half of Playback ․Exit: exit Playback When you select a file for playback, TiVme will play the video for you in another screen as illustrated...
  • Page 26 Control Buttons for Playback Mode Backward Play Pause Forward Stop Previous File Next File Repeat (on) Repeat (off) Display Ratio Audio ON Volume Up Volume Down Control Slide for Playback...

  • Page 27: Setup

    4.11 Setup Enter the software setting page Sleep Timer: set the sleep timer for the system. You can make the system to close application, log off, hibernate, shut down or reboot when the time is up.
  • Page 28 Analog Setting: set de-noise level to allow better analog quality. You may also tick “Use Adv De-Noise” for advanced de-noise. Marquee: You can choose “Input Text” or “Select Text File” to place the words you want to show the image window and decide the show way in『Repeat Forever』...
  • Page 29 Live Update: When you open “auto update “, TiVme will download the system update automatically (if there is a new version. If not, it won’t do anything). If you click “Check”, TiVme will display version status. Note: Before you want to update, please check if you have the Internet connection first. Scan Setting: re-run the video system setup.
  • Page 30 and then you can browse and select files from your PC folders. Other: configure settings like Multi-Language, Auto open last source when execute Application, and Boss Key Setting (Function Key, Min Key and Restore Key). Multi-Language: change the language for the interface. Auto open last source when execute TiVme: when you tick the box, TiVme will run the video source type you watched in last time.
  • Page 31 Gaming Device: TV Connected: Please select it if you connected the Gaming Device (GM220) to output the video to the TV monitor and laptop/desktop in the same time. If you don’t want to check this dialog widow in activating TiVme every time, you can click the “Don’t show at next startup”...

  • Page 32: The Tool Menu

    4.12 The Tool Menu While you are watching video/game on TiVme, you can open the Tool Menu with a mouse right-click. The Tool Menu allows you to access and activate functions of TiVme, which provides you another option besides the icons in the interface. Always On Top: open TiVme to remain at the top of all other application windows.
  • Page 33 Snapshot: activate Snapshot function to take the Snapshot. You can also do the same if you click on the Snapshot icon on the main interface. Digital Zoom: there are 4 zooming formats -- Original, 2X, 3X and 4X. Mute: Audio on or off Volume Up: increase the volume Volume Down: decrease the volume Hide Panel: hide or show the control panel (the TiVme panel)

  • Page 34: Chapter 5: Appendix

    Copyright @ 2011 KWorld Computer Co., Ltd. All rights reserved. All KWorld trademarks and logos are registered trademarks of KWorld Computer Co., Ltd. All other trademarks and logos presented in this material are the property of their respective owner. KWorld Computer Co. Ltd. reserves the right to revise the specifications mentioned above.
