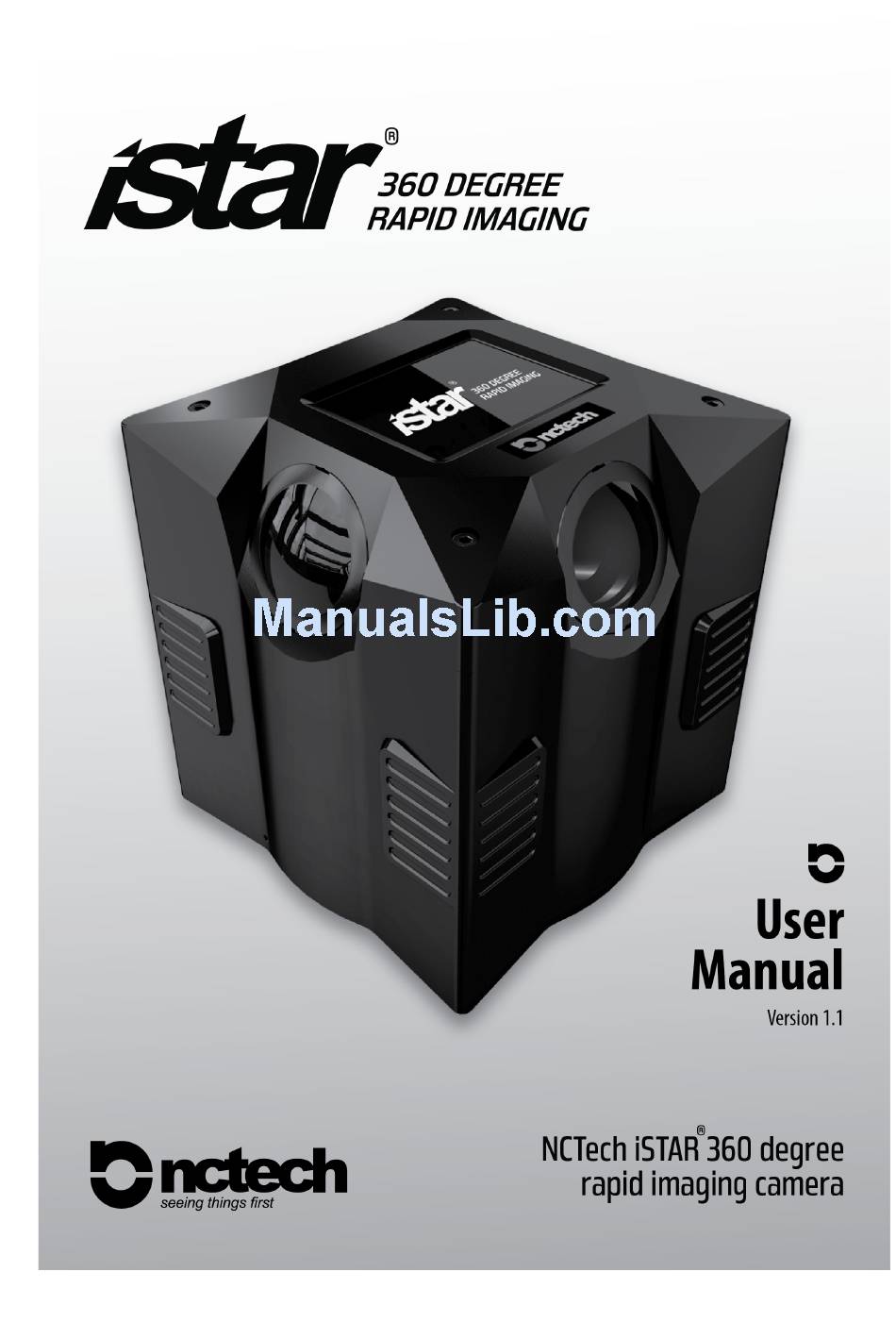

Summary of Contents for NcTech iSTAR 360
- Page 2 To begin with take a few test photographs and check that the images are properly recording to the memory card. If the camera or memory card is faulty and images cannot be recorded or read by a PC, NCTech cannot be held liable for any loss or inconvenience caused.
-
Page 3: Table Of Contents
Colour balance levels ........................14 Storage settings ........................... 14 ..........................15 ISPLAY ETTINGS Backlight timeout: ......................... 15 Power off: ............................. 15 .......................... 15 ENERAL ETTINGS iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 3... - Page 4 GPS, Audio and Tilt compensation: ..................... 15 Format SD Card ........................... 15 TROUBLE SHOOTING ........................16 ..........................16 ESET BUTTON ..........................16 UPPORT ORTAL iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 4...
-
Page 5: Safety Warnings
‘white out’ or damage to electronics. The USB port should only be used with memory sticks and accessories approved by NCTech Ltd. Do not use any batteries, power sources, and accessories that are not specified in this Manual. Do not use any homemade or modified batteries. -
Page 6: Handling Precautions
Do not connected an external hard disk drive as it may cause damage to iSTAR. -‐ The small USB port allows iSTAR to control other external devices supported by iSTAR. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 6... -
Page 7: Istar Overview
Weight: Approximately 1.4kg Power 12v mains power adapter, 2.1mm jack Rechargeable battery. Lithium ion 7.4v 4400mAh The battery in iSTAR lasts for around 6 hours during normal activity. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 7... -
Page 8: Nomenclature
LCD touchscreen Serial number Safety strap pin 1/4” thread tripod mount Quick release plate pin holes Grip area Slide to open GPS aerial Battery cover Battery cover screw iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 8... -
Page 9: Getting Started
4. The iSTAR logo will appear on screen for approximately 15 seconds whilst the camera boots up. The iSTAR menu screen will appear and the camera is now ready for operation. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 9... -
Page 10: Turning Off The Camera
To turn off the camera, touch the power icon . You will then be asked to confirm by tapping the tick box. To cancel and return to the start screen, tap the X button. Main menu iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 10... -
Page 11: Image Capture
SD card or USB stick, whichever is being used. The time to save will depend on where you are saving the file, for example if it's to the internal SD card then processing time will be around 30-60 seconds. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 11... -
Page 12: Live View Mode
To view meta data from the image, press the icon. To delete the image, press the icon. You will then be asked to confirm by tapping the tick box. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 12... -
Page 13: Settings
Press the “Automatic IP” button to switch on automatic IP. To enter manually, un-tick the button if it is ticked and enter the settings by clicking on the IP, Netmask, and Router buttons. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 13... -
Page 14: Capture Settings
“Storage Settings” screen. By default the output format is set to JPG. This can be changed to PNG format. Tap the Format button to change the setting. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 14... -
Page 15: Display Settings
IMPORTANT: Formatting the SD Card will erase all information from the card. Please ensure that you have copied or have a back up of all image data that you wish to keep. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED. PAGE: 15... -
Page 16: Trouble Shooting
This users Manual is current as of January 2013. For information on the camera’s compatibility with any accessories or third party hardware or software, contact your reseller or NCTech direct. iSTAR USERS MANUAL V.1.1. JANUARY 2013. © 2013 NCTECH LIMITED.
