TELTRON CleanBar AVC 1000 User Manual

Vegetable and fruit cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TEL : 042-360-2020 / E-mail : teltron@teltron.com
TEL : 042-360-2020 / E-mail : teltron@teltron.com
Vegetable and Fruit Cleaner
Vegetable and Fruit Cleaner
Vegetable and Fruit Cleaner
User Manual
User Manual
Model : AVC 1000
Model : AVC 1000
User Manual
Model : AVC 1000
TELTRON Inc
TELTRON Inc
TEL : 042-360-2020 / E-mail : teltron
www.teltron.com
www.teltron.com
www.teltron.com
Vegetable and
User
Model : A
TELTRON Inc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CleanBar AVC 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for TELTRON CleanBar AVC 1000

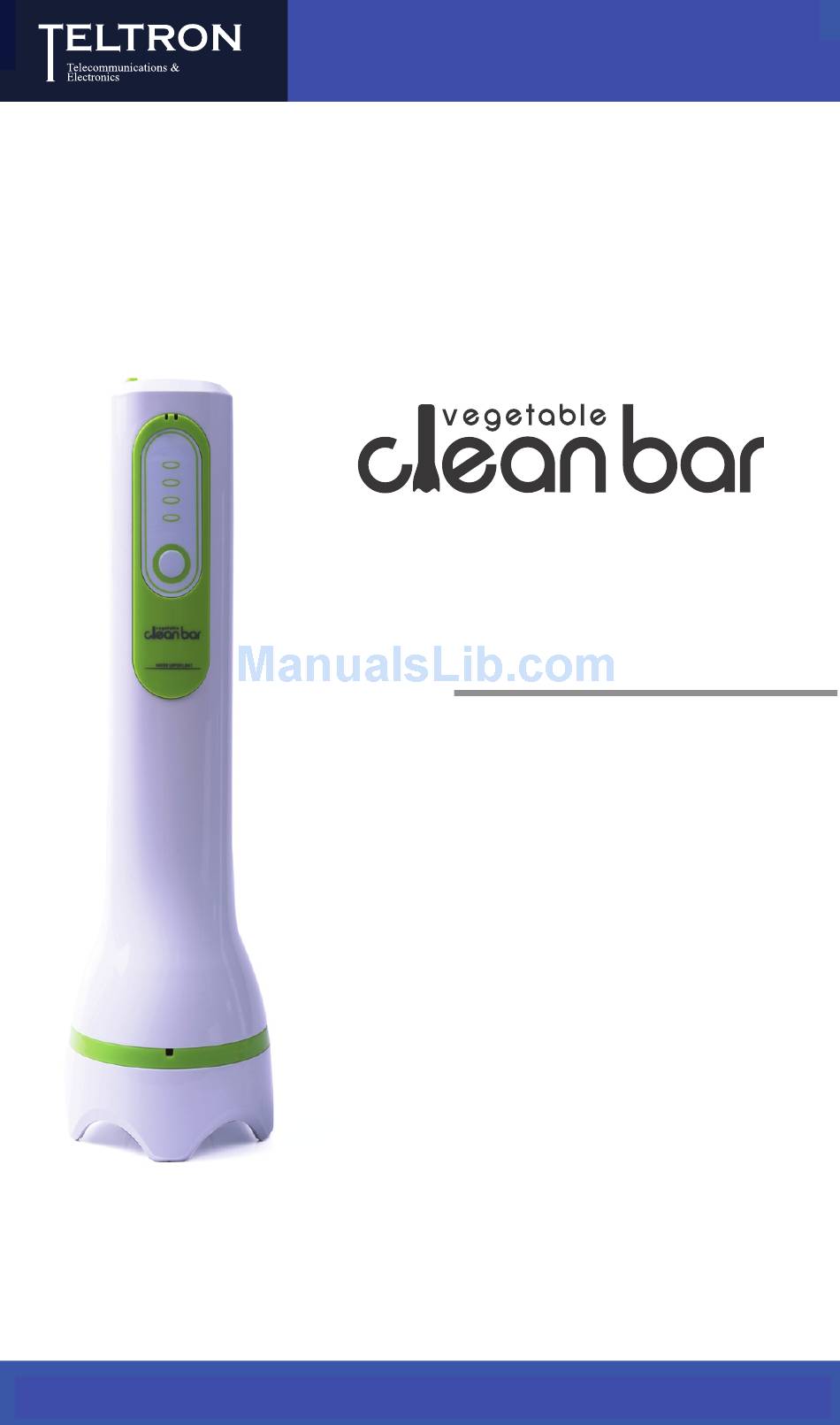

  • Page 1 Model : AVC 1000 Model : A User Manual Model : AVC 1000 TELTRON Inc TELTRON Inc TELTRON Inc TEL : 042-360-2020 / E-mail : teltron@teltron.com TEL : 042-360-2020 / E-mail : teltron@teltron.com TEL : 042-360-2020 / E-mail : teltron...

  • Page 2: Before Using

    Before using Thank you for choosing the TELTRON CleanBar We recommend that you check the lists below to ensure a safe and efficient operation before using. 1. Vegetables or fruits should be submerged in the water in which the CleanBar is to operate.

  • Page 3: Table Of Contents

    Contents 1. Instruction ..................1.1. Features 1.2. Specifications 2. Structure ..................2.1. Package Contents 2.2. Components 3. Display in each operation level .......... 3.1. Power OFF state 3.2. After Power ON 3.3. Usage of operation button 3.4. Out of water while cleaning 3.5.

  • Page 4: Product Features

    1. Introduction of CleanBar Thank you for choosing the Teltron CleanBar The CleanBar is a portable cleaning appliance that cleans, sterilizes and deodorizes objects by utilizing long and short wave ultrasound that removes fine dust, pesticide residue and surface contaminants from objects while sterilizing bacteria with water soluble ozone.

  • Page 5: Specifications

    (up to 15 times of 3 minutes operation through single full charging) operation will effectively clean items. by water dissolved ozone. 1.2 Specifications Product Name CleanBar Model Name AVC1000 Input Power DC 8.4V 1.2Ah Dimensions 315 x 91 x 54.5mm Weigh 600g E.Coli 99.9% (3 minutes)

  • Page 6: Structure

    2. Structure 2.1 Package Contents 1. Main Body of CleanBar 2. Charger 3. User Manual 2.2 Description of Components Charging Terminual Unit Operation Panel Unit Operation Button Maximum Water Line Ozone Discharging Hole Main body Operation Display LED in the bottom Ultrasound Generation Unit...

  • Page 7: Display In Each Operation Level

    3. Display in each operation level Working indication LED on the bottom always blinks when power ON. 3.1 Power OFF State (Factory setting) Display Beep sound Note All LEDs OFF 3.2 After Power ON (First operation after unpacking) Display Beep sound : 4 times : 3 times : 2 times...
  • Page 8 3.3 Operation buttons (Carry out when power ON) Display Level 1 Level 2 Level 3 Level 4 Single beep sound when pressing operation Note button LED is ON : Level 1 LEDs are ON : Level 2 LEDs are ON : Level 3 LEDs are ON : Level 4 Level 1 (Light) ->...

  • Page 9: Out Of Water While Cleaning

    3.4 Out of water while cleaning (Temporary stop) This happens when the CleanBar is removed from water during operation. It will beep every five seconds and all the LED lights will turn off Display Beep sound Note All LEDs off 3.5 Pressing operation button and holding while cleaning (The equipment goes OFF) The CleanBar will sound one long beep and the LED lights will turn off...

  • Page 10: Battery Level Goes Down Under

    3.6 Battery level goes down under 40% Display Level 1 Level 2 Level 3 Level 4 The top most LED light in operation will blink Note (i.e. in cleaning level three the third light at the top will blink and the bottom two will remain on). 3.7 Battery level goes down under 25% Display Level 1...
  • Page 11 3.8 Battery level goes down under 10% Display The bottom LED light will blink, no other LEDs will be illuminated regardless of what cleaning Note level it is running at and CleanBar will beep every ten seconds. starting or intermittent at normaloperation.

  • Page 12: How To Use

    4. How to use CleanBar Step 1. Fill a clean container or sink with clean water. CAUTION * Do not add any detergent, soap, synthetic chemicals or other cleaning products to the water. USE CLEAN WATER ONLY. Step 2. Completely immerse items to be cleaned in the water. CAUTION Be aware of the water level when placing the CleanBar head in water.
  • Page 13 Step 6. A long beep sound will indicate that the cleaning is completed and the CleanBar will stop automatically and go into standby mode. Press and hold the operation button to power down the device manually. Step 7. If you wish to continue cleaning other items, drain the water, rinse the container or sink andthe CleanBar, refill the water and submerge the new items to be cleaned.

  • Page 14: Application

    5. Application of CleanBar Use on Amount Level Soft fruits such as strawberries and 500g or less 1 (light) cherries. Smooth skinned vegetables such as beans, 1,000g or less 2(gentle) eggplant, garlic, peppers, and tomatoes. Generally difficult to clean food with large surface areas such aslettuce, herbs, 1,000g or less 3 (moderate)

  • Page 15: Maintenance

    6. Maintenance of CleanBar (1) Rinse CleanBar after use and dry thoroughly with a clean dry towel. (2) Recharge the CleanBar battery as required (see Display), charging takes approximately 2hrs. (3) Store CleanBar in a cool place, out of direct sunlight. Do not clean CleanBar with anything other thanwater.
  • Page 16 (6) Do not operate CleanBar in water containing synthetic chemicals or detergents or in any liquid other than water. (7) Do not disassemble CleanBar for any reason. It may permanently damage the unit or cause injury to the person wrongfully trying to dismantle or fix the unit. (8) CleanBar will not operate out of water.

  • Page 17: Product Warranty

    8. Product Warranty This warranty is valid for one year after purchase. It covers any performance or function failure experienced during normal use within the first year. Repairs must be paid by the customer when the product is out of warranty or has beendamaged due to misuse, mishandling, power surges or natural disasters.
  • Page 18 M E M O...
  • Page 19 M E M O...
  • Page 20 TELTRON Inc. TELTRON Inc. (305-343) 202 ITplex, 26-41 Gajeongbuk-ro, (305-343) 202 ITplex, 26-41 Gajeongbuk-ro, Yuseong-gu, Daejeon, Korea Yuseong-gu, Daejeon, Korea E-mail : teltron@teltron.com E-mail : teltron@teltron.com...
