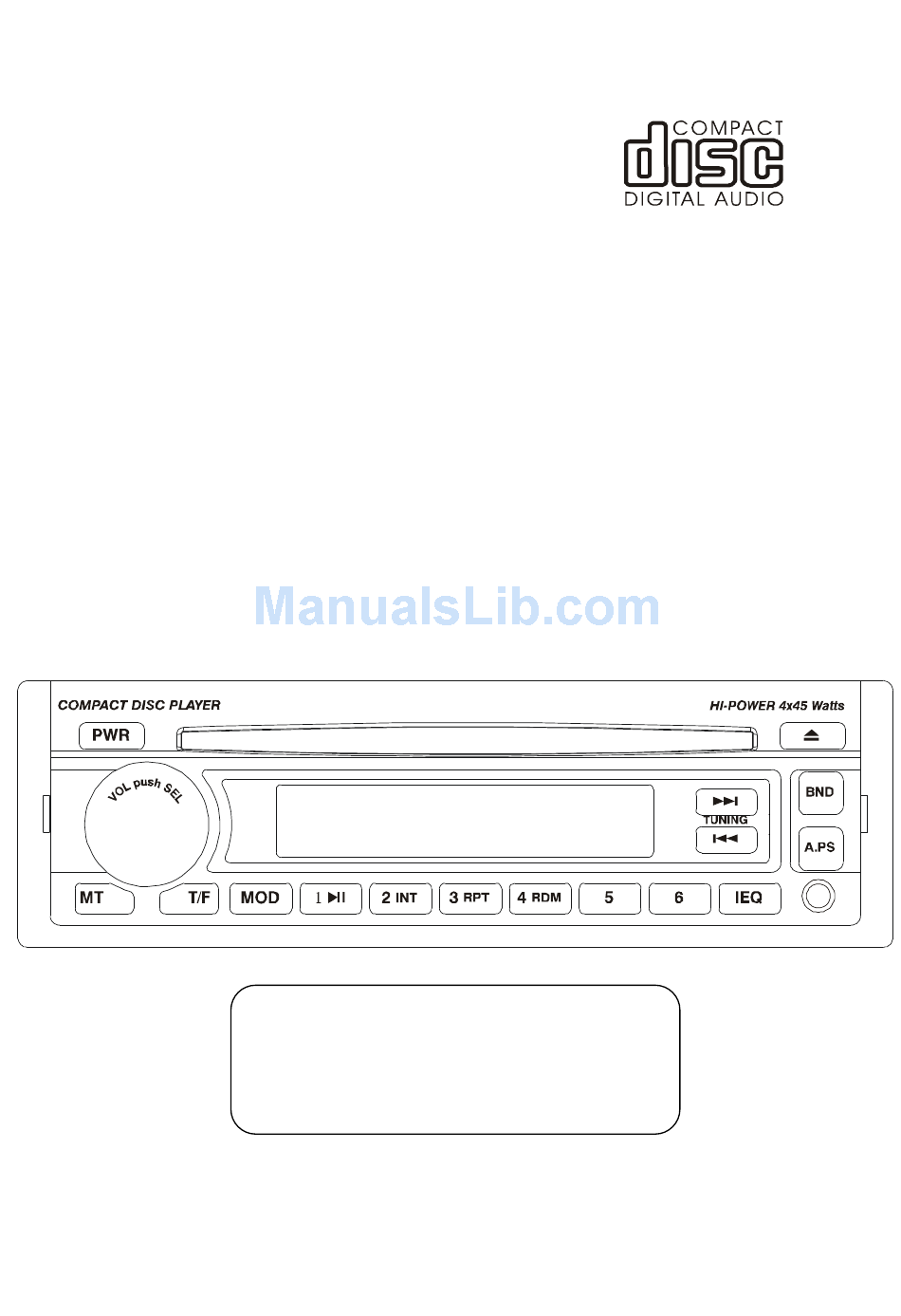

- Page 1 Operation Manual for Users Model No.: FLTAMFMRCD !!!!!!!!!! ATTENTION !!!!!!!!!! THE RESET BUTTON MUST BE PRESSED TO ENSURE PROPER OPERATION. SEE INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Table of Contents --------------------------------------------------------------------------------------------- 1 Wiring Identification ----------------------------------------------------------------------------------------- 2 Important Notes ----------------------------------------------------------------------------------------------- 3 Installation ----------------------------------------------------------------------------------------------------- 4 Supporting the Unit ------------------------------------------------------------------------------------------- 5 Identification of Control Function -------------------------------------------------------------------------- 6 Control ---------------------------------------------------------------------------------------------------------- 7 Operating the Radio --------------------------------------------------------------------------------------- 8-10 Operating the CD Player ------------------------------------------------------------------------------------ 11 Precaution and Maintenance -------------------------------------------------------------------------------- 12 Trouble Shooting Guide &... -
Page 3: Wiring Identification
Wiring Identification... -
Page 4: Important Notes
Important Notes Prior to the final installation, carry out a sound check. If high distortion or intermittent sound is experienced, it is possible that the wiring from the CD receiver to the truck's electrical system is poor or that the battery needs recharging. If the battery and its charging circuit are OK, then rewire the red fused wire of the CD player directly to the positive terminal (+) of the truck battery. -
Page 5: Installation
Installation 1. Precautions Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the truck. Avoid installing the unit where it would be subject to high temperature (such as from direct sunlight or hot air), or where it would be subject to dust, dirt or excessive vibration. -
Page 6: Supporting The Unit
Supporting the unit 1. UNIT 2. RELEASE CASE 3. HEX NUT 4. LOCK WASHER 5. PLAIN WASHER 6. BODY 7. REAR SUPPORT STRAP 8. TAPPING SCREW 9. M5 X 20 HEX BOLT Accessories are subject to change without notice. 1. Fuse replacement If the fuse blows, check the power connection and replace the fuse. -
Page 7: Identification Of Control Function
Identification of Control Functions 1. CD eject button 2. Electronic function SELECT button, Volume control knob 3. MOD button ( Radio --> CD --> AUX IN ) 4. IEQ button ( FLAT - CLASSIC - POP - ROCK ) 5. POWER ON/OFF button 6. -
Page 8: Control
Controls 1. POWER ON/OFF Push the button (5) to turn on the unit. Push the button again to turn off the unit. 2. SELECT Button (2) 1) Audio control (VOLUME / BASS / TREBLE / BALANCE / FADER ) Press key quickly to select the following features; "VOL"... - Page 9 (Europe). Press and hold the BAND button for 1-2 seconds to set the format. 3.Volume control Turn the spindle knob (2) left or right to decrease or increase the volume level. Switching on your radio automatically allows you to set the volume level without having to select it first. Simply turn the spindle knob to set the desired level. - Bass control Turn left to lower the bass.
-
Page 10: Operating The Radio
Press MUTE button(14) to mute sound. Press again to restore volume to original setting. Operating the Radio 1. Press the BND button (6) to select the desired band FM1, FM2, FM3, AM1 or AM2. 2. Manual / Seek tuning buttons (7) : Press this button quickly to activate the Seek mode. The Seek mode will automatically seek up or down the wave band and stop at the next station of sufficient signal strength. -
Page 11: Operating The Cd Player
Operating the CD Player 1. Select the RADIO / CD / AUX by pressing the "MODE" button (3) in sequence. 2. Track tuning (7) Search the track on the DISC with & buttons. If you press button continuously, the track goes fast forward or rewind. 3. -
Page 12: Precaution And Maintenance
Precaution and Maintenance 1. Reset Function A microprocessor reset function has been provided to facilitate manual resetting of the internal microprocessor. In the unlikely event that the player fails to operate correctly refer to step 3 below. Note: It will be necessary to re-enter the radio preset memories as these will have been erased when the microprocessor was reset. -
Page 13: Trouble Shooting Guide
Trouble shooting Guide INTERFERENCE ON RADIO - Poor atmospheric conditions - Try again later in the day. - Antenna / lead broken or damaged. DISTORTED AUDIO - Check loudspeaker wiring. This product contains a biamp. It is important not to connect the front loudspeaker ground to the rear Speaker ground.
