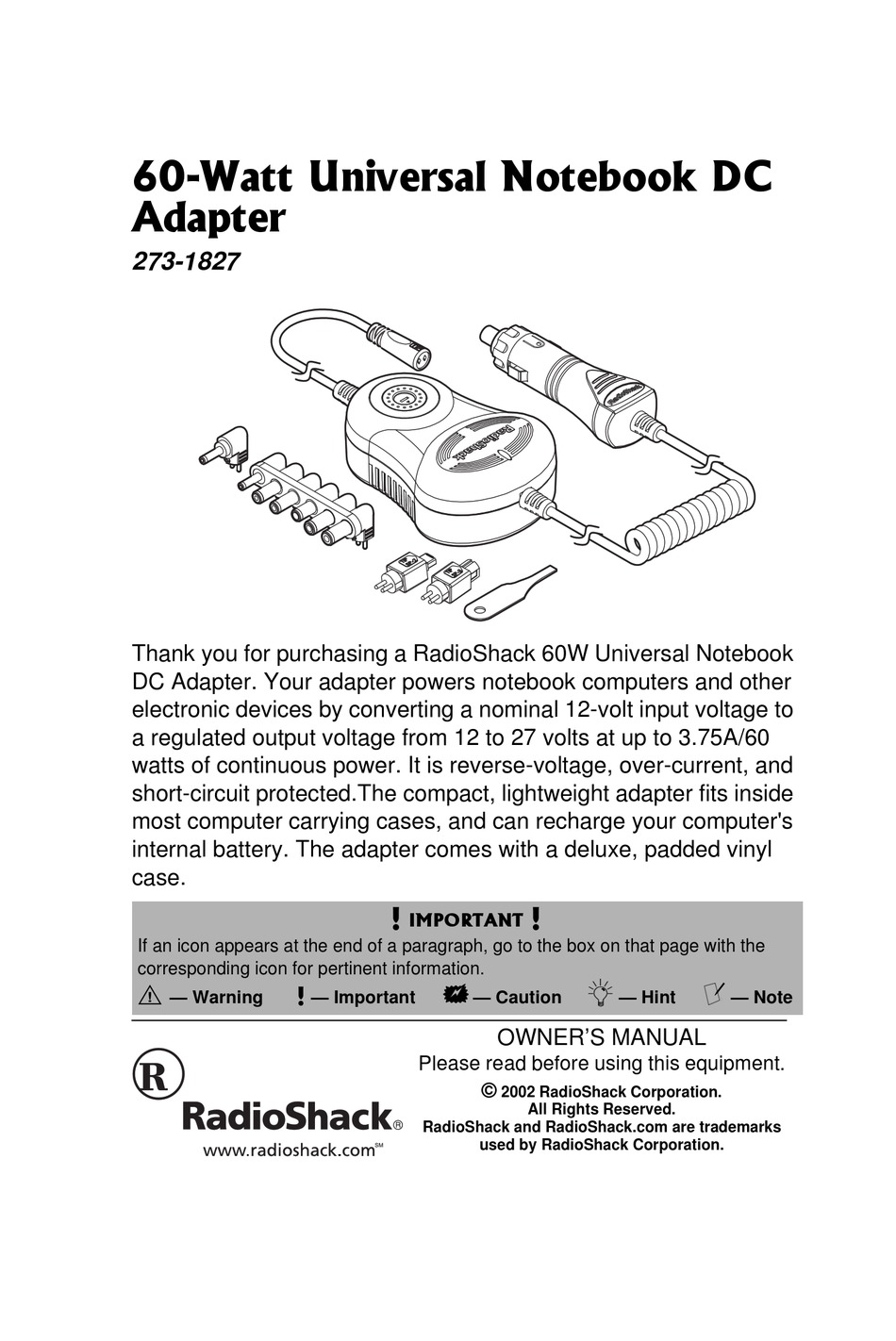

82/9CVV"7PKXGTUCN"0QVGDQQM"&%"
#FCRVGT
273-1827
Thank you for purchasing a RadioShack 60W Universal Notebook
DC Adapter. Your adapter powers notebook computers and other
electronic devices by converting a nominal 12-volt input voltage to
a regulated output voltage from 12 to 27 volts at up to 3.75A/60
watts of continuous power. It is reverse-voltage, over-current, and
short-circuit protected.The compact, lightweight adapter fits inside
most computer carrying cases, and can recharge your computer's
internal battery. The adapter comes with a deluxe, padded vinyl
case.
If an icon appears at the end of a paragraph, go to the box on that page with the
corresponding icon for pertinent information.
Rý
#
— Warning
#
"+/2146#06"
. . . .
— Important
— Caution
Please read before using this equipment.
RadioShack and RadioShack.com are trademarks
used by RadioShack Corporation.
#
° ° ° °
— Hint
OWNER'S MANUAL
©
2002 RadioShack Corporation.
All Rights Reserved.
±
— Note

Advertisement

loading

Related Manuals for Radio Shack 273-1827

Summary of Contents for Radio Shack 273-1827

  • Page 1 82/9CVV"7PKXGTUCN"0QVGDQQM"&%" #FCRVGT 273-1827 Thank you for purchasing a RadioShack 60W Universal Notebook DC Adapter. Your adapter powers notebook computers and other electronic devices by converting a nominal 12-volt input voltage to a regulated output voltage from 12 to 27 volts at up to 3.75A/60 watts of continuous power.

  • Page 2: Table Of Contents

    5#('6;" %106'065 +05647%6+105 Safety Instructions ..2 Preparation ....4 This manual contains important safety Adjusting Output and operating instructions for your Voltage ..... 4 adapter. Before you use the adapter, Selecting an read all the instructions and cautionary Adaptaplug ....5 markings in this manual, on the Installing an adapter, and on the product that you...
  • Page 3 openings are not blocked or Limited Ninety-Day covered. Warranty • Unplug the adapter from the DC This product is warranted by Ra- power source before attempting to dioShack against manufacturing defects in material and workman- adjust voltage, change the ship under normal use for ninety (90) days from the date of pur- Adaptaplug, or clean the adapter.
  • Page 4 24'2#4#6+10 Limited Ninety-Day Warranty (continued) This adapter is intended for mobile use In the event of a product defect during in automobiles, trucks and boats. This the warranty period, take the product and the RadioShack sales receipt as adapter can also be used on proof of purchase date to any Ra- dioShack store.

  • Page 5: Preparation

    • Refer to the power or ID plate "%#76+10" on the AC power adapter Preparation usually used to power the Take care not to expose device. Look for the word the adapter to rain, snow, “OUTPUT” followed by a or water, which could number and VDC (for example, damage the adapter’s.
  • Page 6 plugs. The Adaptaplug colors and sizes are: • Blue (M) — 5.5 × 2.1 mm • White (N) — 5.5 × 2.5 mm • Yellow (D) 5.5 × 3.3 × 1.0 mm • Yellow (C) 4.7 × 1.7 mm • Green (Q) — 6.3 × 3 mm •...

  • Page 7: Adaptaplug

    3. Select the Adaptaplug that most resembles the original plug and insert it into the device to be powered. The inside and outside diameter must be the correct size to ensure proper electrical contact. If none of the supplied plugs fit, additional Adaptaplugs are ±...
  • Page 8 The adapter's plug must match your device's DC input jack with respect to polarity (positive to positive and negative to negative).± ± ± "016'" " According to the jack's polarity, insert If the polarity symbol is not displayed on the the Adaptaplug into the output cord by device to be powered, it aligning the correct polarity symbol...

  • Page 9: Adaptaplug

    12'4#6+10 You can use your adapter to power your notebook computer from automobile cigarette-lighter sockets and 12-volt power ports, portable 12- volt battery packs, airline seats with 11 to 16V DC capabilities and the appropriate receptacles, and solar panels with power capabilities of 11 to .
  • Page 10 the correct polarity orientation. This could also indicate a problem with your computer or with the adapter. Take your adapter and/or computer to your local RadioShack store. Some automobiles require the ignition to be turned on, or to the ACC (accessory) position, to provide power to the cigarette-lighter socket.
  • Page 11 6417$.'5*116+0) Some notebook computers have power supplies in excess of this adapter’s rating (over 60 watts). In most cases, this higher rating is used to both charge a completely discharged battery and power the computer at the same time. This adapter can be used for such applications, but it is recommended that the computer’s battery be recharged before using this adapter to...
  • Page 12 • If the computer battery is easily removable, remove it from the computer to eliminate the power ± ± requirement for recharging.± "016'" " You can use this "6 '/2'4#674' adapter to charge the This adapter is a high energy switching battery in your notebook computer by connecting regulated power supply and generates...
  • Page 13 " "( '2.#%+0) If the cigarette-lighter plug’s fuse is broken or blown, replace it with a 12A × 1 250V -inch fast-blow, automotive glass type fuse. To remove the fuse, turn the knurled knob counterclockwise then remove the tip ..cap.
  • Page 14 52'%+(+%#6+105 Input Voltage .................. 11–16V DC Maximum Power ................8 Amps In-rush Current ......... 40 Amps, Maximum Cold Start at Room Temperature (77° F, 25° C) Typical Standby Current ........... 100 mA @ 11VDC < 100 mA @ 13.8 VDC <...

  • Page 15: Operation

    Operation ........... –22° to 140°F (–10° to 60°C) Storage ............–22° to 185°F (–30° to 85°C) Humidity: Operation ..........10–90% RH Non-condensing Storage ............5–95% RH Non-condensing Altitude: Operation ........–1,000 to 10,000 ft. (–300 to 3,000 m) Storage ........–1,000 to 49,000 ft. (–300 to 15,000 m) Specifications are typical;...
  • Page 16 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Advantage 486sx/25 Blue Advantage Explorer Blue Advantage Notebooks Blue Ascentia 800 White Ascentia 800N White Ascentia 810N White Ascentia 950N Blue Ascentia P Series White Bravo Notebooks Green BravoL/CDX2-66 Blue Explorer Notebooks Green Atari Stacy Blue...
  • Page 17 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Compaq Contura 3/25 Green Compaq Contura 3/25C Green Compaq Contura 4/25 Green Compaq Contura 4/25C Green Compaq Contura 4/25/CX Green Compaq Contura 430C Blue Compaq Presario 305 18.5 Yellow Compaq Presario (all models White except 305 &...
  • Page 18 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Decision Mate 486SLC White Decision Mate Decision Mate SX White Dell 325SLI Blue Dell Latitude 425 Green Dell Latitude 433 Green Dell Latitude 433C Green Dell NL320SLI Blue Dell (M Plug) 3200/3500/7000 series Blue Dell (T Plug) XP 450C, 475C, 4100T,...
  • Page 19 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Epson ActionNote 880CX White Epson ActionNote 888CX White Epson ActionNote 895CX White Everex DesigNote White Everex StepNote 486 White Fora NBL386S White Goldstar GS520 White Hewlett Packard OmniBook 300 Blue Hewlett Packard OmniBook 425 Blue Hewlett Packard OmniBook 430...
  • Page 20 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Keynote Notebook (ADP-38AB) Blue Librex Adapter SCO2P Blue Librex Adapter SPCE813 Blue Magitronic NoteBook w/ CD White Mitac 40235XT Green Mitsuba Ninja 12-1 Blue M700 White NBCC 386SX Notebook White NBCC 386SX/20 Notebook White NBCC 386SXN Notebook...
  • Page 21 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Sharp PC6781 Green Sharp PC6800 Green Sharp PC6900 Green Sharp PC9020 Blue Tandy 1400FD Blue Tandy 1400HD Blue Tandy 140XT Blue Texas Instruments Extensa 450 White Texas Instruments Extensa 450T White Texas Instruments Extensa 510 White Texas Instruments Extensa 515 White...
  • Page 22 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Texas Instruments TM5020 White Texas Instruments TM5030 White Texas Instruments TM5100 White Texas Instruments TM5200 White Texas Instruments TM5300 White Toshiba Expresswriter 301 Green Toshiba Portege 300CT Green Toshiba Portege 610CT Green Toshiba Portege 620CT Green Toshiba...
  • Page 23 6KR" 6KR" /CPWHCEVWTGT /QFGN"0Q0 8QNVU %QNQT 2QNCTKV[ Toshiba T1910 Blue Toshiba T1910CS Blue Toshiba T1950 Blue Toshiba T1950CS Blue Toshiba T1950CT Blue Toshiba T1960 Blue Toshiba T1960CS Blue Toshiba T1960CT Blue Toshiba T200 Green Toshiba T200CS Green Toshiba T2400CS Blue Toshiba T2400CT Blue...
  • Page 24 Decision Mate 486SLC White Wyse Decision Mate SX White Zenith SuperSport 286 Blue Zenith SuperSport 286e Blue Zenith SuperSport 386SX Blue Zenith Z-Star EX White Zeos Contenta SubNotebook Green 273-1827 RadioShack Corporation 10A02 Fort Worth, Texas 76102 Printed in China...
