Summary of Contents for Freedom Innovations Plie 2.0 MPC KNEE
-

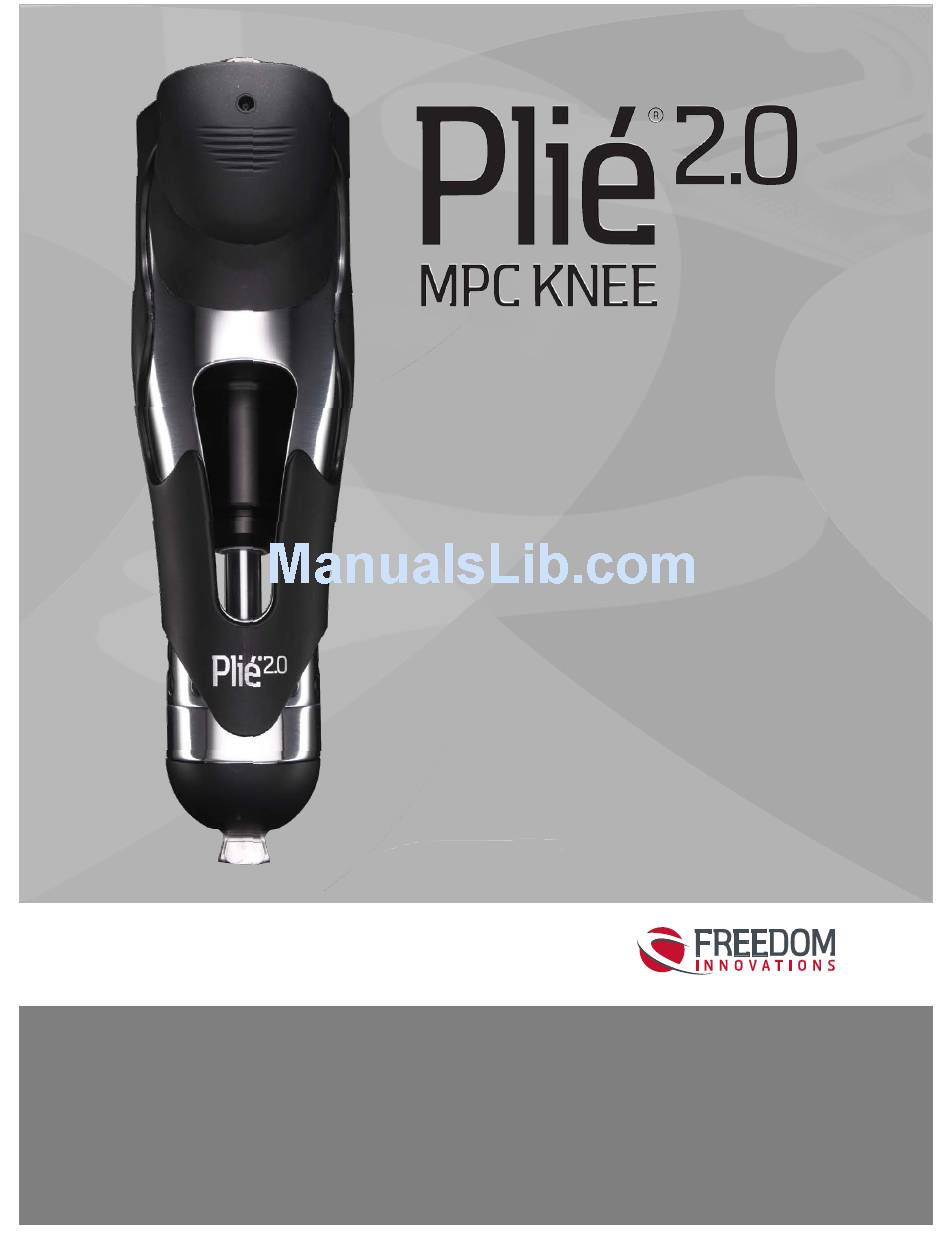

Page 1: Instructions For Use
INSTRUCTIONS FOR USE Plié® 2.0 MPC Knee Instructions for Use (R-720-109 Rev. D), English! -
Page 2: Table Of Contents
Table of Contents Product Number: KS2-00-KNEE1-KT Appropriate Use! Symbols Legend! Safety Information! Knee Functions! Technical Data! Plié® 2.0 MPC Knee Specifications! Battery and Battery Charger Specifications! Environmental Specifications! Storage! Water Resistance! Cleaning! Finishing Options! Battery and Power Information! Battery Charging! Software! Installation! Plié... - Page 3 Plié® 2.0 MPC Knee (images not to scale) Plié® 2.0 MPC Knee Instructions for Use (R-720-109 Rev. D), English!
- Page 4 Recommended Foot Components Plié® 2.0 MPC Knee Instructions for Use (R-720-109 Rev. D), English!
-
Page 5: Appropriate Use
Available Pictured Part Description Part Number Included w/knee Quantity Separately ✓ ✓ Plié MPC Knee KS2-00-KNEE1-00 ✓ ✓ Wireless USB Adapter KS1-00-BLUE1-00 ✓ Battery Case ✓ ✓ Software CD-ROM KS2-00-SFTW1-00 ✓ ✓ Lithium Ion Battery (w/battery case) KS1-00-BATT1-00 ✓ ✓ Battery Charger with Car Adapter KS1-00-CHRG1-00 ✓... -
Page 6: Symbols Legend
Symbols Legend The following symbols are found on the Plié® 2.0 MPC Knee: • Attention, refer to Plié® 2.0 MPC Knee Instructions for Use. • Type BF applied part. • Conformité Européene (European conformity). • Federal Communications Commission (USA conformity). •... - Page 7 Plié® 2.0 MPC Knee user prior to use. • The Plié® 2.0 MPC Knee is not field-serviceable and may only be repaired by Freedom Innovations, LLC. Attempts to disassemble, repair, or modify the Plié® 2.0 MPC Knee, including changes to the tension on any of the threaded fasteners, could put the user at risk for serious injury and will void the warranty.
-
Page 8: Knee Functions
Knee Functions The Plié® 2.0 MPC Knee is a single axis prosthetic knee joint system providing microprocessor control of both the swing and stance phases of gait. The microprocessor monitors an embedded load sensor and an angle sensor to precisely control the transitions between the stance and swing phases of gait. Three manual settings allow the hydraulic cylinder to provide adjustable resistance for stance flexion, swing flexion, and swing extension. -
Page 9: Finishing Options
Finishing Options The Plié® 2.0 MPC Knee may be finished with a cosmetic/protective cover. However, the choice of cover material may affect normal knee function. A cover should be modified or not used if it detrimentally affects the knee performance. A discontinuous, two-piece cover is recommended as its impact on knee performance is minimal. !Care should be taken during cover fabrication to ensure the user has adequate access to the battery !compartment and the posterior manual knee settings of the hydraulic cylinder. -
Page 10: Plié Control
Figure A Figure B Plié Control The Plié Control software is necessary for programming Plié® 2.0 MPC Knees (Figure C). The Plié Control consists of a main window and four auxiliary windows. The auxiliary windows may be accessed from the main window. - Page 11 Figure C 7. Calibrate - Select Calibrate to establish the reference zero values for the embedded sensors. The knee must be extending fully within five minutes of selecting Calibrate. 8. Wireless Sync - Select Wireless Sync if the software and knee fail to sync (circles remain red). 9.
- Page 12 Figure D Plié Real Time Data Display The Plié Real Time Data Display allows the viewing of live data as the user ambulates. The Plié Real Time Data Display provides a data rate of 4 Hz (4 samples per second). Due to the limited data stream bandwidth (knee microprocessor data rate is 1000 Hz), the Plié...
- Page 13 trochanter knee ankle Figure E Figure F Figure G Figure H Figure I Plié Setup Wizard The Plié Setup Wizard optimizes all the computer settings for Plié® 2.0 MPC Knees only. To access the Plié Setup Wizard, select the Setting Wizard icon from the Plié Control main window. The Plié Setup Wizard is illustrated in Figure The Plié...
-
Page 14: Plié Gait Lab
Swing Flexion Stance Flexion 235mm Swing Extension Figure E Figure F load sensor and angle sensor. The three data recordings identify the userʼs normal gait pattern window. If the microprocessor detects deviations outside the userʼs normal gait pattern window, stumble recovery is engaged. Stumble recovery is available to the user throughout swing phase. -
Page 15: Bench Alignment
Figure L control, and balance of individual users. Proper alignment and user voluntary control are essential to knee stability during stance phase. Prior to assembly of the prosthesis, the prosthetist should measure the userʼs hip joint range of motion (ROM) on the prosthetic side to determine if the user has a hip flexion contracture (Figure E). -
Page 16: Static Alignment
!An inherently unstable trochanter-knee-ankle (TKA) alignment may cause a rapid extension moment at !the knee joint after midstance. The non-adjustable stance extension resistance may be insufficient to !dampen the extension moment if the user does not exert sufficient voluntary control and/or if the alignment recommendations are not implemented. -
Page 17: Plié Setup Wizard
2. Plié Setup Wizard Open the Plié Setup Wizard (Plié Control>Setting Wizard). Follow the steps provided in the Plié Setup Wizard, always beginning with First Set Up. a. Select First Set Up. Then select Next. b. In the Basic Set Up Mode window, select Set Up Mode. The First Set Up mode should only be enabled when setting up a knee.The advanced Stability Parameters are not active and the stumble recovery function is limited in the First Set Up mode. -
Page 18: Document
If problems are experienced with a loaner knee, simply follow the steps provided in this “Set-Up” section. Technical Support For Technical Support, please contact Freedom Innovations toll-free at 1-888-818-6777. Warranty The Plié® 2.0 MPC Knee purchase includes a 36 month warranty covering all manufacturer defects. The warranty remains in place only when the product is used as intended, without modifications, following all manufacturerʼs... -
Page 19: Service And Repair
For the warranty to remain in effect, the knee must be serviced 12 and 24 months after purchase. A loaner knee is provided at the time of knee service. For knee repairs, please contact Freedom Innovations toll-free at 1-888-818-6777. A loaner knee will be provided upon request. For service and/or repair, please ship the knee in the provided shipping case. - Page 20 30 Fairbanks, Suite 114 Irvine, California 92618 Toll Free (888) 818-6777 FAX (949) 672-0084 Plié® 2.0 MPC Knee Instructions for Use (R-720-109 Rev. D), English!
