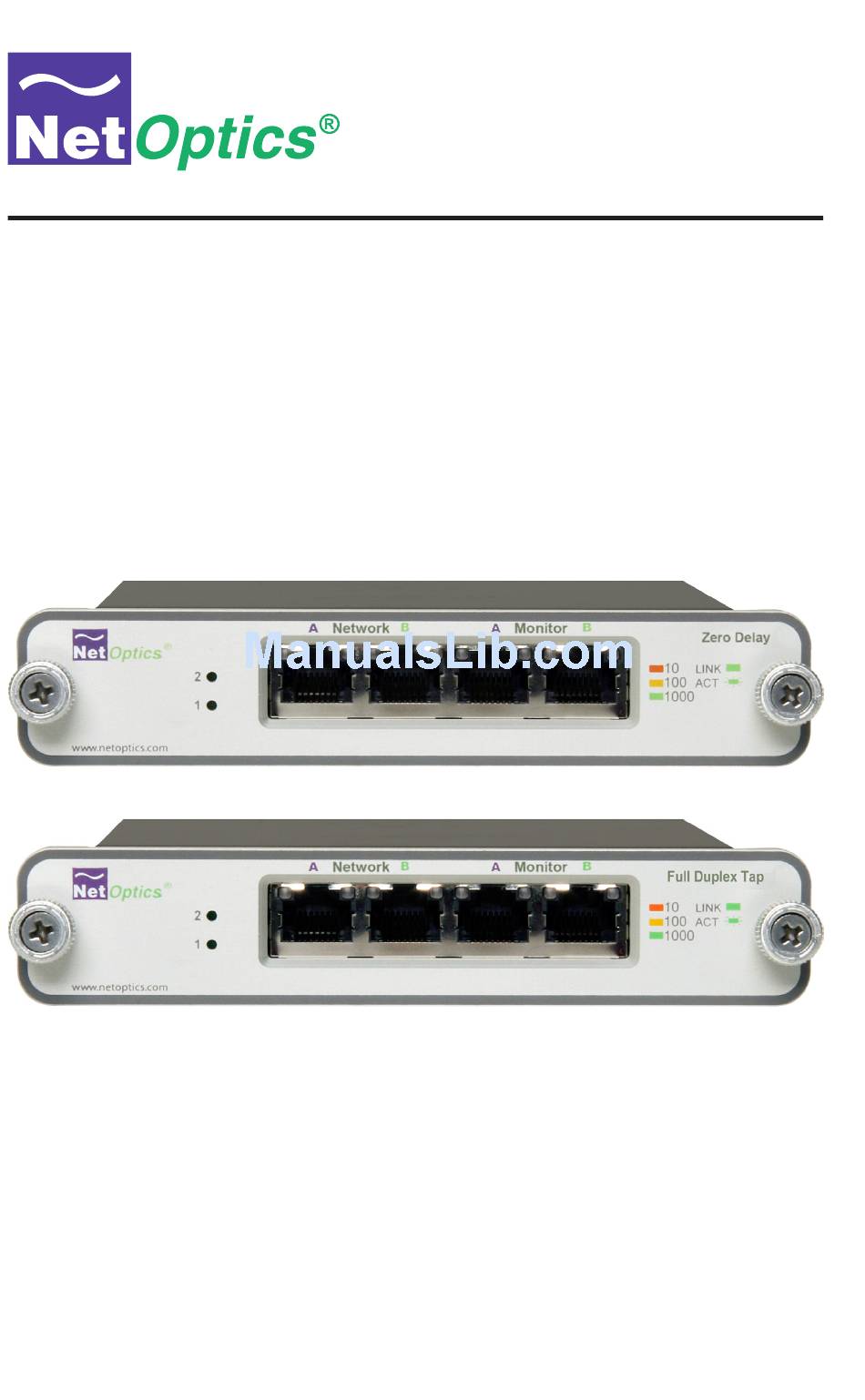

- Page 1 Installation Guide for Gig Zero Delay™ Tap 10/100/1000BaseT Tap 800-0150-001 Rev. G PUBTPCU3ZDU 2/11...
- Page 2 PLEASE READ THESE LEGAL NOTICES CAREFULLY. By using a Net Optics Tap you agree to the terms and conditions of usage set forth by Net Optics, Inc. No licenses, express or implied, are granted with respect to any of the technology described in this manual.
-
Page 3: Table Of Contents
Gig Zero Delay Tap Contents Introduction ........... . . 1 Key Features . -
Page 4: Introduction
10/100/1000 taps offering true “zero delay” technology. Highly sensitive network locations can improve monitoring performance with the innovative features of Net Optics Gig Zero Delay Taps. If power is lost to other 10/100/1000 taps, the connected devices may introduce delays as they detect the power loss and try to re-establish their link. - Page 5 Consult your shipping carrier regarding regulations on safe shipping of NiMH batteries. _________________________________________________________________ Warning! _______________________________________________________ TP-CU3-ZD and TP-CU3-ZD-DC only: Electrical Shock Hazard. No user replaceable parts. Do not open chassis. Return unit to Net Optics for servicing. _________________________________________________________________ Note: __________________________________________________________ TP-CU3-ZD and TP-CU3-ZD-DC only: Battery Disposal: Dispose of used batteries properly.
-
Page 6: Key Features
Support • Net Optics offers technical support throughout the lifetime of your purchase. Our technical support team is available from 8 am to 5 pm Pacific Time, Monday through Friday at +1 (408) 737-7777 and by e-mail at ts-support@netoptics.com. -
Page 7: About This Guide
Warning! ____________________________________________________________ For the TP-CU3-ZD and TP-CU3 models, use only the power supplies pro- vided by Net Optics for use with this product. Use of other power supplies may result in a safety hazard that could cause damage or injury. -
Page 8: Product Diagrams
Gig Zero Delay Tap & 10/100/1000BaseT Tap Product Diagrams Monitor A & B Network A & B Power LEDs Network Monitor Zero Delay Zero Delay ® LINK 1000 www.netoptics.com Figure 1: Front Panel, Gig Zero Delay Taps (TP-CU3-ZD, TP-CU3-ZD-DC) Power Network A &... -
Page 9: Dc Terminal Blocks
Gig Zero Delay Tap & 10/100/1000BaseT Tap DC Terminal Blocks Model TP-CU3-DC has screwless terminal blocks for DC power. Push in the orange button to open the socket, insert the power wire, and release the button to clamp the wire into the socket. -
Page 10: Led Indicators
• If the link is currently made with a cross-over cable, connect TP-CU3 to the network with one cross-over cable and one straight-through cable. In other words, Gig Zero Delay Taps and 10/100/1000BaseT Taps act as straight-through connections. (The Net Optics 10/100BaseT Taps are different; they act as crossover connections.) Automatic MDI/MDI-X Configuration The need for crossover cabling is eliminated by a feature in the 1000Base-T standard called Automatic MDI/MDI-X Configuration (IEEE 802.3-2005,... -
Page 11: Connecting To The Network
Gig Zero Delay Tap & 10/100/1000BaseT Tap pins, and automatically connect them correctly. All 1000BaseT ports support this feature, as do many 10/100BaseT ports on newer equipment. The Gig Zero Delay Taps and 10/100/1000BaseT Taps support Automatic MDI/MDI-X Configuration on all of its ports. However, when the Tap does not have power, it passively connects the two network ports so the link remains active. -
Page 12: Connecting To The Monitoring Device
Gig Zero Delay Tap & 10/100/1000BaseT Tap Connecting to the Monitoring Device To connect the Tap to the Monitoring device: 1. Supply power to the Tap using the two redundant power supplies included with the unit. Verify that the Power LED illuminates. -
Page 13: Dip Switch Settings
Gig Zero Delay Tap & 10/100/1000BaseT Tap DIP Switch Settings The 8-position DIP switch located on the rear panel or the side of the device sets its communication parameters, as specified in the following table. Note: _______________________________________________________________ The settings apply to all ports on the Tap (except for Switch 1, Link Fault Detect, which applies only to the Network Ports). -
Page 14: Specifications
Gig Zero Delay Tap & 10/100/1000BaseT Tap Specifications Environment Operating Temperature: 0˚C to 40˚C Storage Temperature: -10˚C to 70˚C (TP-CU3 and TP-CU3-DC) -10˚C to 45˚C (TP-CU3-ZD and TP-CU3-ZD-DC) Relative Humidity: 10% min, 95% max, non-condensing Power Power Consumption TP-CU3-ZD and TP-CU3-ZD-DC: 8W typical, 30W maximum... - Page 15 Gig Zero Delay Tap & 10/100/1000BaseT Tap Connectors (2) RJ45, 8-pin connectors (monitor ports) (2) RJ45, 8-pin connectors (network ports) Certifications Fully RoHS compliant Fully IEEE 802.3 compliant...
-
Page 16: Tp-Cu3-Zd Dimensions
Gig Zero Delay Tap & 10/100/1000BaseT Tap... -
Page 17: Tp-Cu3 Dimensions
Gig Zero Delay Tap & 10/100/1000BaseT Tap... -
Page 18: Symbols On Product Labels
Gig Zero Delay Tap & 10/100/1000BaseT Tap Symbols on Product Labels The symbols found on the product labels are as follows: Indicates WEEE compliance +4cb$F($23d6 O@<CH.$)?^- Indicates CE compliance Indicates RoHS compliance :::+;-<=><?@A+@=B 23456$78797777 Indicates C-Tick compliance ,-CD502J&H03O )P&Q;9:;<> ,%N&,RR?R&8-?&Q;9:;<>... - Page 19 Net Optics, Inc. warrants this Tap to be in good working order for a period of ONE YEAR from the date of purchase from Net Optics or an authorized Net Optics reseller.
