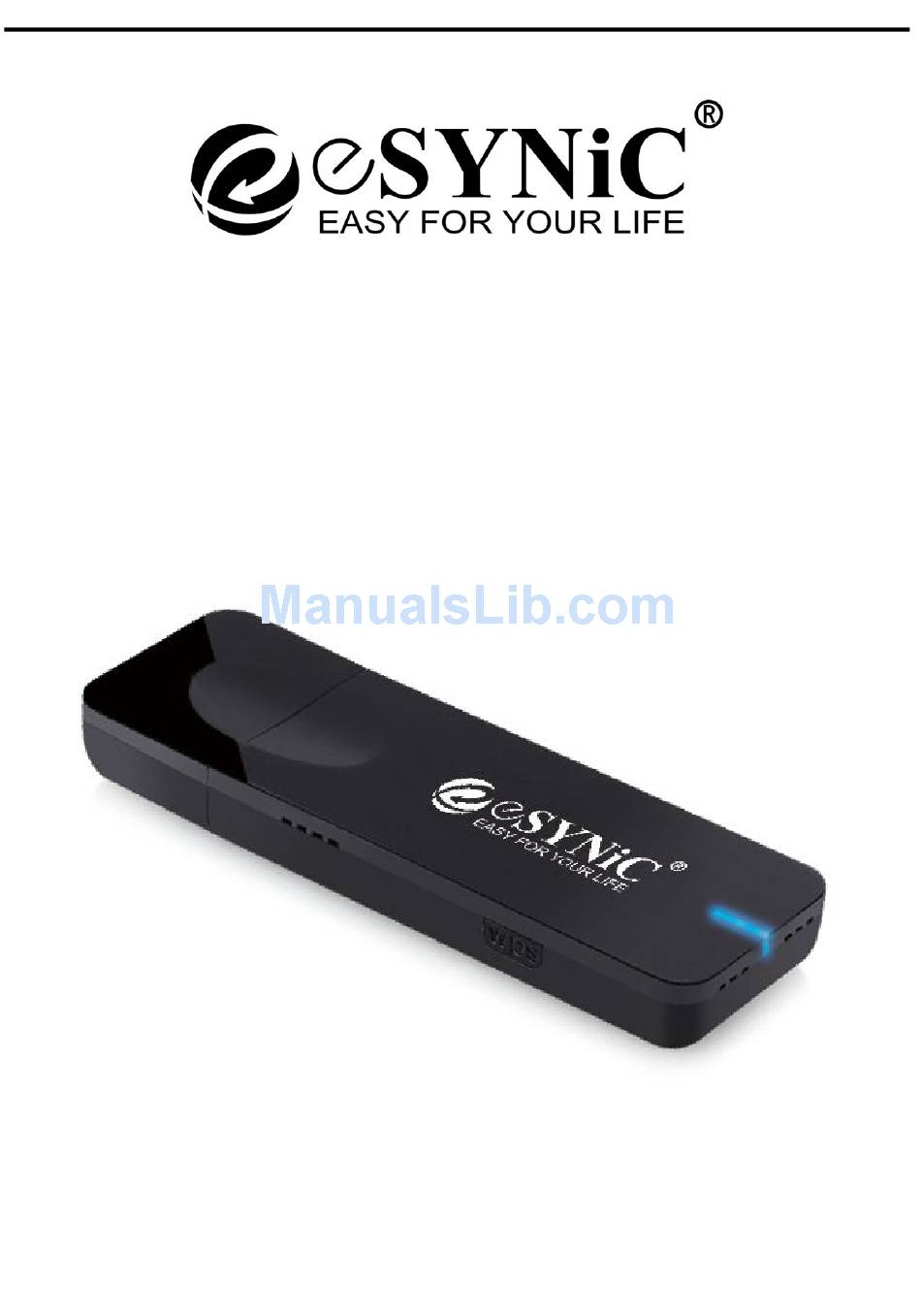

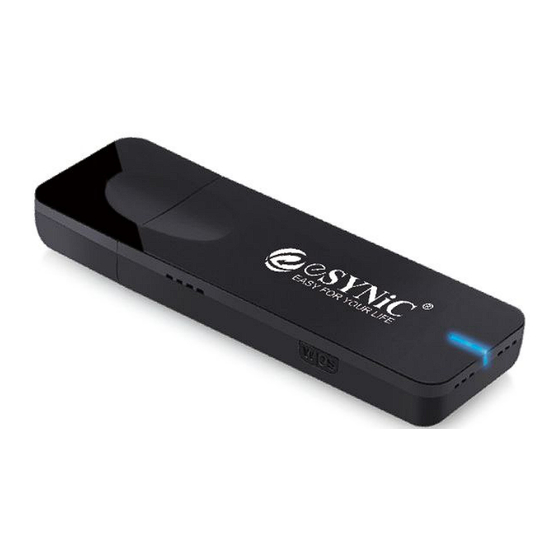

- Page 1 300Mbps USB WIRELESS ADAPTER User’s Manual Model: ESY-NT025...
-
Page 2: Federal Communication Commission Interference Statement
www.esynic.com Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Package Contents
www.esynic.com to connect a laptop or PC to office or home network, this Wireless adapter is an ideal access solution for wireless Internet connection. A typical Internet access application for the USB wireless adapter is shown as the following figure: There are two different ways to access Internet: 1. -
Page 4: Installation
www.esynic.com document is subject to change without prior notice. 3. Installation To install the driver of the USB adapter, please use administrator user account to login before the following steps: Tips: t he latest original drivers can be down loaded from the website of Ralink chipset manufacturer. - Page 5 www.esynic.com There shows a setup type window, you can select “Install driver only” or “Install driver and Ralink WALN utility” and then click the “Next”. Tips: 1).The Windows XP utilizes a "Wireless Zero Configuration( WZC)" Service built into the operating system. Many wireless network adapter cards utilize this service.
- Page 6 www.esynic.com c. Click the “Install” to confirm the installation, there shows the installation progress. Click “finish” to finish the driver installation. Page 5...
-
Page 7: For Windows 7
www.esynic.com For Windows 7: Once the wireless USB adapter be plugged into an USB port, the flowing message will appear on screen The following installation procedures are similar to those of Windows XP .Please refer to the installation steps for Windows XP. For Windows 8: The installation procedures are similar to those of Windows XP .Please refer to the installation steps for Windows XP. - Page 8 www.esynic.com hardware is found and installed, something like this: Before you begin, ensure WZC is enabled,by right-clicking on the Ralink icon in the task bar in the bottom right corner of your screen. In the menu that appears, select “Use Zero Configure as Configuration Utility”...
- Page 9 www.esynic.com and then click “Connect” in the lower right corner. If the network security key hasn’t been inputted before, Windows XP prompts you to enter the network’s security key to access the wanted SSID. Type the encryption key that you wrote down earlier in both the Network key and Confirm network key t”.
- Page 10 www.esynic.com After the installation of Ralink utility, the system shows a special wireless utility icon in the Windows system tray, which locates in the bottom-right corner of your computer screen: when an USB wireless adapter is inserted into an USB 2.0/1.1 port of Notebook or PC,the icon changes colors according to the wireless signal quality.
- Page 11 www.esynic.com Station mode and AP mode . Station mode (Client mode ) : it is the default access way , the USB wireless adapter services as a client to acess Internet through other router or AP. AP mode : ...
- Page 12 www.esynic.com In the Available Networks window that appears, select the name of the network to which you are connecting.Then click the connect icon and wait several seconds while the Utility sets up a connection The Ralink Utility automatically detects and displays the security settings of the network to which you are connecting in the Profie Setting screens.
- Page 13 www.esynic.com Once you are connected the Avaliable Networks shows the status of your connection. For Windows 7: Notes ：Windows Zero Configuration (WZC) is not necessary in Windows Vista, Windowns 7 or higher version OS, you can use WZC and the Ralink Utility to manage the adapter simultaneously .
- Page 14 www.esynic.com Click the “Connect”button to connect to the select network . If your network has wireless security Configured, enter the required setting. The following is an example only, your network setting may differ The success of your connection is indicated by the wireless Page 13...
- Page 15 www.esynic.com network icon. Notes : The steps of using the Ralink Utility to connect a wireless network is the same as those described in Windowns Xp . In addition to station and AP mode,rhere is the Client + AP Mode to be selected in windows 7 as well.
- Page 16 www.esynic.com Click the “Connect”button to connect to the select network . If your network has wireless security Configured, enter the required setting. The following is an example only, your network setting may differ. You can select turn on sharing or connect to device or not. Page 15...
- Page 17 www.esynic.com 5) T he success of your connection is indicated by the wireless network icon. Notes : The steps of using the Ralink Utility to connect a wireless network is the same as those described in Windowns Xp . In addition to station and AP mode,rhere is the Client + AP Mode to be selected in windows 8 as well.
-
Page 18: Tips For Wi-Fi Users
www.esynic.com This mode lets you use the adapter both as a Soft-AP and client at the same time. Switch to this mode,you can let a wireless adapter be connect to a wireless (Soft-AP) with Internet connected, and let others adapter be indirectly connect to Internet via the Soft-AP wireless network. -
Page 19: Key Terms
www.esynic.com Synchronize data between devices. Take advantage of wireless printing — send files directly from your laptop PC to a wireless printer over Wi-Fi connection. 6. Warning Wi-Fi offers greater speed and range than Bluetooth, but it drains your portable device batteries a lot faster than Bluetooth does. - Page 20 www.esynic.com Bandwidth: the amount of data that can be carried from one point to another in a given time period (usually a second). Chipset: A group of microchips that execute various functions (like memory) to support the CPU. Tx power: The transmit power measured at the terminal without antenna be considered.
- Page 21 www.esynic.com Data Security WEP 64/128 , WPA, WPA2, 802.1X It depends on different adapter models, there are two typical Power values: 330mA and 110mA in full Consumption Transmit (TX), 290mA and 95mA in full Receive (RX) . Indoor up to 100m, outdoor up to Transmission 300m (Standard transmission Distance...
