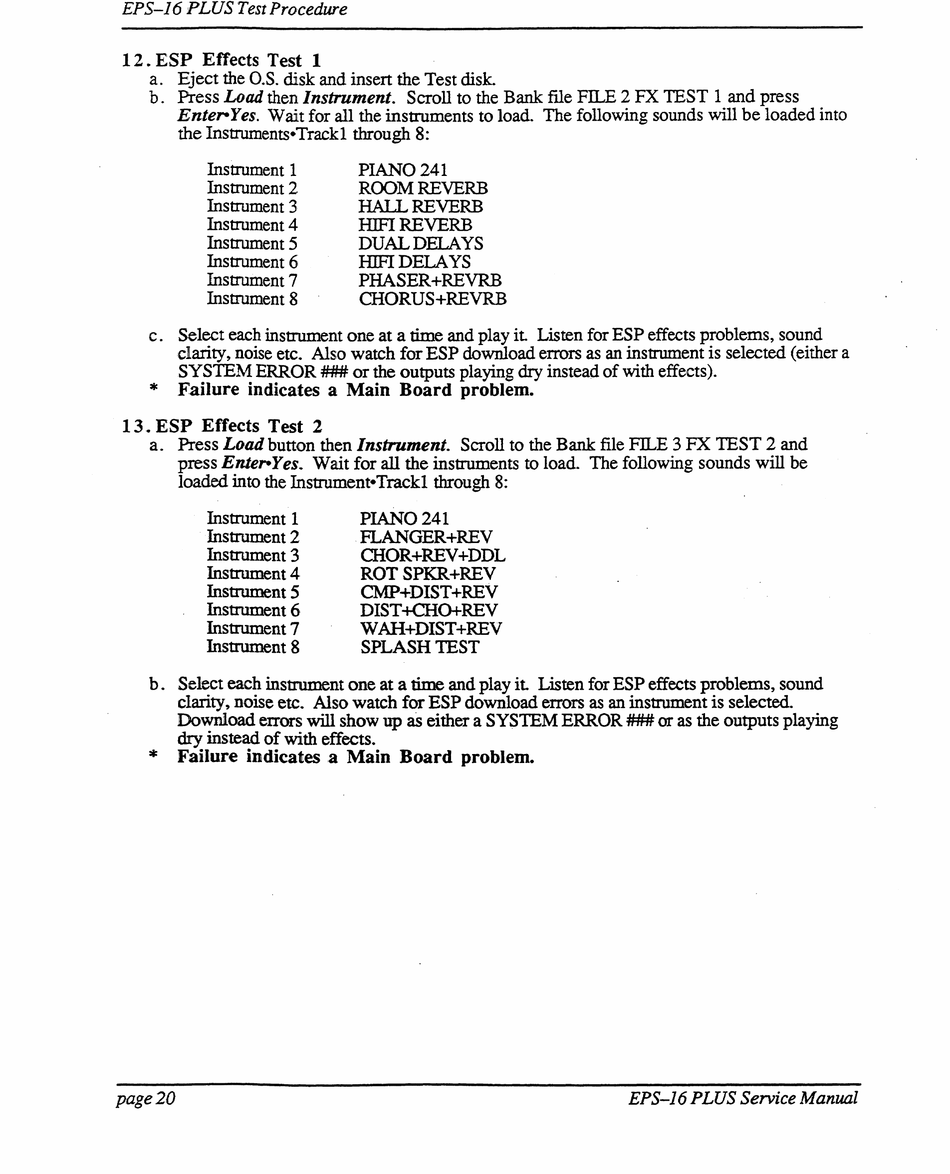

EPS-16 PLUS Test Procedure
12.
ESP
Effects Test 1
a. Eject the O.S. disk and insert the Test disk.
b. Press Load then
Instrument.
Scroll to the Bank file FILE 2 FX TEST 1 and press
Enter-Yes.
Wait for all the instruments to load. The following sounds will be loaded into
the Instruments·Trackl through
8:
Instrument 1
Instrument
2
Instrument
3
Instrument 4
Instrument
5
Instrument
6
Instrument
7
Instrument
8
PIANO 241
ROOM REVERB
~REVERB
HIFIREVERB
DUAL DELAYS
HIFIDELAYS
PHASER+REVRB
CHORUS+REVRB
c.
Select each instrument one at
a
time and play it Listen for ESP effects problems, sound
clarity, noise etc. Also watch for ESP download errors as an instrument is selected (either a
SYS1EM ERROR ### or the outputs playing dry instead of with effects).
*
Failure indicates a Main Board problem.
13.
ESP
Effects Test 2
a. Press
Load
button then
Instrument.
Scroll to the Bank file FILE 3 FX TEST 2 and
press
Enter-Yes. Wait for all the instruments to load. The following sounds will be
loaded into the Instrument·Trackl through 8:
Instrument 1
Instrument
2
Instrument
3
Instrument 4
Instrument
5
Instrument
6
Instrument
7
Instrument
8
PIANO
241
FLANGER+REV
CHOR+REV+DDL
ROT SPKR.+REV
CMP+DIST+REV
DIST +OIO+REV
WAH+DIST +REV
SPLASH1EST
b. Select each instrument one at a time and play it Listen for ESP effects problems, sound
clarity, noise etc. Also watch for ESP download errors as an instrument is selected.
Download
errors
will show
up
as
either a SYSTEM ERROR ### or as the outputs playing
dry instead of with effects.
*
Failure indicates .a Main Board problem.
page
20
