Summary of Contents for INSBUD IB - Tron 3100FAN-BL-230V
- Page 1 Electronic controller IB – Tron 3100FAN-BL-230V to operate ventilation units...
- Page 2 InsBud company supports policy of development. The right to making changes and improvements in products and manuals without prior notice reserved! The contents of this manual - the text and graphics are owned by InsBud company or its subcontractors. It is legally protected.
-
Page 3: Table Of Contents
An Hour and A Day of the Week ______ 8 Factory settings ___________________ 8 Keyboard lock _____________________ 8 Work Timetable - AUTO mode ________ 8 Manual Mode _____________________ 10 Semi-automatic Mode ______________ 10 Errors ____________________________ 10 Warranty _________________________ 11 www.insbud.net... -
Page 4: Basic Information
Esthetic and modern design Blue backlight (backlight is activated by pressing any button and deactiva- ted after a certain period of inactivity) www.insbud.net... -
Page 5: General Considerations
In other words: always when the controller is turned on, one of the gears out- puts is shorted to the common output. All of the gears outputs are disconnected from the common output only when the controller is www.insbud.net... -
Page 6: Control Panel Of Controller

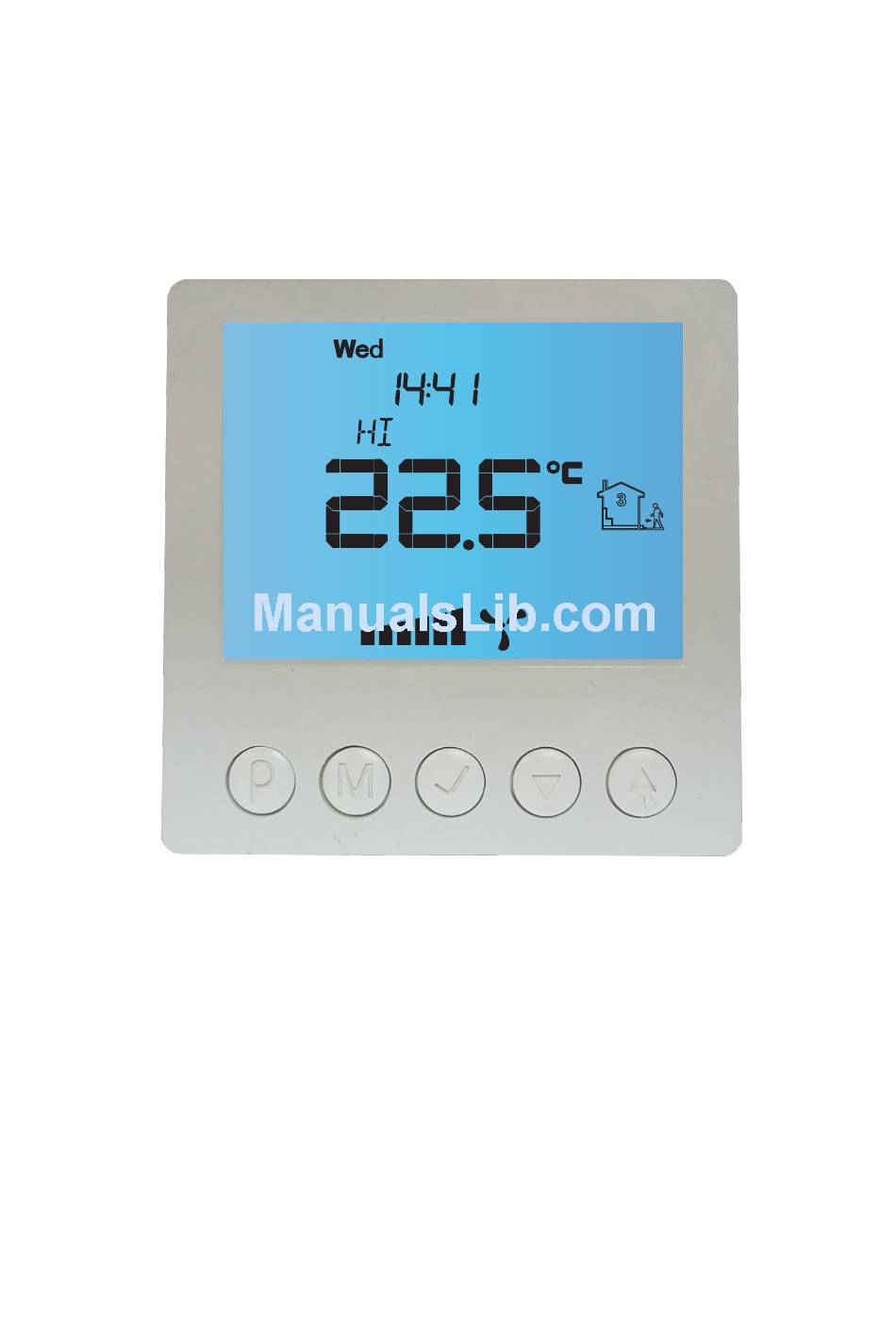

LCD DISPLAY BUTTON „M” BUTTON „DOWN” „P” BUTTON BUTTON „UP” TEMPERATURE „OK” BUTTON SENSOR lcd d isplAy GEAR, DAY OF THE WEEK HOUR INFORMATION OPERATING KEYBOARD RANGE LOCK TEMPERATURE GEAR, GRAPHICAL BIEG, SEMI-AUTO- MANUAL PREZENTACJA MATIC MODE PRESENTATION MODE GRAFICZNA www.insbud.net... -
Page 7: Relay Module
„COM” - common output. „SI” - input of clogged filter signal. Short-cir- cuit this input to mass or give voltage +12V (choice of using jumpers) causes turning on an alarm. „L” - power phase 230V AC. imEnsiOns Main panel: Relay module www.insbud.net... -
Page 8: Turning On Controller
- Saturday not used or in nocturnal periods, and higher - Sunday intensity when building is used. Confirm settings. You can program four time segments each day of the week, which were symbolically presented on display: www.insbud.net... - Page 9 (e.g. from 9:00 p.m. on Mon- days from Monday to Friday. Hol- day to 7:00 a.m. on Tuesday). ding down button ‚UP’ one more time will select only Saturday and Sunday. www.insbud.net...
-
Page 10: Manual Mode
When ventilation unit gives a signal of clog- » third gear - six bars; ged filter, on display is inscription ‚FILTER’ and you will hear a beep ( also when the controller is turned off ). After cleaning or changing filter, signaling should disappear. www.insbud.net... -
Page 11: Warranty
+48 (32) 626 18 08 In the event of unjustified claim for fax: +48 (32) 626 18 19 warranty repair, all additional cost are e-mail: insbud@insbud.net on customer’s side. Service has right to refuse to perform warranty repairs for following: differen-...
