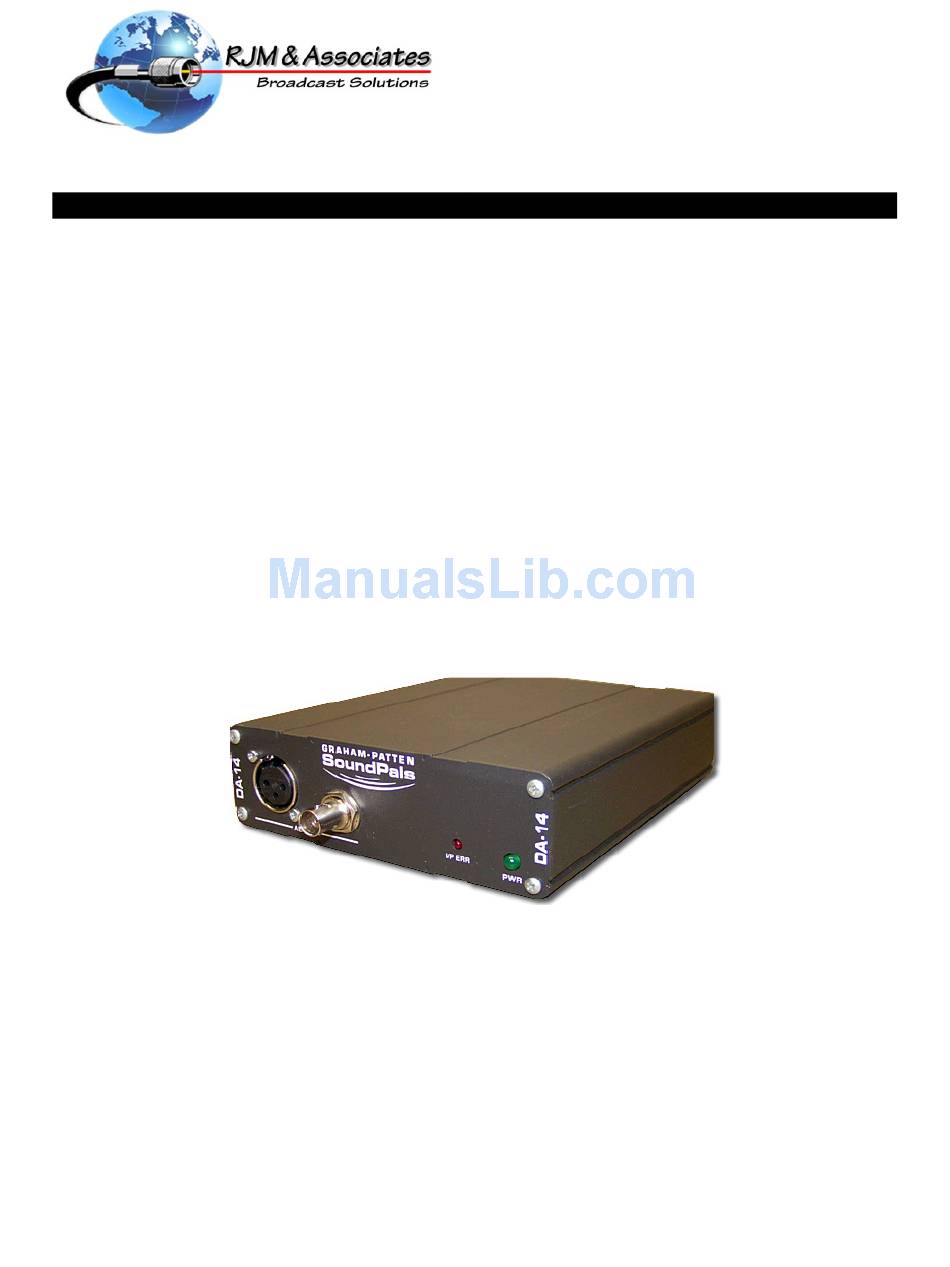

- Page 1 SoundPals™ DA-14 User Guide AES Distribution Amplifier...
-
Page 2: Fcc Compliance
The information contained in this guide is subject to change without notice or obligation. Copyrights and Trademarks © 2015 Contents of this publication may not be reproduced in any form without the written permission of RJM & Associates. Reproduction or reverse engineering of copyrighted software is prohibited. FCC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. -
Page 3: Table Of Contents
About the DA-14 ........................3 DA-14 Installation ........................5 Connecting Power ......................5 Connecting Inputs ......................5 Connecting Outputs......................5 DA-14 Operation and Application .................... 6 DA-14 Interconnection ......................7 Basic Digital Distribution ....................7 Multiple Outputs ........................ 8 DA-14 Internal Jumpers ......................9 DA-14 Troubleshooting ...................... -
Page 4: Introduction
Introduction What are SoundPals? Each RJM & Associates SoundPals module is essentially a digital audio building block that can be used independently, or interconnected to perform more advanced mixing and audio processing functions. SoundPals can be used in both standalone and system configurations: In a “standalone”... -
Page 5: Unpacking And Inspection
SoundPals are delivered with a power connector only. A separate power supply must be obtained. RJM & Associates offers several power solutions for both domestic and international customers. Refer to “External Power” for detailed power specifications for users who wish to configure their own power source, rather than purchase one from RJM. -
Page 6: About The Da-14
DA-14 About the DA-14 The RJM & Associates SoundPals DA-14 is a one-input, four-output “data regenerator” for distributing AES digital audio signals. Two versions of the DA-14 are available: Model A • The DA-14/A provides four balanced AES3 outputs on XLR connectors. - Page 7 AES OUT 1 AES OUT 2 AES OUT 3 AES OUT 4 1) DA-14 Model — the printed legend indicates the model: A (AES, balanced) or B (AES3ID, unbalanced) NOTE The Model A (with balanced XLRs) is shown above. The Model B provides unbalanced BNC connectors.
-
Page 8: Installation
Plug a 6 VDC power supply into the appropriate voltage outlet for your specific country, and connect the end of the cord into the DA-14 rear panel jack marked +6V. Secure the locking ring finger tight. The green LED on the front panel lights when power is applied. -
Page 9: Operation And Application
S/PDIF to AES conversion • Because the DA-14 can operate in a range as low as 165mv, it can be used as an S/PDIF to AES converter. By using an S/PDIF adapter on your S/PDIF source and connecting it to the DA-14’s BNC input, you can achieve full level AES output (times four), provided that the source output is above the 165mv threshold. -
Page 10: Interconnection
Basic Digital Distribution • In this application, the DA-14’s input is connected to an AES source (such as the ADC- 24). The unit’s four AES digital outputs are connected to AES destination devices in your facility. Note that both DA-14 models are shown. -
Page 11: Multiple Outputs
Multiple Outputs • In this application, three DA-14 units are bridged together to produce 12 identical AES outputs. Note that the last DA-14 in the chain is terminated externally with a 75 terminator. NOTE All internal termination jumpers should be removed for this configuration. Refer to the “DA-14 Internal Jumpers”... -
Page 12: Internal Jumpers
AES signals, place jumper J903 between pins 2 and 3. When the jumper is between pins 1 and 2, the LED only indicates invalid AES signals (this is the default position). DA-14 Troubleshooting The table below lists several DA-14 problems, and provides a variety of “checklist” procedures designed to solve them. Problem Procedure No signal at any •... -
Page 13: Specifications
Options RT-2, 1RU rack tray for mounting up to 3 units Power supplies: • PSU-1, 90-260V 50/60Hz in-line power supply with detachable IEC power cord NOTE All specifications listed above subject to change without notice. Page 10 DA-14 User Guide... -
Page 14: Environmental Specifications And Dimensions
10 – 90% RH non-condensing Inside the Module In This Section This section provides instructions for opening and closing the SoundPals DA-14 module to gain access to the internal circuit board. NOTE The internal circuit board should only be removed from the module if you want to reset the jumpers. -
Page 15: Closing The Module
Closing the Module Use the following steps to close the DA-14 module: 1. Ensure that product label is on the bottom. 2. Carefully slide the internal circuit board and rear panel assembly through the housing. If BNC connectors are present, keep the case horizontal so that the bushings stay with the connectors. -
Page 16: Power Supply Sources
Power Supply Sources In addition to the RJM-supplied universal power supply, the following power supplies meet the SoundPals requirements: Company Model Note Stancor STA-4860 120V AC, 60 Hz Stancor STAF-0797F 220V AC, 50 Hz with European wall plug (CE compliant).
