Summary of Contents for Kronen EMA-85

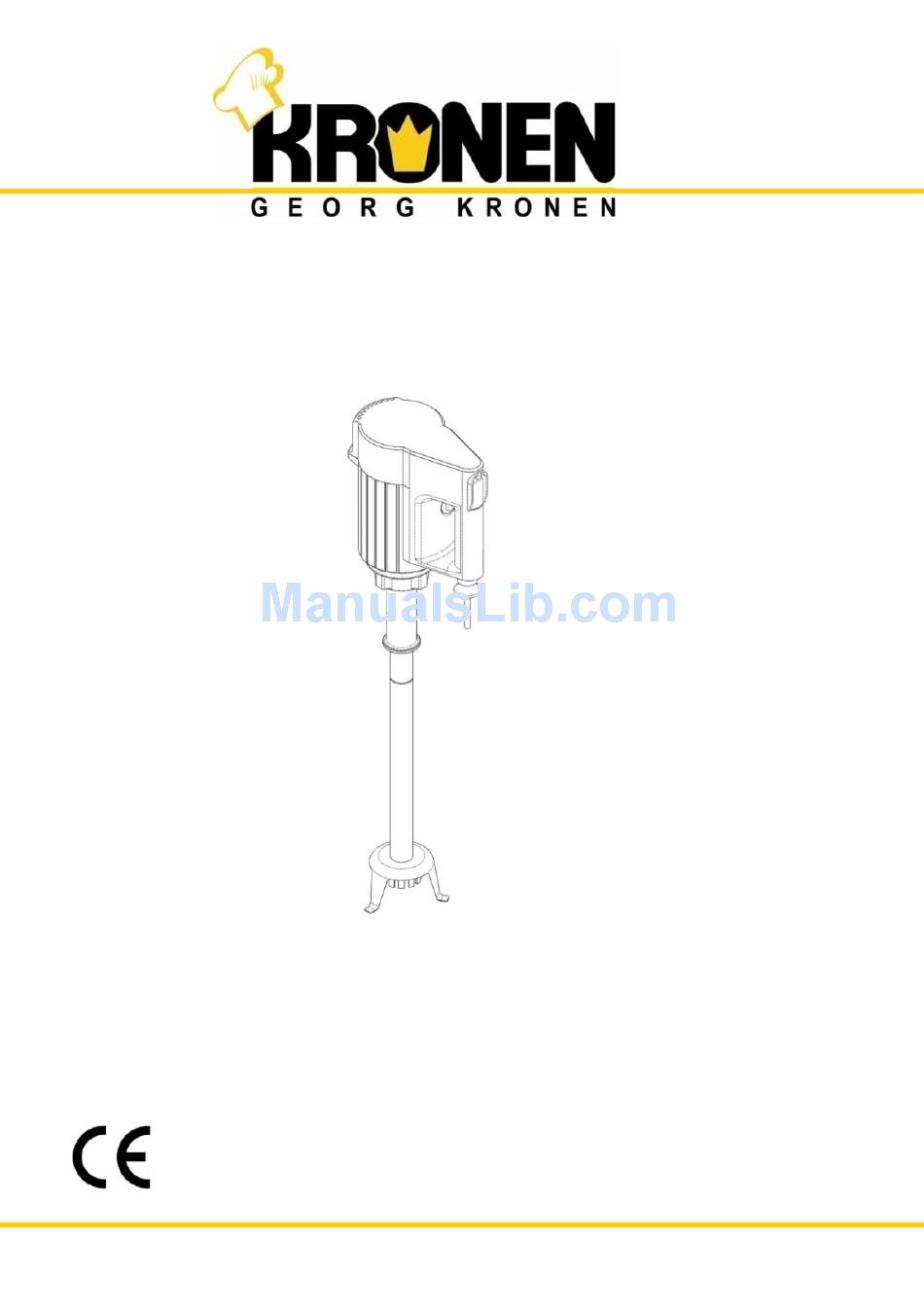

Page 1 HAND MIXER EMA-85 Type: Translation of the Original Instruction Manual English...
Page 2: Instruction Manual Ema
Instruction Manual EMA-85 Instruction Manual EMA-85 Version: 1.0 Date of release: 25.02.2014...
Page 3: Table Of Contents
Instruction Manual EMA-85 Contents General Information ..................... 4 Safety ........................... 8 Technical Characteristics ..................10 Installation and Function .................... 11 Transportation and Packaging ................... 16 Installation and Initial Operation ................17 Use and Operating ..................... 18 Malfunctions ....................... 25 Maintenance ......................27 10.
Page 4: General Information
Instruction Manual EMA-85 General Information Always keep the instruction manual and all the other documents near the hand mixer. Before using the machine the first time, make sure that you read the instruction manual first. Explanation of the symbols used in the documents Attention, you have to follow the instructions to avoid harm for you and the machine.
Page 5 Instruction Manual EMA-85 Defects and Claims 1. Claims based on material defects shall be subject to a limitation period of 2 years after surrender of the merchandise. The Seller does not assume any liability for material defects in pre-owned merchandise.
Page 6 Kronen Küchengeräte GmbH 4. Kronen Küchengeräte GmbH restricts the terms and conditions of warranty for appliances which are intended for sale abroad. In such cases, Kronen Küch- gengeräte GmbH grants a warranty covering the original Küchengeräte GmbH spare parts. This warranty covers the functional capability of the spare parts, provided that they are installed correctly.
Page 7 Instruction Manual EMA-85 6. Kronen Küchengeräte GmbH grants a function warranty of 6 months for each and every original Kronen Küchengeräte spare part, provided that it has been installed correctly. Kronen Küchengeräte GmbH shall provide an original part in the event of failure. No further claims, including claims for the cost of the re- placement, can be acknowledged.
Page 8: Safety
Instruction Manual EMA-85 Safety General Sources of Danger Wrongful use or limited knowledge of the safety instruc- tions could result in accidents and injuries on hands and fingers. That is why, we advise you to respect and follow the safety instructions.
Page 9 Instruction Manual EMA-85 Intended Use The hand mixer is a technical tool which exclusively should be used for its’ intended purpose. It is only intended to soups, sauces, stews and purees to emulsification, to mix or beat. Any different use of the machine is strictly forbidden.
Page 10: Technical Characteristics
Instruction Manual EMA-85 Technical Characteristics Weight: Drive group 4.1 kg EMA- / Mixer bar 500 1.4 kg EMA- / Mixer bar 600 1.5 kg EMA- / Mixer bar 700 1.6 kg Dimensions: Drive group 220 x 185 x 100 mm...
Page 11: Installation And Function
Instruction Manual EMA-85 Installation and Function Accordance with the hand mixer fitted mixer bars processed soups, sauces, stews, purees or similar. The hand mixer is dipped into the kettle with the feed to be processed. Included in delivery Delivery includes the motor, the cap nut and a EMA-bar or mixer bar.
Page 12 Instruction Manual EMA-85 Parts and Description  Motor block (1): This consists of a sturdy plastic case, in which there is the motor and the controls.  Cap nut (2): This serves as a fastener for the mixer bar to the motor block.
Page 13 Instruction Manual EMA-85 Assembled Parts Motor block Cap nut EMA-bar with handle Mixer bar with handle Tool to resolve rotor...
Page 14 Instruction Manual EMA-85 Controls The hand mixer has an ON / OFF switch (5) this starts or stops the motor. On the control knob (6), the desired speed is infinitely variable. Safety Appliance The safety appliance consists of: Starting the machine by pushing the ON / OFF switch (5).
Page 15 Instruction Manual EMA-85 Accessories EMA-bar 500 mm 600 mm 700 mm Mixer bar 500 mm 600 mm 700 mm...
Page 16: Transportation And Packaging
Instruction Manual EMA-85 Transportation and Packaging Always transport the cutter in the intended box. Secure the hand mixer during transportation. Check the box of possible damages when the machine is shipped. In case of damages, talk to the responsible shipping company.
Page 17: Installation And Initial Operation
Instruction Manual EMA-85 Installation and Initial Operation The hand mixer is shipped ready for use. Before the initial operation of the mixer, the bar must be mounted. Push the cap nut (2) on the upper part of the mixer bar (3/4) and tighten the cap nut (2) fixed to the motor block (1).
Page 18: Use And Operating
Instruction Manual EMA-85 Use and Operating Safety instruction for operating the cutter Switch on the hand mixer until it is in the liquid. Never get the mixer bar during the working process of the liquid, there is a risk of splashing.
Page 19 Instruction Manual EMA-85 Turning on To turning on the hand mixer it must be connected to the electricity supply and the mixer bar has to be mounted with the cap nut firmly to the motor block. Dip the hand mixer with maximum 2/3 his total lengths in the liquid dip.
Page 20 Instruction Manual EMA-85 Turning off To turn off the hand mixer you leave this in the liquid and turn the ON / OFF switch (5) to "0". The hand mixer is now turned off and can be lifted from the liquid.
Page 21 Instruction Manual EMA-85 Assembly and disassembly of the mixer bar For the assembly of the mixer bar you push the cap nut (2) on the upper part of the mixer bar (3/4) and screw the cap nut (2) firmly onto the motor block (1).
Page 22 Instruction Manual EMA-85 Assembly and disassembly of the knife and rotor For cleaning or replacement the rotor of the EMA-bar or the blade mixer unscrewed. To do this, first remove the EMA bar or the mixer bar from the motor block.
Page 23 Instruction Manual EMA-85 Working with the EMA-bar The EMA-bar (3) is provided to soups, sauces, stews and purees to emulsification, or to mix and beat. Put the hand mixer at a slight angle into the liquid, make sure that the maximum immersion depth is not exceeded, and the rotor doesn’t touch the ground floor of the pot.
Page 24 Instruction Manual EMA-85 Cleaning Before you use the hand mixer the first time make sure you clean it thoroughly. Also, clean the hand mixer multiple times during the day after use. Always use standard cleansers for cleaning the hand mixer.
Page 25: Malfunctions
Instruction Manual EMA-85 Malfunctions Safety instructions In case of unfamiliar noises or decreasing power turn of the hand mixer immediately. In case of blockage turn of the hand mixer and unplug the hand mixer from the outlet. After doing this you can try to remove the blocking material.
Page 26 Instruction Manual EMA-85 Error Correction Error Possible cause Solution  Machine is not plugged  Plug in the machine Machine does not start.  Overheating protection  Those malfunctions is active are to be fixed by Engine is defect customer service only.
Page 27: Maintenance
Instruction Manual EMA-85 Maintenance Safety Instructions Maintenance, if not specifically mentioned, is not to be done by the user. Maintenance is done by customer ser- vice only. Abrasion Engine and gearbox bearing are lubricated for their whole lifetime. In case the bearing is defect, customer service has to exchange them.
Page 28 Instruction Manual EMA-85 Support / Customer Service / Hotline Sales Department and customer service: Kronen Küchengeräte GmbH Gewerbestr. 3 D-77731 Willstätt Phone: +49 (0) 78 54/96 60-0 Fax: +49 (0) 78 54/96 60-50 info@kronen-germany.de Local Sales Department and customer service:...
Page 29: Appendix
Manufacturer : KRONEN Küchengeräte GmbH Gewerbestraße 3 D-77731 Willstätt declares that the following product: Product name: Hand mixer EMA-85 Serial Number: ________________________ conform with the guideline mentioned on top - including the changes of the statement at this point of time.
Page 30: Index
Instruction Manual EMA-85 Index Accessories ...................... 15 Assembly / Dissassembly ................21, 22 Cleaning ......................24 Connected load ....................10 Controls ......................14 Customer service ..................... 28 Declaration of Conformity ................. 29 Defects and Claims .................... 5 Disposal ......................7 Error Correction ....................
