Summary of Contents for Clear One collaborate pro 600

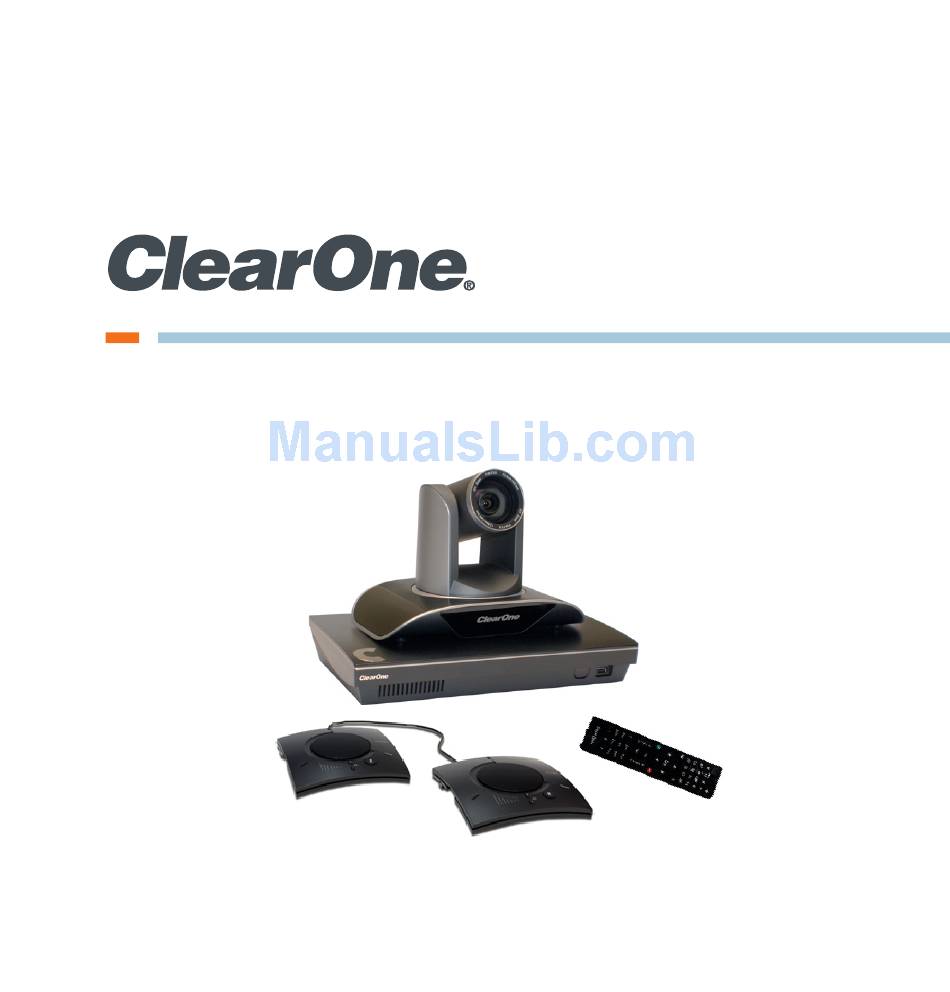

- Page 1 COLLABORATE Pro 600 ® Quick-Start Guide...
-
Page 2: Components Included
COLLABORATE PRO 600 COMPONENTS INCLUDED The COLLABORATE Pro 600 with UNITE 100 PTZ Camera and COLLABORATE Attach Microphone Array bundle. COLLABORATE Pro 600 COLLABORATE Pro 600 codec with power supply and COLLABORATE Remote control with dongle 910-2100-001 UNITE 100 PTZ camera,... -
Page 3: Making The Connections
QUICK-START GUIDE MAKING THE CONNECTIONS Connect the COLLABORATE Attach Microphone Array, the UNITE 100 camera, Ethernet, and monitor(s) to the COLLABORATE Pro 600 codec as shown. 1080p or 720p Digital Displays Display Port Out HDMI Out (2nd Monitor) (Primary Monitor) - Page 4 COLLABORATE PRO 600 CONNECTING THE REMOTE CONTROL DONGLE The Remote Control includes a dongle that plugs into the FRONT USB port on the codec.
-
Page 5: Audio Output Options
QUICK-START GUIDE AUDIO OUTPUT OPTIONS There are three audio output options, accessed from the back of the COLLABORATE Pro, for connecting the audio. Balanced Audio output to an amplifier that is connected to speakers Line output to powered speakers HDMI output to the primary monitor Balanced Audio Output HDMI Combined Video Line Audio Output... -
Page 6: Configuring Display Settings
Using the remote control, navigate to the display settings: Settings > System > Display The COLLABORATE Pro 600 default output resolution is 1280x720. According to your monitor capabilities, set the desired resolution. If 2 monitors are connected to the unit, the display mode is automatically... -
Page 7: Configuring Audio Settings
QUICK-START GUIDE CONFIGURING AUDIO SETTINGS The COLLABORATE Pro 600 audio input is COLLABORATE Mic Array and audio output is set to the Balanced Audio Output. Verify this in COLLABORATE Settings > System > Audio Note: It is recommended to use the COLLABORATE Attach Mic Array... -
Page 8: Configuring Network Settings
Using your remote control, navigate into the network settings: Settings > Advanced > IP Clearone.com The COLLABORATE Pro 600 obtains its IP automatically by default from the DHCP server. Uncheck the DHCP checkbox in order to manually configure network settings. -
Page 9: Clearone Contacts
QUICK-START GUIDE CLEARONE CONTACTS HEADQUARTERS: Salt Lake City, UT USA TechSales 5225 Wiley Post Way Tel: 800.707.6694 Suite 500 e-mail: techsales@clearone.com Salt Lake City, UT 84116 Technical Support Sales: 800-707-6694 Tel: +800.283.5936 Toll Free: 800.945.7730 e-mail: collaborate.support@clearone.com Fax: 801.303.5711 e-mail: sales@clearone.com Europe &...
