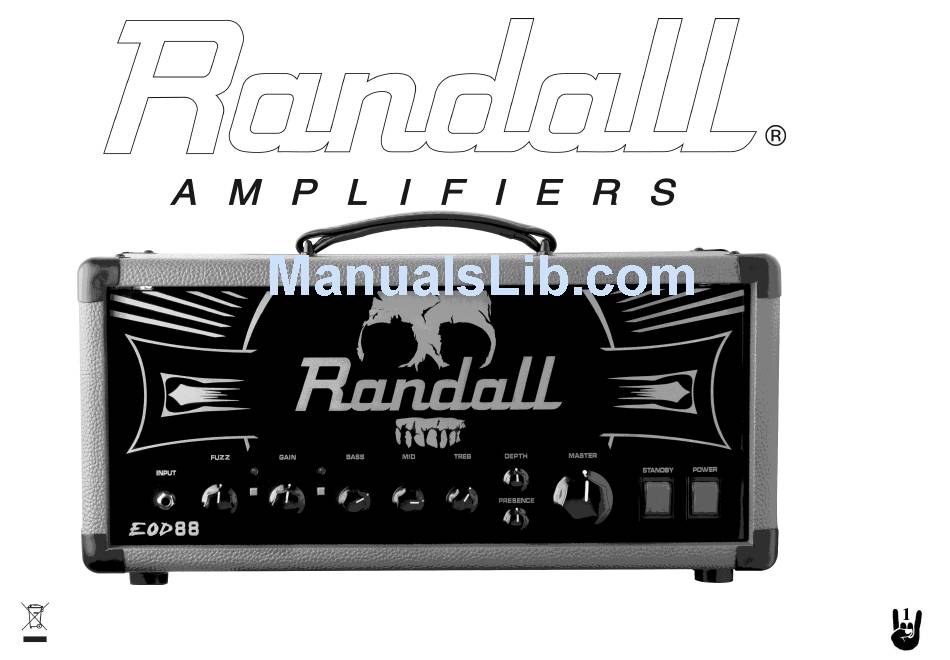

- Page 1 EOD88 OPERATION MANUAL...
- Page 2 ELEMENT OF DOOM…” So, In the spirit of that early pioneering of heavy metal, we have created the EOD88. With 3 gain modes, KT88 power design and a built in fuzz circuit, this amp personifies old school but within a fresh modern approach and appeal.
-
Page 3: Front Panel Controls
INPUT JACK: input for guitar. FUZZ: Controls the amount of Fuzz when engaged via footswitch or panel switch. Fuzz switch: Push in or via 2 button Randall footswitch to engage Fuzz circuit w/Red LED identification. GAIN: Overall gain control for tube preamp distortion. -
Page 4: Rear Panel Controls
Rear Panel Controls FUZZ/TUBE: TRS switching jack for footswitch. Tip to ground switching type. Tip=FUZZ and Footswitch: Ring= TUBE select. (2 button non LED footswitch included) SERIES FX LOOP: RETURN: Class A Discrete instrument level effects loop return. This plugs into external pedal effects unit output to complete signal “loop”. - Page 5 Rear Panel Controls Speaker outs: 1x4 OHM - connect one 4 ohm speaker cabinets here 2x8 OHM - connect two 8 ohm speaker cabinets here 1x8 OHM - connect one 8 ohm speaker cabinets here 2x16 OHM - connect two 16 ohm speaker cabinets here 1x16 OHM - connect one 16 ohm speaker cabinets here DO NOT CONNECT MORE SPEAKERS THAN SHOWN ABOVE MAINS INPUT: AC wall power via included...
- Page 6 US Music Corp or any Authorized Randall Service Center within the U.S.A. Randall reserves the right to use materials readily...
