Summary of Contents for Colormetrics P3300

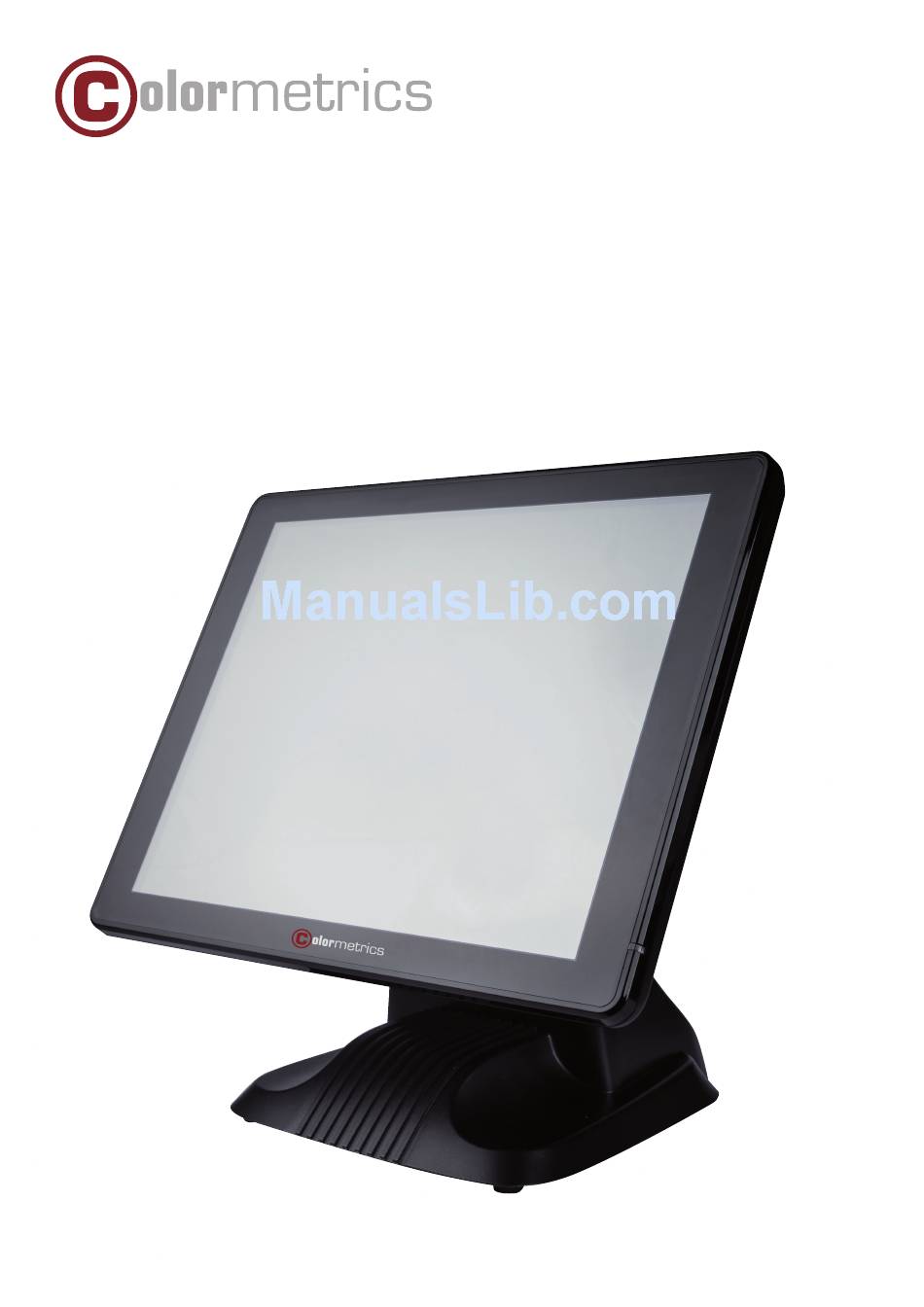

  • Page 1 P3300 User Manual Version 1.0 Errors excepted; subject to change www.colormetric.net...

  • Page 2: Copyright

    We reserve the right to revise this document or make changes in the specifications of the product described therein at any time without notice and without obligation to notify any person of such revision or change. Colormetrics P3300 www.colormetric.net...

  • Page 3: Safety Instructions

    Dispose used batteries according to the manufacture’s instructions. Do not remove the cover, and ensure no user serviceable components are inside. Take the unit to the service center for service and repair. www.colormetric.net Colormetrics P3300...

  • Page 4: Table Of Contents

    6-2. MagStripe Card Reader Configuration Utility 6-3. Fingerprint Reader 6-4. RFID 6-5. Configuration Utility of I-Button Reader 6-6. Installation and Testing of Smart Card Reader 7 BIOS/UTILITY SETUP 7-1. Advanced 7-2. Chipset 7-3. Boot 7-4.Security 7-5.Save & Exit 8 LCD SURFACE CLEANING Colormetrics P3300 www.colormetric.net...

  • Page 5: Packing List

    Build-in VFD 1D/2D barcode scanner Pole VFD RFID (13,56 MHz) 8” pole customer display iButton 15” pole customer display Smart card reader UPS battery Fingerprint reader *Note: Nearly all modules are also available as 2-in-1 or 3-in-1 solution. www.colormetric.net Colormetrics P3300...

  • Page 6: System View

    18. Antenna Cover 19. 8” 2nd Display/VFD Cover 20. Memory Cover * Please make sure 19V DC plug in the right 21.Power LED direction before plugging in DC jack. 22. Cover for Internal access of 2nd HDD/Adapter Colormetrics P3300 www.colormetric.net...

  • Page 7: Specification

    -20°C ~ 60°C Storage Humidity 20% ~ 80%, non-condensing Display LCD Panel Size 17-inch TFT Active Matrix Display Resolution 1028*1024 Pixels Brightness 250 cd/m2 /350cd/m2 (Optional) Touch Panel 5-wire Resistive Type / Projected Capacitive Type optional Tilt Angle 30°~90° www.colormetric.net Colormetrics P3300...

  • Page 8: Pin Definition

    Parallel Port DATA2 SLIN# Printer Select Input Parallel Port DATA3 Ground Parallel Port DATA4 Ground Parallel Port DATA5 Ground Parallel Port DATA6 Parallel Port DATA7 ACK# Printer Acknowledge BUSY Printer Busy Printer Paper End SLCT Printer Select Colormetrics P3300 www.colormetric.net...
  • Page 9 Pin NO. Description RTS# CTS# USB D- USB D+ 5. Mic Pin NO. Pin Name Description Ground Ground Mic R Mic L Detect Detect 6. Speaker SPK1, SPK2 Pin NO. Pin Name Description Speaker + Speaker - www.colormetric.net Colormetrics P3300...
  • Page 10 RxECLK+ Ground RxECLK- RxE3+ BKL_CTL Back Light Brightness RxE3- BKL_EN Back Light Enable RxE2+ RxE2- RxE1+ RxE1- RxE0+ RxE0- RxO3+ RxO3- RxOCLK+ RxOCLK+ RxO2+ RxO2- RxO1+ RxO1- RxO0+ RxO0- NC, GND for G-type NC, GND for G-type Colormetrics P3300 www.colormetric.net...

  • Page 11: Rear I/O Interface

    Data Set Ready (In) Pin 4: DTR# Pin 5: RTS# Request To Send (OUT) Pin 6: CTS# Clear To Send (IN) Pin 7: TxD Ring/5V/12V Setting by BIOS Pin 8: RxD 1 2 3 4 5 6 78 VGA port www.colormetric.net Colormetrics P3300...
  • Page 12 Drawer Kick-out drive signal 1 Output 1. Create the file: TEST.TXT Cash Drawer Status Input 2. Input below contents in TEST. +12V TXT CONTEXT-“000.0” MODE COM5:300 3. Run COMMAND under DOS Signal GND mode COPY TEST.TXT COM 5 Colormetrics P3300 www.colormetric.net...
  • Page 13 8. DC Jack Signal Name DC IN 19V Ground 9. eSATA&USB connector Description Description TX + TX - www.colormetric.net Colormetrics P3300...

  • Page 14: System Assembly & Disassembly

    1. Unscrew 2 screws and remove the HDD cover 2. Install HDD with 4 screws 5-2. Memory 1. Unscrew 1 screw and remove the memory cover 2. Install HDD with 4 screws 5-3 MSR 1. Remove MSR cover 2. Install MSR with two screws Colormetrics P3300 www.colormetric.net...

  • Page 15: Vfd

    5-4 VFD 1. Remove the cover 2. Plug VFD cable into the 1*6 pin connector 3. Install VFD with two screws 5-5 2nd HDD Kit www.colormetric.net Colormetrics P3300...

  • Page 16: 8" 2Nd Monitor

    2. Install HDD kit with two screws 3. Plug e-SATA cable into the position shown in the picture 3 5-6 8” 2nd Monitor 1.Remove the cover 2. Plug cable into the 1*4 pin connector 3.Install 8” 2nd Monitor with two screws Colormetrics P3300 www.colormetric.net...

  • Page 17: Adapter

    2. Assemble the adapter bracket with two screws 3. Assemble the back cover the stand with two screws Note: The adapter bracket of P3300 is only for P3300 standard adapter (Model name: FSP150, 150W). Please don’t assemble other type adapter into the stand. www.colormetric.net...

  • Page 18: 2D / I-Button With Rfid Module

    5-8 1D / 2D / i-Button with RFID module 1. Cable installation. For I-Button / RFID /1D/2D barcode scanner, please connect the cable as shown in figure 2. Fix the screws as shown in below figure. Colormetrics P3300 www.colormetric.net...

  • Page 19: Device Driver Installation

    6. DEVICE DRIVER INSTALLATION 6-1. Resistive Type Touch Panel and P-CAP 1. Click “Next” 2. Click “Next” 2. Click “Next” www.colormetric.net Colormetrics P3300...
  • Page 20 3. Click “Next” 4. Select “None”, Click “Next”. 5. Click “OK” Colormetrics P3300 www.colormetric.net...
  • Page 21 6. Select “Support Multi-Monitor System”, Click “Next”. 7. Click “Next”. www.colormetric.net Colormetrics P3300...
  • Page 22 8. Click “Next”. 9 Click “Next” Colormetrics P3300 www.colormetric.net...
  • Page 23 10. Select “Create a eGalaxTouch Utility shortcut on desktop”, Click “Next”. www.colormetric.net Colormetrics P3300...
  • Page 24 11. Would you do 4 point calibration now? Click “Yes”. 12. Do 4 points aligrment to match display 13. Calibration utility Colormetrics P3300 www.colormetric.net...

  • Page 25: Magstripe Card Reader Configuration Utility

    1 The utility program will detect the connected reader. If detected, all the input text boxes will be enabled. 2 If the reader has not been connected to PC yet, please connect the reader and then click Refresh to get connected. www.colormetric.net Colormetrics P3300...
  • Page 26 3 Error Message: Indicates which track number cause the error. 4 Delimiter: Indicates the swipe result. 5 ISO: Define start and end sentinel character. 6 Decode Mode: Determines the way of outputting the three tracks data. Colormetrics P3300 www.colormetric.net...
  • Page 27 • TK3: For the prefix string, it is appended in the front of the start sentinel of track 3. For the suffix, it is appended in the end of the end sentinel of track 3. The max data length of the prefix and suffix for the TK1 can be up to 127. www.colormetric.net Colormetrics P3300...
  • Page 28 MSR data string contains other track data, it will still not to be output. 3 Disable: If selected, the data of specified track will not be packaged in the MSR data string. No matter it is decoded or not. Colormetrics P3300 www.colormetric.net...
  • Page 29 To load pre-saved settings, click Open, specify the settings file, and then click OK to load into program. Restore MSR Reader Settings To load restore settings of connected MSR reader, click Restore ES2: End sentinel for track. www.colormetric.net Colormetrics P3300...
  • Page 30 Software folder of CD. 3 Follow the wizard to complete the installation. Launching Program Below steps guide you how to load the Utility program. 1 From Start/Programs, click MagSwipe folder 2 Click MagSwipe Configuration Utility to launch the program. Colormetrics P3300 www.colormetric.net...
  • Page 31 Configuration Select Reader Interface The reader to be configured should be connected. Select the corresponding connected reader interface and click the Continue button www.colormetric.net Colormetrics P3300...
  • Page 32 After selecting the appropriate interface for the reader, select one of the Home Menu Page buttons to proceed with the Magnetic Stripe Reader (MSR) configuration process. The „Basic Reader Settings“ group defines the basic operating parameters and data output format of the reader. Colormetrics P3300 www.colormetric.net...
  • Page 33 When the reader has received the data correctly, the settings take effect immediately. Load From File The configuration data can be loaded into the configuration utility from a file that has been previously saved. Select this command, start a „File Open“ dialog, which allows selection of the file. www.colormetric.net Colormetrics P3300...
  • Page 34 The settings take effect immediately. The default parameters affect all reader configurations settings. Close Close this dialog and return to the Home Menu Page. General Settings This group of configuration settings defines the basic operating parameters of the reader. Colormetrics P3300 www.colormetric.net...
  • Page 35 In the single swipe direction selections, the card can only be swiped in one specified direction to read the card. The default setting will decoding card data with the card swiped in either the forward or the reverse direction. www.colormetric.net Colormetrics P3300...
  • Page 36 (host) require an inter-character delay to simulate the effects of keystroke delays. Choosing a longer inter-character delay causes the characters to be sent at a slower rate. If the host system is not capable of receiving characters as fast as the reader Colormetrics P3300 www.colormetric.net...
  • Page 37 These can be special characters for identifying a specific track. End Sentinel The magnetic stripe End Sentinel character can be added to the end of a magnetic stripe data string. This character simulates the end of character for track1, track2 or track3. This default is ‚?‘ www.colormetric.net Colormetrics P3300...
  • Page 38 The default is Any Track.(All tracks written on the card will be read). Track Separator Selection This option allows the user to select the character to be used to separate data decoded by a multiple- track reader. The default value is CR Colormetrics P3300 www.colormetric.net...
  • Page 39 This option let reader to send out [SS]E[ES] if failed to read or missing data on a selected track.The default is off. The error output for track 1 is „%E?“. The error output for track 2 is „;E?“. The error output for track 3 is „+E?“. Keyboard Settings www.colormetric.net Colormetrics P3300...
  • Page 40 The user can input the number between 1 to 255 for the delay of output. Check Current Reader Setting After you connect the device, the current reader configuration can be displayed by selecting this button. The configuration data of the connected reader will be displayed like in the example: Colormetrics P3300 www.colormetric.net...
  • Page 41 Colormetrics P3300...

  • Page 42: Fingerprint Reader

    6-3. Fingerprint Reader Step 1 Check Fingerprint reader be detected by “Device manager” Step 2 Select SDK folder. Step 3 Run Setup.exe. Colormetrics P3300 www.colormetric.net...
  • Page 43 Step 4 Click “Next”. Step 5 Select “ I accept the terms in the license agreement” and click “Next”. www.colormetric.net Colormetrics P3300...
  • Page 44 Step 6 Click “Next”. Step 7 Click “Next”. Colormetrics P3300 www.colormetric.net...
  • Page 45 Step 8 Click “Install”. Step 9 Click “Finish”. www.colormetric.net Colormetrics P3300...
  • Page 46 Step 10 Restart system Step 11 Check Fingerprint reader in Device Manager. Colormetrics P3300 www.colormetric.net...
  • Page 47 Step 12 Launch Fingerprint reader from start menu Step 13 Select “COM-ActiveX” www.colormetric.net Colormetrics P3300...
  • Page 48 Step 14 Select “Sample” Step 15 Select ”VB6’ Colormetrics P3300 www.colormetric.net...
  • Page 49 Step 16 Select “Enrollment Sample”. Step 17 Enroll the fingerprint by the “Enrollment“ www.colormetric.net Colormetrics P3300...
  • Page 50 Step 18 Select “Fingerprint Enrollment” Colormetrics P3300 www.colormetric.net...
  • Page 51 Step 19 Put your finger on fingerprint reader and follow the direction to enroller your fingerprint it need scan your fingerprint 4 times Step 20 after enroller finish it will popup a dialog box www.colormetric.net Colormetrics P3300...

  • Page 52: Rfid

    1.1 Check the Device Manager to verify the status of RFID reader. Computer Management -> Device Manager -> Other devices (The device will show a question mark if the installation is not done properly.) 1.2 Double-click to Update driver. Colormetrics P3300 www.colormetric.net...
  • Page 53 1.3. Select “Browse my computer for driver software.” 1.4 Click Browse to select file called HFF320U \Driver\FTD\x64 And click Next. 1.5. Install the driver www.colormetric.net Colormetrics P3300...
  • Page 54 1.6 Install complete and then click “close” 1.7 Restart the computer Colormetrics P3300 www.colormetric.net...
  • Page 55 2. Install framework 4.0 2.1 Double-click to install. 2.2 Select “I have read and accept the license terms. And click Install.. www.colormetric.net Colormetrics P3300...
  • Page 56 The demonstration software can run either from CD or a copy on hard drive. The GUI of software is shown in below picture and ready to use. 3.2 Following steps, as shown in below picture, demonstration a simple usage in reading UID of ISO14443A card for quick understanding. Colormetrics P3300 www.colormetric.net...
  • Page 57 Colormetrics P3300...

  • Page 58: Configuration Utility Of I-Button Reader

    - Follow the wizard to complete the installation. Launching Program Below steps guide you how to load the Utility program. - From Start/Programs, click HIDMSR-20 Utility folder - Click MagStripe Card Reader Configuration Utility to launch the program. Colormetrics P3300 www.colormetric.net...
  • Page 59 • The utility program will detect the connected reader. If detected, all the input text boxes • If the reader has not been connected to PC yet, please connect the reader and then click Refresh to get connected. Configuration Below is the main window of i-Button Utility program. www.colormetric.net Colormetrics P3300...
  • Page 60 To load pre-saved settings, click Open, specify the settings file, and then click OK to load into program. Restore MSR Reader Settings To load restore settings of connected MSR reader, click Restore ES2: End sentinel for track. Colormetrics P3300 www.colormetric.net...
  • Page 61 Below steps guide you how to install the Utility program. • Insert the setup CD. • Run the Colormetrics i-Button Utility.exe setup file that is located in the Software folder of CD. • Follow the wizard to complete the installation.
  • Page 62 Colormetrics P3300 www.colormetric.net...
  • Page 63 • The utility program will detect the connected reader. If detected, all the input text boxes will be enabled. • If the reader has not been connected to PC yet, please connect the reader and then click Refresh to get connected. www.colormetric.net Colormetrics P3300...
  • Page 64 Configuration Below is the main window of i-Button Utility program. For the settings, there are: • Prefix/Suffix: Defines the data string which you would like to append in front or end of the i-Button key string. Colormetrics P3300 www.colormetric.net...
  • Page 65 • Length : i-Button ID length request from 0~16 • Output order : 4 formats could be select at Attach /Remove i-Button ID. iButton 64- Bit Registration Number: 8-Bit CRC + 48-Bit ID + 8-Bit FC DEMO SETUP&OUTPUT OUTPUT DATA : a!ab00000003bdfa01? b!ab00000003bdfa01? www.colormetric.net Colormetrics P3300...

  • Page 66: Installation And Testing Of Smart Card Reader

    6-6 Installation and Testing of Smart Card Reader 1. Check smart card reader be detected by “Device manager”. 2. Install the SCR driver. Colormetrics P3300 www.colormetric.net...
  • Page 67 3. Run Setup.exe. 4. Click “Yes”. www.colormetric.net Colormetrics P3300...
  • Page 68 5. Restart systems. 6. Check SCR reader in Device Manager. Colormetrics P3300 www.colormetric.net...
  • Page 69 7. Run the testing program – EZ100test. 8. Conferm that SCR can be detected by the testing program, the Start Testing www.colormetric.net Colormetrics P3300...
  • Page 70 9. Follow dialog boxes displayed to remove and insert card. 10. After finishing the testing, the dialog box will show “oK”. Colormetrics P3300 www.colormetric.net...

  • Page 71: Bios/Utility Setup

    OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility. WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware. www.colormetric.net Colormetrics P3300...

  • Page 72: Advanced

    7-1 Advanced Use the Advanced menu to configure the system for basic operation through the following sub-menus: Colormetrics P3300 www.colormetric.net...

  • Page 73: Acpi Configuration

    RAM is refreshed; the system is running in a low power mode. 3. S3 (Suspend to RAM) The caches are flushed and the CPU is powered off. Power to the RAM is maintained. The computer returns slower to a working state, but more power is saved. www.colormetric.net Colormetrics P3300...
  • Page 74 7-1-2 S5 RTC Wake Settings Enable or disable system wake on alarm event. When enabled, system will wake on the hr::min::sec specified. Colormetrics P3300 www.colormetric.net...

  • Page 75: Cpu Configuration

    7-1-3 CPU Configuration Use the CPU Configuration menu to enter the CPU Information submenu or setup Intel CPU parameter. www.colormetric.net Colormetrics P3300...

  • Page 76: Sata Configuration

    7-1-4 SATA Configuration Use the SATA Mode option to configure SATA devices as normal IDE devices. Disable Disables SATA devices. IDE Mode Configures SATA devices as normal IDE device. RAID Mode Configures SATA devices as RAID device. Colormetrics P3300 www.colormetric.net...
  • Page 77 Use the Configuration menu to change and/or set the configuration of the internal graphics devices installed in the system. DVMT Mode Use the DVMT Mode option to configure internal graphics device. DVMT/FIXED Memory Use the option to configure memory size of internal graphics device. www.colormetric.net Colormetrics P3300...

  • Page 78: Usb Configuration

    USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system. Disabled Legacy USB support disabled. Enabled Legacy USB support enabled. Colormetrics P3300 www.colormetric.net...
  • Page 79 7-1-7 IT8783F Super IO Configuration Use the Super IO Configuration menu to set or change the configurations for parallel ports and serial ports. www.colormetric.net Colormetrics P3300...

  • Page 80: Serial Port Configuration

    Enabled Enable the serial port. Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. Auto The serial port IO port address and interrupt address are automatically detected. Colormetrics P3300 www.colormetric.net...
  • Page 81 7-1-8 Parallel Port Configuration Use the Parallel Port Configuration menu to configure the parallel port. www.colormetric.net Colormetrics P3300...
  • Page 82 7-1-9 H/W Monitor The H/W Monitor menu shows the operating temperature and fan speeds. Colormetrics P3300 www.colormetric.net...

  • Page 83: Chipset

    7-2 Chipset Use the Chipset menu to access the Northbridge and Southbridge configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. www.colormetric.net Colormetrics P3300...

  • Page 84: Northbridge Configuration

    PCI express (PEG) controller or an IGD. Configuration options are listed below: PCI/IGD PCI/PEG PEG/IGD DEFAULT PEG/PCI IGD Memory [64 M] Use the IGD Memory option to specify the amount of system memory that can be used by the internal graphics device Colormetrics P3300 www.colormetric.net...

  • Page 85: Southbridge Configuration

    Serial Port 1/2 Voltage Select [STD] Select „COM1/2 PIN9 Function“ and press <Enter> to setup COM 1/2 PIN9 function. ITEM Option Descriptions COM1 PIN9 Function STD (Default) COM1/2 Pin9 select RING function COM2 PIN9 Function COM1/2 Pin9 select 5V/12V function www.colormetric.net Colormetrics P3300...
  • Page 86 7-2-3 ME Subsystem Use the ME Subsystem menu to configure the Intel® Management Engine (ME) configuration options. Colormetrics P3300 www.colormetric.net...

  • Page 87: Boot

    Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up. Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. www.colormetric.net Colormetrics P3300...

  • Page 88: 7-4.Security

    7-4 Security Use the Security menu to set system and user passwords. Administrator Password Use the Administrator Password to set or change an administrator password. User Password Use the User Password to set or change a user password. Colormetrics P3300 www.colormetric.net...

  • Page 89: 7-5.Save & Exit

    7-5 Save & Exit Use the Save & Exit menu to load default BIOS values, optimal failsafe values and to save configuration changes. www.colormetric.net Colormetrics P3300...

  • Page 90: Lcd Surface Cleaning

    3. What types of cleaners are acceptable? • Water • Vinegar (mixed with water) • Isopropyl Alcohol NOTICE: The following cleaners are unacceptable: • Acetone • Ethyl alcohol • Ethyl acid • Ammonia • Methyl chloride Colormetrics P3300 www.colormetric.net...
  • Page 91 (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life per this Directive. www.colormetric.net Colormetrics P3300...
