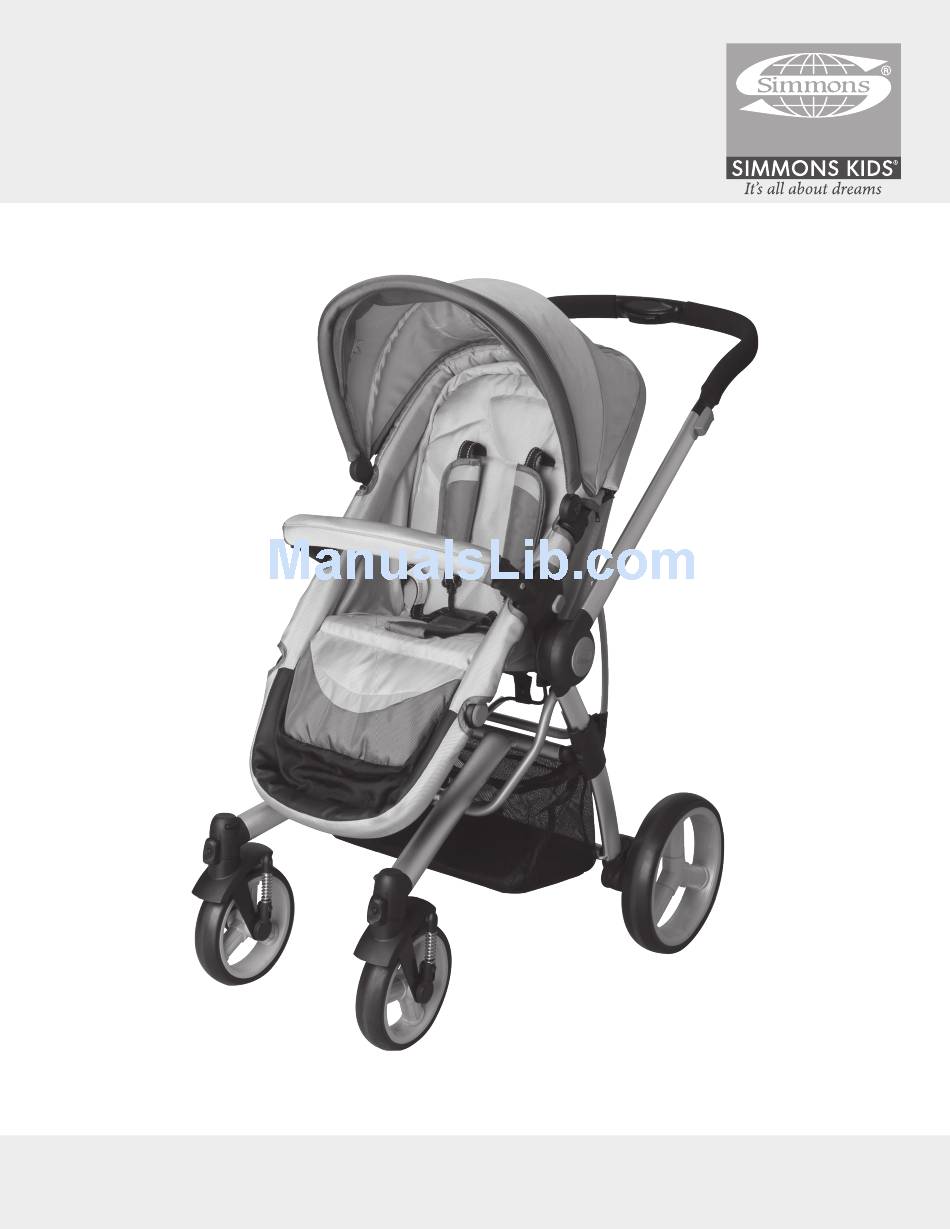

TOUR BUGGY STROLLER
11802-XXX/805050-XXX/805051-XXX
ASSEMBLY INSTRUCTIONS
ADULT ASSEMBLY REQUIRED
IMPORTANT: Read all instructions before assembly and use of the stroller
Keep the instructions for future reference
Customer Care Tel. 1-(800)-218-2741
Styles and colors may vary
(H)
www.SimmonsKidsProducts.com
DCP Cat # 02-20-12-V8
Advertisement
Summary of Contents for Simmons 11802-XXX
- Page 1 TOUR BUGGY STROLLER 11802-XXX/805050-XXX/805051-XXX ASSEMBLY INSTRUCTIONS ADULT ASSEMBLY REQUIRED Styles and colors may vary IMPORTANT: Read all instructions before assembly and use of the stroller Keep the instructions for future reference www.SimmonsKidsProducts.com Customer Care Tel. 1-(800)-218-2741 DCP Cat # 02-20-12-V8...
-
Page 2: Consumer Information
Consumer Information Parts WARNING IMPORTANT! Please remove all parts from the package and identify them before assembly. Prevent serious injury from falls or sliding out: • ALWAYS use the restraint system. • Only children who have developed enough upper body control to sit without leaning forward can use the front seat in the upright position. • NEVER leave child unattended. • DO NOT use the storage bag to carry children. Folded Seat To prevent product from tipping over: • DO NOT exceed the maximum storage weight limit of 3 lbs (1.36 kg) in the storage bag. Folded Stroller Frame • DO NOT exceed the maximum storage weight limit of 3 lbs (1.36 kg) in the cup holder. Bumper Bar • DO NOT place additional items on this product, except as recommended in the instructions. - Page 3 Assembly IMPORTANT! Before assembly or each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact manufacturer for replacement parts and instructions if needed. Never substitute parts. Rear Wheel Housing Opening Stroller Attaching Rear Wheel Axle • Locate the latch clip on the side frame of the stroller. • Locate the rear wheel axle and the stroller frame. • Pull to release the latch clip. • Insert the rear wheel housing onto the rear frame support • Push the rear wheel housing until you hear it “click” into the locked position. • Pull down on the rear wheel axle to assure it is properly locked Storage Bag into position. Support Straps Button Washer • Grab the handle and lift up to unfold the stroller with the Attaching Front Swivel Wheels other hand. • Locate the legs on the front of the stroller. (as pictured above) • Locate the stroage support straps. Fit the male strap end • Attach the front wheel unit to the front of the stroller leg, push into the female strap end and pull the two ends apart until up on the wheel unit until you hear it “click” into the locked you hear them click into the lock position. Repeat this proce-...
- Page 4 Assembly Wheel Hub Wheel Cover Washer Cotter Pin Attaching Canopy • Locate the canopy and align the canopy holes on the canopy fixture with the fixing rivets on the handles. Rear Leg Rear Wheel • Press down the canopy until it “clicks” into the locked position. • Check to make sure the canopy is properly attached. Attaching Rear Wheels • Locate the rear leg on the back of the stroller and the rear wheel, align the rear wheel with the rear leg as pictured above. • Remove the cotter pin and washer, then slide the wheel onto axle with the wheel hub facing the stroller, Slide on the washer, insert straight side of cotter pin through the hole in the axle. • Then snap on the rear wheel cover until you hear a “click”. • Pull on the rear wheel assembly to make sure it is securely attached to the rear leg. • Repeat this procedure to attach the other rear wheel assembly. Assembly Air Filled Tire (On Some Model) Tire Attachment Arm • Locate the zipper on the rear edge of the canopy and the top of the seat. • Zipper the canopy closed. Rear Wheel Frame Air Filled Tire Lock Botton Attaching Air Filled Rear Wheels (On Some Model) • Locate the air tire.
-
Page 5: Setup And Use
Setup and Use WARNING Prevent serious injury from falls or sliding out: TO LOCK • ALWAYS use the restraint system. • Only children who have developed enough upper body control to sit without leaning forward can use the front seat in the upright position. • NEVER leave child unattended. • DO NOT use the storage bag to carry children. To prevent product from tipping over: TO UNLOCK • DO NOT exceed the maximum storage weight limit of 3 lbs (1.36 kg) in the storage bag. • DO NOT exceed the maximum storage weight To Lock Rear Wheel • Step down the brake pedal until it “clicks” into the locked limit of 3 lbs (1.36 kg) in the cup holder. position. • DO NOT place additional items on this NOTE: Make sure the break pedals are pressed down completely. product, except as recommended in To Unlock Rear Wheel the instructions. - Page 6 Setup and Use Lever To Open Third Section Canopy ( On Some Models) • Unzip the zipper on the back of the canopy to release the third section of the canopy. Once the zipper is fully unzipped, pull To Adjust the Calf Rest the canopy out to the open position. • The calf rest can be adjusted up or down for the child’s comfort. • To close the third section of the canopy, zip the zipper •To adjust the calf rest press the lock button on both sides of the completely closed. seat and adjust the calf rest to the desired position. To Adjust the Handle To Adjust the Canopy • Press the buttons and adjust the handle to desired • Fold/unfold canopy by grabbing anywhere on the edge of the position. canopy. Recline Button To Adjust the Seat Back • Press down the recline button, pull up or pull down the backrest gently to the desire height.
-
Page 7: Securing Child
Securing Child Waist Belt Waist Belt TIGHTEN Crotch Belt Securing Child • P lace your child in the stroller. Position the crotch belt between your child’s legs. • P ull shoulder straps over child’s arm and shoulder and fasten both strap ends to the restraint system. • F asten both waist belts to the buckle on each side of the crotch belt. Make sure you hear a “click” on both sides. • C heck to be sure the restraint system is securely attached by pulling it away from your child. The restraint system should remain attached. Restraint System LOOSEN To tighten the waist belts and shoulder straps: • F eed the anchored end of a waist belt up through the buckle to form a loop . Pull the free end of the waist belt • R epeat this procedure to tighten the other waist belt. • F eed the top end of the shoulder strap through the plastic stay to form a loop . Pull the bottom end down to tighten the strap . • R epeat this procedure to tighten the other shoulder strap. -
Page 8: Folding The Stroller
Folding the Stroller Locking Mechanism To Fold the Stroller • Unlock locking mechanism on both sides of the handle bar by Folding Latch pulling the levers upwards and pressing down the handle at the same time to fold. NOTE: It is recommended that the backrest is in the upright • Ensure the folding latch is locked. position and canopy is in the folded position before folding the stroller. • Press down on handle until the stroller is fully folded position. • Your stroller is fully folded into compact size for easy storage and travel. Air Pump (On Some Models) • Remove the valve stem cap from the • Press the air tube end onto the valve. • Replace the valve stem cap onto the valve. valve. • Once the air tube end is properly inserted onto the valve, use two hands to pump the desired amount of air into the tire. Customer Service www.SimmonsKidsProducts.com Tel. 1-(800)-218-2741... - Page 9 To Revers the Seat Release Button • Pull up the seat to make sure it is properly sit in a locked To Reverse the Seat position. • Press the seat release buttons on both sides of the stroller and lift the seat up until it totally releases from the frame. • Turn the seat to reverse position and align the seat and frame holes. • Insert the seat into frame holes until it “clicks” into the locked position. Customer Service www.SimmonsKidsProducts.com Tel. 1-(800)-218-2741...
- Page 10 Converting Stroller into Buggy • Please locate your fully assembled stroller. • Release the foot rest support clip. • Release the seat support snap. Repeat for other side. • Release the seat bottom support clip. • Release the seat back support clip. Release Button • Push the seat bottom flat down to convert it into a buggy. • Press the seat release buttons on both sides of the stroller and lift the seat up until it totally releases from the frame. • Insert the buggy into frame holes until it “clicks” into the locked position. The stroller is completely turned into a buggy. • Flip the seat upside down and locate seat support clips , and as illustrated above. Customer Service www.SimmonsKidsProducts.com Tel. 1-(800)-218-2741...
- Page 11 Converting Buggy into Stroller • Please locate your fully assembled buggy. • Secure the foot rest support clip. • Secure the seat support snap. Repeat for other side. Release Button • Secure the seat bottom support clip. • Secure the seat back support clip. • Press the buggy release buttons on both sides of the stroller and lift the buggy up until it totally releases from the frame. • Insert the seat into frame holes until it “clicks” into the locked position. The buggy is completely turned into a stroller. • Flip the buggy upside down and locate seat support clips , and as illustrated above. Customer Service www.SimmonsKidsProducts.com Tel. 1-(800)-218-2741...
- Page 12 Manufactured for and distributed by: 114 West 26th Street, New York, NY 10001 Customer Service Tel. 1-(800)-218-2741 www.SimmonsKidsProducts.com customerservice@SimmonsKidsProducts.com MADE IN CHINA...
