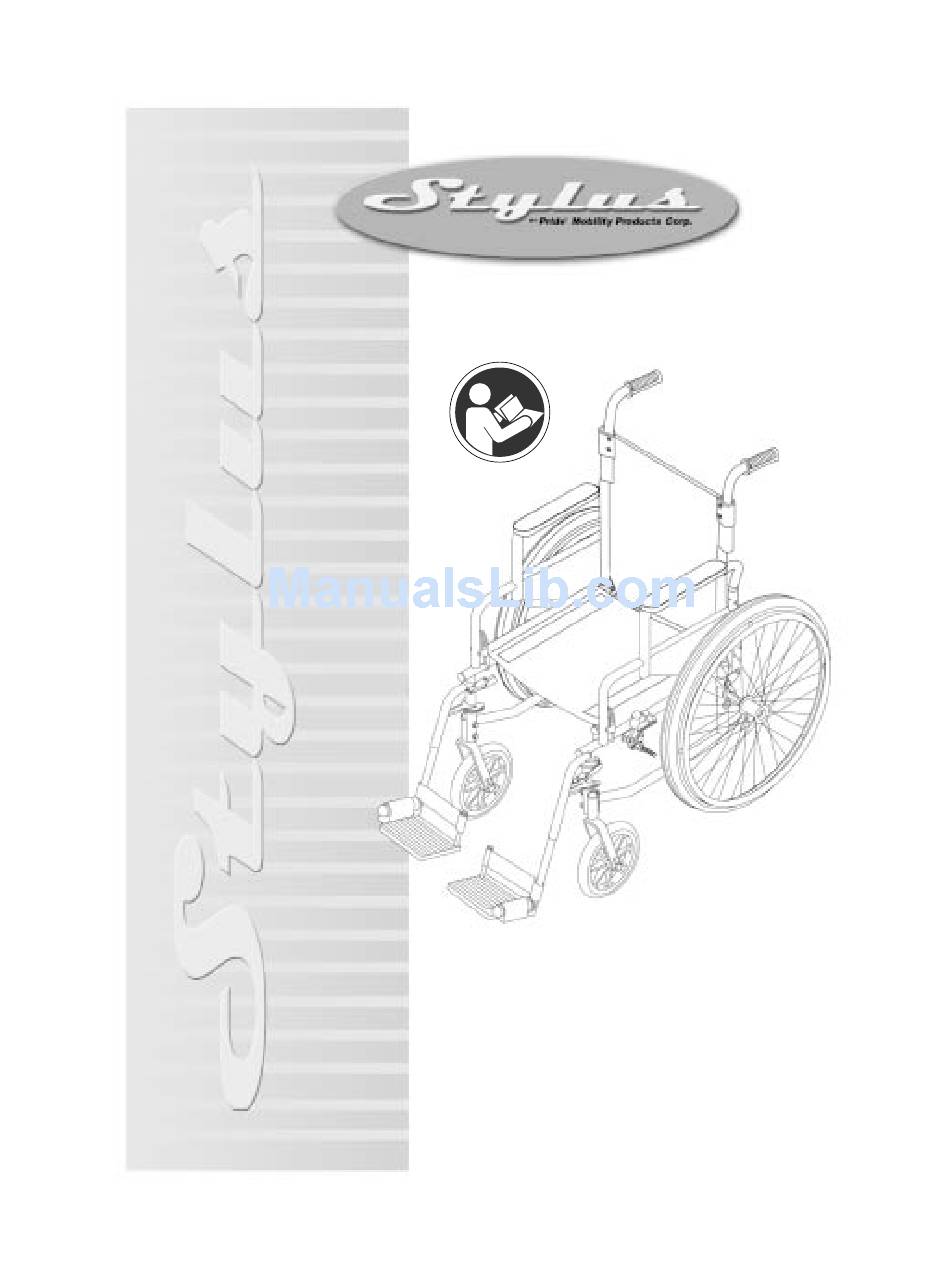

- Page 1 S T Y L U S 4 0 5 / 4 3 6 O W N E R ’ S M A N U A L PRIDE MOBILITY PRODUCTS LTD. UNIT 106, HEYFORD PARK CAMP ROAD UPPER HEYFORD, OXFORDSHIRE OX25 5HA...
-
Page 2: Information Labeling
Symbols below are used on this product. Please read the information associ- ated with each of the symbols presented and follow accordingly. MANDATORY! Read and follow the information in the owner’s manual. MANDATORY! Maximum seating weight. Copyright 2004 Pride Mobility Products Ltd. INFMANU2743/Rev A/May04 www.pridemobility.com Pride Stylus 405/436... -
Page 3: Table Of Contents
PURCHASER’S AGREEMENT TO ENSURE SAFE OPERATION ......4 CONTACT US ..................... 5 THE PRIDE STYLUS ..............6 WEIGHT CAPACITY ................... 7 USING THE PRIDE STYLUS ............8 UNFOLDING ...................... 8 FOLDING ......................8 TRANSPORTING YOUR PRIDE STYLUS ..............9 PRE-RIDE CHECKS ..................10 PREPARING YOUR WHEELCHAIR FOR TRANSFER ......... -
Page 4: Safety
Pride to enhance or preserve the safe use of this product. www.pridemobility.com Pride Stylus 405/436... -
Page 5: Contact Us
Authorised Pride Dealer:_______________________________________ Address:_______________________________________________________ Phone Number:____________________ Purchase Date:________________ If you ever lose or misplace your product registration card or owner’s manual, contact us and we will be glad to send you a new one immediately. Pride Stylus 405/436 www.pridemobility.com... -
Page 6: The Pride Stylus
THE PRIDE STYLUS The Pride Stylus is is a dual-position, rear-wheel drive wheelchair designed to operate both indoors and outdoors on smooth surfaces. SEAT CANE HANDLES ARMRESTS SEATBACK REAR FLAP TYRE HANDRIM ARMREST LATCH SIDE FRAME HEEL LOOPS DRIVE WHEEL... -
Page 7: Weight Capacity
*polyurethane WEIGHT CAPACITY Refer to the Pride Stylus Specifications Table for the maximum weight capac- ity. Exceeding the maximum weight capacity may cause your wheelchair to be- come unstable and tip over. It is also likely to damage your wheelchair. Pride will not be responsible for injuries and/or property damage resulting from failure to observe weight limitations. -
Page 8: Using The Pride Stylus
Either an attendant pushes it, or you move it by gripping the handrims and turning them in the desired direction of travel (Stylus 405 only). You steer the Stylus 405 by turning one wheel faster than the other. To stop the... -
Page 9: Transporting Your Pride Stylus
Anyone travelling in a motor vehicle should be properly secured in the motor vehicle seat with safety belts securely fastened. The Pride Stylus was designed to be folded and stored in a secure location such as in Figure 5. Folding the Pride Stylus the boot of a car. -
Page 10: Pre-Ride Checks
Always use a pressure-regulated air sup- ply to inflate the tyres. ü Check the handrims (Stylus 405). Make sure that they are fastened securely to the wheels. ü Check the park brakes. Make sure they work properly. If they don’t, instruc- tions on how to adjust them are provided in this manual. -
Page 11: Preparing Your Wheelchair For Transfer
This will help to prevent your feet from being caught on the foot riggings during the transfer. If you use the foot riggings to support yourself during transfer, you risk tipping your wheelchair. Pride Stylus 405/436 www.pridemobility.com... -
Page 12: Reaching And Bending
TIPS FOR SAFE USE The Pride Stylus was designed to be simple to use on smooth, level surfaces. However, you may encounter situations that require a higher level of skill. It is for these situations that you will benefit from practicing with a trained attendant. - Page 13 £ making abrupt directional changes OFF-ROAD Pride does not recommend that you use your wheelchair on anything other than solid, smooth surfaces. Driving your chair on uneven surfaces can cause your wheelchair to become unstable and tip over. Pride Stylus 405/436 www.pridemobility.com...
-
Page 14: Pride Stylus Adjustments
PRIDE STYLUS ADJUSTMENTS You must have your Pride Stylus set up by your authorised Pride Dealer prior to initial use. If you make adjustments to the Pride Stylus without proper guid- ance, you can change your centre of gravity and cause the wheelchair to be- come unstable under certain conditions (such as stopping, cornering, etc.). -
Page 15: Swing-Away Footrest (Sfr) Foot Plate Length
1. Remove the bolt from the bottom of the SFR. Figure 13. SFR Foot Plate Adjustment 2. Adjust the foot plate to the desired length. 3. Reinstall the bolt into the SFR 4. Repeat for the other side. Pride Stylus 405/436 www.pridemobility.com... -
Page 16: Maintenance
8. Inflate the tyre to the pressure recommended on the sidewall. Always use a regulated air source. 9. Reinstall the drive wheel to the frame. Make sure that the wheel axle is snapped securely into the frame bracket. www.pridemobility.com Pride Stylus 405/436... -
Page 17: Corrective Maintenance
Pride Dealer. Contact your authorised Pride Dealer for a list of authorised service facilities or you can visit us at www.pridemobility.com. Pride Stylus 405/436 www.pridemobility.com... -
Page 18: Optional Accessories
MANDATORY! Install anti-tip wheels when the oxygen tank holder is installed. ANTI-TIP WHEELS Anti-tip wheels are available for the Pride Stylus. WARRANTY Pride warrants this product, so far as the same is of its own manufacture, to be free of defects in material and workmanship, when used by the purchaser under normal conditions, for (1) year after purchase. - Page 19 Q u a l i t y C o n t r o l - S t y l u s Thank you for making the Stylus your choice in wheelchairs. We have thoroughly inspected your Stylus. The following checkmarks indicate that it has been test driven and inspected.
