Summary of Contents for Body flex IT 8020

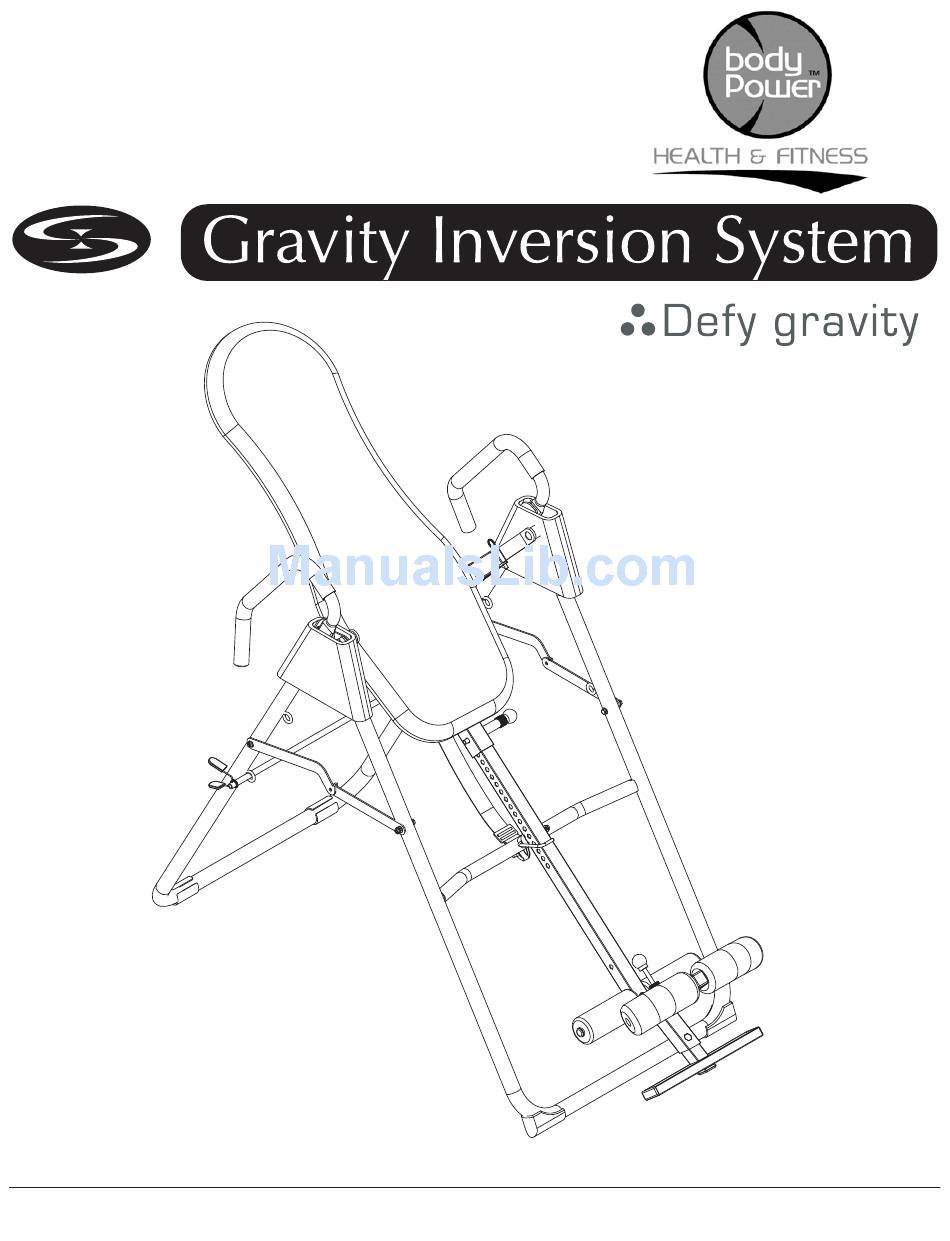

- Page 1 IT 8020 * This item is for consumer use only and it is not meant for commercial use. OWNE R’ S MAN UAL...
-
Page 2: General Information
Warranty this manual carefully before commencing the assembly of your product or starting to Body Flex Sports warrants your product for exercise. a period of 1 year for the frame and 90 days on all parts if the item is used for the intended •... -
Page 3: Hardware List
Hardware List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. PLEASE NOTE: some of these parts may have already been pre-assembled on your unit. Bolts #25 Hex Bolt (M10x30 mm) [2 pieces] #28 Hex Bolt (M6x45 mm) [ 1 piece]... -
Page 4: Parts Listing
Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Parts# Description Parts# Description Front Leg Tube Lock Nut (M10) 02A-R Right Cross Support Bracket Lock Nut (M6) 02A-L Left Cross Support Bracket... -
Page 5: Exploded Diagram
Exploded Diagram The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. Please note that not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed. -
Page 6: Assembly Instructions
Assembly Instructions A s s e m b l y S t e p 1 A.) A-Frame Assembly Open the pre-assembled A-Frame, which is composed of Front Leg Tube (#101), Rear Base (#103) and left and right Cross Support Brackets (#02A-L/R). Make sure that the two Cross Support Brackets (#02A-L/R) are fully extended and firmly locked in place by pressing down on them. - Page 7 Assembly Instructions A s s e m b l y S t e p 2 A.) Cover Assembly Slide the Left Cover (#15L) over the Left Hand Rail (#113L) on to the A-Frame ensuring that the notched-out flap of the Left Cover (#15L) is facing toward the inside of the A-Frame .
- Page 8 Assembly Instructions A s s e m b l y S t e p 3 Rotate 90 degrees A.) Adjustable Ankle Brace Assembly Take the illustrated assembly which is composed of parts (#105),(#104),(#18), and (#09) out of the box. Pull up the Ankle Brace Lock Pin (#18) as illustrated and, at the same time, pull the Adjustable Ankle Brace (#104) out of the Height Adjustment Tube (#105) SLOWLY.
- Page 9 Assembly Instructions A s s e m b l y S t e p 4 A.) Foam Roller Assembly Slide the two Foam Rollers (#120) onto the Height Adjustment Tube (#105) and another two on the Ankle Brace Tube (#112). Apply soapy water to the tubes if the foam rollers do not slide on easily.
-
Page 10: Safety Instructions
Safety Instructions General Safety WARNING: 250 lb. WEIGHT CAPACITY DO NOT USE THIS INVERSION TABLE WITHOUT A PHYSICIAN’S APPROVAL IF YOU HAVE ANY OF THE FOLLOWING CONDITIONS (This list is for reference only and is not an exhaustive listing): Pregnancy, Hiatal Hernia, Ventral Hernia, Glaucoma, Retinal Detachment or Conjunctivitis;... - Page 11 Safety Instructions Strap Adjustment ALWAYS ENSURE BOTH ENDS OF THE SAFETY STRAP ARE SECURELY CLIPPED TO THE UNIT PRIOR TO USE. This end attached here This end attached here The buckle of the Safety Strap should be positioned about halfway down the Safety Strap with the concave side facing up. The two ends of the buckle should show;...
-
Page 12: Usage Guidelines
Usage Guidelines 1. Before You Begin • Always ensure the two Cross Support Brackets of the A-frame are pushed down and locked horizontally in place. • Always ensure that the Safety Hooks on both sides are latched over and securely holding the Adjustable Pivot Bars. •... - Page 13 Usage Guidelines 4. Make Adjustments & Prepare to Mount b. Now, place the Safety Lock back into the locked position across the Height Adjustment Tube. To prevent serious injury or even death, please do not skip this step. The Safety Lock is a key safety feature and should be placed in the locked position any time the user is not in the inverting condition, even if just resting in the upright position.
- Page 14 Usage Guidelines 6. Workout a. After you have set up and mounted the inversion table as described in steps 3. and 4. above: i.Slowly lift one arm. You will feel gravity work as it starts ii.Continue inverting by slowly raising the other arm. to tilt you back.
- Page 15 Usage Guidelines 7. Dismounting a. Before stepping off the unit, lock the Safety Lock back to locked position over the Height Adjustment Tube. Again, please have an assistant help you, if necessary. b. Pull the Ankle Brace Lock Pin up to release the foam rollers from around your ankles. Using the Safety Rail handlebars or the frame to ensure your balance and stability, place one foot onto the ground.
- Page 16 Model Number IT8020 version:5-18-2011...
