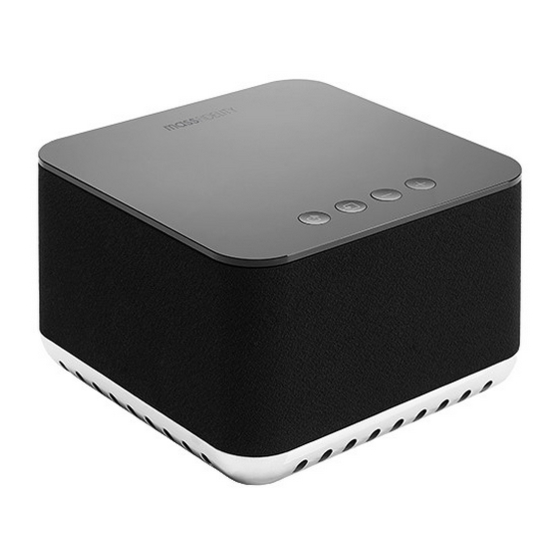

MASS FIDELITY core Instruction Manual

Wireless speaker system
Hide thumbs Also See for core:
Table of Contents

Advertisement

Quick Links

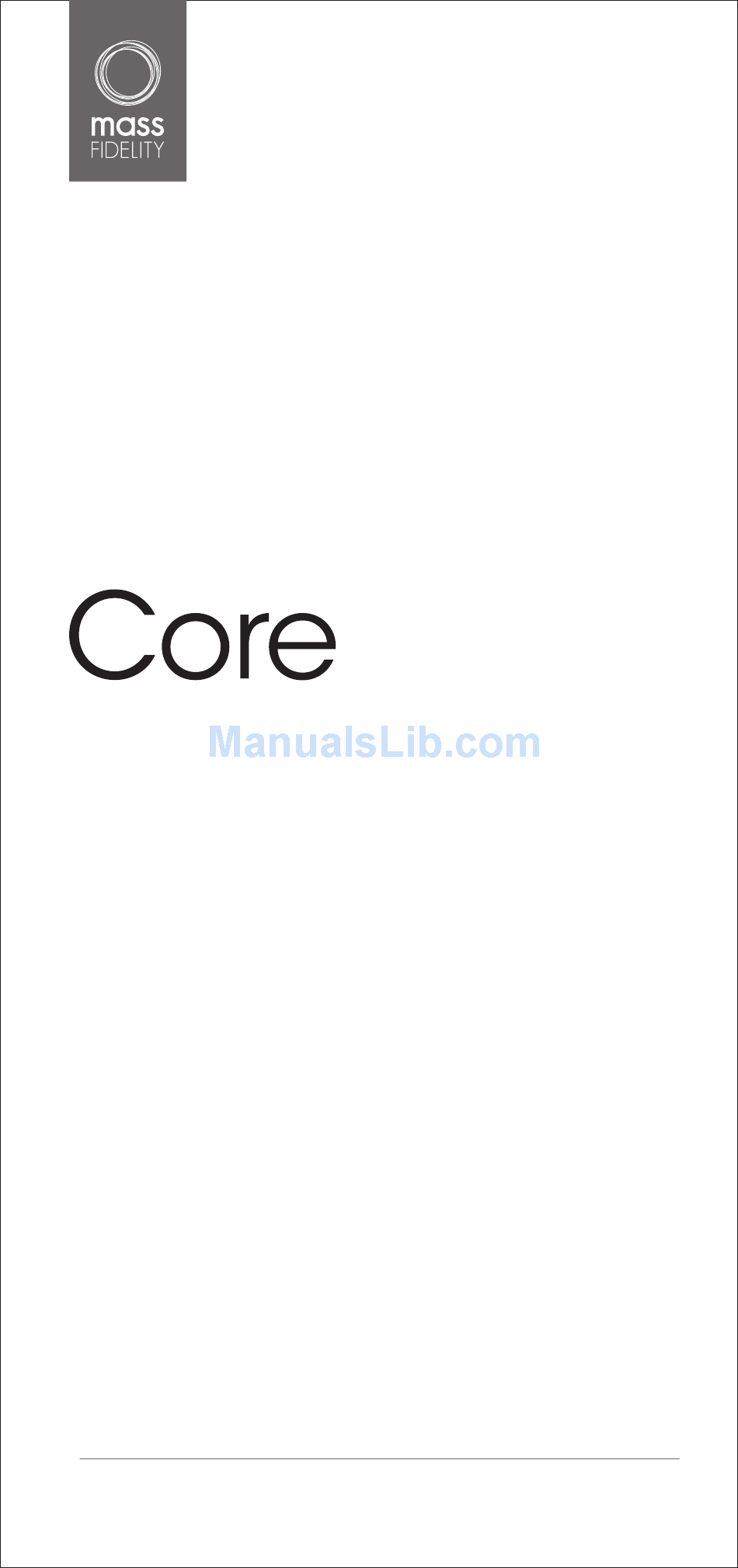

Wireless Speaker System
Instruction Manual
ENGLISH
v 1.1

Advertisement

Table of Contents
loading

Related Manuals for MASS FIDELITY core

Summary of Contents for MASS FIDELITY core

  • Page 1 Wireless Speaker System Instruction Manual ENGLISH v 1.1...

  • Page 2: Table Of Contents

    POWER SAVING LED INDICATORS SOUND NOTIFICATION PLAY MUSIC VIA BLUETOOTH VIA NFC WIRED ANALOG CONNECTION OPTICAL (DIGITAL) CONNECTION VOLUME CONTROL AND MUTING MULTI-ROOM OPERATION GROUPS SPEAKERPHONE CHARGE USB DEVICES CHANGE DISPLAY NAME TROUBLESHOOTING SPECIFICATIONS CARING FOR YOUR CORE SAFETY INFORMATION www.massfidelity.com...

  • Page 3: In The Box

    WELCOME Congratulations on purchasing Mass Fidelity’s Core Wireless Speaker System! This manual provides detailed instructions for setting up and using your Core. IN THE BOX • Core Wireless Speaker System • Power Supply • International Adapters (North America, UK, Europe, Australia) •...
  • Page 4 PRODUCT REFERENCE: CORE SUB OUT: audio output for wired subwoofer AUX: Audio input for L/R analog signal CONTROL: input for IR receiver eye OPTICAL: input for optical digital signal USB port: power out to charge USB devices DC input jack: input for power supply POWER key: switch unit on, off or to standby mode POWER indicator: shows power &...

  • Page 5: Product Reference: Remote

    PRODUCT REFERENCE: REMOTE The remote is an IR remote, and it can control any Core. Because it is IR, it should be pointed toward the front of the Core and have clear line-of-sight to the Core. The remote can control any Core.

  • Page 6: Setup

    90% or more charged. 2. Room placement is very fl exible, however for the best sonic imaging place the Core at the center of a wall rather than in a corner, and for best bass response move with its rear-side closer to a wall or any room boundary.

  • Page 7: Power Saving

    10 seconds (until the LED indicator fl ashes green) and disabled the same way (until the LED indicator fl ashes red). When the Core is in the Standby Mode, the IR remote control cannot control the unit (since it is not “on”).

  • Page 8: Sound Notification

    Multi-room connection mode Green Confirms a feature has been enabled. (one flash) Confirms a feature has been disabled. (one flash) The LED Indicator on the rear of the Core indicates the battery status. LED Indication Mode Yellow Battery charging Green...

  • Page 9: Play Music

    Bluetooth devices select “Core-xxxxxx” (where xxxxxx are six alphanumeric characters). When the source device and the Core are paired and connected, the LED indicator on the Core stops fl ashing and remains solid blue. Once a Bluetooth connection is made the LED will be BLUE 3.

  • Page 10: Via Nfc

    VIA NFC If the Core is on, simply tap the unlocked, NFC-enabled phone or tablet at the top center of the Core to make an instant connection. The Core switches to Bluetooth mode, pairs with the device and establishes a connection. This process will also disconnect the current Bluetooth connection, if any, to the Core.

  • Page 11: Wired Analog Connection

    • If the NFC pairing process is not successful, restart the device you are pairing with the Core and repeat the process. • When the source device and the Core are connected via Bluetooth, select music on the source device to play it through the Core.

  • Page 12: Optical (Digital) Connection

    LED will be WHITE. OPTICAL (DIGITAL) CONNECTION The Core includes an Optical digital connector so you can connect to digital sound sources such as a home theatre system or cable box or TV. 1. Connect an optical audio cable from the sound source to the OPTICAL input.

  • Page 13: Volume Control And Muting

    CD quality. This does not use or require a wireless home network. One Core speaker functions as the transmitter and all other units receive and play the signal or can be configured as independent speakers.

  • Page 14: Groups

    All units ship with Channel 1 selected by default. To select a different channel for a group, follow the below instructions on each Core unit that you want to be in this separate group: 1. Turn off the Core and disconnect the power adapter.

  • Page 15: Speakerphone

    2. Remove the wireless module from the rear of the Core. Be careful to not damage or touch the pins. 3. Set the alternative network sliding switch to channel 2, 3 or 4. Channels 4. Replace the wireless module. 5. Turn the Core back on.

  • Page 16: Charge Usb Devices

    2. When a call is received on the smartphone, the Core switches to Speakerphone operation. The music volume fades and the LED indicator turns green. Press the SOURCE key to answer the call or simply answer on your smartphone. NOTE: So the caller can hear you clearly, ensure the microphone on the front of the Core faces your general direction when speaking.
  • Page 17 5. Press the POWER key to turn the unit back on. 6. Unpair the Bluetooth connection (“Forget device” on iOS devices) then pair with the Core unit with the new name. The available presets are: Voice-over Menu Associated Display Names 1.

  • Page 18: Troubleshooting

    Core-BUERO 25. Core Core TROUBLESHOOTING If you have a problem with your Core, try the troubleshooting suggestions next and additional suggestions on the FAQ/ Troubleshooting section of our website (massfidelity.com/ support/faqs). If none of these solve the problem, please contact Customer Support at support@massfidelity.com or give us a call at 1.647.558.0726...
  • Page 19 • Lower the volume setting on the source device and/or the Core. • Insure the surface the Core is sitting on is not interfering with the sound. • The battery may be low. Connect the power adapter.

  • Page 20: Specifications

    1. Disconnect the power adapter from the Core. 2. Remove the wireless module at the back of the Core. Be careful to not touch or damage the pins. 3. Use a small-tip tool to gently press the Reset switch. The unit will power off completely.

  • Page 21: Caring For Your Core

    * Battery life can vary according to volume level or music being used. CARING FOR yOUR CORE • Clean the Core using a soft cloth only. Household cleaners and solvents can damage the exterior. • The Core’s grill is not removable. Tampering with the grill may damage your Core.
  • Page 22 Designed in Canada. Made in China. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc., and are used by Mass Fidelity Inc., under license. aptX® software is copyright CSR plc or its group companies. All rights reserved.
