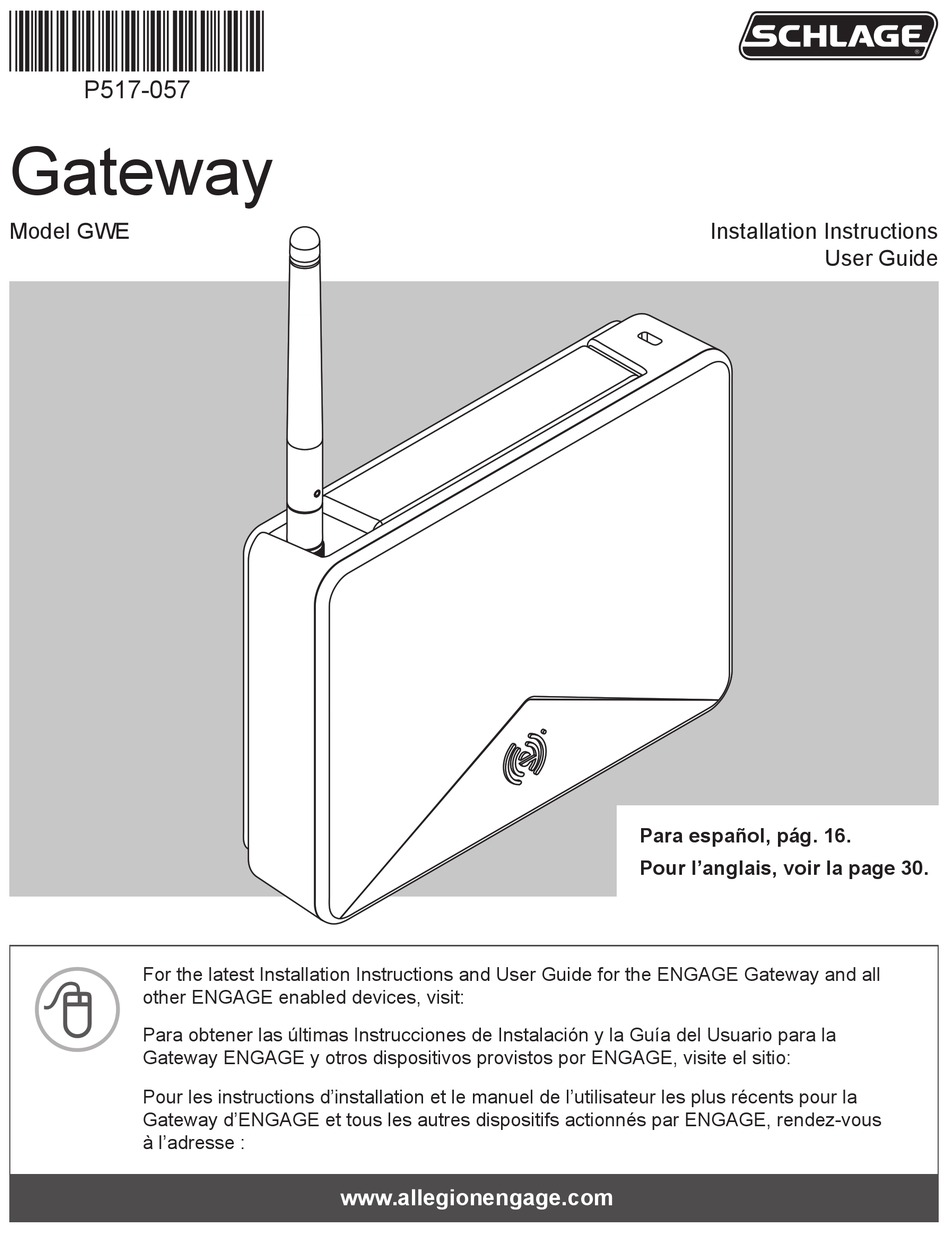

Gateway
Model GWE
For the latest Installation Instructions and User Guide for the ENGAGE Gateway and all
other ENGAGE enabled devices, visit:
Para obtener las últimas Instrucciones de Instalación y la Guía del Usuario para la
Gateway ENGAGE y otros dispositivos provistos por ENGAGE, visite el sitio:
Pour les instructions d'installation et le manuel de l'utilisateur les plus récents pour la
Gateway d'ENGAGE et tous les autres dispositifs actionnés par ENGAGE, rendez-vous
à l'adresse :
www.allegionengage.com
Installation Instructions
Para español, pág. 16.
Pour l'anglais, voir la page 30.
User Guide
Advertisement
Table of Contents
Related Manuals for Schlage GWE
Summary of Contents for Schlage GWE
- Page 1 *P517-057* P517-057 Gateway Model GWE Installation Instructions User Guide Para español, pág. 16. Pour l’anglais, voir la page 30. For the latest Installation Instructions and User Guide for the ENGAGE Gateway and all other ENGAGE enabled devices, visit: Para obtener las últimas Instrucciones de Instalación y la Guía del Usuario para la Gateway ENGAGE y otros dispositivos provistos por ENGAGE, visite el sitio: Pour les instructions d’installation et le manuel de l’utilisateur les plus récents pour la...
-
Page 2: Table Of Contents
Table of Contents General Architecture The ENGAGE Gateway can work in two modes. Port Guide 1. RSI Mode Installation Instructions In this mode, the Gateway communicates with Quick Start Guide an access control panel (ACP) and alliance Create a new ENGAGE account partner access control software to control Download the ENGAGE mobile application the system. -
Page 3: Port Guide
Port Guide 24V DC power cord Antenna Ethernet cable *not supplied RS-485 connector ACP power connector Wire guard cover Security screw (optional) Top View PoE/ ACP DC Factory RS-485 Antenna Kensington Ethernet power Default Port lock slot Port input Reset button Power port... -
Page 4: Installation Instructions
Download the ENGAGE mobile Installation Instructions application Quick Start Guide WARNING 1. Create an ENGAGE account at: https://portal.allegionengage.com/partner Do not create a new ENGAGE account from See “Create a new ENGAGE account” below. the ENGAGE mobile app. Navigate to Do NOT use the mobile app to create your http://portal.allegionengage.com/partner account. -
Page 5: Mounting Options
Mounting Options Route wires. Route wires through top hole in mounting plate. Remove mounting plate from Gateway. Wire hole Slide mounting plate down to remove. IMPORTANT Choose mounting option. Leave some slack when routing wires through There are four different mounting options. mounting plate to avoid damaging wires. -
Page 6: Power Options
Plug power adapter into wall socket. mounting plate. CAUTION Use only Schlage supplied power supply. Plug power cord into socket. Install optional security screw for added security. Power Options The Gateway can be powered in three ways. -
Page 7: Commissioning And Linking
IP communication will depend on installation site link mode. and network topology. Schlage recommends that 3. Put the desired lock into link mode. See page 8 the Gateway is connected to a network behind a for instructions. -
Page 8: Device Linking Responses
Gateway to Access Control Panel Enter link mode for Schlage NDE-Series locks Connection 1. Hold the interior lever. 2. While holding interior lever, apply a credential. CAUTION 3. Wait until the lock begins to flash alternating red and green, then release the interior lever. -
Page 9: Access Control Panel Connections
Access Control Panel Connections Gateway Access control Gateway Description Connector panel signal • Gateway inputs for 12 or 24 VDC power. • Draws 250mA max. 12 or 24 VDC • If the Access Control Panel (ACP) reader power outputs do not source enough current for the Gateway, use the ACP main regulated 12 VDC power supply or a separate UL294 Power... -
Page 10: Typical Gateway To Acp Wiring Diagrams
Typical Gateway to ACP wiring diagrams WARNING The diagrams included show typical ACP to Gateway wiring. Refer to your ACP documentation for specific wiring information. Power Supply Power Supply UL294 Listed power limited UL294 or ULCS318/ 250mA 12 or 24 V DC ULCS319 Listed power limited 250mA 12 or 24 V DC −... -
Page 11: Power Supply
Power Supply Power Supply UL294 Listed power limited UL294 or ULCS318/ 250mA 12 or 24 V DC ULCS319 Listed power limited 250mA 12 or 24 V DC − Access Control Panel Remove jumper Shielded 4 Wire Diagram... -
Page 12: Cable/Wire Specifications
Cable/Wire Specifications Application Part number Description Max distance DC Power 1000 Feet Belden 8760 or equivalent 2 Conductor Input (305 meters) Belden 9841 or 9842 or equivalent, or as specified 2 or 4 Conductor 4000 Feet RS485 by local electrical codes or shielded (1219 meters) the ACP provider... -
Page 13: Led Indicator Guide
LED Indicator Guide Type of LED User Status LED Meaning Interface Solid amber Gateway is booting up State Long flash amber, repeating Gateway Wi-Fi access point is active State Fast flash x2, repeating for 1 minute Factory default reset did not complete Status code successfully Fast flash x3, repeating for 1 minute... -
Page 14: Troubleshooting
Troubleshooting Problem Possible cause Solution The Gateway does The RS-485 cable between the Replace the RS-485 cable between the not communicate Gateway and the Access Control Gateway and the Access Control Panel. with the Access Panel may be damaged. Control Panel. The RS-485 signals between the Refer to Gateway wiring diagrams and Gateway and the Access Control... -
Page 15: Ul Statements
Industrie Canada. Dans le but de réduire les The unit has been tested for compatibility with a UL 294 risques de brouillage radioélectrique à l’intention des autres Listed, NDE-Series, Model NDE80 Schlage Engage Wireless utilisateurs, il faut choisir le type d’antenne et son gain de Lock.
