Summary of Contents for D-Box HEMC

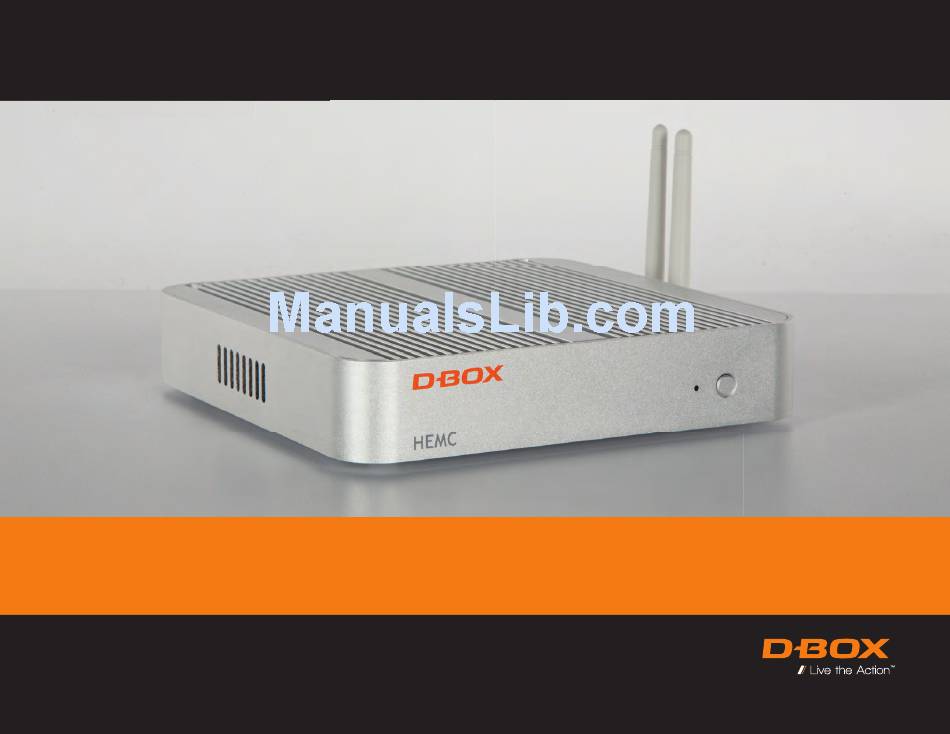

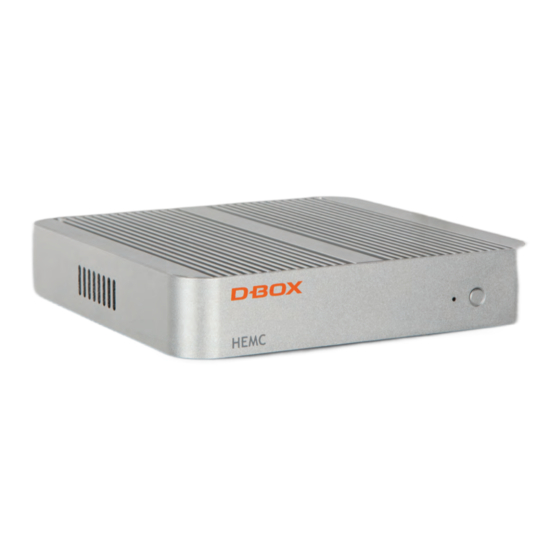

- Page 1 InstallatIon GUIDe InstallatIon GUIDe InstallatIon GUIDe D-boX HeMC Home entertainment Motion Controller...
-
Page 2: Table Of Contents
10.6 loss of Communication ..................16 11. THE D-BOX HEMC app SETTinGS SCREEn ............... 18 12. THE D-BOX HEMC app MOTiOn CODE liBRaRY SCREEn ........18 13. upDaTinG YOuR D-BOX HEMC SOfTWaRE .............. 19 13.1 Update the HeMC’s Internal software and Motion Codes ....... -
Page 3: Important Safety Instructions
IMPoRtant safetY InstRUCtIons Read these instructions. Keep these instructions. Heed all warnings. follow all instructions. Do not use this device near water. only clean the device with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or any other appliances (including amplifiers) that produce heat. -
Page 4: D-Box Hemc Technical Specifications
The D-BOX Home Entertainment Motion Controller (HEMC) enables home theatre owners to enjoy immersive cinematic motion in their theatre chairs. The HEMC brings D-BOX motion to any video platform (provided D-BOX encoding is available for the viewed content) ― from streaming sites such as Hulu and Netflix, to TV channels, Blu-ray, DVD and Apple TV. -
Page 5: What's In The Box
2. WHat’s In tHe boX? • D-boX HeMC Controller • Wi-fi antennas (2x) • Power supply 100-240 50/60Hz 1.6a • Power cords for most countries (3x) • QUICK staRt GUIDe (not shown) • 2-year warranty (not shown) -
Page 6: Hemc Internal Functionalities
You need a stereo Downmix that carries all channels of the playing soundtracks. the HeMC is very efficient even if the audio stream isn’t good; it will still work, but its performance will be affected. to test if your audio downmix feed going into the HeMC is good, simply replace the HeMC with a headphone/headset, using a female-to-female audio jack 1/8”... -
Page 7: Hemc Setup
3. attach both antennas to the appropriate connectors on the HeMC unit. You don’t need antennas if you plan to use only the wired connection, but you must use an RJ45 ethernet cable to connect your HeMC to your router. -
Page 8: D-Box Hemc Audio Wiring Diagram
Connect the HDMI oUt from your aV source to the Atlona HDMI Multichannel to 2CH converter* and output a left/Right downmix to the HeMC. note that with this converter, you can use the HDMI pass through to connect to your tV. -
Page 9: D-Box Hemc Seats Wiring Diagram
6. D-boX HeMC seats WIRInG DIaGRaM 6.1 1 to 4 seats setup Plug one KaI-1P between each D-boX seat and the HeMC. D-BOX HEMC Stereo Downmix AUDIO IN PORT 1 PORT 2 PORT 3 PORT 4 1/8” (3.5 mm) USB to Micro-USB... -
Page 10: To 10 Seats Setup
6. D-boX HeMC aUDIo WIRInG DIaGRaM (Continued) 6.2 5 to 10 seats setup Connect the HeMC to the Usb HUb. We suggest the D-Link DUB-H7 USB 2.0 7-Port Hub. Connect a KaI-1P between each seat to the Usb HUb. Stereo Downmix D-BOX HEMC 1/8”... -
Page 11: To 80 Seats Setup
(Continued) 6.3 11 to 80 seats setup You can plug up to four D-boX KCU in the HeMC. Connect the first KCa to the KCU, then daisy chain the remaining KCa units. Connect a KCa-t to the last KCa. Stereo Downmix to 1/8”... -
Page 12: D-Box Hemc App
7. D-boX HeMC aPP Your D-boX HeMC unit is designed to be used with the D-boX HeMC app. Use your tablet to quickly and easily adjust your D-boX motion enabled chairs by configuring your D-boX HeMC. browse through the Motion Code library to get a quick view of all your D-boX motion encoded movies stored in the HeMC. -
Page 13: Wi-Fi Configuration Wizard
Windows or iPad. 9.1 Configuring a Wi-fi Connection on iPad If there is no communication with the HeMC upon starting up the app, the Wizard screen will appear immediately after the splash screen. You can then perform the following steps: 1. -
Page 14: Configuring A Wi-Fi Connection On Windows
9.2 Configuring a Wi-fi Connection on Windows to access the Wizard screen, use the screen selector located at the bottom of any screen. If there is no communication with the HeMC at the start-up of the D-boX HeMC app, the Wizard screen will appear immediately after the splash screen. - Page 15 10. the hotspot again. Figure 9. Connection Wizard (Windows) – Wi-Fi Connection Figure 10. Connection Wizard (Windows) – HEMC Already Connected Successful...
-
Page 16: The D-Box Hemc App Main Screen
10. tHe D-boX HeMC aPP MaIn sCReen 10.1 The Screens The main screen is divided into four sections, from top to bottom: status Panel Media Info seat Manager screen selector Figure 11. HEMC Control Application Main Screen 10.2 Status Panel... -
Page 17: Loss Of Communication
10.4 Seat Manager the seat Manager section displays, for each connected D-boX motion enabled chair, the current motion and vibration levels (-20 db to 0 db) and indicates whether the chair’s motion is enabled or disabled. by default, the motion value is set to 100% or 0 db and the vibration value is set to 75% or -5 db. -
Page 18: The D-Box Hemc App Settings Screen
Figure 12. HEMC Control Application Settings Screen 12. tHe D-boX HeMC aPP MotIon CoDe lIbRaRY sCReen the Motion Code library screen displays in a table view, a list of all movies for which there is currently a D-boX motion code available on your HeMC unit. -
Page 19: Updating Your D-Box Hemc Software
Internet network. the update will not disturb your current movie viewing and will be uploaded while you are watching a movie. However, the installation will be performed only if your HeMC is idle for one hour or the next time you turn it on. -
Page 20: Business Hours
Copyright 2015 © D-boX technologies Inc. all rights reserved. HeMC is a trademark of, and D-boX is a registered trademark of, D-boX technologies Inc. and/or its affiliates in Canada and certain other countries. all other trademarks mentioned in this document or website are the property of their respective owners. the use of the word partner does not imply a partnership relationship between D-boX and any other company.
