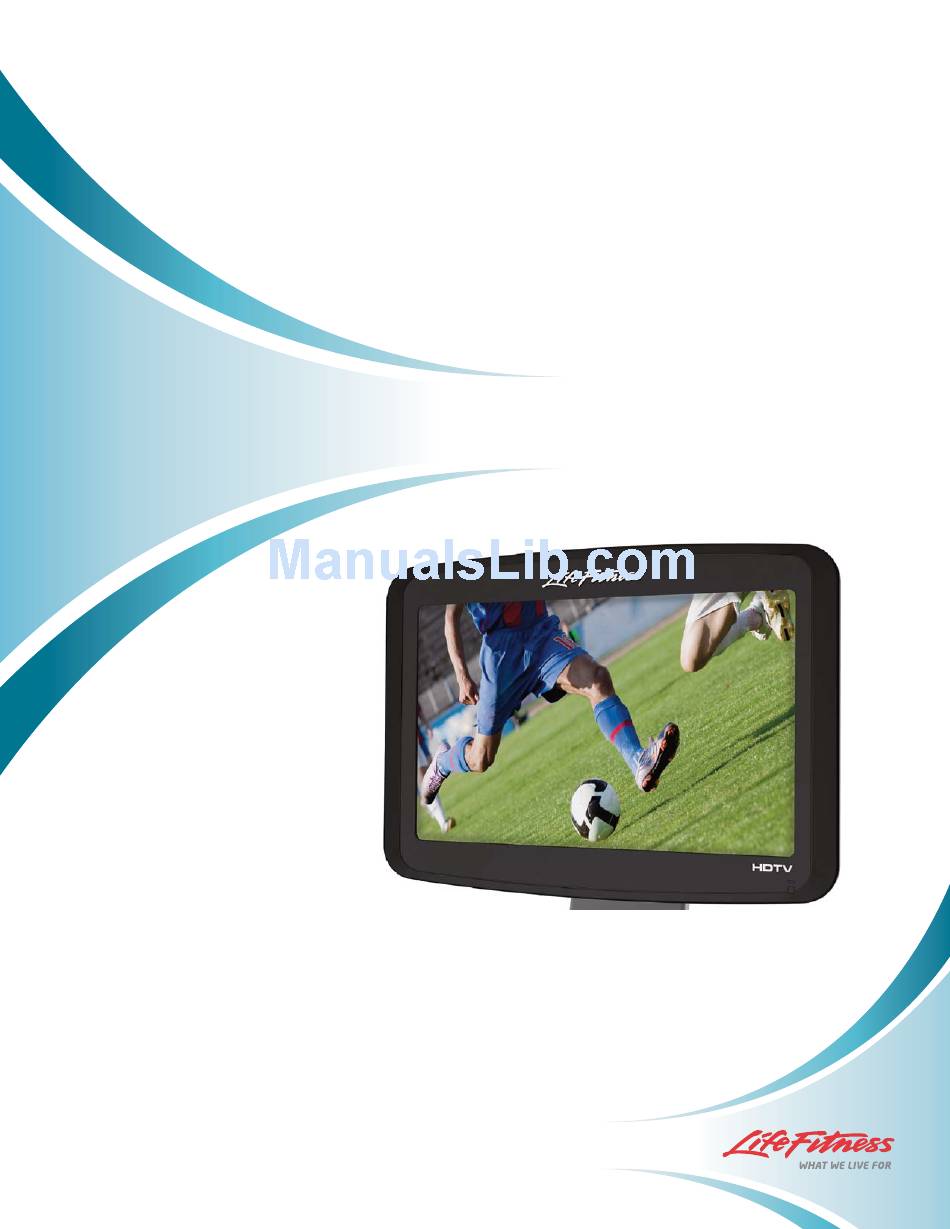

- Page 1 LIFE FITNESS 15” ATTACHABLE TV (NTSC / ATSC / QAM) OPERATION MANUAL M051-00K96-0007 REV A...
- Page 2 Rosemont, IL 60018 U.S.A Spain Telephone: (847) 288 3300 China and Hong Kong Life Fitness IBERIA S.A. Fax: (847) 288 3703 Life Fitness Asia Pacific LTD C/Frederic Mompou 5,1º1ª Service Email: customersupport@lifefitness.com Room 2610, Miramar Tower Sales/Marketing Email:commercialsales@lifefitness.com 08960 Sant Just Desvern Barcelona...
-
Page 3: Table Of Contents
Life Fitness TV Remote ........ -
Page 4: Important Safety Instructions
• Never operate a Life Fitness product if it has a damaged power cord or electrical plug, or if it has been dropped, dam- aged, or even partially immersed in water. If this occurs, contact Life Fitness Customer Support Services as outlined in Service at the end of this manual. - Page 5 été endommagé ou même partiellement plongé dans l'eau. Si cela se produit, communiquer avec le service à la clientèle de Life Fitness de la manière indiquée à la rubrique Coordonnées des ré- parateurs agréés à la fin du présent guide.
- Page 6 MPORTANT AFETY NSTRUCTIONS Note to the CATV Installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.
-
Page 7: Media Connections
EDIA ONNECTIONS DESCRIPTION CONNECTOR TYPE POWER IN 12 Volt DC Power In Power Jack VIDEO IN Video In RCA (yellow) AUDIO IN Stereo Line In RCA (red and white) High-Definition Audio & HIGH-DEFINITION INPUT High-Definition Video Connection VGA IN PC-Video Connection S-VIDEO IN S-Video Signal In S-Video... -
Page 8: Radio Frequency Interference (Rfi)
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult Life Fitness or an experienced radio/TV technician for help. CAUTION: Any changes or modifications to this equipment could void the product warranty. -
Page 9: Specifications
PECIFICATIONS 15.4" Diagonal Wide Screen Format Aspect Ratio: 16:10 Viewing Angle: 140 degrees horizontal x 130 degrees diagonal HD Channel Ready: High-definition television Visible Screen Size: 13" L x 8.15" H (33cm L x 20cm H) Brightness: 250nits (cd/m Display Color: 16.7 million Resolution: 3.89 million pixels, 1440(H) x 900(V)WXGA Contrast Ratio: 800:1 Video:... -
Page 10: Quick Reference - Tv Menu Access
EFERENCE CCESS LIFE FITNESS recommends programming the 15” Attachable TV by using an IR TV Remote. The TV can also be programmed by using an attachable LF TV REMOTE if on the order (for Achieve consoles) and through an Integrity, Inspire or Discover SI console. Please follow the guidelines below to program the TV. The password key on Life Fitness TVs is always “0000”. -
Page 11: Life Fitness Tv Remote
Use the CC key (7) as the ENTER function when selecting channels. Note: The Achieve console with Attachable TV includes the LF TV Remote.The Attachable TV System for new or previ- ously purchased Life Fitness silver/gray commercial cardio machines includes the LF TV Remote. -
Page 12: Ir Tv Remote
EMOTE IR TV R EMOTE IR TV Remote - Programming is easier with the optional IR TV remote. Contact Life Fitness (see page one for informa- tion) to order one or more IR TV remote controls if desired. POWER Switch on TV when at standby mode or... -
Page 13: Basic Functions
- IR TV R ASIC UNCTIONS EMOTE THUMBSTICK ( / / / /ENTER) Allows you to navigate the on-screen menus and adjust the menu settings to your preference. MUTE EXI T Clears all on-screen displays and returns to TV viewing from any menu. MENU Brings up the main menu to the screen. -
Page 14: Console Controls
ONSOLE ONTROLS LCD T OUCH CREEN The Life Fitness Elevation™ Series with the Inspire™ Console and the Elevation™ Series with Discover SI Console have the TV controls built-in the integrated LCD touch screen. TV C NSPIRE ONTROLS Inspire TV controls include:... -
Page 15: Tv Front Panel Controls
ASIC UNCTION RONT ANEL ONTROLS TV F RONT ANEL HDTV HDTV TV ON - Blue LED On TV OFF - Blue LED Off SLEEP MODE - Blue LED Blinks... -
Page 16: Getting Started
IGNAL ONFIGURATION After you install the Life Fitness Attachable TV and have connected all the power and cable or antenna, turn the TV ON. You must select a signal configuration based on your location before continuing. 1. Press the LEFT VOLUME key on the LF TV Remote to display the volume indicator. -
Page 17: Menus
(OSD) CREEN ISPLAY Menu Navigation: Press MENU to display the Main On Screen Display (OSD). Use LEFT and RIGHT arrow keys to select desired menu. Press ENTER to enter the sub-menus. Use the UP and DOWN arrow keys to select the sub-menu option. Use the LEFT and RIGHT arrow keys to adjust the values in the sub-menu options. -
Page 18: Picture
ICTURE Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Picture Settings Available Picture Modes: Movie, User, Dynamic, Standard Brightness, Contrast, Color, Tint, Sharpness: Adjust Brightness, Contrast, and Color levels from 0 to 50. - Page 19 ICTURE ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Color Temperature Available Color Temperatures: Cool, Normal, Warm Advanced Picture Settings Dynamic Contrast: Adjust the contrast corresponding to the input signal in order to improve the picture quality.
-
Page 20: Sound
OUND Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Sound Settings Available Sound Modes: User, Concert, Voice, Jazz Bass, Treble, Balance: Adjust Bass level from -15 to +15. Adjust Treble level from -15 to +15. - Page 21 OUND ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Use LEFT and RIGHT arrow keys to Enable / Disable. Other Settings AVL (Auto Volume Level): On / Off Speaker On / Off...
-
Page 22: Channel
HANNEL Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Press ENTER to go to the sub-menus. Channel List Use the UP and DOWN arrow keys to scan the Channel List. - Page 23 HANNEL ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Press ENTER to go to the sub-menus. Manual Channel Setting List Use the LEFT and RIGHT arrow keys to select the channel number or press the numeric keys to select the channel you want to set.
- Page 24 HANNEL ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Signal Type Available Signal Types: Air, Cable, and Air + Cable Auto Channel Search Auto Channel Search: When the video system is set to NTSC/PAL-M +PAL-N, the Digital Channels Found option is gray.
-
Page 25: Manager Control
ANAGER ONTROL Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Press ENTER to go to sub-menus. Press ENTER to Lock. V-Chip V-Chip: US V-Chip Canada V-Chip Block UnRated Show USA: Movie Rating... - Page 26 ANAGER ONTROL ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Press ENTER to go to sub-menus. Press ENTER to Lock. V-Chip TV Rating: Use the UP and DOWN arrow keys to select the TV rating.
- Page 27 ANAGER ONTROL ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Press ENTER to go to sub-menus. Change Password Change Password: Enter a password using the numeric keys.
- Page 28 ANAGER ONTROL ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to change settings. Hotel Settings - Boot Settings Available Picture Modes: Off, Dynamic, Standard, Movie, User Note: The Picture Mode selected will be on when the TV is turned On.
- Page 29 ANAGER ONTROL ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to change settings. Press ENTER to Enable / Disable. Hotel Lock Settings KeyPad Lock: The keyboard will not function if the Key Pad Lock is enabled.
-
Page 30: Setup
ETUP Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Closed Caption Caption Display: On / Off Available Analog Caption Types: Text1, Text2, Text3, Text4, CC1, CC2, CC3, CC4 Available Digital Caption Types: Service 1 -6... - Page 31 ETUP ONTINUED Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use LEFT and RIGHT arrow keys to adjust menu items. Menu Language Available Menu Languages: English, French, Spanish Sleep Timer Sleep Timer: Use RIGHT and LEFT arrow keys to set the time before the TV is automatically powered off.
-
Page 32: Others
THERS Menu Navigation: Use UP and DOWN arrow keys to select desired menu item. Use ENTER to adjust menu items to ON /OFF. Others Settings Blue Background: Press ENTER to select the Blue Back- ground. No Signal Power Off: On / Off The TV shuts off without a proper signal source connected. -
Page 33: Maintenance And Troubleshooting
LEANING Regularly (at least once a week) clean the Life Fitness Attachable TV and cardio equipment using mild soap and water. Lightly dampen a soft clean cloth with the mild soap and water solution and wipe the product. Do not use too much solu- tion on the cloth and do not spray or pour any solution directly on the products. - Page 34 & T AINTENANCE ROUBLESHOOTING Problem Possible Solutions Only snow appears on the screen Check the antenna and/or cable connections. Make sure the channel selected is currently broadcasting. Confirm the correct Air/Cable option is selected. Refer to the Channel Menu. Dotted lines or stripes Adjust the antenna.
- Page 35 & T AINTENANCE ROUBLESHOOTING DVANCED ROUBLESHOOTING If the picture regularly breaks up, then the signal received may be too weak or too strong to allow the digital TV receiver to generate a stable picture. Have your service provider confirm that the signal level at the machine is 72 dBuV + / - 25 dB. This is equivalent to +12 dBmV, and includes the range of -13 dBmV to +37dBmV.
- Page 36 QUIPMENT TO ITNESS To return equipment to Life Fitness for any reason, you must contact Life Fitness to obtain a return maintenance authori- zation (RMA) number (see page one for contact information).When you request an RMA number, please explain why you are returning the equipment.
-
Page 37: Warranty Information
If the Product or any covered part must be returned to a service formation. Reference your name, address and the serial number facility for repairs, We, LIFE FITNESS, will pay all transportation of your Product (consoles and frames may have separate serial and insurance charges for the first year.
