Page 1 MX44UHD User Manual MX44UHD User Manual HomeCinemaSolution Contact: info@homecinemasolution.it...
Page 2 MX44UHD User Manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
Page 3: Table Of Contents
MX44UHD User Manual Table of Contents Introduction.....................4 Features.....................4 Panel Descriptions......................4 Remote Control Descriptions...................6 Application Diagram......................7 Specifications......................8 Package Contents..................8 RS-232 Pin Assignment..................9 DIP for EDID Setting..................9 10. GUI control....................10 11. Maintenance.........................20 12. Exclusive Remedies..................20 HomeCinemaSolution Contact: info@homecinemasolution.it...
Page 4: Introduction
MX44UHD User Manual Introduction The MX44UHD is 4×4 Matrix with IR matrix for HDMI routes four Hi-Def sources to any four HDTV displays, supporting 1080p Full HD up to 4K plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™.

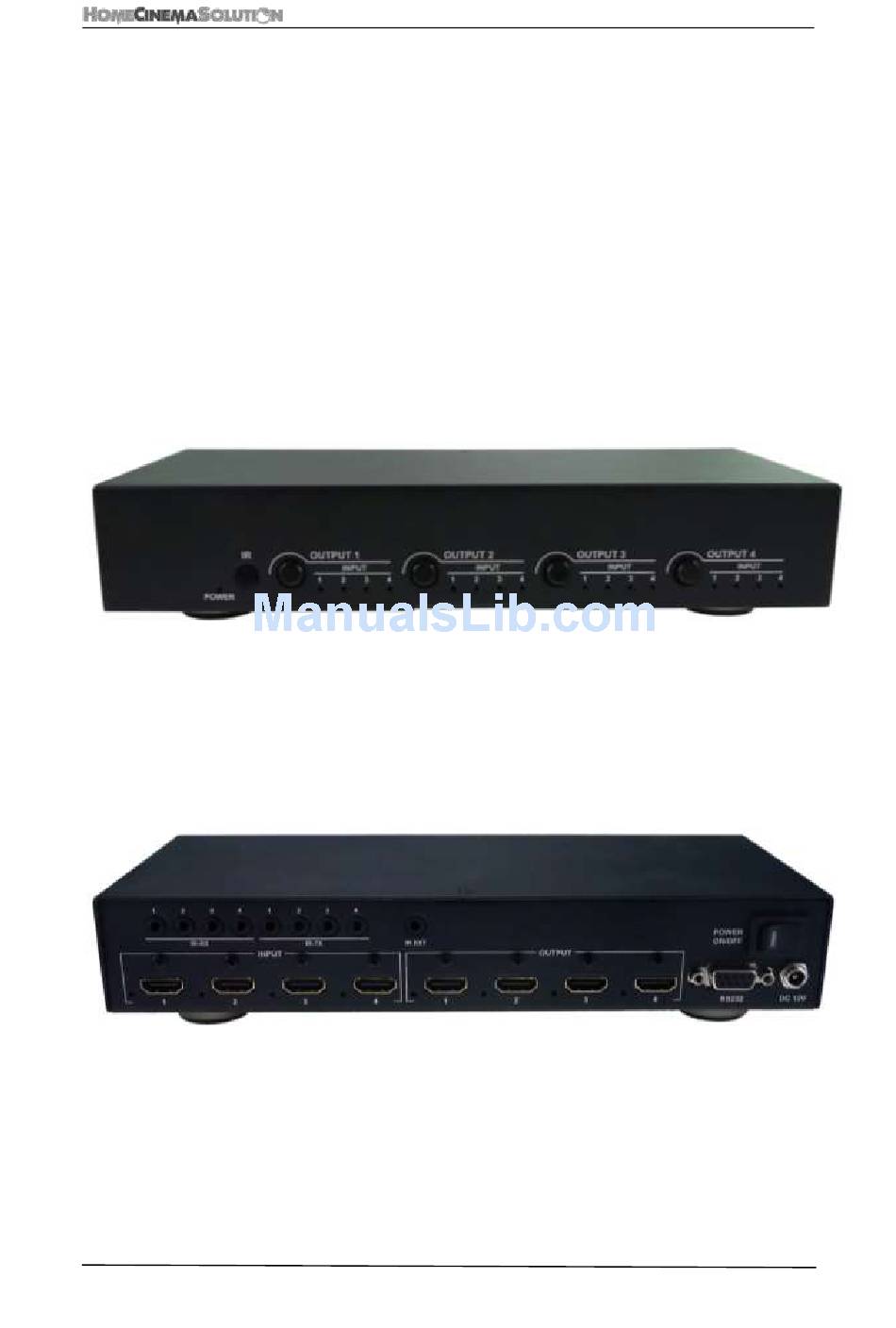

Page 5 MX44UHD User Manual Back Panel 1. IR inputs 1 to 4 ---- 3.5mm stereo phone-jack 2. IR outputs 1 to4 ---- 3.5mm stereo phone-jack 3. IR extension receiver input ---- 3.5mm stereo phone-jack 4. Power switcher---- Press to power on/off the matrix 5.
Page 6: Remote Control Descriptions
MX44UHD User Manual Remote Control Description Output and Input select A. OUTPUT-X select INPUT-Y: 1. Press OUTPUT-X (X means 1 to 4 of outputs)Press INPUT-Y ( Y means 1 to 4 of inputs ) 2. Press OUTPUT-X (X means 1 to 4 of outputs) press the left and right arrow buttons to select the input.
Page 7: Application Diagram
MX44UHD User Manual EDID Set Up A. Fixed EDID to INPUT-Y/ALL Press 1080I/1080P/3D/4KPress 2.0CH/5.1CH/7.1CHINPUT-Y/ALL button in Zone INPUT B. Copy EDID of OUTPUT-X to INPUT-Y/ALL Press COPY buttonPress OUTPUT-X buttonPress INPUT-Y/ALL button C. User defined EDID to INPUT-Y/ALL Press USER1/USER2 buttonPress INPUT-Y/ALL NOTE: Pressing button sequence should be finished in 5 seconds, otherwise, operation discarded.
Page 8: Specifications
MX44UHD User Manual Specifications: Bandwidth: 2.97Gbps per color Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking RS-232 serial port: DB-9, female 5x 3.5mm stereo jack IR Input ports: IR Output ports: 4x 3.5mm stereo jack...
Page 9: Rs-232 Pin Assignment
MX44UHD User Manual RS-232 Pin Assignment Remote Control MX44UHD Console Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None DIP for EDID Setting [DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM [DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY [DIP]=0010: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD...
Page 10: Gui Control
MX44UHD User Manual GUI Control PC System: Microsoft Windows Operation System Installation 4x4 HDMI Matrix controller is a green software. You just need to copy “4x4 HDMI Matrix Controller vx.x.exe” to the PC which is used to control the Matrix by RS232 COM or TCP to complete installation.
Page 11 MX44UHD User Manual “General” page ① Select control mode: RS232 COM mode (Auto COM ports detected) ② List detected COM ports ③ List all Matrix devices after search operation ④ Click to search all Matrix devices that connected in same subnet ⑤...
Page 12 MX44UHD User Manual “Port Tag” page ① Input port tags ② Click to edit Input port tags ③ Output port tags ④ Click to edit Output port tags NOTE: Edit boxes are read only, click “Edit” button to pop up window to edit the tags.
Page 13 MX44UHD User Manual Define tags for respective Input port, then devices connect the Input ports can be easily remembered. Click buttons with “×” caption to delete tag which is no use any more, if tag is still used by any other Input port, delete action will be discarded.
Page 14 MX44UHD User Manual “Setting” page ① LED which displays Input number for respective Output port ② Click to select Input port for respective Output port ③ Click to select previous or next Input port for respective Output port ② ④...
Page 15 MX44UHD User Manual Pop-up tag messages When “Display Input, Output tags when focus setting buttons” checkbox on “General” page is checked and Input/output port tag has been defined, tag messages will pop up like as: Pop-up Menu ② When mouse moves over...
Page 16 MX44UHD User Manual All Outputs: All Outputs from same Input “1 Output” to “4 Outputs”: Set current Output (where mouse right clicked) and the next x-1 ( x range is from 1 to 4, set total x Outputs at the same time ) Output(s) from same Input Port to Port: Output1 from Input1, Output2 from Input2, Output3 from Input3, etc.
Page 17 MX44UHD User Manual “EDID control” page ① Set EDID mode for selected Input port or All Input ports, click “Set” button to complete action. NOTE: When set User1/User2 EDID mode, should Download EDID content to User1 Memory/User2 Memory first. User1/User2 default EDID content is 1080p, Stereo Audio 2.0.
Page 18 MX44UHD User Manual “IR Configuration” page To enable or disable IR control function. When box checked, IR control function enabled, otherwise, IR control function disabled. This setting is not memorized. IR control function is always enabled after power up. HomeCinemaSolution...
Page 19 MX44UHD User Manual “FW upgrade” page ① Click to open firmware file (file extension is “.fw”). ② Firmware upgrade progress ③ Click the button to upgrade firmware. NOTE: If failure occurs during upgrading firmware process, the following steps SHOULD be...
Page 20: Maintenance
MX44UHD User Manual Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. Exclusive Remedies HCS warranty, as stated is in lieu of all other warranties, expressed, implied, or statutory, including those of merchantability and fitness for a particular purpose.
