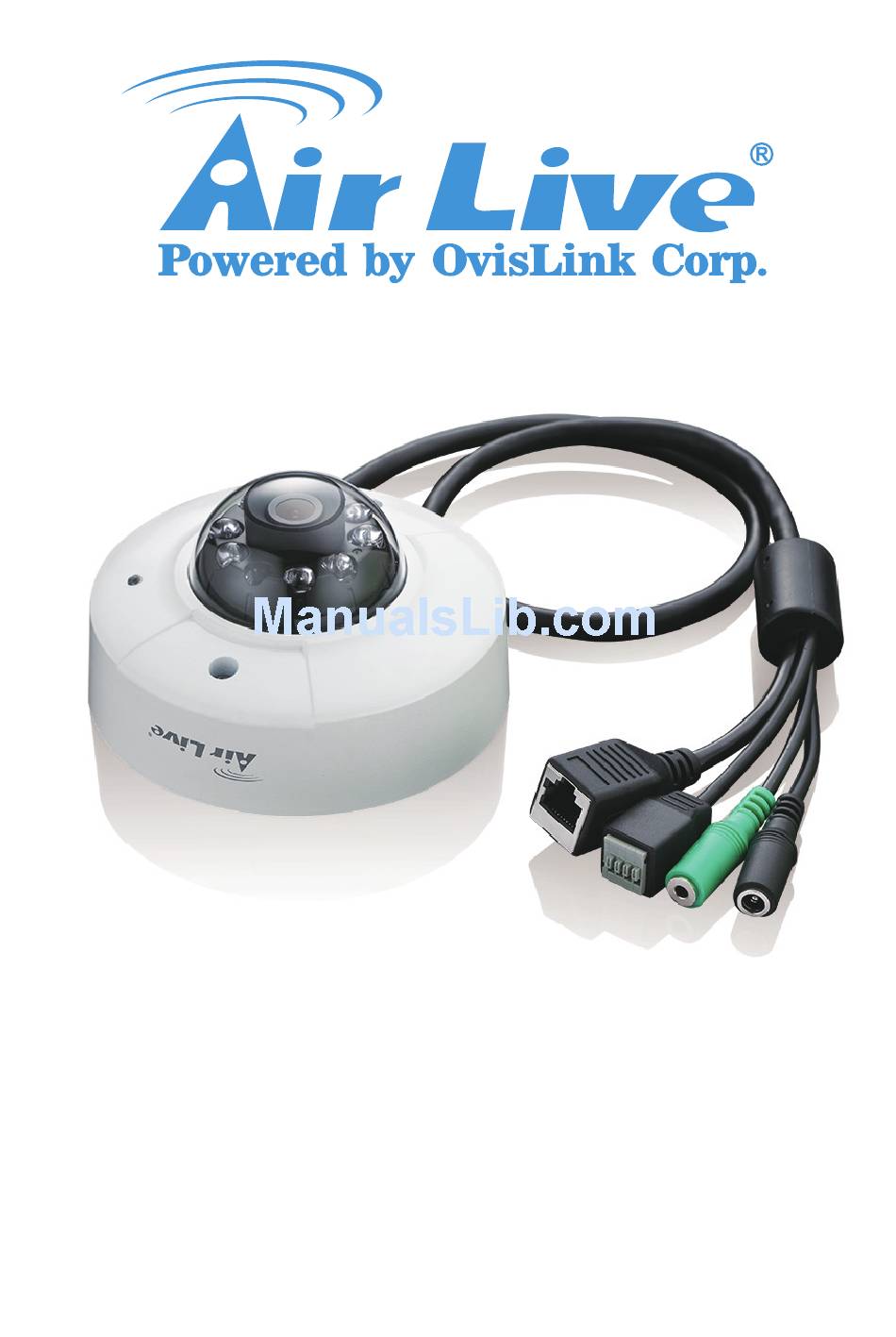

- Page 1 MD-3025/MD-3025-IVS Mini Dome Network Camera Quick Installation Guide...
- Page 2 QR code here. MD-3025-IVS Please consult with the FAQs <http://www.airlivesecurity.com/prod uct/md-3025-ivs/faq> before writing to OvisLink Tech Support Team for further assistance For any other question, please read the user manual in the CD or mail to tech@airlive.com for technical support.
- Page 3 MD-3025/MD-3025-IVS Package Contents Please check the package contents and contact your distributor if any part is missing. MD-3025/MD-3025-IVS Drill Template Desiccant Declaration of Conformity We, Manufacturer/Importer OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan...
- Page 4 I/O Interface Internal MIC PoE / RJ-45 DIDO Audio Out DC In...
-
Page 5: Before Using The Camera
Before Using the Camera Please remove the 2 screws. Pull the cable gently to open the top cover. The Reset button is LED indicator. Reset Button Mirco SD Card Slot... - Page 6 Insert MicroSD/MicroSDHC Remove the SD slot cover and insert MicroSD card. 64GB 64GB/ Class10 MicroSD SD slot cover Important: Please insert an empty MicroSD card to prevent from any data lost. Capacity of 32/64GB and Class10 is recommended.
- Page 7 Remove the blue tape Please remove the blue tape.
- Page 8 Replace desiccants If the packing box is a color box, the camera needs to be replaced the dessiccants before using.There are two new desiccants in the box.
- Page 9 Replace desiccants Unscrew two screws and replace the two desiccants. Unscrew two screws...
- Page 10 Replace desiccants If the packing box is a brown box, it is no need to put any dessicant in the camera.
-
Page 11: Surge Protection
Surge Protection Connect SP-100E to the camera for surge protection. PoE Port PoE Switch SP-100E DATA + Power... -
Page 12: Mount The Camera
Mount the Camera Use the drill template to mount the camera on the wall with screws. Wall... -
Page 13: Power On The Camera
Power on the Camera Connect the 12V1A adaptor or connect the camera to a PoE switch to power on the camera. PoE Switch 12V1A adaptor If you need 2-way audio function, please attach a speaker to the audio port. Speaker... - Page 14 Waterproof the Cable Please use the tube for waterproofing the connectors and the cables.
-
Page 15: Connect The Camera To The Network
Connect the Camera to the Network a. Connect the camera to the LAN/PoE port of the switch/PoE switch. b. Connect the desktop/ laptop to the LAN port of the switch/PoE switch. c. Connect the switch/PoE switch to the LAN port of the router. Camera Switch LNK/ACT... - Page 16 Set up the Network Environment The default IP address of camera is 192.168.1.100. The camera will get IP address automatically, if it connects to a modem/router by DHCP function or you can assign a static IP for the camera. Camera 192.168.1.100 DHCP Switch...
- Page 17 Install the Airlive IP Wizard Please use the CD to install IP Wizard. AirLive Product XXXXXXXXXX XXXXX XXXX XXXX VER.201XXXXX...
- Page 18 Find Camera on the Network IP Wizard starts to scan camera automatically. Click the camera you want to log in. Important: Please make sure your desktop/laptop is in the same network segment with the camera, or your desktop/laptop cannot connect to the camera in the network.
- Page 19 Access Camera on Web UI Please use IE to log in the camera. The default username and password is admin/airlive. You need to install the ActiveX on your PC when you first access to the camera web UI.
- Page 20 Adjust the view angle When the live view appears,you can adjsut the view angle of the camera. Tilt cramp screw Tilt Lens rotation Cover front...
-
Page 21: Adjust The Focus
Adjust the focus Please remove the rubber ring and adjust the focus. Adjust the Focus Rubber Ring... - Page 22 You can also adjsut more detail settings in the camera web UI by IE/Chrome/Firefox. Chrome and Firefox require QuickTime to display the live view. For any other question, please read the user manual in the CD or mail to the tech@airlive.com for technical support.
- Page 23 Download the CamPro Mobile Please visit App Store or Google Play to download CamPro Mobile. You can use QR code scanner software directly or simply search the “AirLive CamPro Mobile". App Store Google Play...
- Page 24 Start the CamPro Mobile Click the “CamPro Mobile” icon on your device. Press "Setup"...
- Page 25 Search and Add the Camera Press "Add" to start to search camera.
- Page 26 Search and Add the Camera Press "Auto Search".
- Page 27 Search and Add the Camera Slide the list and select the camera of which you want to view.
- Page 28 Search and Add the Camera Edit the information and Username/Password. And click “Save”. Default Username/Password is admin/airlive.
- Page 29 Rename the Camera For easy management, you can rename the camera. For example, you can name this camera as "Office".
- Page 30 Camea Live View Press "Back" to four-channel live viewing.
-
Page 31: Camera Live View
Camera Live View You can select any channel to enlarge the video or 4-channel view by tapping the screen. -
Page 32: Two-Way Audio
Two-Way Audio Now you can do free voice communication. Please switch to single channel and enable the audio function. Transmit Audio from Transmit Audio from Device to Camera Camera to Device... -
Page 33: Download And Playback
Download and Playback You can also view the recording files in MicroSD card and download them into your device. Please switch to single channel and press " " to view the recording list from You will see the playback list and click the file which you want to playback. - Page 34 Download and Playback Click “Play” to playback video, “Save” to save the video clip to device or “Cancel” to select another file. For Android system, you can preview the saved video file on Android device. For iOS system, you need to connect to iTunes for viewing the saved video.
- Page 35 Viewing from Internet Back to step.20, you can see the Device ID number on the screen. Just click "Query", you will get the camera public IP and port number to view the video from Internet. If you cannot see the video, please setup port forward in the router.
