MOI Pro-AMD
Get Started Guide V1.0
MOI Pro-AMD has 2 LAN ports, it gets the IP address via DHCP by default, and it will display tuner
information, time, and IP address etc on LCD. All those information are not shown on LCD at the same
time, so you need to use arrow keys to see the information you need:

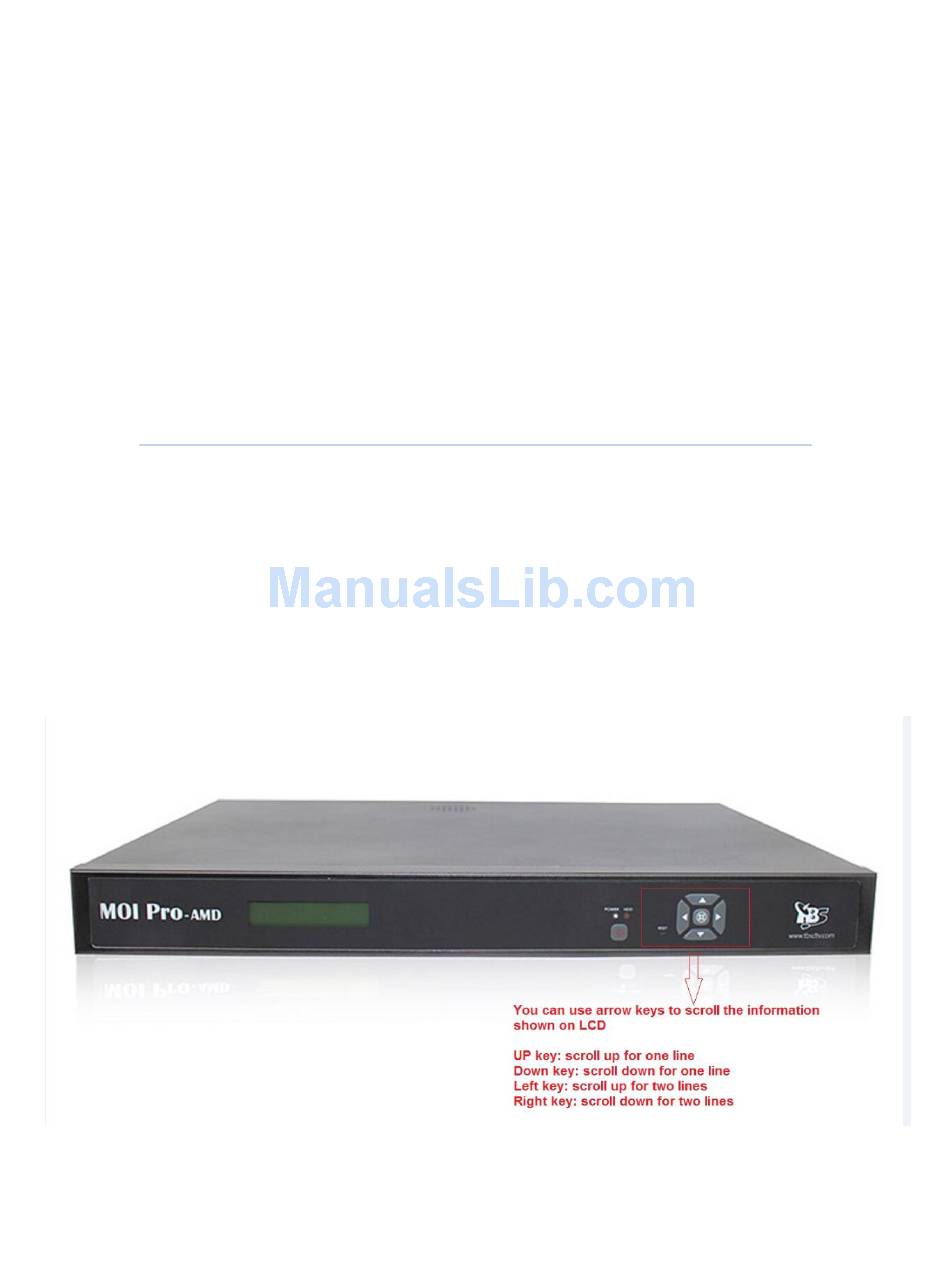

You will see information on LCD shown as below picture after MOI Pro-AMD is powered up
Advertisement
Summary of Contents for PIKO MOI Pro-AMD
- Page 1 Get Started Guide V1.0 MOI Pro-AMD has 2 LAN ports, it gets the IP address via DHCP by default, and it will display tuner information, time, and IP address etc on LCD. All those information are not shown on LCD at the same...
- Page 2 By using arrow keys, you can scroll other information shown like below pictures Notes: 1) With LAN1 connected only, you will see “LAN1: xxx.xxx.x.xx LAN2: Disconnect” shown on LCD 2) With LAN2 connected only, you will see “LAN1: Disconnect LAN2: xxx.xxx.x.xx” shown on LCD 3) With LAN1 and LAN2 connected at the same time, you will see “LAN1: xxx.xxx.x.xx LAN2: xxx.xxx.x.xx “...
- Page 3 Open the browser and enter the IP address displayed on the LCD, you can enter LAN1 IP address or LAN2 IP address in browser, let’s take 192.168.8.79 for example, enter 192.168.8.79 in browser and then you will see log-in window. Use “root” as user name and password to log in. After log in, you will see the homepage as below: Network Settings: ---3 / 15...
- Page 4 Click "LAN1 Settings", select "DHCP", and then click "Save", then MOI Pro-AMD will receive a dynamic IP address from the Ethernet server. Please check below picture for your reference: You can also set "DHCP" to "STATIC" by selecting “STATIC”, and then enter data for IP Address, Subnet Mask, Gate Way and DNS Server, then click “Save”, and then "STATIC"...
- Page 5 dynamic IP address from the Ethernet server. Please check below picture for your reference: You can also set "DHCP" to "STATIC", the method is the same with "LAN1 Settings". Please check below picture for your reference: Tuning Settings: ---5 / 15 MOI Pro AMD-Get Started Guide V1.0...
- Page 6 Auto start when power on: 1. If you use None, Tvheadend, VDR and Dvblast will not run 2. If you use Tvheadend, it will enter Tvheadend web page after a few seconds 3. If you use VDR, please select the TV Adapter (tuner) and scan first, after the scan is done, check VDR to start it.
- Page 7 By clicking "Scan Channels" and waiting about 10 seconds if scan success, you will see a channel list. Under drop-down menu of IP, there have 3 options: auto, 192.168.8.79, and 192.168.8.80, you can choose one from those 3 options: 1) Choose "auto" means it will stream to 192.168.8.79 (LAN1) or 192.168.8.80 (LAN2) at random 2) Choose 192.168.8.79 means it will stream from LAN1 3) Choose 192.168.8.80 means it will stream from LAN2 You can select UDP as your own preference, take program CCTV 4 for example, if you check UDP, then...
- Page 8 VDR Settings: 1) OSCAM Settings Select “OSCAM” then it will enter the web page of OSCAM. ---8 / 15 MOI Pro AMD-Get Started Guide V1.0...
- Page 9 Use “root” as user name and password to log in: Then you will be directed to the OSCAM page as below: ---9 / 15 MOI Pro AMD-Get Started Guide V1.0...
- Page 10 2) Scan for VDR You can see a drop-down menu shows 12 options from "TBS 6904 DVBS/S2 adapter 0" to "TBS 6904 DVBS/S2 adapter 11" (Tips: Here we use three TBS6904 card for test, if you use our other TBS cards, it will show different options) Choose one option and do “DiSEqC settings”...
- Page 11 ---11 / 15 MOI Pro AMD-Get Started Guide V1.0...
- Page 12 After configuration, click “Set DiSEqC” and “Scan Channels” to continue. Options: You can modify user name & password, reboot MOI Pro-AMD, and dash remote control under this section. For DASH remote control, please kindly be noted that DASH remote control is supported only when LAN1 is connected.
- Page 13 Click "Dash remote control", enter “TBS” as user name and “tbs” as password to log in a page shown as below. By clicking "Remote Control" on the left side, you can reset, power up, and power off MOI Pro- AMD remotely: Update: ---13 / 15 MOI Pro AMD-Get Started Guide V1.0...
- Page 14 1) Select file “update.tar.bz2” from your PC . 2) Click Upload button to upload “update.tar.bz2” to MOI Pro-AMD 3) Click Update button Tvheadend Guide: This is a page show you how to configure Tvheadend for DVB tuner ---14 / 15...
- Page 15 About: This shows the version information about MOI Pro-AMD ---15 / 15 MOI Pro AMD-Get Started Guide V1.0...
