Summary of Contents for BARO BR-W2

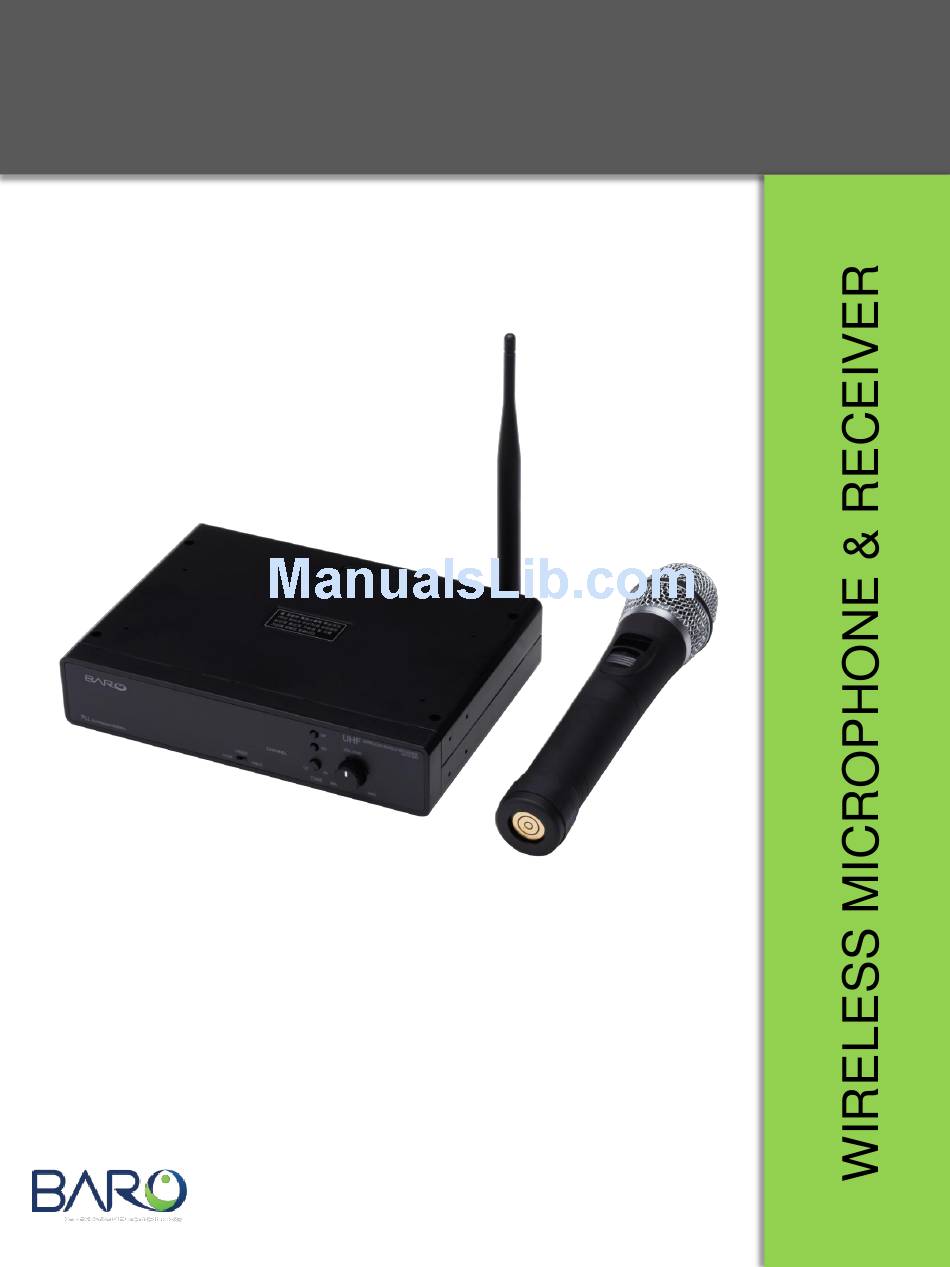

- Page 1 BARO SNT PRODUCT MANUAL 1 CHANNEL SYSTEM: BR-W2 VER.1.1 2015/06/12 www.barosnt.com...
-
Page 2: Table Of Contents
CONTENTS Before Use: Device Outline………………………………………………………………... 4 Device Specifications………………………………………………………...4 Device Features……………………………………………………………… 4 Package Contents…………………………………………………………… 5 Parts Listing…………………………………………………………………... 5 Cautions and Warnings……………………………………………………… 6 Component Descriptions: Receiver Description and Functions………………………………………. 7 Hand Mic Description and Functions……………………………………… 8 Hand Mic Charger Description and Functions………………………..8 Installation: Receiver Installation…………………………………………………………. - Page 3 Battery Replacement: Hand Mic Battery Replacement……………………………………………. 16 Issue Diagnosis…………………………………………………………………………………… 17 Other: Channel Frequency Chart…………………………………………………... 18 Full Specifications: Receiver………………………………………………………………………..19 Hand Mic……………………………………………………………………… 19 Hand Mic Charger (Optional)……………………………………………… 20 www.barosnt.com...
-
Page 4: Before Use
The system operates within internationally designated channel frequencies, and enables the accurate wireless transmission of audio signals without any distortion or interference. General Specifications (BR-W2): 925.120MHz to 937.420MHz Operating Frequency 62Channel . -
Page 5: Package Contents
AA x 2 Racking Bracket Power Cable Audio Output Cable Optional Hand Mic Charger (BR-WCH) Charger Mounting Bracket Power Cable Parts Listing Single Channel Wireless Audio System BR-W2 BR-WR1 1 Channel Receiver BR-WMH Hand Mic BR-WANT Antenna BR-WRAC Racking BR-WPWR... -
Page 6: Cautions And Warnings
• If liquid has entered the product, be sure to disconnect it from all power sources, inputs and outputs, and contact your Baro representative for product inspection. • Only use the power cable and components that were originally supplied with the product. -
Page 7: Component Descriptions
COMPONENT DESCRIPTIONS AND SPECIFICATIONS 1 Channel Receiver (BR-WR1) FRONT Shows which operating channel is in use. Channel Status Use to navigate up and down the available channels. Channel Selector Set the output volume for the output audio. Volume LOCK: Channel cannot be adjusted on the receiver. Channel Hold Switch UNLOCK: Channel may be adjusted freely. -
Page 8: Hand Mic Description And Functions
Hand Mic Description and Functions Protects the microphone pick-up components from damage, windscreen. Head Case When switching the microphone ON it will show the current operating channel. After 3 Channel Status seconds “- -” will be displayed. Switched OFF, the status window will be blank. Use to switch the microphone ON and OFF Power Switch Use the channel adjustment switch when setting the channel with the receiver. -
Page 9: Installation
INSTALLATION Receiver Installation: Mount the receiver in the location where it will be used permanently. Affix the racking bracket and mount to your digital podium or racking unit as necessary. Attach the receiver’s antenna. Set the Volume level somewhere near the middle setting. Attach the power adapter to the receiver and connect it to a power source. -
Page 10: Hand Mic Installation
Hand Mic Installation: Remove the battery cover and install the 2 x AA 1.5V batteries supplied with your product. Be sure to install them according to the +/- symbols denoted on the battery case. Turn the power switch to the ON position and view the status window. If the batteries are providing ample power, the status window will display the current channel. -
Page 11: Settings
SETTINGS Setting the Volume: You can set the Volume using the Volume adjustment knob. The optimal setting is for the indicator to be set at the 12 o’clock position, half way between the MIN and MAX settings. If not already matching, test the audio levels after setting the operation channels of the microphones and receiver. -
Page 12: Setting The Receiver Channel
Setting the Receiver Channel: Adjust the HOLD switch so that it is in the UNLOCK position. In this position you may adjust the channel setting. Press the ↑button to increase the operating channel setting. Press and hold to cycle through the channels quickly. Press the ↓button to decrease the operating channel setting. -
Page 13: Operation
OPERATION System Operation: Ensure that all components are connected properly, and that the receiver output is connected to your audio system’s mixer or amplifier. On the rear of the receiver, turn the Power switch to the ON position. Note the operating channel number appearing on the receiver and confirm it is correct. Turn on the microphone and ensure that the operating channel matches that of the receiver. -
Page 14: Battery Replacement
BATTERY REPLACEMENT Hand Mic Battery Replacement: If the batteries are low, the status screen will flash a “LO” warning. If using the rechargeable Hand Mic system, return the microphone to the charger. If the batteries will not recharge, they are worn and should be replaced. If using non-rechargeable batteries or if your rechargeable batteries need replacing, turn the Mic Handle counter clockwise to remove it and access the Battery case. -
Page 15: Issue Diagnosis
ISSUE DIAGNOSIS Issue Diagnosis • Ensure the power switch on the rear of the receiver is ON. • Check the connection of the power adapter. • Look for any signs of damage on the power cable. No Power • Ensure the power cable is connected to a power source. •... - Page 16 CHANNEL FREQUENCY TABLE Channel Number Frequency 937.420 927.120 929.920 926.920 929.720 926.720 929.520 926.520 929.320 926.320 929.120 927.920 926.120 928.920 925.920 928.720 925.720 928.520 925.520 928.320 925.320 928.120 930.720 925.120 931.220 934.220 931.420 934.420 931.620 934.620 927.320 www.barosnt.com...
-
Page 17: Full Specifications
FULL SPECIFICATIONS Receiver Specifications (BR-WR1): 925.120MHz to 937.420MHz Operating Frequency 62Channel . PLL synthesized Oscillation Mode 1 Channel System Receiving Mode FM(F3G) Modulation Method Total Harmonic Distortion Less Than 0.5% (Ref ± 12kHz Distortion, 1khz Mod) Audio Frequency response 50 to 16,000Hz (± 3dB) 100Mv / Input 10mV Audio output More Then 60dB... - Page 18 Headquarters : 907-ho, 30 Songdomirae-ro, Smart Valley, Yeonsu-gu, Incheon, S. Korea 405-840 Online : http//www.barosnt.com | Office : +82-32-575-8589 | Fax : +82-32-575-8589 | Email : seunggi@barosnt.com...
