I.
Unpack your A-ZONE

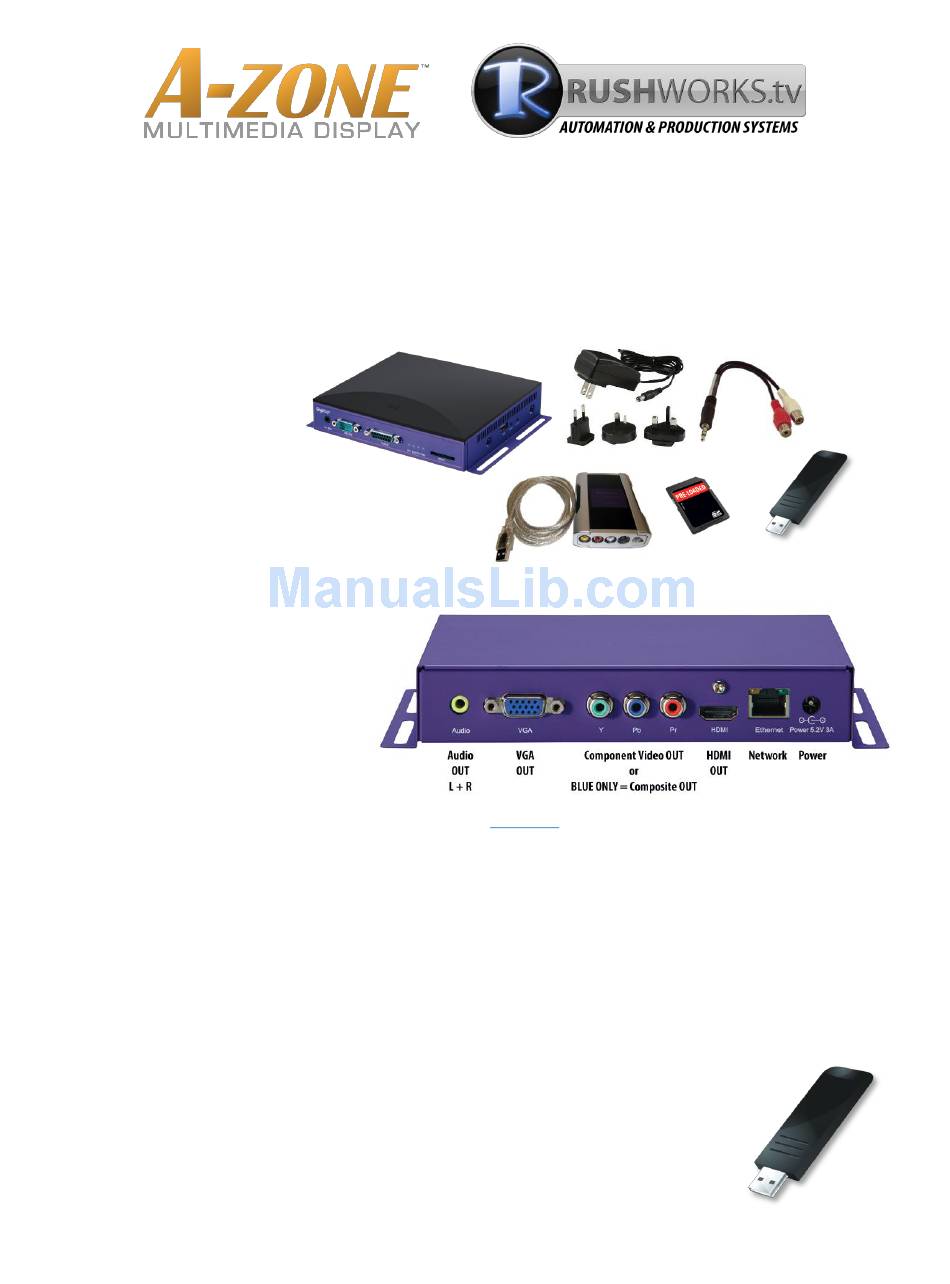

RUSHWORKS has created your layout and set up your A-ZONE unit prior to shipping. Here's what is included:
A-ZONE Hardware
AC Adapter
3.5mm to RCA adapter
Input Module
USB Cable
SDHC Card preloaded with your layout
USB Drive with software and documentation
II.
A-ZONE Setup Instructions
1. Connect Video
2. Connect Audio
3. Connect USB to Input Module*
4. Connect Source to Input Module*
5. Connect Network
6. Connect Power
*Connect only if you intend to display an external source. Please see
When power is connected your system will boot up. This will generally take between one to two minutes. We
preloaded some test content that will appear on the screen when your layout starts to run.
Note: For the best viewing experience standard definition (SD) video should be viewed on a CRT (tube) monitor, and high definition (HD) video
should be viewed on an LCD or Plasma with an HDMI input.
III.
Control PC Setup
A USB drive is included with your A-ZONE system. The contents of that drive include:
A backup of your SDHC card's setup
Installer for BrightAuthor - the program used for Layout and Playlist editing
Photoshop files used to create your layout
Documentation
USER GUIDE
Appendix A
for detailed connection instructions.
