W Box 0E-SB80 Instruction Manual

W Box 0E-SB80 Instruction Manual

Slimline powered soundbar

Advertisement

Quick Links

SLIMLINE POWERED
SOUNDBAR
0E-SB80 WITH WIRELESS 8" SUBWOOFER
0E-SB65 WITH WIRELESS 6.5" SUBWOOFER
BLUETOOTH® enabled

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0E-SB80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for W Box 0E-SB80

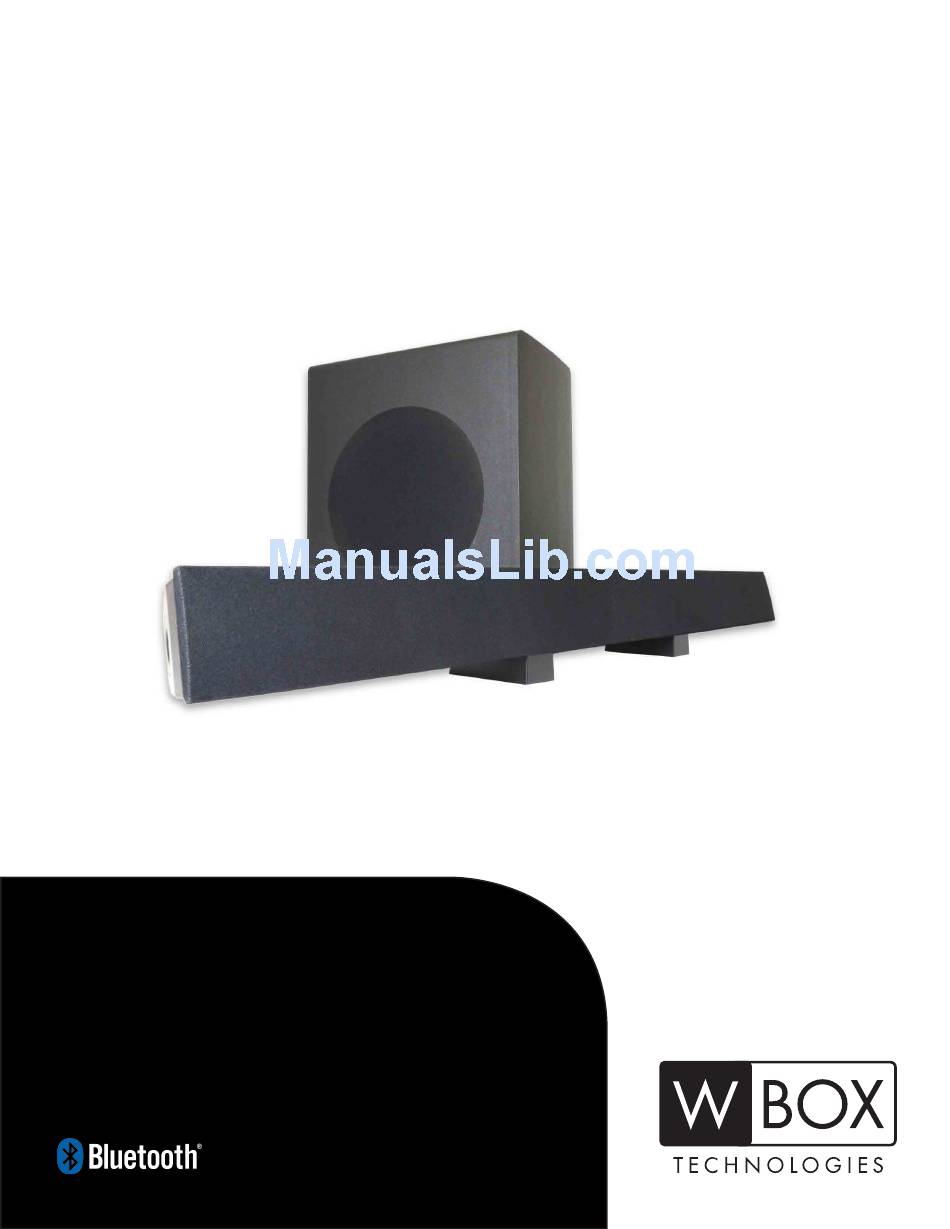

  • Page 1 SLIMLINE POWERED SOUNDBAR 0E-SB80 WITH WIRELESS 8” SUBWOOFER 0E-SB65 WITH WIRELESS 6.5” SUBWOOFER BLUETOOTH® enabled...
  • Page 2: Safety Instructions

    Safety Instructions Read these instructions completely prior to use or hook-up. Understand and heed all warnings. Follow all instructions. Do not use soundbar or subwoofer near water, rain or high moisture. Clean only with a dry cloth. Never use solvents. A microfiber cloth is recommended. Do not block any of the ventilation openings.
  • Page 3 Please read this manual thoroughly before making any connections or applying AC power. This manual applies to the 0E-SB80 and 0E-SB65 Soundbar Systems. Follow the instructions in this manual. It will allow you to obtain the maximum performance and listening pleasure from your new soundbar. Please retain this manual to use as a future reference.
  • Page 4 The 0E-SB80 and 0E-SB65 Soundbar describes the latest digital technology in amplified speaker sound bars with a powerful wireless amplified subwoofer by W BOX. The powerful subwoofer can be located anywhere in the room. This is the perfect Home Theater System with a wide sound stage. The system comes with a handheld remote to control power, switch inputs and adjust sound fields.
  • Page 5: Installation

    INSTALLATION Getting started Soundbar placement Where to locate Soundbar Either mount the soundbar on a flat horizontal surface centered in front of the TV or surface wall mount the soundbar on the wall via the key hole slots. Use proper wall anchors to support the weight of the soundbar.
  • Page 6: Making Connections

    Making connections Caution: All connections and switching should be done with the AC power switched OFF. The final connection should be the power cords. INPUTS The inputs are located on the back of the soundbar. They include 18VDC power, analog RCA, Digital Optical, Digital Coaxial and 3.5mm jack Connect red and black Coax digital...
  • Page 7 INSTALLATION Making connections (cont.) Connecting with BLUETOOTH® devices: • Press the BLUETOOTH® button on the remote control until the blue LED on the soundbar is visible. • Take the BLUETOOTH® active device (laptop, phone, tablet, etc) and turn on the BLUETOOTH® function. • Scan for devices and you will find the soundbar. • Pair or connect with the soundbar. • Play the music as desired. Connecting the soundbar with the wireless subwoofer: • In most cases this is not necessary. The subwoofer is paired with the soundbar from the factory. However, if necessary take the following steps to connect the soundbar to the subwoofer wirelessly.
  • Page 8 INSTALLATION Making connections (cont.) • Dish Network satellite receivers: Select the menu button on the remote control Select settings Select audio settings Select PCM Only Press save Press exit on the remote • Most common cable box receivers: Select the menu button on the remote control Select settings Select audio settings Select stereo output Select exit...
  • Page 9 INSTALLATION Remote control functions Discrete power on, turns the soundbar power on Mute, toggles mute on and mute off Discrete power off, turns the soundbar power off VOL +, increases the volume level of the soundbar BASS +, increases the bass BASS -, reduces the bass level of the subwoofer level of the subwoofer...
  • Page 10 Trouble Possible Cause Possible Solution Unit not plugged into AC power Check that the rear power switch on the soundbar is turned on. The LED lights on the soundbar and on the power supply for the soundbar should be visible. Audio cable not properly connected Check cable connections.
  • Page 12 0E-SB80 0E-SB65 SLIMLINE POWERED SOUNDBAR 0E-SB80 with wireless 8” subwoofer 0E-SB65 with wireless 6.5” subwoofer BLUETOOTH® enabled...

This manual is also suitable for:

0e-sb65
