Summary of Contents for Meicheng CPT-380
-

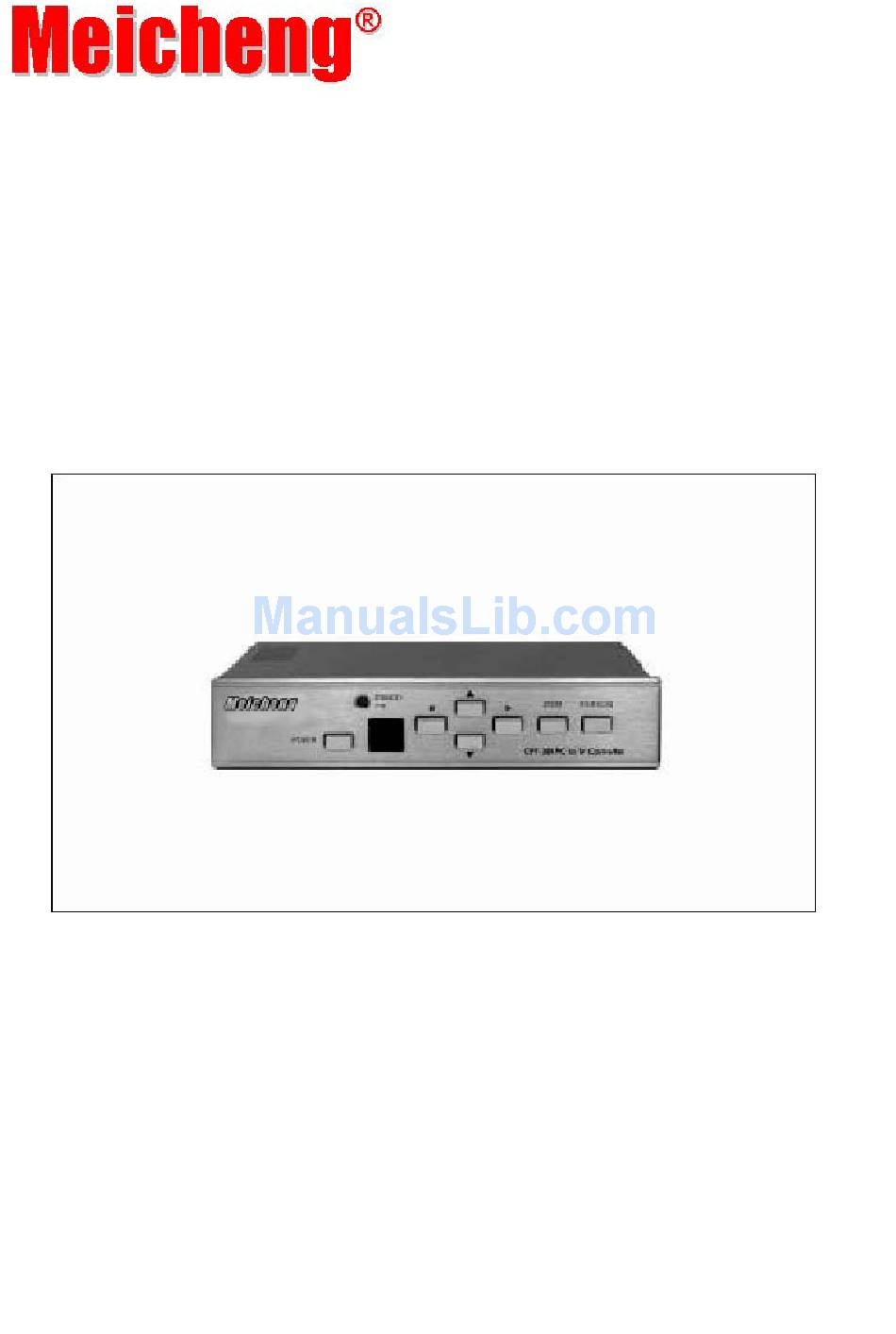

Page 1: User Manual
CPT-380 PC to Video Converter USER MANUAL www.meicheng.com.tw... - Page 3 Applications The CPT-380 PC to Video scan converter is designed to convert a variety of computer images,from 640x480 up to 1600x1200, to interlaced NTSC or PAL video. It is ideal for use in applications like video conference, home theater,business presentation,lecturing room or viewing PC image on TV.
-
Page 4: Operation Controls And Functions
ZOOM OVERSCAN POWER CPT-380 PC to TV Converter 1. Standby/On indicator: The indicator illuminates in red when it is in Standby mode, illuminates in green when it is in ON mode. 2. Power button: Push the button to turn power ON or Standby. - Page 5 Operation Controls and Functions Remote controls and Functions 1. Power: Power ON/Off. 2. Video setting adjustments for picture contrast, bright, color and sharpness. 3. V-Reset: Press the button to reset picture adjustment 2 to factory default vaule. 4. NTSC/PAL: Press the button to select NTSC or PAL as video output.
-
Page 6: Rs-232 Software Operation
Please re-start PC. After starting PC ready, execute setup. exe again. 4. Click taskbar menu (START)->(Programs)->(CPT-380PCI) to execute software. * If RS-232 or CPT-380 is not ready then software enters virtual mode. After RS-232 and CPT-380 connection being ready, start the software again and enters real mode. - Page 7 Back to main * System tray: Shrink application software to system tray click the icon and return to normal window. CPT-380 On system tray * Minimize: Shrink application software to window taskbar. * About: Display application software version and firmware version.
-
Page 8: Connection And Installation
RS-232 Software Operation * Close: Terminate application software. * Position/Pan and Size/Expand adjustments Position/Size for underscan Pan/Expand for overscan Position/Pan Size/Expand Reset Back to main panel * High brite: High brite is useful for picture browsing and movie playing. * Screen freeze: Still screen. * Video settings: Contrast, Brightness, Color, Sharpness adjustment. - Page 9 CPT-380 RS-232 Remote Control Protocol * The connection between CPT-380 and remote controller with RS-232 modem cable. * RS-232 transmission format: Baud Rate : 9600 bps Data Bit : 8 bits Parity : None Stop Bit : 1 bit...
- Page 10 * Command / Response codes of RS-232 transmission: " The command / response codes are the combination of 3 bytes. the 1st, 2nd byte are text and the 3rd byte is value." Remote Controller Command Codes to CPT-380 Code Comment...
- Page 11 CPT-380 RS-232 Remote Control Protocol CPT-380 transmits codes to Remote Controller when CPT-380 operating. Code Comment power off 'PW'+0 POWER power on 'PW'+1 'NP'+0 NTSC output PAL output 'NP'+1 'FZ'+0 freeze image off FREEZE 'FZ'+1 freeze image on underscan 'OV'+0...
- Page 12 Meicheng ® MEI CHENG AUDIO VIDEO CO., LTD Address: 5F., NO.111, SEC. 2, HUAN HO N. RD., TAIPEI, 10376 TAIWAN Tel: +886(2) 2585 3869, Fax: +886(2) 2593 6672 Website: www.meicheng.com.tw Email: mei.cheng@msa.hinet.net...
