Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product
described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage! Retain instructions for future reference.
Description
General

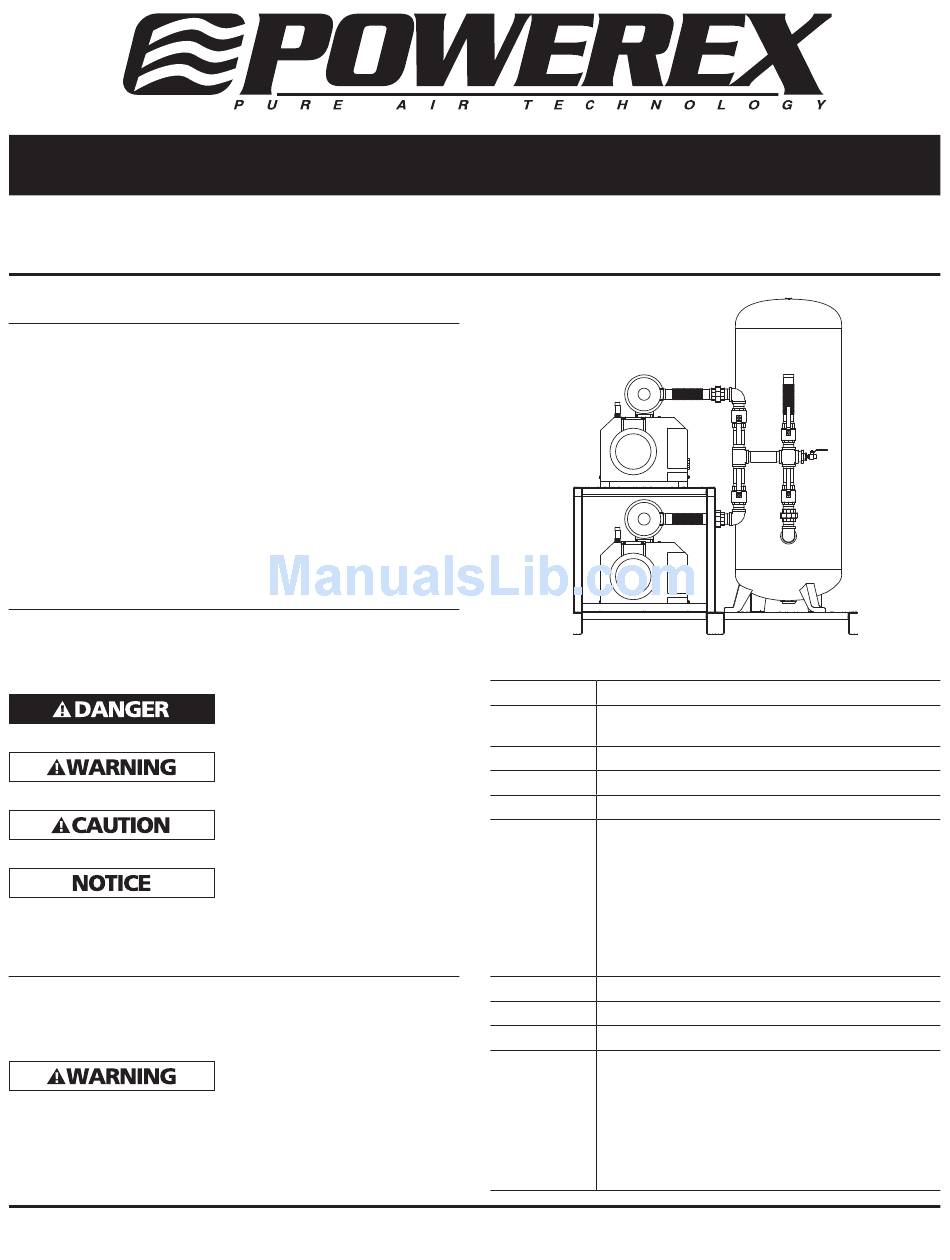

Powerex Medical Vacuum Systems are designed to provide
vacuum for hospitals and medical institutes. They are
designed and constructed to meet NFPA 99 requirements
for Level 1 piped vacuum systems. If WAGD vacuum is the
same as the medical-surgical vacuum source: Flammable
anesthetics or flammable vapors shall be diluted below the
flammable limit prior to disposal into the vacuum system
or the pumps shall be designed of materials and using
lubricants that are inert in the presence of oxygen, nitrous
oxide, and halogenated anesthetics.
Safety Guidelines
This manual contains information that is very important
to know and understand. This information is provided for
SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help
recognize this information, observe the following symbols.
not avoided, WILL result in death or serious injury.
not avoided, COULD result in death or serious injury.
not avoided, MAY result in minor or moderate injury.
followed, may cause damage to equipment.
Unpacking
Immediately upon receipt of the vacuum system, inspect
for any damage which may have occurred during shipment.
Repair or replace damaged items before use. The name-plate
should be checked to verify the correct model and voltage.
use. Damage may result in unsafe conditions and cause injury
or property damage.
Powerex • 150 Production Drive • Harrison, OH 45030 • USA
1-888-769-7979 • www.powerexinc.com
Danger indicates an imminently
hazardous situation which, if
Warning indicates a potentially
hazardous situation which, if
Caution indicates a potentially
hazardous situation which, if
Notice indicates important
information, that if not
Do not operate unit if damaged
during shipping, handling or
Claw Medical Vacuum Systems
Specifications
Product
CVTD, CVPD, CVPT, CVPQ Series
Operating
208V, 230V, 460V
Voltages
Control Panel
UL508A and NFPA compliant
Motor
TEFC Electric Motor
Tank
ASME Rated for 200 psi MAWP
Pump
Capable of operating at:
28.4" Hg (sea level) continuous duty for 2 HP
28.4" Hg (sea level) continuous duty for 3 HP
28.4" Hg (sea level) continuous duty for 5 HP
28.4" Hg (sea level) continuous duty for 6.4 HP
27.0" Hg (sea level) continuous duty for 7 HP
27.0" Hg (sea level) continuous duty for 9.1 HP
25.5" Hg (sea level) continuous duty for 10.2 HP
23.4" Hg (sea level) continuous duty for 15 HP
Drive
Direct
Tank Sizes
80 Gallon to 240 Gallon
Performance
See Cut Sheet
Outlet Air
2 HP - 1 inch
Connections
3 HP - 1 inch
5 HP - 1 inch
6.4 HP - 1 inch
7 HP - 1 inch
9.1 HP - 1 inch
10.2 HP - 1-1/2 inch
15 HP - 3 inch
IN561501AV 5/12
