PDE Technology D121-WMCD User Manual

Cd/dvd disc duplicator

Advertisement

Quick Links

D121-WMCD
C D / D V D D i s c D u p l i c a t o r
U s e r s G u i d e
( R e v 2 . 5 )

Advertisement

loading
Need help?

Need help?

Do you have a question about the D121-WMCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PDE Technology D121-WMCD

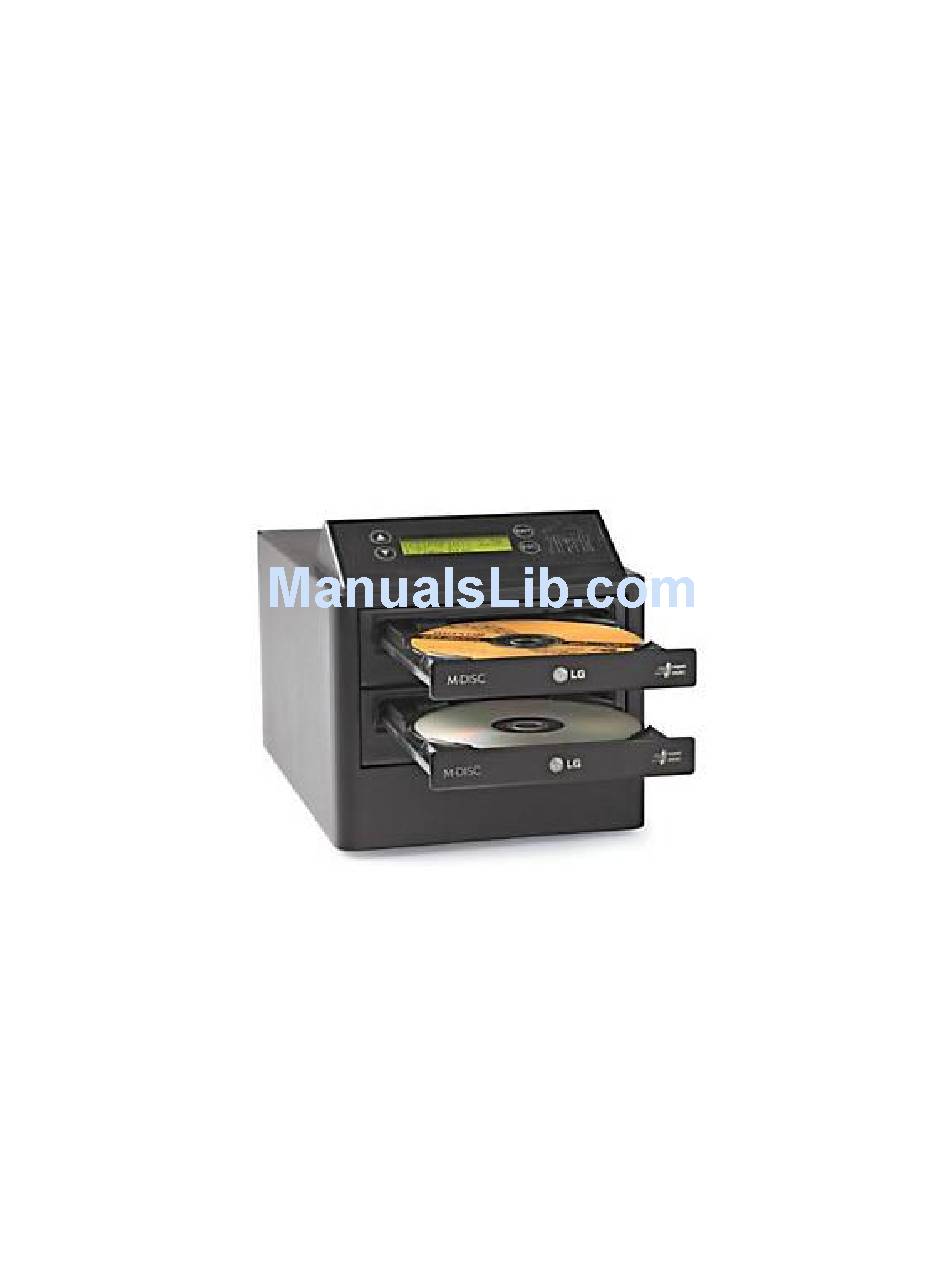

  • Page 1 D121-WMCD C D / D V D D i s c D u p l i c a t o r U s e r s G u i d e ( R e v 2 . 5 )
  • Page 2: Table Of Contents

    Table of Contents Product Contents Product Features & Specifications Safety Information & Set Up Control Panel System Overview Menu Overview Make a Custom CD Guide Make a Copy Guide Troubleshooting Guide and FAQ’s...
  • Page 3 Quick Start Guide QUICK START GUIDE (To Copy a Disc) Step 1: Plug in power cord Step 2: Turn on power (I=ON O=OFF) Step 3: Eject top tray and insert Master Disc. Close top tray. Step 4: Eject lower drive and insert Blank Disc. Close lower tray. Product Introduction That’s all!! Your duplicator will do the rest and eject the copied disc in a few minutes.
  • Page 4 "Troubleshooting" section or contact Technical Support for assistance. We strongly suggest you locate your D121-WMCD in a dust free environment. Dirty discs may cause duplication rejects or even total failure. Do not place unnecessary items on the unit.
  • Page 5: Safety Information & Set Up

    Safety Information and Set up Please be aware of the following installation and operation precautions. Read these instructions - All the safety and operating Do not defeat the safety purpose of the grounding-type instructions should be read before use of this system. plug.
  • Page 6: Control Panel

    System Overview System Overview LCD Control Panel Reader Drive (for source disc) Writer Drive (for blank disc) Control Panel Overview   ENT ESC There are 4 control buttons:  UP Button: move selection up or left in the system menu to select target function ...
  • Page 7: Menu Overview

    Menu Overview 1. COPY DISC: Copy CD or DVD disc. 2. TEST COPY DISC: Simulate copying process but does not write the disc. For testing purposes. 3. COPY TRACK: Select and combine audio tracks from various CDs into one single audio CD 4.
  • Page 8: Make A Custom Cd Guide

    Make a Custom CD Once you have turned on the power, the CD maker will run through a system check, displayed on the LCD screen. System Check……… Once the system check procedure is completed, the “Copy Disc” Mode will be displayed on the LCD screen.
  • Page 9 Now open the bottom drive and place a blank CD into the drive. Close the drive after you load the blank disc. You’re ready to start copying songs so press the “ENT’ Button.
  • Page 10 Make sure you have the CD case that has the CD Songs List on it. The LCD will display the number of tracks/songs on the CD. “1” is the first song on the CD “2” is the second song and so on……. Using the scroll arrows, move to the song you would like to add on to your custom CD.
  • Page 11 Once you press “ENT” the CD Maker will begin copying the songs you selected on to the blank disc. Once it finishes copying these songs, it will indicate how many songs it copied, the amount of disc space it used and the amount of free disc space still available.
  • Page 12 You’re ready to start copying songs again, so press the “ENT’ Button. Follow the same steps you went through above to select songs from the second CD. You can add up to 80 minutes of music. You can select as few as one song from any CD.
  • Page 13 Press the “ESC” button which will take you to “3. Copy Track”. Next, press the down button once to arrive at “4. Close Disc”. Then press “ENT” which will start the finalizing process. The CD Maker will automatically start finalizing your new custom CD. When the disc is finalized it will be automatically eject and tell you it is “Finished”...
  • Page 14 Making a Copy Guide Step 1: Plug in power cord Step 2: Turn on power switch (I = on o = Off) Step 3: Eject top tray and insert Source Disc. Close top tray. Eject/Close Button Step 4: Eject lower drive and insert Blank Disc. Close lower tray. Eject/Close Button Product Introduction That’s all!! Your duplicator will do the rest and eject the...
  • Page 15 Making a Copy with AutoStart. This operation will guide you to make a copy from the Master Source Disc to a Blank CD/DVD disc. A. Power on the systems by pressing the button on the back of the unit. You will then see the system initializing and forming a self test on the front panel LED.
  • Page 16: Troubleshooting Guide And Faq's

    Troubleshooting Guide and FAQ’s There are no end-user serviceable components that can be replaced in the CD/DVD Duplicator. Please contact your dealer for warranty repairs and service. No LCD display. Please check if the power cord is connected properly and the push button is pushed in all the way.
  • Page 17 FAQ’s What if the Duplicator will not power on? Make sure the unit is plugged into a power outlet and the on/off switch is pushed in all the way. What if the duplicator is having trouble making a copy, what can be done? The most common problem with discs playing but not duplicating can be attributed to overall quality.
