Summary of Contents for ARTcessories Split Com Pro

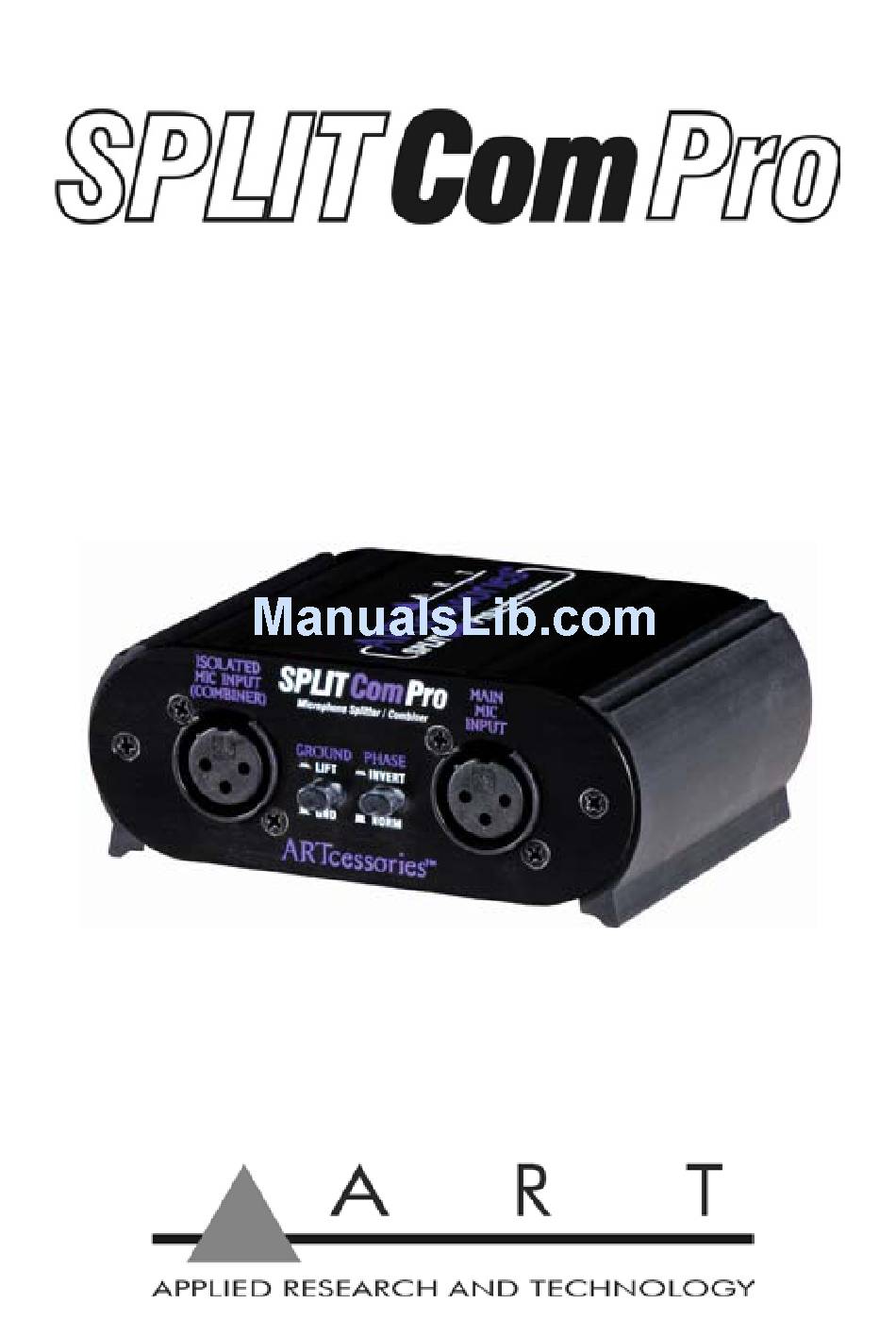

- Page 1 Microphone Splitter / Combiner Artcessories User's Manual...
- Page 3 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to important operating alerts you to the presence of and maintenance instructions in uninsulated dangerous voltage the accompanying literature. inside enclosure-voltage that may be Please read the manual.
- Page 4 Installation: Install the unit in accordance with the instructions printed in the user guide.

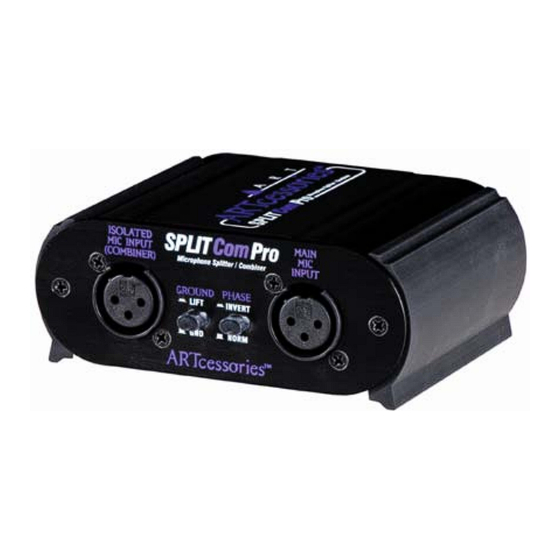

- Page 5 INTRODUCTION: Thank you for purchasing Applied Research and Technology’s SPLITComPRO. ARTcessories SPLITComPro is an ideal audio utility to use in an application where you need to split a low impedance microphone signal to feed two separate mixers, or where it’s...
- Page 6 APPLICATIONS: AS A SPLITTER: The SPLITComPro provides one direct-coupled output and one isolated output from a single microphone. Applications include sending the direct output to the main or FOH mixer, and the second isolated output to a monitor or recording mixer. The MAIN MIC OUTPUT passes phantom power from the main mixer to the MAIN MIC INPUT for use with condenser microphones.
- Page 7 due to ground loops between connected AC-powered units.
-
Page 9: Specifications
SPECIFICATIONS: Frequency Response : 20Hz to 150kHz +/- 0.2 @ 0dBu THD: Less than 0.0007% from 20Hz to 20kHz at 0dBu input Phase Shift: Less than 10° at 20 to 150kHz (reference 1kHz) Typical Driving Source Dist.: 150 Ohms Typical Output load Impedance: 1k Ohms Dimensions HxWxD(in): 1.85 x 4.6 x 3.5 Dimensions HxWxD(mm):... -
Page 10: Warranty Information
WARRANTY INFORMATION: Limited Warranty (USA only) Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (ART) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 11 or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights and you may have other rights, which vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor...
- Page 12 SERVICE: The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure that the unit has power supplied, that all cables are connected correctly, and that the cables themselves are in working condition.
- Page 14 www.artproaudio.com E-mail: support@artproaudio.com © 2014 Applied Research & Technology SplitComPro...
- Page 15 SCP-5004-101 V1.1...
