ProVisual BA408POE User Manual

8 PORT PoE ETHERNET SWITCH
Model: BA408POE
This switch is a kind of unmanaged switch with PoE function. It have one uplink ethernet port and one optical port 1000Mbps;
8 100Mbps PoE ethernet ports support af/at standard. This product is designed for HD IP Camera, enable these devices to
have power supply without connecting to the power socket. It makes the connection of those devices far away from the power
more flexible and simplify wiring. This product integrate with optical port to realize perfect integration between fiber optical
transceiver and ethernet switch, solve the problem of long distance transmission. It can be used in surveillance, network
engineering and so on.

Application

PoE Network IP camera
PoE Dome camera
PoE PTZ camera
PoE Network Dome Camera

Feature

Provide 8 10/100Mbps PoE ethernet ports, support power supply for the network device meet IEEE802.3 af/at standard,
Don't worry about the damage of devices which is not PoE.
PoE network port support IEEE802.3 af/at standard, it can provide 30W consumption and power supply to the big
consumption infrared camera.
Provide 2 uplink ports, 1000Mbps optical port and ethernet port; Uplink ethernet port can connect with NVR and other
high bandwidth device conveniently; Uplink optical port reserve SFP port for users to select different performance SFP
optical fiber module, conveniently solving the problem of long distance transmission;
The switch and every PoE ethernet ports have reset button for users to solve IP camera crash and others problem, no
need to pullout and plug network cables, which is convenient for system maintenance; The reset button is on the bevel,
convenient for users to operate from multi-angle;
The transmission distance of uplink ethernet port can up to 150m, break through the limit of 100 m network cable;
Up to 1M Package data cache, making more smooth of forwarding high-capacity data;
Up to 8K for the MAC address, easily for system upgrade;
Support IEEE802.3X full duplex flow control; support (Auto MDI/MDIX) function;
Redundance power design, power heat backup or raise power consumption;
1
Notice
1) Transmission distance is related to the connecting cable. We suggest to use standard Cat5e/6
network cable to get the 150 m transmission distance.

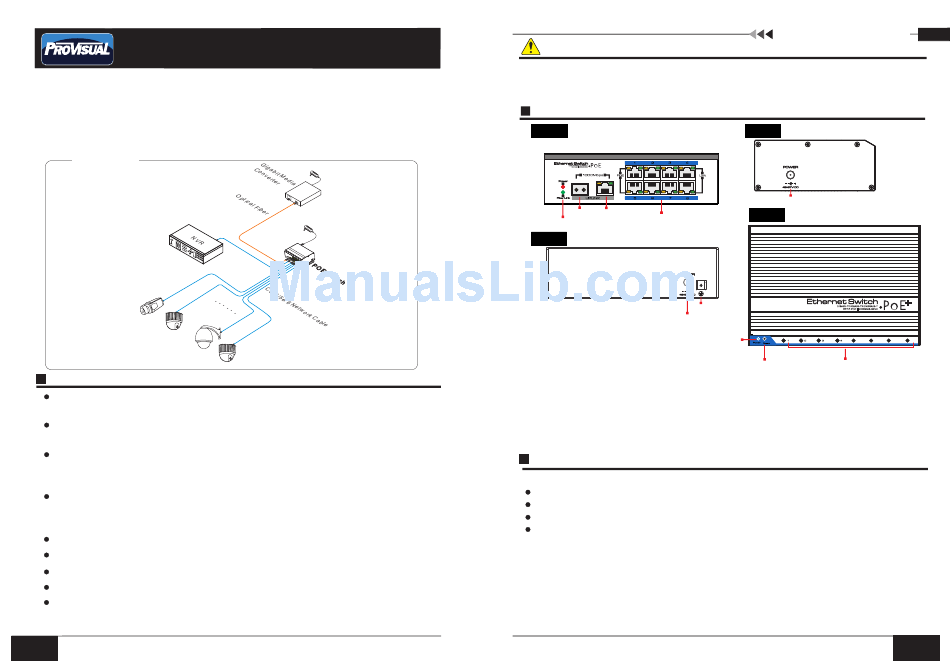

Board diagram
Front
Uplink network port
SFP Optical port
PoE Network port
Power/Uplink optical port indicator
Back
Grounding terminal
Power input

Description:

1) Front board with PoE ethernet port, the yellow light on the RJ 45 socket left side is to indicate the PoE status, the green
light on the right side is to indicate network status; the yellow light and green light on the Uplink network RJ 45 socket is
to indicate network working status; the LED on the SFP optical port left side is to indicate power and optical port
working status;
2) The left board and back board have a DC48V~57V power input port respectively; default with a 120W power adapter ,
the PoE output consumption of every port is 15W on the average ,maximum output consumption is 25W; if need each

Installation steps

Please check the following items before installation. If any missing, please contact the dealer.
POE ethernet switch
Power adapter
MIT hangers
Din rail hanger
Please follow the following installation steps
1) Please turn off the signal source and the device's power, installation with power on may damage the device;
2) Use 8 network cables to connect 8 IP cameras with POE switch's1~8PoE port;
3) Use another network cable or (optical fiber) to connect PoE ethernet switch's UPLINK port with NVR or computer;
4) Connect PoE switch with power adapter;
5) Check if the installation is correct and device is good, make sure all the connection is reliable and power up the system;
PoE Ethernet Switch
Left
Power input
Up
Power indicator
Ensemble reset button PoE port reset button
1pc
1pc
2 pcs
1 pc
