  • Page 1 © 2010 All rights reserved microKEYER microHAM fax. +421 2 4594 5100 e-mail : support@microham.com homepage : www.microham.com Version 7.5 5 December, 2010...

  • Page 2: Table Of Contents

    DVK Tab ........................37 Keyboard Tab ......................38 7 SETTING AUDIO LEVELS ....................... 39 Configuring microKEYER for your radio ................... 39 Setting audio levels in Windows 2000 and Windows XP ..........40 Setting audio levels in Vista and Windows 7 ..............41 8 SYSTEM CONSIDERATIONS ......................

  • Page 3: Features And Functions

    - optical isolation of ALL digital signals -> Radio Control, CW, 2xPTT, FSK, PA from USB port Compatible with all MS Windows based logging or control software - the special microHAM "USB Device Router" program creates virtual COM ports which allow full functionality with your favorite logging program...

  • Page 4: Important Warnings

    © 2010 All rights reserved 2 - IMPORTANT WARNINGS If you power micro KEYER from an external power supply, ALWAYS check the polarity of the 13.8 V power supply. If you use micro KEYER with more than one transceiver, ALWAYS be sure the proper microphone is connected to the RJ45 jack BEFORE connecting the DB37 RADIO cable.

  • Page 5: Introduction

    PTT. With an external PS/2 style keyboard MK also provides keyboard generated CW and RTTY. If a Windows PC running the "microHAM USB Device Router" program is connected, MK also functions as a computer interface. It transfers all digital and analog signals generated by computer applications between the computer and transceiver.

  • Page 6: Panel Description

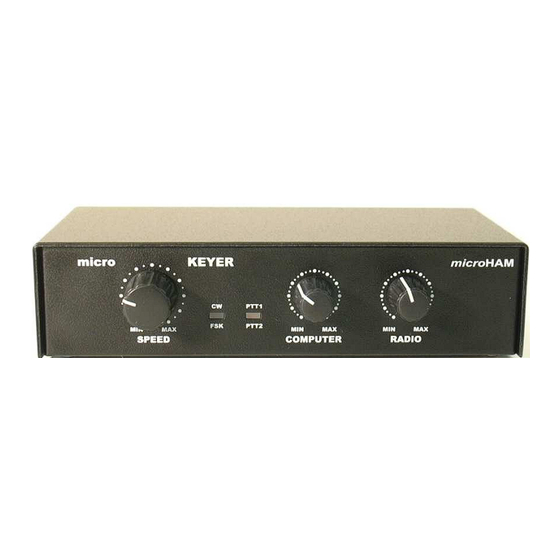

    © 2010 All rights reserved 4 - PANEL DESCRIPTION Front Panel (1) – SPEED: CW Keyer Speed. Range (MIN, MAX) is defined by software (2) - CW/FSK LED RED color indicates the CW output is active GREEN color indicates the FSK output is active...

  • Page 7: Rear Panel

    © 2010 All rights reserved Rear Panel (1) – RADIO: DB37F connector for radio connection – a detailed description is in Appendix A (2) – RE/SS: PA output mode switch for PA output. RE - Relay contact SS - Transistor collector...
  • Page 8 © 2010 All rights reserved (6) - MIC EXT: 3.5mm (1/8") connector for external microphone input. TIP - Microphone input RING - NC SHELL - Microphone Ground NOTE: When using the 3.5mm connector, the RJ45 microphone input is muted, but all controls on the microphone connected to RJ45 (buttons, PTT) will operate normally.

  • Page 9: Installation

    3) Configure the driver and/or application software for your specific system 4) set the audio levels Connecting microKEYER 1. Turn off the radio and make microKEYER's rear panel accessible. 2. Plug the DB37M on the radio cable set into the RADIO connector on the rear panel of the microKEYER.

  • Page 10: Windows (Windows 2000, Xp, Vista, Windows 7) Installation

    6. Follow the instructions for your software to configure the application to work with micro KEYER. NOTE: To access all the capabilities of microKEYER, your OS-X software must be written to use the microHAM Keyer Protocol or µH Router by Kok Chen, W7AY. MICROSOFT WINDOWS (Windows 2000, XP, Vista, & Windows 7) INSTALLATION Installing microHAM USB Device Router 1.

  • Page 11: Configuring Microham Usb Device Router

    To configure and use microKEYER with Windows compatible application programs it is necessary to have installed the USB driver, started the Router, and applied power to microKEYER (turn on the radio). Router must then be configured to match the requirements of the application (logger or digital mode) software.

  • Page 12: Creating And Using Virtual Serial Ports

    © 2010 All rights reserved Creating and Using Virtual Serial Ports microHAM Router provides a set of virtual serial ports which allow Windows applications (loggers and digital software) to work with microKEYER just as they would work with "real" (hardware) serial ports.

  • Page 13: Microham Device Router

    Audio Mixer tab and will actively control the audio devices Automatically assign microHAM audio devices: when checked, Router will automatically assign proper ● audio device of the same name if multiple microHAM interfaces of the same kind are connected to the one computer. (Not used with microKEYER) Options | DVK: Voice message time limit: maximum time for each voice message up to 120 seconds.

  • Page 14: Menu: Preset

    Each preset contains the settings for all devices connected to, and controlled by, Router. For example, if Router controls a microKEYER, a CW Keyer and a USB Interface, each preset remembers the settings for all devices including the assignment of COM ports and the contents of all sub-tabs except the FSK/CW Messages and DVK tabs.

  • Page 15: Menu: Device

    When clicked, Router will open a standard File dialog – the default location is: C:\Documents and Settings\All Users\Application Data\microHAM\cfg - and the desired template can be chosen. When Router loads a template, it looks for an html or txt file with the same name as the template in the...

  • Page 16: Menu: Virtual Port

    TIP: When you upgrade Router, the upgrade will include the latest firmware file. The new firmware will be automatically uploaded to microKEYER when the new version of Router connects for the first time, you have just to allow the upgrade when prompted.

  • Page 17: Menu: Help

    There are seven (7) tabs for configuring microKEYER. Each tab controls part of microKEYER's functions. Except for the CW/FSK Messages tab, any change is applied immediately to microKEYER. Changes in the Messages are only applied in response to the Store or Store All buttons.

  • Page 18: Ports Tab

    © 2010 All rights reserved PORTS TAB The virtual ports must be associated with a specific function or device channel (e.g., radio control, CW, PTT, etc.). These assignments should match that of the application. Ports should be assigned first in Router then in the application (e.g., logging or digital mode program).

  • Page 19: Nd Cat

    © 2010 All rights reserved CAT PORT & 2 CAT PORT The CAT channel is used by the application software to control transceiver frequency, mode, T/R switching and many other parameters. The application communicates with the radio using a serial protocol. Although most modern radios implement some form of serial control, nearly every radio implementation is different.
  • Page 20 Tracking: This function allows an external receiver to track the transceiver attached to the microKEYER . NOTE: The transceiver attached to microKEYER must be properly interfaced and CAT must be functioning properly. Tracking does not work for “no radio” choices.
  • Page 21 Icom), split mode must be initiated and ended by only one application and manual split control (from the front panel of the radio) should not be used. NOTE: Despite extensive testing using various combinations of applications for the CAT and 2 CAT ports, microHAM cannot guarantee proper operation with every potential combination of applications.

  • Page 22: Fsk & 2

    "right channel" for its audio source and should be configured to use the 2 FSK port for its FSK output. NOTE: microKEYER supports only one audio channel. There is no connection between the audio output from the second receiver and the sound card. To decode audio from the second receiver, it is necessary to build a small audio isolation network (transformer) and use custom audio connections.

  • Page 23: Ports: Cat & 2 Ports: Fsk & 2 Ports: Cw

    © 2010 All rights reserved TIP: If you see anything other than 45.5 baud (e.g., 4800 or 9600), the application is NOT configured correctly for FSK RTTY operation. PTT: The virtual port used for FSK can also support PTT (required by MMTTY). When you use MMTTY, select the PTT box and RTS will used for PTT.

  • Page 24: Ptt & 2

    © 2010 All rights reserved PTT & 2 PTT PORTS The PTT channels are used to control transmit/receive switching of the transceiver and power amplifier. An internal sequencer assures 100% protection against hot switching of the PA when the PTT channel is used.

  • Page 25: Ports: Winkey

    © 2010 All rights reserved WinKey PORT WinKey is a unique external CW processor developed by Steve Elliot, K1EL. This CW processor supports paddle input like any other electronic keyer, offers many configuration options, and in addition converts ASCII data from the computer to Morse characters. This unique property assures perfectly timed CW output from the computer regardless of OS load.

  • Page 26: Audio Switching Tab

    © 2010 All rights reserved AUDIO SWITCHING TAB microKEYER allows customizing the audio configuration to meet the needs of a specific logging program or operating style (VOX, foot switch, computer generated transmit/receive switching, etc.) for each operating mode. Router recognizes four operating modes for the radio: CW, VOICE, DIGITAL and FSK. There are separate configurations for routing audio among the microphone, sound card and transceiver inputs for CW, Voice and FSK/DIGITAL.
  • Page 27 © 2010 All rights reserved 2. The transceiver is switched to transmit by PTT on virtual serial port or by WinKey generated PTT. This setting is displayed in the MIDDLE picture and indicated by the second letter in settings scheme (ACA).
  • Page 28 © 2010 All rights reserved Audio Switching Router generally selects the proper audio configuration based on the mode, and optionally frequency, reported by the transceiver in response to polling by the application (logger) and/or Router. If Router is not able to read the operating mode from your radio (radio does not have computer control port or does not report usable mode information), you can select one of four fixed “no radio”...
  • Page 29 Sound Card: is only visible with Windows Vista. It displays the Mixer ID, Wave In ID and Wave Out ID for each input/output. Side Tone: microKEYER includes an internal piezeo speaker for sidetone. The sidetone frequency is selectable from 338, 450, 675 and 1350 Hz. Side tone can be disabled by selecting "none."...

  • Page 30: Audio Mixer Tab

    If Stereo is not selected, the Audio Mixer tab will display a single set of controls and will mute the right channel. microKEYER only uses the left channel but in some cases you may want to control the right channel for other purposes.
  • Page 31 MSTER only if you cannot balance the levels between Digital/DVK playback and the live mic. Do not set the LINE slider lower than the MASTER. Test Signal: causes microKEYER to output a 1500 Hz audio tone for setting the transmit output level for AFSK digital modes.
  • Page 32 Note, the display is active only if a sample rate is selected. microKEYER shows one or two sliders for the sound card line in – depending on the sound card. Keep the sliders at about 80% and use the "Computer"...

  • Page 33: Ptt Tab

    PTT1 or pin 6 of the REMOTE jack. PTT OUTPUTS microKEYER has three PTT outputs: PTT1, PTT2, and PAPTT. PTT1 and PTT2 are brought out to the DB37 Radio connector. PAPTT is an RCA jack for connecting to external devices.
  • Page 34 © 2010 All rights reserved microKEYER can select the PTT output based on the mode, and optionally frequency, reported by the transceiver in response to polling by the application (logger) and/or Router. If Router is not able to read the operating mode from your radio (radio does not have computer control port or does not report usable mode information), you can select one of four fixed “no radio”...

  • Page 35: Cw/Winkey Tab

    © 2010 All rights reserved CW/WinKey Tab This tab provides the configuration for the internal, WinKey based, CW keyer. A complete WinKey manual can be downloaded from: HTTP://k1el.tripod.com/docfiles.html. Thanks to Steve Elliott, K1EL for this great product. WinKey can be controlled by a logging program or operate in stand alone mode controlled by Router.

  • Page 36: Cw/Fsk Messages Tab

    Test: plays a message without storing it (CW Only) Store: saves one message to microKEYER memory Store All: saves all messages to microKEYER memory Load from File: loads all messages from file...

  • Page 37: Dvk Tab

    © 2010 All rights reserved DVK TAB microKEYER allows recording and playing nine voice messages per bank and an unlimited number of banks (limited only by the capacity of the computer hard disk). Banks can be managed with Rename, Add and Remove buttons.

  • Page 38: Keyboard Tab

    © 2010 All rights reserved KEYBOARD TAB The Keyboard Tab controls the operation of a PS/2 keyboard or numeric keypad connected to the Remote jack. General: QWERTZ layout – configures the keyboard for a QWERTZ layout. FSK from keyboard: Diddle LETTERS: send the LETTERS character whenever there is nothing in the transmit buffer.

  • Page 39: Setting Audio Levels

    (Icom transceivers), you must use an electret mic with microKEYER. If your transceiver uses a dynamic mic (all other manufacturers), you must use a dynamic mic with microKEYER. DO NOT mix microphones or use a microphone with switchable elements where one element is electret and one is dynamic.

  • Page 40: Setting Audio Levels In Windows 2000 And Windows Xp

    7. Return to the Audio Switching tab and set VOICE to CCA. 8. Switch your radio to USB or LSB and make sure any compression is turned off. Click the "Test Signal" button and adjust the microphone trimmer (right side of microKEYER) for normal transmitter output (drive level).

  • Page 41: Setting Audio Levels In Vista And Windows 7

    Gain) until the ALC shows five (5) bars. 11. Switch your radio to USB or LSB and make sure any compression is turned off. Click the "Test Signal" button and adjust the microphone trimmer (right side of microKEYER) for normal transmitter output (drive level).

  • Page 42: System Considerations

    DVK levels are stored with the message banks. 8 - SYSTEM CONSIDERATIONS microKEYER can be used with a wide variety of software. The capabilities of those packages will have large influence on the level of computing power needed to utilize microKEYER.

  • Page 43: External Keyboard/Keypad

    NOTE: The keyboard/keypad must be PS/2. A USB device and PS/2 adapter will not work. microKEYER includes the ability to generate FSK or CW signals and play or record CW, VOICE or FSK messages using a PS/2 keyboard or numeric keypad connected to the REMOTE jack. A numeric key pad is sufficient to record and play CW and DVK messages, control CW speed (WPM) or play a serial number message.
  • Page 44 © 2010 All rights reserved Keyboard numeric keypad Function CW FSK Voice NUM LOCK start/stop recording of message (recording is indicated by NUM LED) NUM * Tune (can be canceled by keys NUM 0 or ESC, or by the paddle)

  • Page 45: Hardware Specifications

    © 2010 All rights reserved 10 - Hardware Specifications USB: USB 2.0 Full speed , USB 1.1 compatible Power consumption: USB – less than 100mA; Transceiver – less than 200mA at 13.8V (max. 16V) Radio Port: RXD, TXD, (RTS, CTS) – 57,600 baud max.

  • Page 46: Package Contents

    SLOVAKIA 12 - WARRANTY microHAM warrants this product for three (3) years. The product must not be modified in any way or the warranty is voided. Cables are warranted against defects in materials and workmanship for a period of 60 days.

  • Page 47: Declaration Of Conformity

    © 2010 All rights reserved DECLARATION OF CONFORMITY Federal Communications Commission Statement (USA) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 48: Appendix A - Db37 Radio Connector

    © 2010 All rights reserved APPENDIX A – DB37 RADIO CONNECTOR Pin # Label Description Power +13.5V 12 - 16V DC input RS232 RTS RS232 radio port RTS output RS232 CTS RS232 radio port CTS input IF-FIF iface matrix - used for configuring desired levels for radio control interface...
  • Page 49 © 2010 All rights reserved APPENDIX B – APPLE OS 10 INSTALLATION 1) To Install microKEYER in Apple OS 10 prepare the microKEYER as for your radio as shown on Page 9. 2) The proper USB drivers have been shipped with OS-X since version 10.5...

  • Page 50: Appendix B - Rfi Considerations

    It is absolutely important to prevent ground currents from flowing to the common ground point by way of the signal cable. If you use a microHAM "keyer," a good test is to remove the DB15/DB37 connector and USB cable from the keyer and measure the resistance from the shell of the DB15/DB37 to the shell of the USB cable.

  • Page 51: Appendix C - Tracking

    Mode linking and bidirectional frequency tracking are not currently supported. microHAM will be expanding features and adding support for additional radios in the future. The initial version has been tested with Perseus SDR only. PERSEUS...
