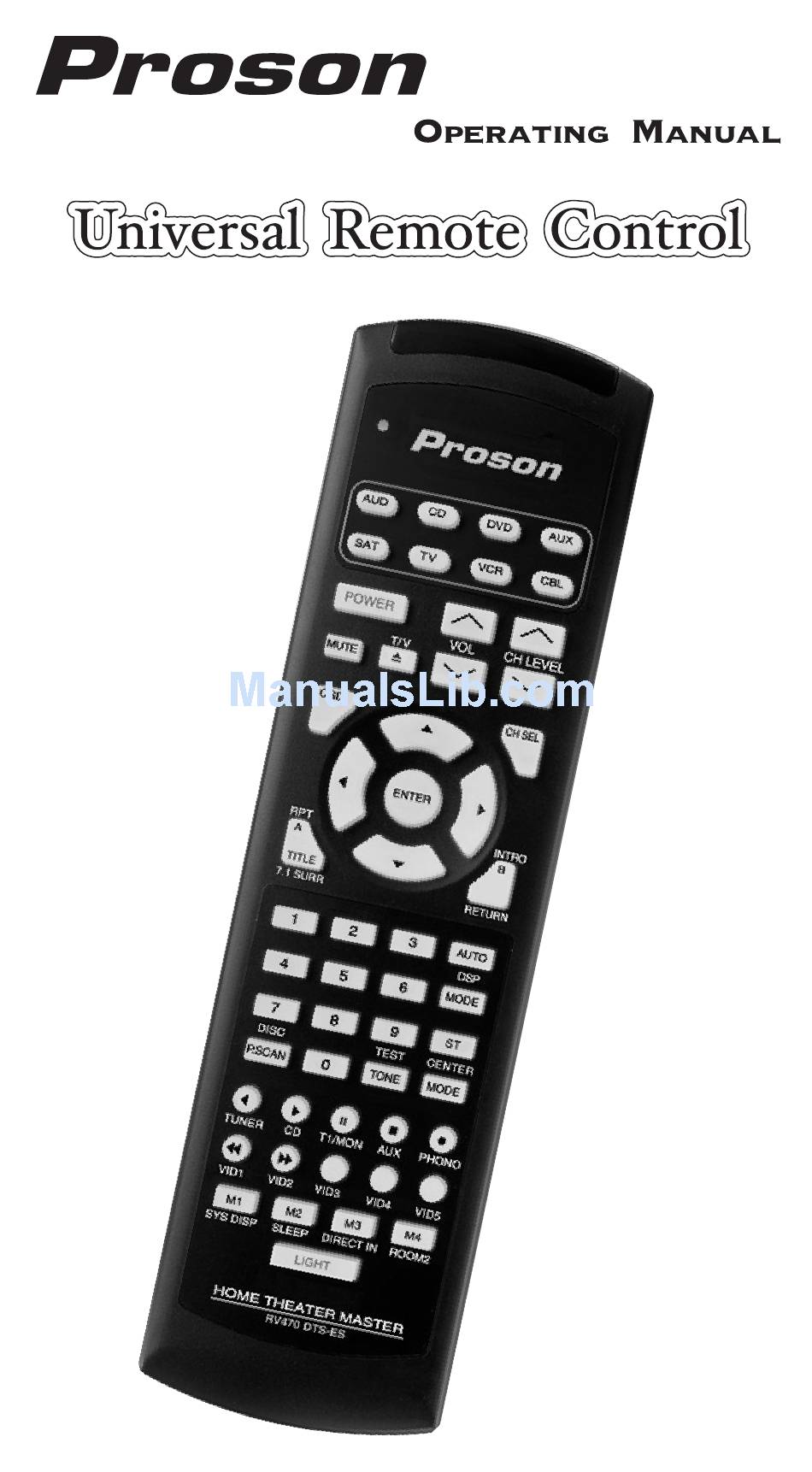

Proson RV479 DTS-ES Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RV479 DTS-ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Proson RV479 DTS-ES

  • Page 2: Table Of Contents

    Table of Contents Page Introduction Battery Installation A. To Open and Close Battery Compartment Cover B. Battery Exchange Using Your Remote A. Function Table Reference Function Tables B. Preprogrammed Set Up Three Digit Code Method Auto Search Method Recalling the Set Up Code Number C.

  • Page 3: Introduction

    Introduction RV4700 DTS-ES remote control is preprogrammed to operate many Audio and Video components so that you can set it up by simply punching in a three digit code number that matches your equipment, by teaching up to 500 commands into RV4700 DTS-ES remote control from your original remote or a combination of both method.

  • Page 4: Battery Installation

    Battery Installation This remote control uses four AAA 1.5 V batteries. Please be sure to match the batteries with the (+) and (–) markings inside the battery compartment during installation. A : To Open and Close t he Batter y Compartment Cover To open the battery cover, push the latch forward toward the top of the remote control, and lift the latch up.

  • Page 5: Using Your Remote

    Using Your Remote A : Function Table Reference POWER CH LEVEL CH LEVEL T/ V MUTE CH SEL ENTER ENTER INTRO INTRO TITLE 7.1 SURR RETURN AUTO MODE DISC DISC TEST TEST CENTER CENTER P.SCAN MODE TONE TUNER T1/MON PHONO VID1 VID2 VID3...
  • Page 6 Using Your Remote Function Table Button Name 001 Audio Functions SAT Functions TV Functions Device Name SAT (ON) TV (ON) Power POWER On/Off (OFF) On/Off (OFF) Mute Mute Mute Mute TV/SAT TV/Video VOL Up Vol Up Vol Up Vol Up VOL Down Vol Down Vol Down...

  • Page 7: Function Tables

    Using Your Remote Function Table Button Name VCR Functions Device Name VCR (ON) Power On/Off (OFF) Mute Mute VCR/TV VOL Up Vol Up VOL Down Vol Down CH Up Ch Up CH Down Ch Down Pause Down Stop Right Fast Forward Left Rewind Enter...
  • Page 8 Table of Contents Function Table Button Name 001 CD Functions 001 DVD Functions 001 AUX Functions Device Name CD (ON) CD (ON) CD (ON) Power Power Power Power Mute Mute Zoom Mute Open/Close VOL Up Vol Up Vol Up VOL Down Vol Down Vol Down CH Up...

  • Page 9: Preprogrammed Set Up

    Using Your Remote B : Preprogrammed Set Up The RV4700 DTS-ES universal remote control can operate up to eight separate audio and video devices (equipment). To program the remote control for your devices, by using the preprogrammed method please use the following steps: Three Digit Code Method Turn on the device you would like the remote control to operate, either manually or with your original remote...
  • Page 10 Using Your Remote Note: Red indicator is on for 20 seconds to indicate that the remote control is ready to be programmed. The following steps must be entered while Red indicator is on. Point the remote control toward the device that was turned on in Step 1 and press in the first three-digit Set-Up Code number for that device using the number buttons (0-9) on the remote control.

  • Page 11: Auto Search Method

    Using Your Remote Auto Search Method Please use this method if none of the Set-Up Code numbers worked for your device during the three digit code method or if the manufacturer or brand for your device is not listed in Set-Up Code Tables. Turn on the device you would like the remote control to operate, either manually or with your original remote control.
  • Page 12 Using Your Remote If you pass the correct Set-Up Code number, you can return to it by pressing the CHANNEL DOWN button, one Set-Up Code number at a time, until your device turns back on. Note: During programming, the signal for POWER ON and POWER OFF is located on the MUTE button.

  • Page 13: Recalling The Set Up Code Number

    Using Your Remote Recalling the Set-Up Code Number To display the three digit Set-Up Code number that was stored for a device. Press the Device Button and the MUTE button, simultane- ously. Red indicator and Device light will be on. Press the T/V button.

  • Page 14: Learning Codes

    Using Your Remote C: Learning Codes To program the remote control for your devices by teaching the commands from your original remote control to buttons. Learning codes Method Place the front of the original remote with the code being sent so that it is facing the IR transmitter window on the RV4700 DTS-ES remote control.

  • Page 15: Erasing Learned Codes

    Using Your Remote Repeat the above steps 2~4 to program for each button. Once all codes have been programmed, press Device button and the Enter button simultaneously. Indicator (orange) will flash twice. Repeat the steps 1~6 for any additional remotes you wish to teach into the RV4700 DTS-ES remote control.

  • Page 16: Operation

    Using Your Remote Press Light button. Indicator (green) will flash twice, and then Indicator (orange) and Device light will be on. Press Device button and Enter button simultaneously. Indicator (orange) will flash twice. D : Operation After you have programmed the remote control for your equipment, use the following procedures to operate your home entertainment system: Press the Device Button that you wish to operate: e.g.

  • Page 17: Device Buttons

    Using Your Remote Device Buttons Any press of a Device button at the top of the remote control can perform the following functions: Changes the Device mode on the RV4700 DTS-ES remote control. Sends out a preprogrammed or taught POWER ON command for a Device, if applicable.

  • Page 18: Advanced Features

    Advanced Features After you set-up the remote control to operate your equipment, you can also program advanced features on the remote control. The advanced features are designed to enhance the use of the remote control with your home entertainment system. A : Punch Throughs Volume Control “Punch Through”...

  • Page 19: Memory Buttons

    Advanced Features AUDIO or TV Volume Control will now override the original VOLUME and MUTE in this mode. To Return to the Original Setting: Select the mode that you want to turn off the Volume Control “Punch Through.” Press the corresponding Device Button and the MUTE button simultaneously.
  • Page 20 CH SEL CH SEL Advanced Features ENTER ENTER INTRO INTRO DELAY DELAY DELAY DELAY also program the memory buttons in SAT mode and it will ADJUST ADJUST TIME TIME send out the stored commands in Satellite, TV, VCR and AUTO AUTO CBL modes.

  • Page 21: Programming Memory Buttons

    Advanced Features Programming Memory Buttons: Select the section that you wish to program the Memory Button in by pressing the corresponding Device Button (AUD, or SAT) and MUTE button, simultaneously. Program indicator(red) and Device light will be on. Press one of the Memory Buttons (M1, M2, M3, M4, or POWER) into which you wish to store the functions.

  • Page 22: Erasing Memory Buttons

    Advanced Features Press the Audio Device Button and the MUTE button simultaneously. Program indicator(red) and Device light will be on. Press Memory Button M2. The lights flash once. Press the MUTE* button (to turn on the Audio receiver) The lights flash once. Press the TV Device Button (to change to the TV mode) The lights flash once.

  • Page 23: Programming A Second Tv, Vcr, Etc. To Other Device Buttons

    Advanced Features C: Programming a Second TV, VCR, etc. to Other Device Buttons. This feature is used to program the remote control for two or more TVs, VCRs, etc., or to program a device into a mode with a different Device Button name. You can store the three-digit Set-Up Code number for any device into any other unused Device Button.

  • Page 24: Warranty And Specifications

    Warranty The RV4700 DTS-ES remote control comes with a one-year warranty from the date of purchase. Specifications Model RV4700 DTS-ES infrared remote control. Power Four 1.5 V AAA Batteries. Dimensions (h/w/d) 8.88 x 2.5 x 1.25 inches Weight 7 oz. (with batteries)

  • Page 25: Glossary

    Glossary Cursor Control Buttons that correspond to the UP, DOWN, LEFT, RIGHT, ENTER, OSD, CH SEL functions of your audio/video equipment. Device Audio or video equipment, e.g. Television, VCR, Cable box, Audio receiver, Satellite receiver, etc. Device Button Any of the eight buttons located at the top of the remote control labeled AUD, CD, DVD, AUX, SAT, TV, VCR and CBL.

  • Page 26: Transport Control

    Glossary Set-Up Code Number The three-digit number that is used to program the remote control for your particular manufacturer or brand of audio/ video equipment. Set-Up Code numbers are located in tables in the appendix on pages 27 - 41 of the instruction manual.

  • Page 27: Appendix

    Appendix A : Assignment of Audio/Video Equipment Please use the following listing to locate the correct Set-Up Code Tables for your equipment: Satellite Set-Up Code Table: DSS, Primestar, DBS, Echostar, C Band receivers TV Set-Up Code Table: TVs, Monitors, Video/LCD Projectors VCR Set-Up Code Table: VCRs, TV/VCR combination units...

  • Page 28: Set Up Code Tables

    Table of Contents Manufacturer/Brand Set-Up Code Number ADCOM AIWA 187 170 089 AKAI AUDIO TECHNICA CARVER 167 041 135 138 139 050 203 DENON 205 226 FISHER 047 033 208 046 136 163 004 KENWOOD 007 055 023 137 016 MARANTZ 044 041 MONDIAL...

  • Page 29: Dvd

    Table of Contents Manufacturer/Brand Set-Up Code Number DENON 005 006 074 057 MAGNAVOX MITSUBISHI ONKYO PANASONIC PHILIPS PIONEER PROSCAN 005 006 005 006 SAMSUNG 011 015 SHERWOOD 001 057 074 112 114 116 SONY THOMPSON 005 006 TOSHIBA VIETA YAMAHA ZENITH 074 057...
  • Page 30 Table of Contents Manufacturer/Brand Set-Up Code Number DAEWOO DENON GOLDSTAR KENWOOD MAGNAVOX OPTIMUS PANASONIC PHILIPS PIONEER 020 034 REALISTIC SAMSUNG 023 029 SHARP 025 028 SONY TECHNICS TOSHIBA YAMAHA * Note : These codes are stored in DVD device button.
  • Page 31 Table of Contents Manufacturer/Brand Set-Up Code Number ADMIRAL 122 229 AKAI 045 120 197 ALBA ALBIRAL ALCATEL AMSTRAD 005 052 ARC EN CIEL 071 087 092 131 244 ARISTONA 108 120 122 136 169 216 218 ARTHUR MARTIN 132 164 185 191 194 197 206 211 122 135 146 174 229 ATLANTIC 108 170...
  • Page 32 Table of Contents Manufacturer/Brand Set-Up Code Number DUAL 108 152 DUAL-TEC 098 108 226 DUMONT 103 122 146 204 ELBE 035 038 178 ELBIT ELCIT 103 104 119 122 161 208 226 ELMAN 103 226 ELTA EMERSON 005 102 122 ERRES 120 169 EUROPHON...
  • Page 33 Table of Contents Manufacturer/Brand Set-Up Code Number IMPERIAL 038 112 200 221 226 247 INGELEN 006 147 161 194 197 211 217 220 229 INNO HIT 045 102 104 108 123 213 253 INTERFUNK 107 120 122 131 147 161 169 197 211 217 240 IRRADIO 045 123 132 213 253 006 057 147 154 161 194 197 211 215 217 220...
  • Page 34 Table of Contents Manufacturer/Brand Set-Up Code Number NOBLEX NOBLIKO 102 103 108 132 146 NOGAMATIC 071 087 092 131 244 NOKIA 006 057 147 154 161 194 197 211 215 217 220 229 230 233 251 NORDMENDE 071 075 087 092 131 223 240 244 OCEANIC 161 165 197 ONCEAS...
  • Page 35 Table of Contents Manufacturer/Brand Set-Up Code Number ROBOTRON 113 122 113 122 SABA 071 072 075 083 087 088 092 104 122 131 177 191 236 240 244 SAISHO 005 108 189 190 192 253 SALORA 132 164 185 191 194 197 206 211 230 233 SAMBERS 103 104 125 132 177 213 SAMPO...
  • Page 36 Table of Contents Manufacturer/Brand Set-Up Code Number THOMSON 031 071 075 087 088 092 131 240 244 THORN-FERGUSON 033 088 090 133 139 146 160 178 216 236 TOCOM TOSHIBA 013 038 076 199 205 TRANS CONTINENTS 102 104 132 229 TRIUMPH UHER 126 170 206...
  • Page 37 Table of Contents Manufacturer/Brand Set-Up Code Number ALBA AMSTRAD 052 127 159 ARCON ARISTONA ASTRA BLAUPUNKT BUSH CH. MASTER CITY COM DYNASAT ECHOSTAR 017 057 062 128 EMME ESSE FAIT FERGUSON 093 102 108 120 123 FINLUX 050 051 086 FRACARRO GOLDSTAR 034 136...
  • Page 38 Table of Contents Manufacturer/Brand Set-Up Code Number MINERVA MULTISTAR MURATO NEIRU NOKIA 150 161 NORSAT PACE 008 104 108 120 123 134 PANASONIC PHILIPS 032 075 076 178 PHONOLA PROSAT QUADRAL QUELLE RADIOLA REDIFFUSION SABA SALORA SAMSUNG 032 140 SAT PARTNER SATPORTNER SCHAUB LORENZ 150 161...
  • Page 39 Table of Contents Manufacturer/Brand Set-Up Code Number AKAI 036 043 142 166 168 179 ALBA 024 108 AMSTRAD ANITSCH ARC EN CIEL 043 044 166 ARISTONA 053 167 AWIA 034 043 BAIRD 043 179 BAUER•BOSCH 042 046 BLAUPUNKT 042 046 162 167 174 183 BRANDT ELECTRONIQUE 043 044 166 BRIONVEGA BUSH...
  • Page 40 Table of Contents Manufacturer/Brand Set-Up Code Number GRAETZ 039 043 044 158 166 182 GRANADA 010 014 067 GRUNDIG 042 046 067 162 167 173 174 HANSEATIC HARMAN-KARDON HIFIVOX 043 044 166 HINARI 006 024 144 150 HITACHI 013 020 034 043 146 IMPERIAL INGELEN 043 044 166 182...
  • Page 41 Table of Contents Manufacturer/Brand Set-Up Code Number NOGAMATIC 043 044 166 NOKIA 010 014 039 043 044 158 166 179 182 NORDMENDE 018 043 044 166 173 178 OPTONICA 053 054 ORION 006 027 145 150 OSAKI OTTO VERSAND P. CINEMA PALLADIUM 039 042 PANASONIC...
  • Page 42 Table of Contents Manufacturer/Brand Set-Up Code Number SHINTOM SIEMENS 042 046 162 167 174 182 SIERA 053 167 SINUDYNE SONY 052 056 058 149 154 STERN 043 044 166 SUNKAI SYLVANIA 034 059 SYMPHONIC 034 059 TASHIKO TATUNG 034 043 TEAC 034 043 TEKNIKA...
  • Page 43 ....Notes ....
  • Page 44 ....Notes ....
  • Page 45 ....Notes ....
  • Page 46 OEE-0044C...
