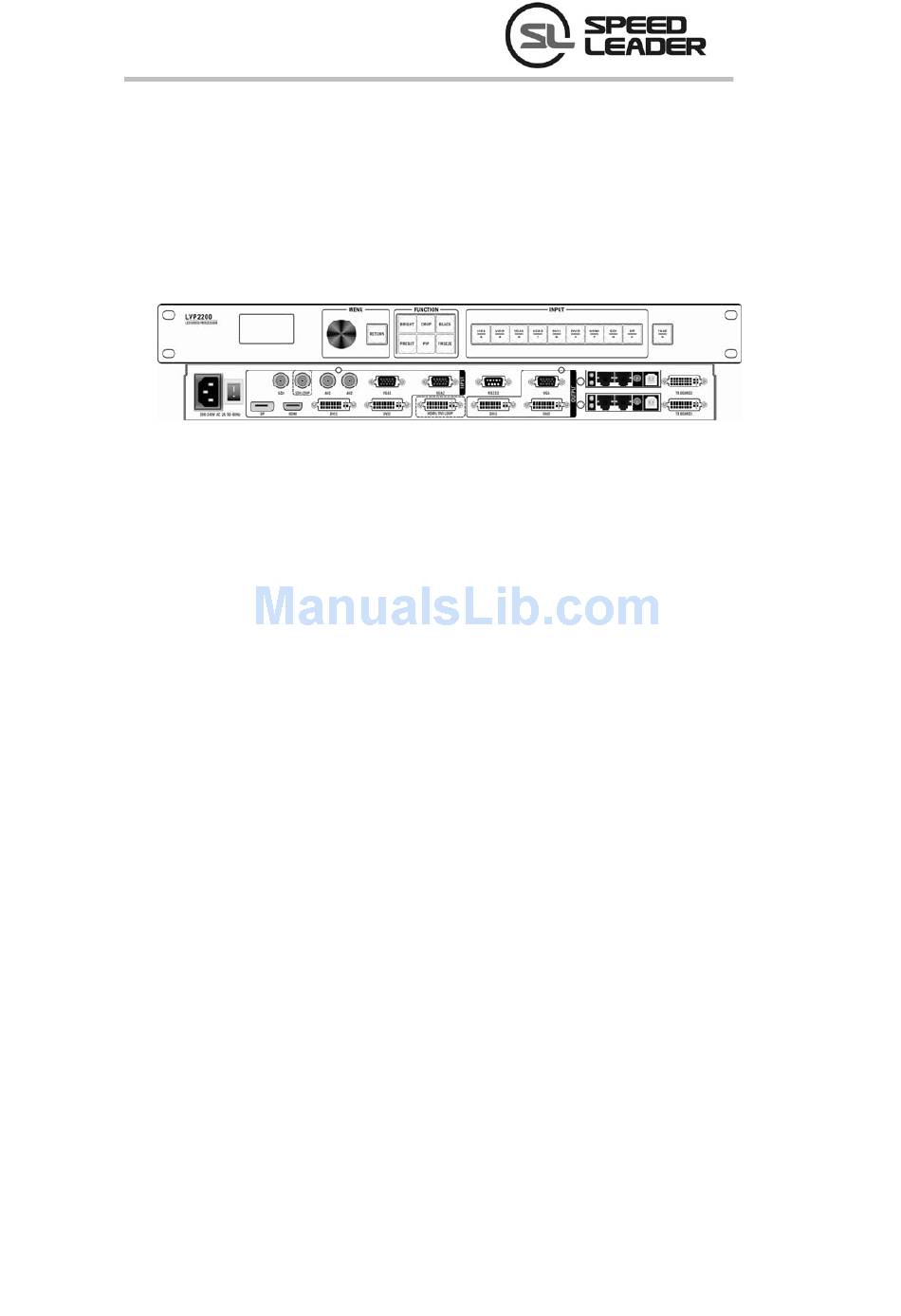

Page 1 SpeedLeader Technology User Manual LVP2200 LED Video Processor...
Page 2: Table Of Contents
Contents Representation ......................1 Trademarks ......................1 Safety Precautions ....................2 Accessories ......................3 Model Descriptions ....................5 Overview ......................... 6 Panels ........................8 Front Panel ...................... 8 Rear Panel ......................9 Menus ........................11 Default Menu Overview ................11 Descriptions on Main Menu ................
Page 3 Preset Settings ....................29 Save Preset..................... 29 Erase Preset ................... 30 Load Preset .................... 30 Seamless Switching/Fade-in Fade-out Settings ..........31 Specifications ......................33 Troubleshooting ..................... 34...
Page 4: Representation
Representation The manual must not be copied, reproduced or transcribed or translated in whole or part, or disclosed commercially in any means (electronic, mechanical, photocopying, recording or otherwise) or used for any commercial profit without prior written consent of our company. Please read this manual carefully before use.
Page 5: Safety Precautions
Safety Precautions The equipment must be connected with ground wires. Voltage with rated power shall be employed by the equipment and the input voltage error shall be ±10%. Do not connect AC power cord with another AC power cord that may cause excessive noise.
Page 6: Accessories
Accessories Table 4.1 Packing List Items Name Quantity LVP2200 Power cord DVI cord BNC-RCA convertor BNC-RCA terminal User manual Certificate of conformity...
Page 7 Warranty card M3*6 round head screws Φ5*18 copper pillars *Above accessories may differ upon service condition of the user.
Page 8: Model Descriptions
Model Descriptions Table 5.1 Model Descriptions Models Descriptions Basic model LVP2200 One 3G-SDI extended input; one 3G-SDI loop output LVP2200S...
Page 9: Overview
Overview LVP2200 series is a high-performance LED video processor, which adopts 30-bit digital image processing, advanced deinterlacing signal processing and truly seamless switching technology for professional demonstration environment. It can support 1080p and 1920*1200@60Hz full high-definition outputs (up to 2304*1152@60Hz), adjust pixels in a point-to-point manner and receive a variety of video input formats such as 3G-SDI, HDMI, DVI, DP, VGA and standard definition video, etc.
Page 10 Broadcast-level Image Scaling Engine The LVP2200 series video processor, with the adoption of a high-performance 30-bit Faroudja® DCDI image scaling engine, can convert image resolutions for the signals with different resolutions downward or upward; at the meantime, a professional ACC and ACM image processing engine is installed to present brand-new visions for you.
Page 11: Panels
Panels Front Panel Fig.7.1 Panel Table 7.1 Descriptions on Front Panel Serial No. Name Operating instructions LCD display Display menus and current information. screen Select up, down, left and right menus or adjust the Knob parameters; press to be an enter key slightly RETURN Return key BRIGHT...
Page 12: Rear Panel
Fade-in fade-out and seamless switching shortcut key, TAKE numeric key 0 Rear Panel Fig. 7.2 Descriptions on Rear Panel Table 7.2 Descriptions on Rear Panel Serial Name Definition Descriptions/Supports AC Socket Input Applied to 100V-240V AC 50/60Hz power supply Power Switch “I”-On, “O”-Off 1080p 60/50/30/25/24/25(PsF)/24(PsF) Output...
Page 13 480i/p, 576i/p, 720p, 1080i/p, support 8-bit, 10-bit HDMI Input and 12-bit color depth DVI1 Input VESA standard, PC to 1920*1200 DVI2 Input Loop out HDMI, DVI1 and DVI2 input signals, of HDMI/DVI Output which the format is consistent to that of the HDMI LOOP and DVI.
Page 14: Menus
Menus Default Menu Overview LVP2200 owns a menu system to use conveniently. Fig. 8.1 is the menu after the LVP2200 is powered on and the signal is connected. The user can obtain the current input signal source and output signal, as well as other important information via the menu, as shown in table 8.1.
Page 15: Descriptions On Main Menu
Press the knob, then the LVP2200 enters a main menu state and the LCD screen pops out a main menu as shown in the Fig. 8.2 below. The user can press the knob to confirm and rotate it left or right to select and adjust each item.
Page 16 ① Main Image Crop Horizontal Width——Default: 720; Range: 0-720 Vertical Height——Default: 240; Range: 0-240 H Start——Default: 0; Range: 0-2048 V Start——Default: 0; Range: 0-2048 Crop Switch——Default: Off; turn on the crop switch when modifying above parameters Reset——Initialize above main layer crop parameters under the current channel...
Page 17 ②PIP Crop Horizontal Width——Default: 720; Range: 0-720 Vertical Height——Default: 240; Range: 0-240 H Start——Default: 0; Range: 0-2048 V Start——Default: 0; Range: 0-2048 Crop Switch——Default: Off; turn on the crop switch when modifying above parameters Reset——Initialize above PIP layer crop parameters under the current channel ③VGA EDID Press the knob to enter the sub-menus of VGA EDID where 11 fixed EDID are optional ④DVI EDID...
Page 18: Output Menu
Output Menu ① Output Resolution Press the knob to enter the sub-menus of the output resolutions where 17 fixed output resolutions and self-defined output resolutions are optional ②LED Panel Settings Panel Width——Default: 1920; Range: 0-Horizontal resolution value Panel Height——Default: 1080; Range: 0-Vertical resolution value H Start——Default: 0;...
Page 19 ③PIP Window Settings WIN Width——Default: 950; Range: 0 ~ (Output resolution width) WIN Height——Default: 540; Range: 0-(Output resolution height) H Start——Default: 0; Range: 0-( Output resolution width – Window width) V Start——Default: 0; Range: 0-( Output resolution height - Window height) Reset——Initialize above PIP window settings of the current channel ④...
Page 20: Preset Menu
⑤ Unequal Splicing Pattern Pattern——Unequal, it means the horizontal width is different from the vertical height Total Width——Default: 1920; Range: 0-(Output resolution width*10) Total Height——Default: 1080; Range: 0-(Output resolution height*10) H Start——Default: 0; Range: 0-[( Output resolution width*10)-Total width] V Start——Default: 0; Range: 0-[( Output resolution height*10)-Total height] Reset——Initialize above parameters of the current channel at the unequal splicing pattern Preset Menu...
Page 21: Image Menu
Image Menu Layer—— Default: Main channel; Option: PIP channel Brightness——Default: 50; Range: 0-100 Contrast——Default: 50; Range: 0-100 Color——Default: 50; Range: 0-100 Sharpness——Default: 12; Range: 0-24 Color TEMP——Default: normal color; Options: warm color and self-defined color Reset——Initialize above parameters at the image menu of the current channel Function Menu ①PIP Settings...
Page 22 PIP——Default: Off; the PIP shall be turned on when the parameters below are adjusted; the PIP also can be turned on by the key "PIP"; when the PIP is on, the splicing mode should be turned off Input——Default: VID1; to choose the channel, a list of PIP source conflicts shall be known necessarily;...
Page 23: System Menu
③VGA Settings Auto Adjust——Tap the knob to correct phase of the currently input VGA signal H Position——Default: 0; Range: 0-100 V Position——Default: 0; Range: 0-37 H Clock——Default: 2210; Range: 0-Horizontal total width Clock Phase——Default: 0; Range: 0-63 ④Test Menu The test menu shall be turned off in the default state; there are color bars, multiwaves, squares, gray scales, pure color and others for options if the menu is turned on;...
Page 24 ③Image Quality Optimization Contrast PT——Default: Normal; Options: Weak or dynamic ACM Manage——Default: Off; Option: On Motion Mode——Default: Off; Option: Auto BLK Extend: Default: Off; Options: Weak, moderate and strong DNR——Default: Off; Options: Weak, moderate and strong MPEG NR——Default: Off; Options: Weak and strong Film Mode——Default: On;...
Page 25: Function Descriptions
Function Descriptions The user shall know the main functions to configure the machine rapidly, thereby completing the engineering installation and commissioning. Before setting each function, please check whether the machine is connected correctly and the signal is input normally. Output Resolution Settings After installing the equipment correctly, the user shall set the output resolution of the video processor according to the resolution of the LED panel.
Page 26: Signal Connection
LED panel. To set the output resolution, select "output"→ "output resolution" →"resolution". LVP2200 splicing includes equal splicing and unequal splicing, in which the equal splicing refers to the horizontal pixels and the vertical pixels of each part of the video wall are equal,...
Page 27: Equal Splicing Settings
Splicing position=2 Splicing position =3 Splicing position =1 LVP2200-1 LVP2200-2 LVP2200-3 Fig. 10.2 Equal Splicing As shown in the Fig. 10.2, the equal splicing settings are as follows: Select "output" menu in the main menu → Change "panel width" in "LED settings" menu into 1024 and "panel height"...
Page 28: Unequal Splicing Settings
As shown in the Fig. 10.3, the unequal splicing settings are as follows: Select "output" menu in the main menu → Change "panel width" of the LVP2200-1 in "LED settings" menu into 1872, "panel height" into 1040 and "H/V start" into 0. Change "splicing mode" in the "splicing settings"...
Page 29: Pip Mode Settings
At the PIP mode, the user shall provide two paths of signal input at least and set the PIP menu correspondingly. Before using the PIP function, the user shall know the list of signal input conflicts. Table 10.1 List of LVP2200 Signal Input Conflicts Main VID1...
Page 30: Pip Parameter Settings
PIP Parameter Settings Open the PIP mode (that is, PIP key light is on) to enter "function → PIP settings" menu, choose "on" for the PIP (or press PIP key directly on the front panel) or DVI for the signal source, change "Window width"...
Page 31: Keying Mode
Keying Mode Keying is an extension of the PIP function and is realized by reducing the designated color from the image color input by the PIP channel. The image matting function can be applied to some simple special effect processing and caption adding. Caption Add PIP Channel Main Picture Channel...
Page 32: Preset Settings
Preset Settings The preset mode is convenient for the user to load out various common application scenarios in use, thereby alleviating the repeated troublesome settings for the user in operation and improving the working efficiency. Every preset mode shall involve in input channel, image quality, image, crop, window and PIP associated parameters.
Page 33: Erase Preset
Erase Preset Press the knob to enter the main menu. Select "preset → erase preset" and press numeric keys 0-9 to erase the corresponding preset saved before. The saved numeric box turns into hollow from solid, as shown by the number 2 in the Fig. 10.6. Fig.
Page 34: Seamless Switching/Fade-In Fade-Out Settings
Seamless Switching/Fade-in Fade-out Settings Fig.10.8 Switching Menu Table 10.2 Descriptions on Switching Menu Serial No. Descriptions Channels and resolutions to be switched Time for switching the special effect: seamless switching (0.0); fade-in fade-out (0.1-5.0) Output channels and resolutions at the switching state Machine being in switching state As shown in Fig.
Page 35 Table 10.3 List of LVP2200 Source Input Conflicts Main Channel VID1 DVI1 DVI2 √ × √ √ √ √ √ √ √ VID1 × √ √ √ √ √ √ √ √ VID2 √ √ √ × √ √ √...
Page 36: Specifications
Specifications Port Quantity Specifications Video input PAL, NTSC, PAL-M/N, SECAM VESA standard, PC to 1920*1200 VESA standard, PC to 1920*1200 HDMI 480i/p, 576i/p, 720p, 1080i/p, 8, 10, 12-bit in color depth VESA standard, PC to 1920*1200 1080p 60/50/30/25/24/25(PsF)/24(PsF) 720p 60/50/25/24 (Optional) 1080i 1035i...
Page 37: Troubleshooting
Troubleshooting Problems may be encountered during installation or use. Here, the user can follow the steps below to remove the troubles; if the steps below still cannot fix the problems for you, please contact the local dealer. The equipment has no image and the indicator light doesn’t work. Check whether the power supply is connected well and the power switch is turned on.
Page 38 I n d u s t r y S a l e s a n d S e r v i c e H o t l i n e : 4 0 0 - 6 2 8 6 - 9 5 9 SHENZHEN SPEEDLEADER TECHNOLOGY CO., LTD.
