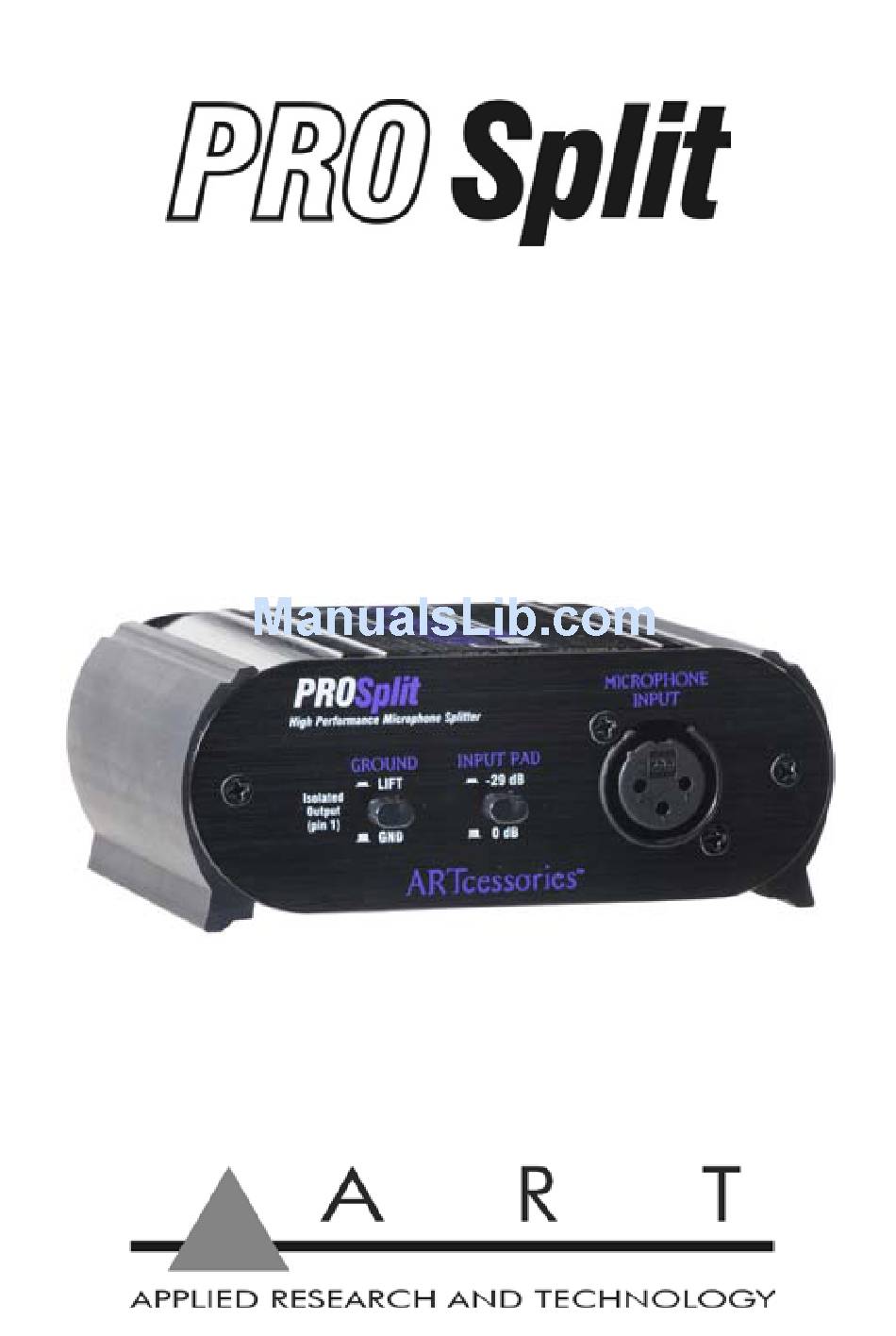

  • Page 1 High Performance Microphone Splitter Artcessories User's Manual...
  • Page 3 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to important operating alerts you to the presence of and maintenance instructions in uninsulated dangerous voltage the accompanying literature. inside enclosure-voltage that may be Please read the manual.
  • Page 4 Installation: Install the unit in accordance with the instructions printed in the user guide.
  • Page 5 INTRODUCTION: Thanks purchasing Applied Research Technology’s PROsplit. The PROSplit provides one direct output and one transformer isolated output from a single microphone input. Applications include sending the direct output to the main or Front-of-House mixer, with the second isolated output being sent to a monitor or recording mixer. The direct output passes phantom power from the main mixer to the microphone for use with condenser microphones.

  • Page 6: Installation And Operation

    INSTALLATION and OPERATION: Connect a low impedance dynamic or condenser microphone to the MICROPHONE INPUT on the PROSPLIT (alternately connect a line level signal to the MICROPHONE INPUT and engage the front panel INPUT PAD switch.). Connect the DIRECT MICROPHONE OUTPUT to the mic input on main mixer (switch phantom power on at mixer if desired).

  • Page 8: Specifications

    SPECIFICATIONS: Frequency Response: 20Hz to 20kHz, ±0.25dB @ -15dBu -3dB@approx.165Hz THD: <0.26% from 20Hz to 20kHz –15dBu input <0.1% from 45Hz to 20kHz, –15dBu input 0.002% Typical @ 1kHz, -15dBu Input Phase Shift: <10° @ 20kHz (Ref, 1kHz) Input Impedance: >1.1k Ohms @ 1kHz (Typical driving source impedance is 150 Ohm)
  • Page 9 INPUT and 1k Ohm load connedcted to TRANSFORMER ISOLATED MICROPHONE OUTPUT to simulate a typical "real world" microphone and mic preamplifier. 0dBu = 0.775VRM...

  • Page 10: Warranty Information

    WARRANTY INFORMATION: Limited Warranty (USA only) Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (ART) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase.
  • Page 11 or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights and you may have other rights, which vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor...
  • Page 12 SERVICE: The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure that the unit has power supplied, that all cables are connected correctly, and that the cables themselves are in working condition.
  • Page 14 www.artproaudio.com E-mail: support@artproaudio.com © 2014 Applied Research & Technology PROSPLIT...
  • Page 15 PS-5004-101 V1.1...
