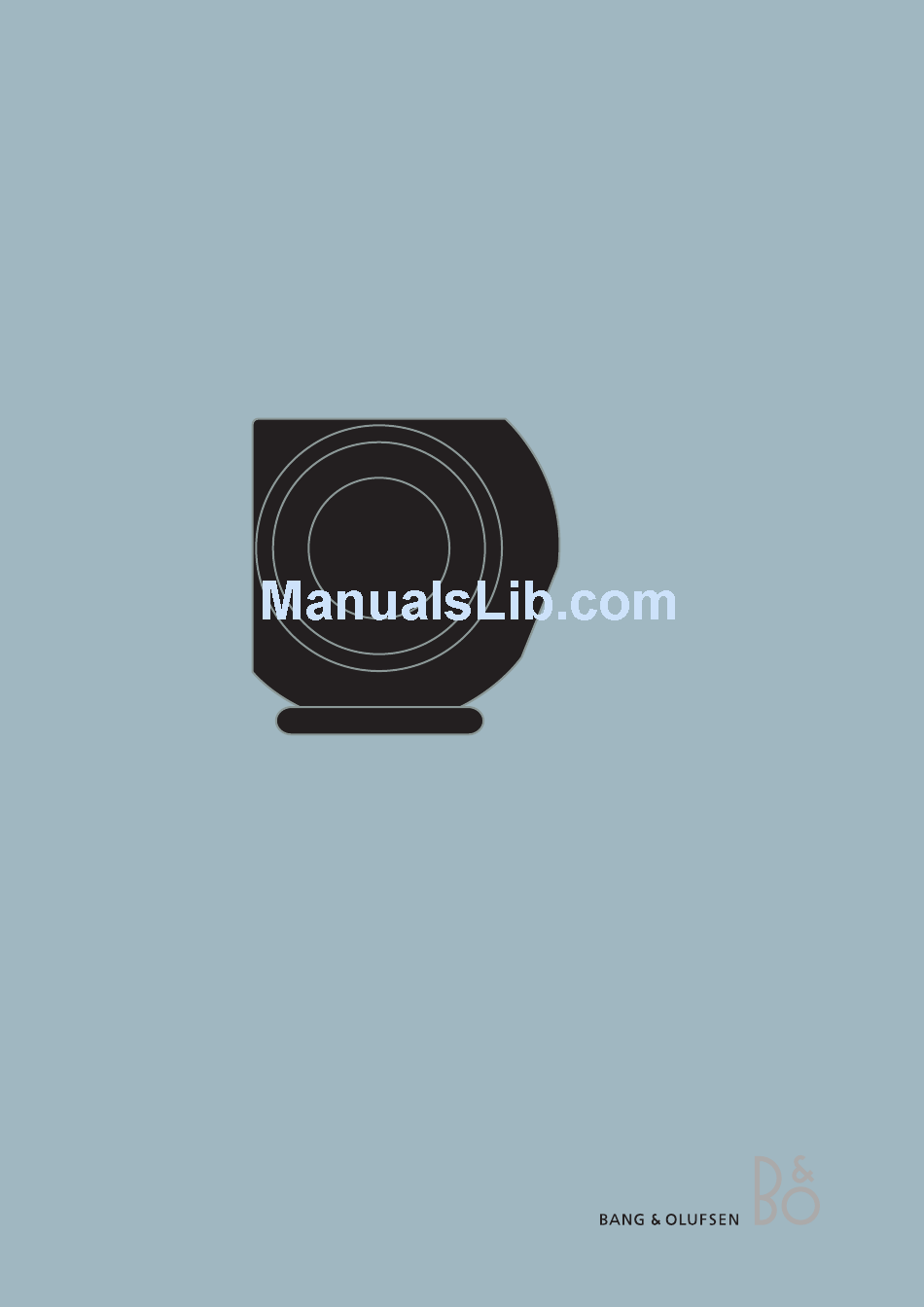

- Page 1 BeoLab 2 Type 6861, 6862, 6863, 6864, 6865, 6867 From serial no. 19367810 Service Center repair guide English...
- Page 2 How to service, English HOW TO SERVICE Big efforts have been made to introduce the highest quality and a low call rate. Therefore this product is suitable for the new Service Strategy which benefi ts the customer. In a service situation where there is an electrical fault in a BeoLab 2, the fault can be removed during one visit to the customer’s home if you bring a Back- up suitcase with you.
- Page 3 Specifi cation guidelines for service use SPECIFICATION GUIDELINE FOR SERVICE USE BeoLab 2 Type no. See type survey Dimensions W x H x D / Weight 260 x 315 x 310 mm / 17.7 kg Cabinet fi nish Aluminium, structure painted, grey Power Consumption Typical: 15 watts IEC65: 62W...
-
Page 4: Type Survey
1.10 Type survey TYPE SURVEY To change voltage supply, e.g. when moving between two countries, it may be necessary to order a new electrical chassis, mains trafo and mains cable. E.g.: Moving from EU (type 6861) to Japan (type 6864); order 3 part nos. for Japan type 6864 (electrical chassis - mains trafo - mains cable). - Page 5 Type survey 1.11 TYPE-OVERZICHT Om een voedingseenheid te vervangen, bijv. bij een verhuizing naar een ander land, is het soms nodig om een nieuw elektrisch chassis, een nieuwe transformator en een nieuw netsnoer te bestellen. Bijvoorbeeld: Bij een verhuizing vanuit de Europese Unie (type 6861) naar Japan (type 6864) bestelt u voor het Japanse type 6864 drie artikelnummers (elektrisch chassis, transformator en netsnoer).
-
Page 6: Setup Examples
Brief operation guide, English BRIEF OPERATION GUIDE Setting the POSITION switch Use the POSITION switch is to ensure that the bass response suits the placement of BeoLab 2, and thus the surroundings. Which switch setting to choose depends on the distance from BeoLab 2 to the walls and corners of the room. - Page 7 Brief operation guide, English Dolby ProLogic system - Connect one end of the cable to the socket marked IN on BeoLab 2, and the other end to one of the sockets marked FRONT on your Bang & Olufsen system. - Connect your front set of speakers to the sockets marked OUT on BeoLab 2. - Connect your rear set of speakers to the sockets marked REAR on your Bang &...
- Page 8 Brief operation guide, English Connect loudspeakers with BeoSystem 1 Using the cables enclosed with the loud-speakers, connect the speakers to the BeoSystem 1 rear connection panel. The front, center and rear sets of loudspeakers must be from the Bang & Olufsen range of Power Link speakers. However, you are not restricted to the speaker models shown in the illustration.
-
Page 9: Wiring Diagram
Wiring diagram WIRING DIAGRAM LF/SUPPLY ICE1000AM... - Page 10 Block diagram Block diagram BLOCK DIAGRAM...
- Page 11 List of available parts List of available parts LIST OF AVAILABLE PARTS BeoLab 2 9005 9006 9007 Incl. pos. nos. 9001 and 9009 9008 9006 9001 9005 9002 incl. PCB02 9009 9010 9003 9004 9005...
- Page 12 List of available parts BeoLab 2 9001 2623008 Cup f/handle 9002 6150027 Optical fi bre w/O-ring for PCB02 9003 2620132 Washer 9004 8480329 Bass unit 9005 2954028 Bezel 9006 8480330 Passive radiator 9007 6100245 Mains cable 1.8m - EU 230V 6100401 Mains cable 1.8m/7.5A - GB 230V 6100306 Mains cable 1.8m - USA/TWN/CND 120V 6100247 Mains cable 1.8m - JAP 100V...
-
Page 14: Repair Tips
Repair tips & cleaning, English Static electricity may destroy the product! STATIC ELECTRICITY MAY DESTROY THE PRODUCT REPAIR TIPS Service position Disassemble the BeoLab 2 see section 6. Extend the Power Link cable to the BeoLab 2, if necessary, with the cable from the Back-up suitcase. -
Page 15: Measuring Points
Measuring points MEASURING POINTS STATIC ELECTRICITY MAY DESTROY THE PRODUCT The mechanical limit for the driver is easily reached when the vacuum tightness in WARNING! BeoLab 2 is broken. Note! All measurements have to be done with the NTC module connected ! Trafo fuse for type 6864 Trafo fuse for type 6861, Mains supply... - Page 16 Disassembly DISASSEMBLY The bezels on the units are easily pulled off using the special tool from the Back-up suitcase. To protect the paintwork while disassembling the BeoLab 2, place the BeoLab 2 on the extra rubber foot from the Back-up suitcase. DEMONTAGE Die Verschlüsse der Einheiten können mit dem Spezialwerkzeug aus dem Servicekoffer leicht herausgezogen werden.
- Page 17 Disassembly Disassembly DISASSEMBLY WARNING! STATIC ELECTRICITY The mechanical limit for the driver MAY DESTROY THE is easily reached when the vacuum PRODUCT tightness in BeoLab 2 is broken Special bezel-tool PUSH Left Right Left Extra rubber foot from the back-up suitcase ALLEN ALLEN KEY 5...
-
Page 19: Insulation Test
Insulation test, English INSULATION TEST BeoLab 2 must be insulation tested if it has been dismantled. Make the test when the BeoLab 2 is reassembled and is ready to be returned to the customer. Insulation test at the Service center Short-circuit the two pins of the mains plug and connect them to one of the terminals of the Insulation tester. - Page 20 Bang & Olufsen DK-7600 Struer Denmark Phone +45 96 84 11 22* Fax +45 97 85 39 11 3538051 06-06...
